| SKU | IPM-121 |
| Screen Size | 12.1" |
| Resolution | 1024*768 |
| Viewing Angle | 89/89/89/89 |
| Brightness | 500 cd/m2 |
| Contrast Ratio | 1200:1 |
| Touch Screen | Capacitive, Resistive |
| Controller | USB interface |
| Durability | Cpacitive: ≥ 5M times / Resistive: ≥ 100,000 times |
| USB | 1 *USB (For touchscreen cable) |
| Display | 1 *HDMI, 1*VGA |

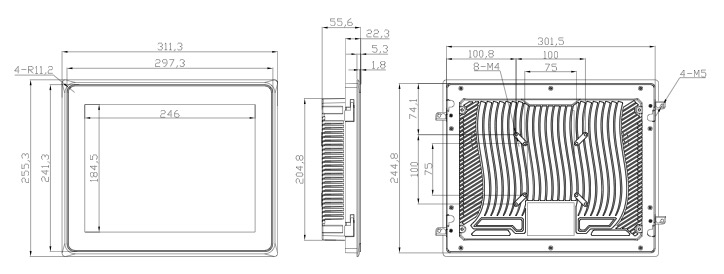

| Dimensions (mm) | 311.3*255.3*55.6mm |
| Mounting Hole Sizes (mm) | External embedded size: 305*248mm |
| Internal embedded size: 298.8*242.8mm | |
Individual Gross Weight (KG) | 3.25kg |
| Mounting Options | Embedded / Wall-mounted / Desktop |
| Operating Temperature | -30 ~ +70℃ |
| Storage Temperature | -40 ~ +80℃ |
Storage Humidity *Non-condensing | 5% ~ 95% |
| Power Input | 12V DC (3A) <Option Wide-range 9 ~ 36V DC Power Input> |
| Packaging Information | 1 *Master, 1 *Adapter, 1* Power Supply Cable, 1 *Touch Screen Cable, 1 *VGA cable, 1 *Manual, 1 *Warranty Card |

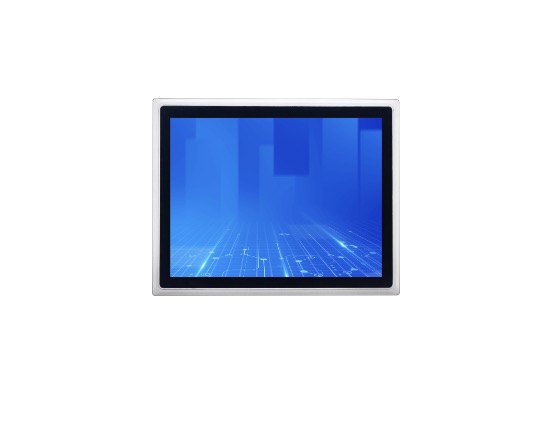

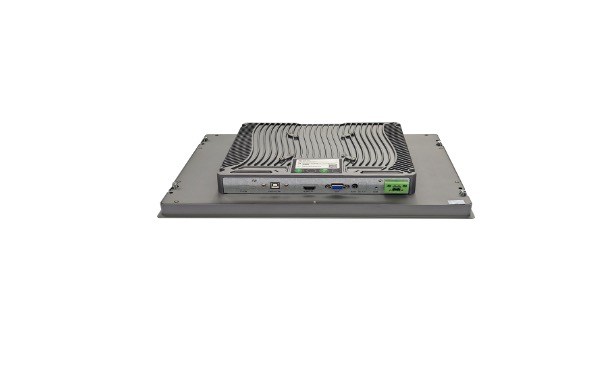

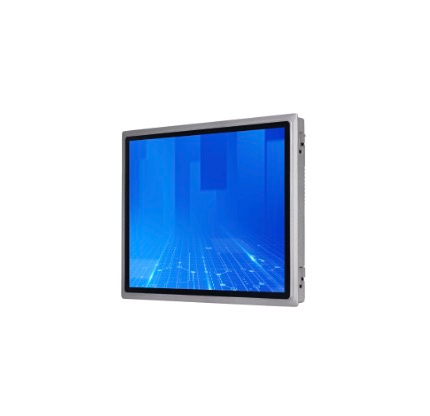

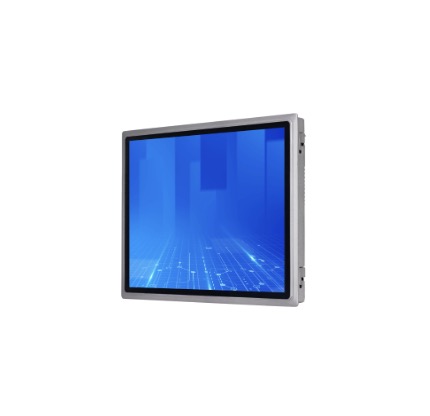

IPM-121 12.1" Industrial Display Touch Screen has many advantages, including:
Ease of use:
Intuitive and allow users to interact with content directly on the screen using fingertip gestures. This eliminates the need for a separate keyboard, mouse, or monitor.
Improved accuracy:
Help reduce errors by allowing users to input data quickly without looking away from their work.
Increased efficiency:
Automate repetitive tasks, such as order fulfillment and inventory management.
Durability:
Designed to withstand harsh environmental conditions and rough usage.
Low-power usage:
High-tech touchscreen displays are energy-efficient.
Works in harsh conditions:
Work in wet environments and through gloved hands.
Can be customized:
Custom-tailored to meet the specific needs of various applications.
| SKU | IPM-121 |
| Screen Size | 12.1" |
| Resolution | 1024*768 |
| Viewing Angle | 89/89/89/89 |
| Brightness | 500 cd/m2 |
| Contrast Ratio | 1200:1 |
| Touch Screen | Capacitive, Resistive |
| Controller | USB interface |
| Durability | Cpacitive: ≥ 5M times / Resistive: ≥ 100,000 times |
| USB | 1 *USB (For touchscreen cable) |
| Display | 1 *HDMI, 1*VGA |
| Dimensions (mm) | 311.3*255.3*55.6mm |
| Mounting Hole Sizes (mm) | External embedded size: 305*248mm |
| Internal embedded size: 298.8*242.8mm | |
Individual Gross Weight (KG) | 3.25kg |
| Mounting Options | Embedded / Wall-mounted / Desktop |
| Operating Temperature | -30 ~ +70℃ |
| Storage Temperature | -40 ~ +80℃ |
Storage Humidity *Non-condensing | 5% ~ 95% |
| Power Input | 12V DC (3A) <Option Wide-range 9 ~ 36V DC Power Input> |
| Packaging Information | 1 *Master, 1 *Adapter, 1* Power Supply Cable, 1 *Touch Screen Cable, 1 *VGA cable, 1 *Manual, 1 *Warranty Card |
IPM-121 12.1" Industrial Display Touch Screen has many advantages, including:
Ease of use:
Intuitive and allow users to interact with content directly on the screen using fingertip gestures. This eliminates the need for a separate keyboard, mouse, or monitor.
Improved accuracy:
Help reduce errors by allowing users to input data quickly without looking away from their work.
Increased efficiency:
Automate repetitive tasks, such as order fulfillment and inventory management.
Durability:
Designed to withstand harsh environmental conditions and rough usage.
Low-power usage:
High-tech touchscreen displays are energy-efficient.
Works in harsh conditions:
Work in wet environments and through gloved hands.
Can be customized:
Custom-tailored to meet the specific needs of various applications.
