| SKU | VW100 | |||||||
| Processor | Intel® CoreTM 4th/5th Gen I3/I5/I7 Processor | Intel®CoreTM 8th/10th Gen I3/I5/I7 Processor | ||||||
| Memory | 2 *DDR3 support 4G/8G/16G | 2 *DDR4 support 4G/8G/16G/32G | ||||||
| Storage | 1 *mSATA+1 *SATA(2.5” HDD capacity ≤2TB) | 1 *M.2+1 *SATA(2.5” HDD capacity ≤2TB) | ||||||
| Net work | 2 *Intel I210/I211 | |||||||
| COM | 6 *RS232(COM1-4 optional RS232/RS485) | |||||||
| USB | 4 *USB 3.0 / 2 *USB2.0 | |||||||
| Display | 1*HDMI、1*VGA | |||||||
| Other interfaces | 1 *AUDIO(2in1), 1 *nano SIM slot | |||||||
| Expand slot | 1 *MINI-PCIE support WIFI/LTE 4G | 1 *M.2(KEY E Wifi&BT 2230) / 1 *M.2(KEY B 4G/5G LTE 3052) | ||||||
| Operating system | Windows10/11,Linux | |||||||
| Power Input | DC12V | |||||||

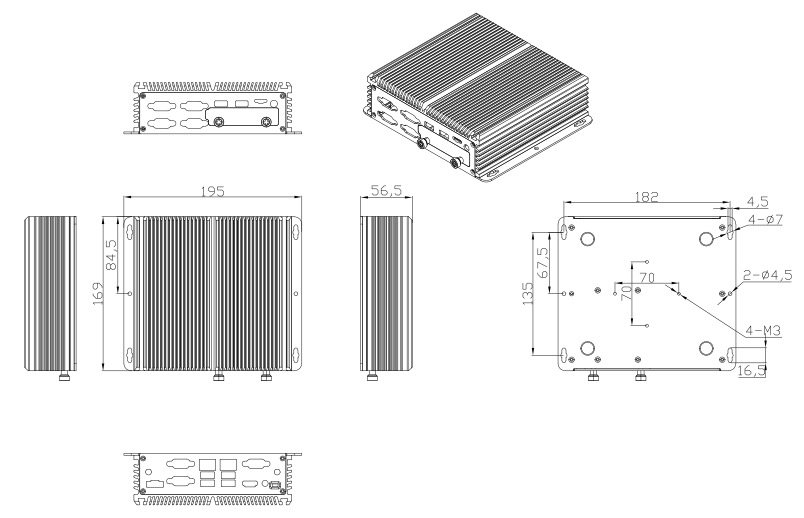

| Size included rack (mm) | 195x169x56.5 | |||||||
Individual Gross Weight (KG) | 1.65 | |||||||
| Mounting Options | Wall-mounted / Desktop | |||||||
| Operating Temperature | -30 ~ +70℃ | |||||||
| Storage Temperature | -40 ~ +80℃ | |||||||
Storage Humidity *Non-condensing | 5 ~ 95% | |||||||
| Packaging Information | ||||||||
| GW100 | 1 *Master, 1 *Adapter, 1* Power Supply Cable | |||||||
| GW100-4L | Optional to upgrade 4 *Intel l1210/l1211+4 *USB2.0 | |||||||
| GW100-GP | Optional to upgrade 4 *input/4 *output GPIO, optional 9 ~ 36V | |||||||

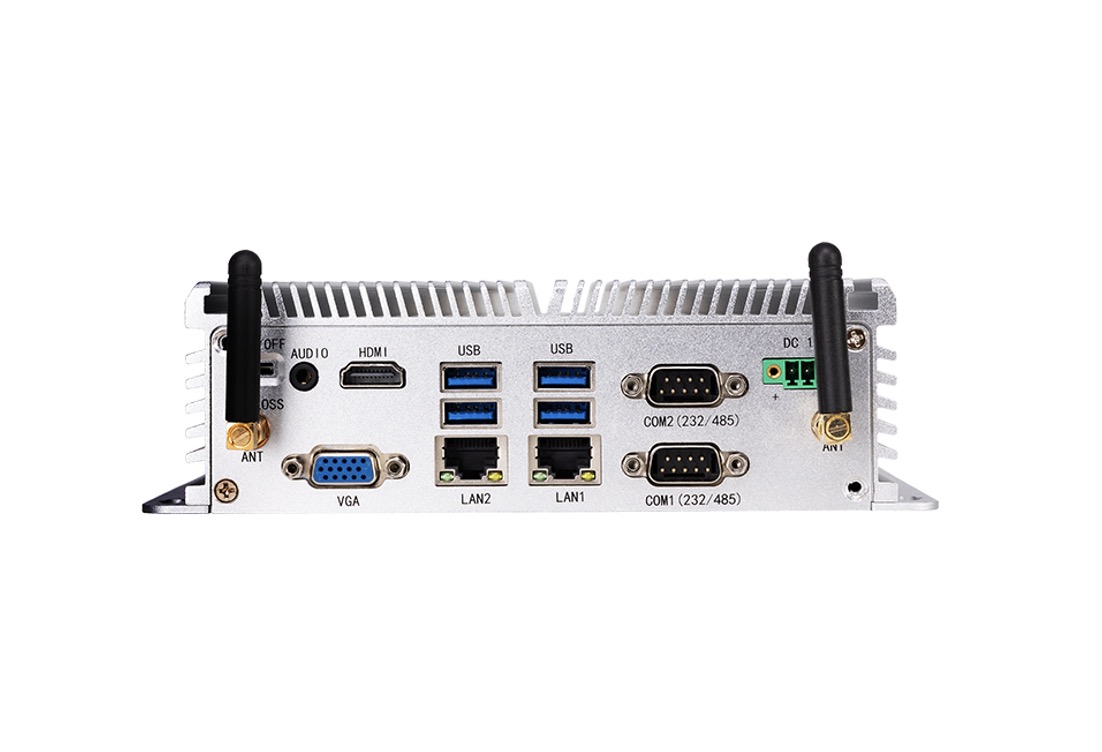

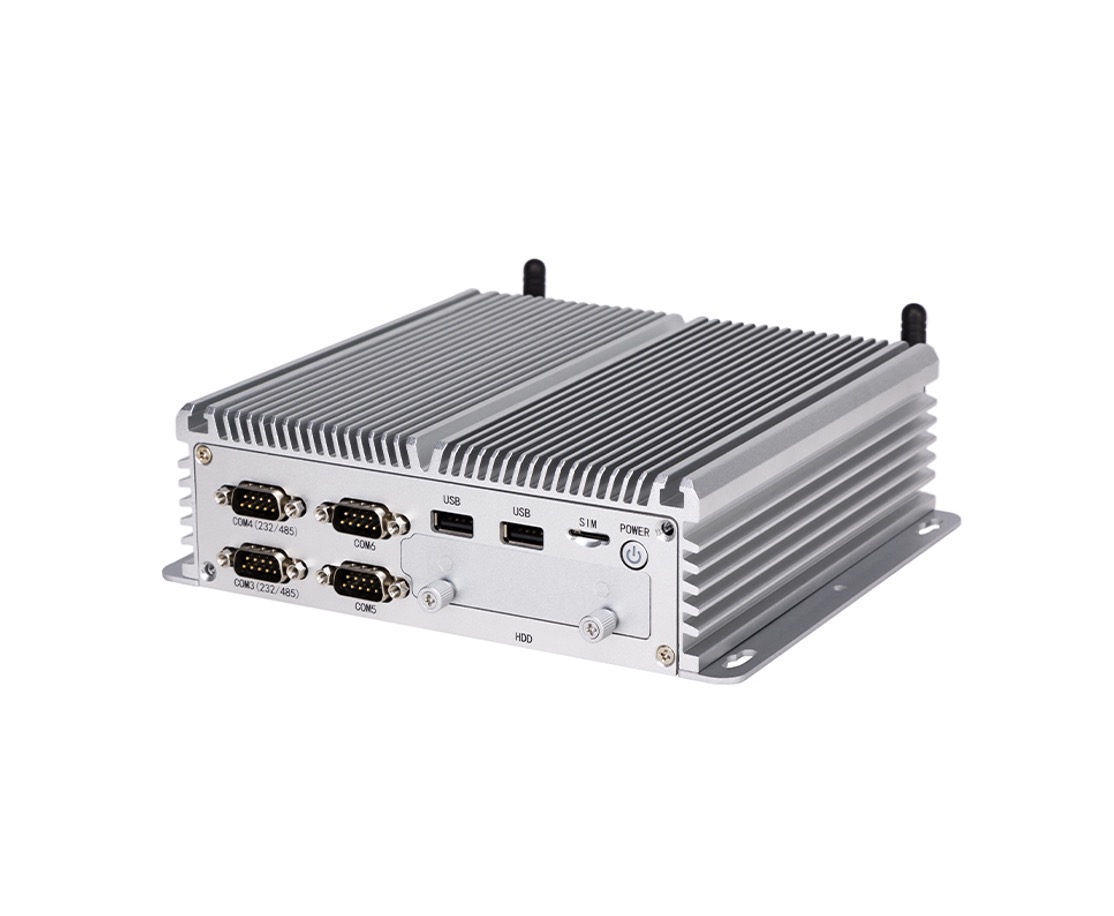

VW100 Fanless Embedded Computer is designed to operate without traditional cooling fans, and have several key features, including:
Reliability:
More reliable because they eliminate a common point of failure.
Reduced noise:
Quieter than traditional computers.
Compact design:
Often have a smaller footprint.
Lower power consumption:
Use less energy than traditional computers.
Shock and vibration resistance:
Designed to withstand shock and vibration.
Dust and debris resistance:
Designed to resist dust and debris.
Extended operating temperature range:
Operate in a wider range of temperatures.
Wide-voltage power protection:
Protect against a wide range of voltages.
Modular and expandable I/O options:
Modular and expandable I/O options.
VW100 Fanless Embedded Computer is often used in industrial applications and IoT devices. They are also used in transportation systems, fleet management, and automation control.
