| SKU | VRK35-2Lj | |||||
| Processor | Intel® Celeron® Processor J4125 | Intel® Celeron® Processor J6412 | ||||
| Memory | 2 *DDR4-2666/2400, U-DIMM, up to 32GB | |||||
| Storage | 1 *MSATA | 1 *M.2(NVME) | ||||
| Net work | 2 *Intel I226 | 2 *Intel I210 | ||||
| COM | 6 *RS232(COM1-2 support RS422/RS485) | |||||
| USB | 2 *USB3.0, 4 *USB2.0 | |||||
| Display | 1 *HDMI, 1 *VGA | |||||
| Other interfaces | 1 * input x4 & output x4 GPIO, 1 *AUDIO (2in1) | |||||
| Expand slot | 1*M.2 Bkey optional LTE 4G/5G or Wi-Fi & Bluetooth | |||||
| Operating system | Windows10/11,Linux | |||||
| Power Input | DC9 ~ 36V Wide-range Power Input | |||||

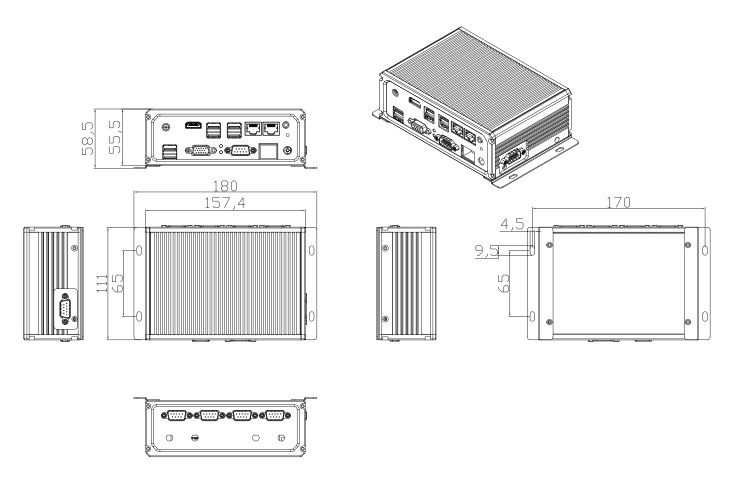

Size included rack (mm) | 180x111x58.5 | |||||
| Individual Gross Weight (KG) | 1.15 ~ 1.35 | |||||
| Mounting Options | Wall-mounted / Desktop | |||||
| Operating Temperature | -20 ~ +60℃ | |||||
| Storage Temperature | -20 ~ +70℃ | |||||
Storage Humidity *Non-condensing | 5 ~ 95% | |||||
| Packaging Information | 1 *Master, 1 *Adapter, 1* Power Supply Cable | |||||
VRK35-2Lj Embedded Computers for Automotive as embedded computers in automotive vehicles have many advantages, including:
Safety
Embedded systems control and monitor safety features like airbags, seat belts, and anti-lock braking systems.
Performance
Embedded systems optimize vehicle performance by controlling factors like fuel injection, ignition timing, and airflow.
Efficiency
Embedded systems monitor and control engine performance, transmission shifting, and other factors to improve vehicle efficiency.
Comfort
Embedded systems provide entertainment and communication features to make driving more enjoyable.
Environmental
Embedded systems optimize fuel consumption to reduce the environmental impact of vehicles.
Advanced driver assistance
Embedded systems control advanced driver-assistance features like adaptive cruise control and lane departure warnings.
Connected car devices
Embedded systems can help analyze accidents and breakdown data to provide valuable inputs to car makers and road infrastructure designers.
Many times, the VRK35-2Lj Embedded Computers for Automotive in the car will provide a code that mechanics can read so they know exactly what has malfunctioned.
