Android Panel PCs | VOPC ARM Series
VINCANWO GROUP
Availability: | |
---|---|
Quantity: | |
SKU | |||||||||
Screen Size | |||||||||
Resolution | 1024x768 | 1280x1024 | 1280x1024 | 1366 x768 | 1920 x1080 | 1920 x1080 | 1920 x1080 | 1920 x1080 | 1920 x1080 |
Viewing Angle | 89/89/89/89 | 85/85/80/80 | 85/85/80/80 | 45/45/20/40 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 |
Brightness | 350 cd/㎡ | 250 cd/㎡ | 250 cd/㎡ | 220 cd/㎡ | 250 cd/㎡ | 250 cd/㎡ | 250 cd/㎡ | 250 cd/㎡ | 250 cd/㎡ |
Contrast Ratio | 1000:1 | 1000:1 | 1000:1 | 500:1 | 1000:1 | 3000:1 | 3000:1 | 1000:1 | 1200:1 |
Touchscreen | Capacitive | ||||||||
Controller | USB interface | ||||||||
Durability | ≥ 5M times | ||||||||
Processor Family | ARM, Rockchip | ||||||||
Memory Type | 2G, 4G, 8G | ||||||||
Storage Type | 32G, 64G, 128G | 3588: 64G, 128G, 256G | |||||||

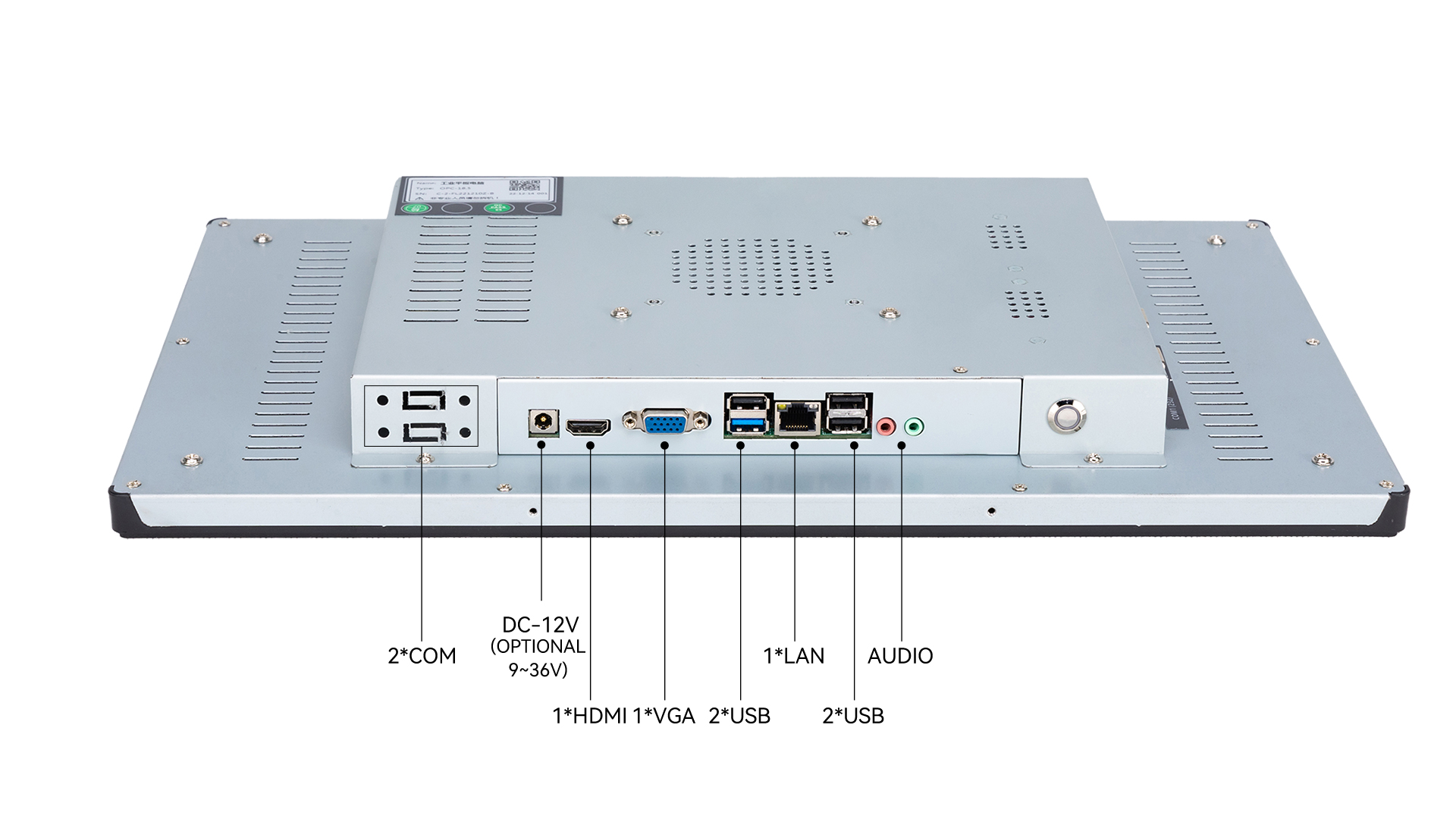

Ethernet / LAN | 1x LAN | 2x LAN | |||||||
Serial / Com | 2x RS232 (1x COM option RS485) | ||||||||
USB | 2x USB | ||||||||
Video Outputs | 1x HDMI | ||||||||
Expansion Slots | 1x Mini PCIE | ||||||||
Operating Systems | Android, Linux | ||||||||
Dimension | 358.4x286.7x49.5mm | 384.1x316.2 x50.7mm | 429x356.5x49.2mm | 392 x242 x49.5mm | 457.2x281.7x49.6mm | 533.6x320.9 x51.3mm | 572.1x345.6 x51.3mm | 657x398x51.5mm | 770.7x465.6 x57.2mm |
Mounting Hole Size | 349.4 x277.2mm | 381x312.9mm | 425.5x350.5mm | 387.2 x237.2mm | 453.4x277.5mm | 527.9x314.9mm | 567.6x341.2mm | 651.1x394.2mm | 765.6 x460.3mm |
Gross Weight | 3.70kg | 5.60kg | 6.20kg | 3.70kg | 4.10kg | 5.70kg | 6.00kg | 9.20kg | 12.50kg |
Mounting Options | Embedded, Wall Mount, Desktop Stand | ||||||||
Operating Temperature | -30℃ ~ +70℃ | ||||||||
Storage Temperature | -40℃ ~ +80℃ | ||||||||
Humidity Rage Non-condensing | 5% - 95% | ||||||||
Power | Input Voltage Range 9 – 36V DC Standard Power: Optional 12V AC/DC Adapter: 5A, 60W |
Series Features

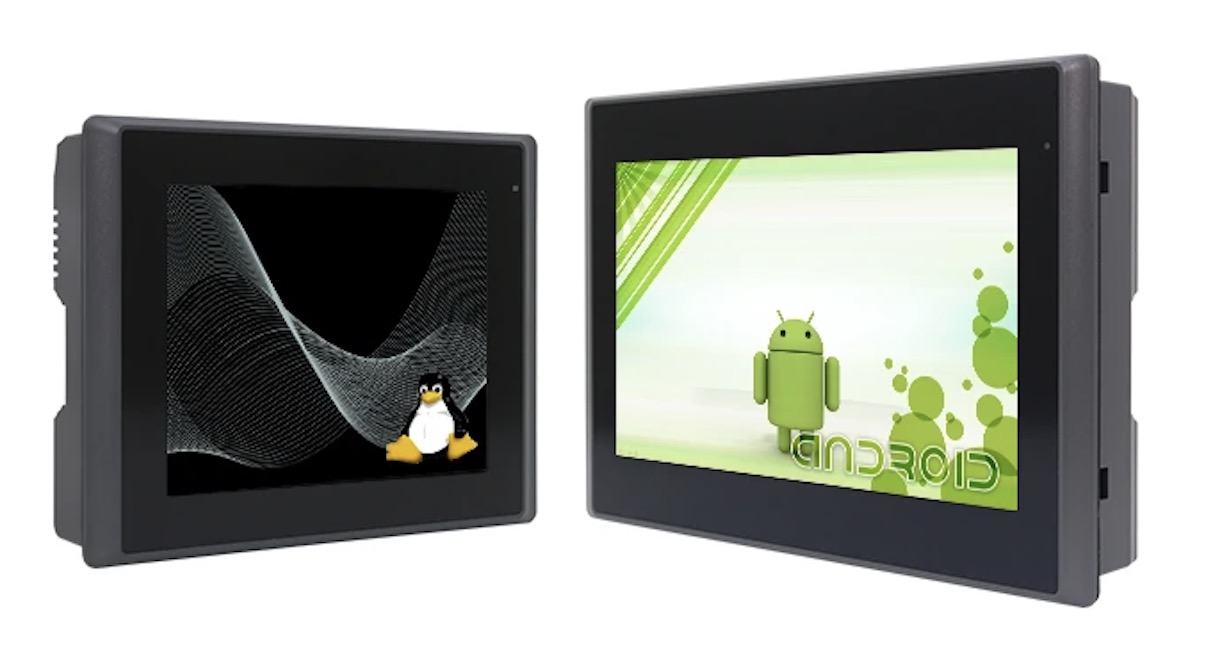

Linux or Android Operating Systems
The VOPC ARM Series comes equipped with a powerful and efficient quad-core ARM or Rockchip processor. These PCs can run Linux or Android, which are ideal platforms for running your own applications or customizing the OS to your business needs.
Compact, Thermal Design
These computers are housed in a rugged die cast aluminum enclosure. They have fanless cooling systems and durability in high shock and vibration settings.
Mounting Options
VESA mount or panel mount available by default gives you the flexibility and option to change down the road.

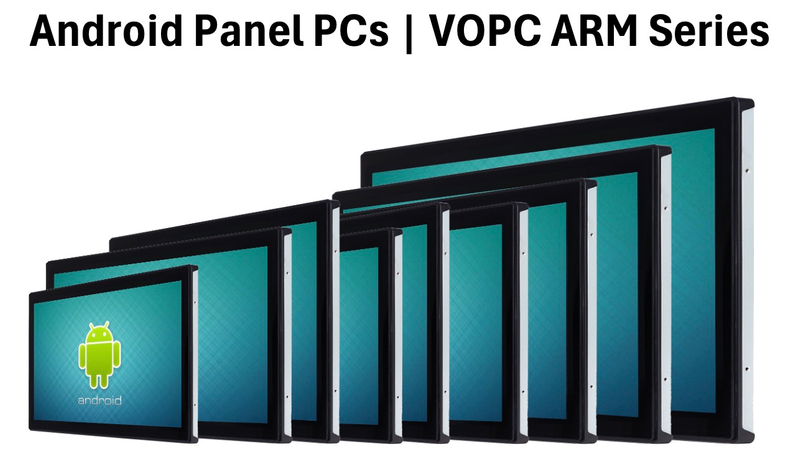

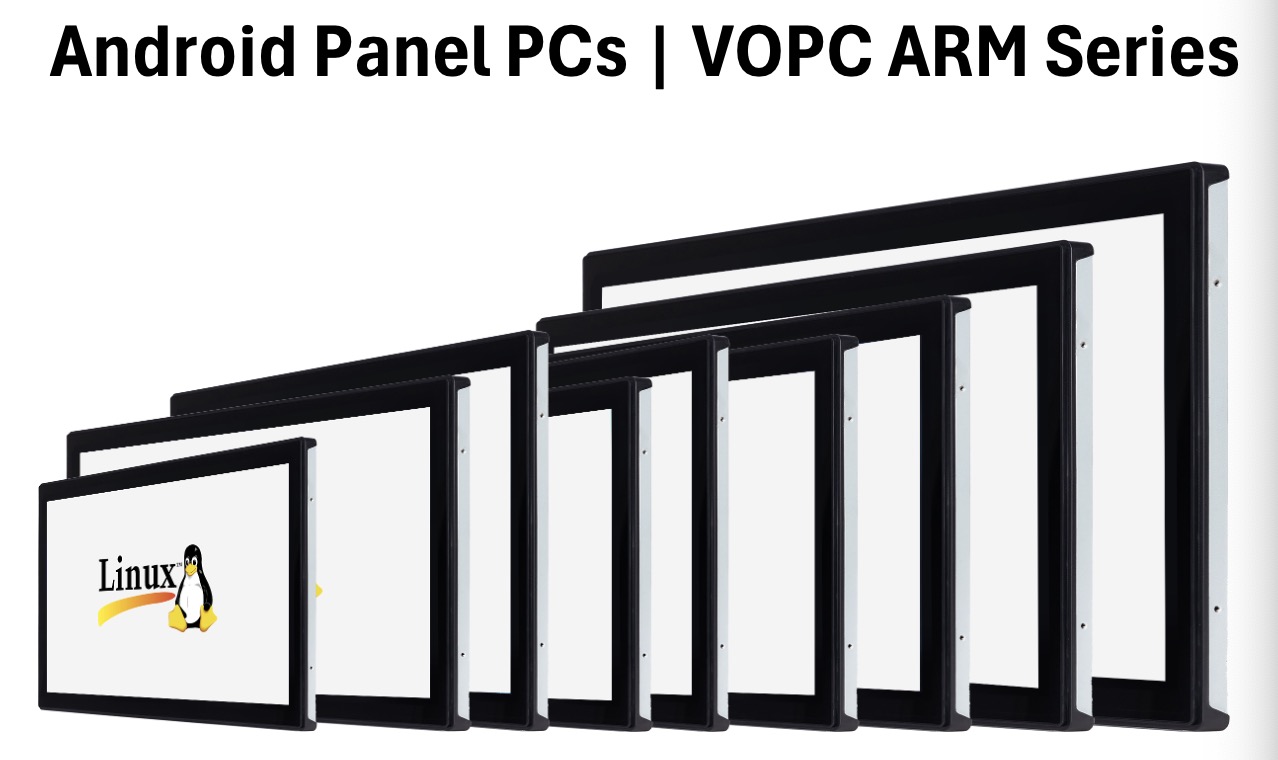

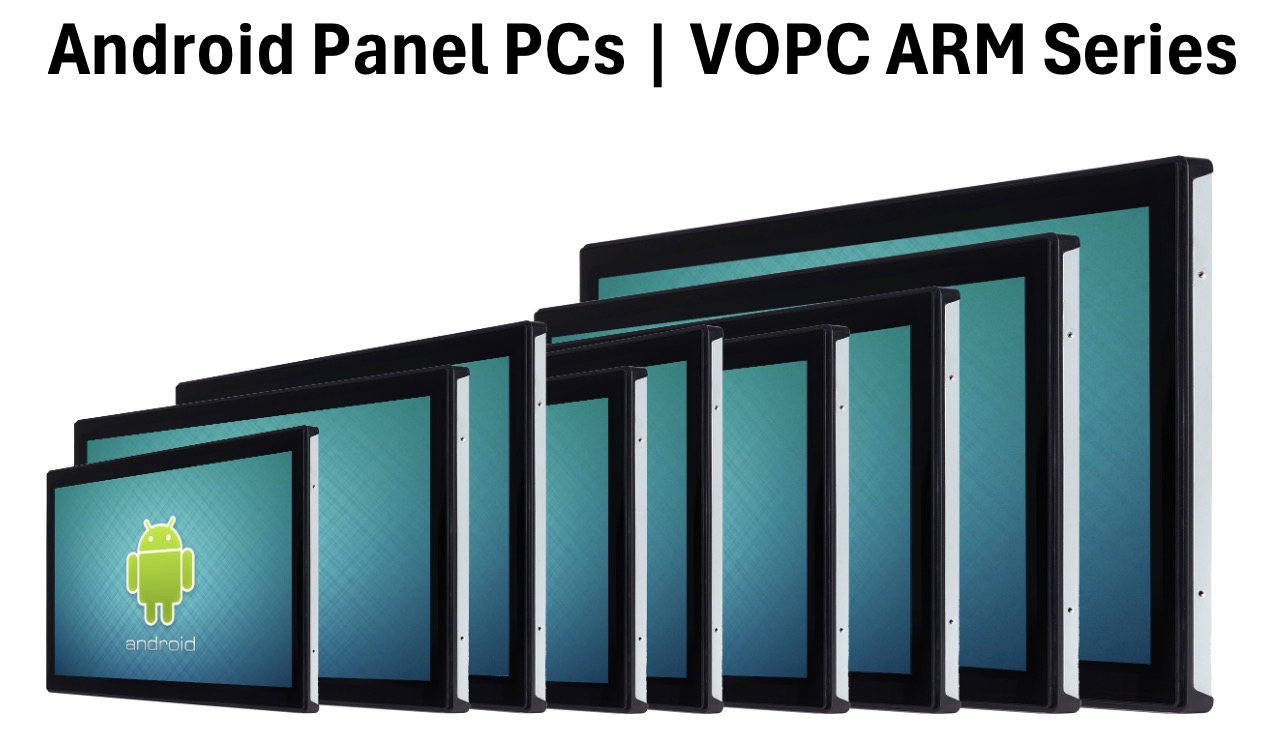

Variety of Screen Sizes
Available in 15” up to 32”, you can outfit your entire facility with the VOPC ARM Series, to keep things uniform. This allows for easy installation and familiarity.
