SKU | VOPC-17 ARM |
Screen Size | 17” |
Resolution | 1280x1024 |
Viewing Angle | 85/85/80/80 |
Brightness | 250 cd/㎡ |
Contrast Ratio | 1000:1 |
Touchscreen | Capacitive |
Controller | USB interface |
Durability | ≥ 5M times |
Processor Family | ARM, Rockchip |
Memory Type | 2G, 4G, 8G |
Storage Type | 3588: 64G, 128G, 256G |
Ethernet / LAN | 2x LAN |
Serial / Com | 2x RS232 (1x COM option RS485) |
USB | 2x USB |
Video Outputs | 1x HDMI |
Expansion Slots | 1x Mini PCIE |
Operating Systems | Android, Linux |

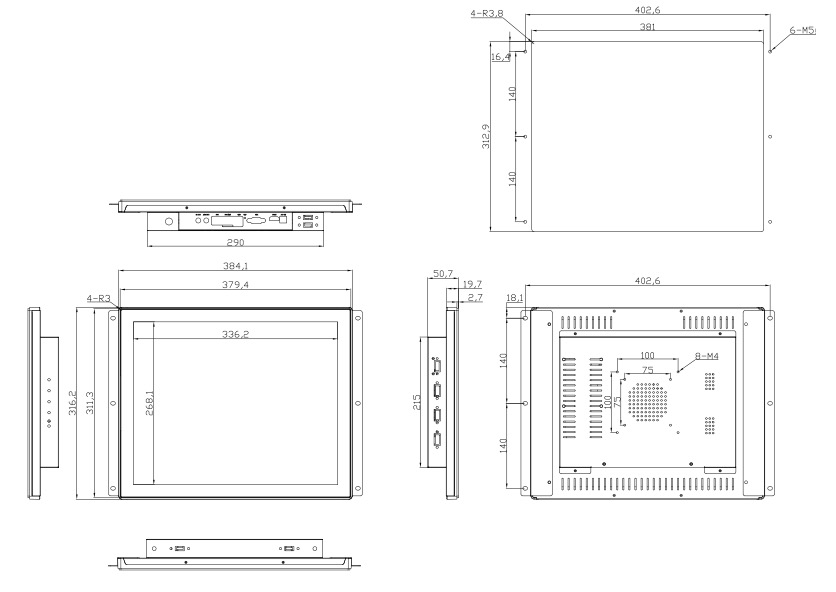

Dimension | 384.1x316.2 x50.7mm |
Mounting Hole Size | 381x312.9mm |
Gross Weight | 5.60kg |
Mounting Options | Embedded, Wall Mount, Desktop Stand |
Operating Temperature | -30℃ ~ +70℃ |
Storage Temperature | -40℃ ~ +80℃ |
Humidity Rage Non-condensing | 5% - 95% |
Power | Input Voltage Range 9 – 36V DC Standard Power: Optional 12V AC/DC Adapter: 5A, 60W |
>Product Advantage:
High Performance: The ARM processor used in the 17” Android Industrial Panel PC | VOPC-17 ARM provides high performance and energy efficiency, ensuring smooth operation and fast processing speeds for industrial tasks.
Connectivity Options: The 17” Android Industrial Panel PC | VOPC-17 ARM comes with various connectivity options such as Ethernet, USB, HDMI, and RS232, RS485 ports, allowing for seamless integration with other devices and systems in the industrial environment.
Rugged Design: The 17” Android Industrial Panel PC | VOPC-17 ARM is designed to withstand harsh industrial environments, with features such as IP65-rated front panel protection against dust and water ingress, ensuring durability and reliability.
Versatility: The 17” Android Industrial Panel PC | VOPC-17 ARM can be used in a wide range of industrial applications, including manufacturing, automation, transportation, logistics, retail, healthcare, and energy, providing flexibility and adaptability.
Customization: The Android OS allows for easy customization of the 17” Android Industrial Panel PC | VOPC-17 ARM to meet specific industrial requirements and applications, ensuring optimal performance and functionality.
Energy Efficiency: The ARM processor used in the 17” Android Industrial Panel PC | VOPC-17 ARM is known for its energy efficiency, reducing power consumption and operating costs, making it a cost-effective solution for industrial environments.
>Product Application:
The 17” Android Industrial Panel PC | VOPC-17 ARM can be used in a variety of industrial applications and settings due to its versatility, performance, and features. Some common applications and usages of the device include:
Manufacturing: The 17” Android Industrial Panel PC | VOPC-17 ARM can be used in manufacturing environments for process monitoring, machine control, quality assurance, and production management.
Automation: The device is suitable for automation applications such as controlling robotic systems, monitoring sensors, and managing industrial processes.
Transportation: The 17” Android Industrial Panel PC | VOPC-17 ARM can be used in transportation applications for vehicle tracking, fleet management, navigation systems, and passenger information displays.
Logistics: The device is ideal for logistics applications including inventory management, order processing, warehouse operations, and supply chain management.
Retail: The 17” Android Industrial Panel PC | VOPC-17 ARM can be used in retail environments for point-of-sale systems, digital signage, interactive kiosks, and customer engagement applications.
Healthcare: The device is suitable for healthcare applications such as patient monitoring, medical imaging, electronic health records, and telemedicine.
Energy: The 17” Android Industrial Panel PC | VOPC-17 ARM can be used in energy applications for monitoring power generation, controlling distribution systems, managing renewable energy sources, and optimizing energy efficiency.
Industrial Control: The device can be used for industrial control applications such as monitoring and controlling machinery, equipment, and processes in various industrial sectors.
Overall, the 17” Android Industrial Panel PC | VOPC-17 ARM offers a wide range of applications and usages across different industries, providing a reliable and efficient solution for industrial automation and control.
