15” Android Industrial Panel PC | VOPC-15 ARM
VINCANWO
Availability: | |
---|---|
Quantity: | |
SKU | VOPC-15 ARM |
Screen Size | 15” |
Resolution | 1024x768 |
Viewing Angle | 89/89/89/89 |
Brightness | 350 cd/㎡ |
Contrast Ratio | 1000:1 |
Touchscreen | Capacitive |
Controller | USB interface |
Durability | ≥ 5M times |
Processor Family | ARM, Rockchip |
Memory Type | 2G, 4G, 8G |
Storage Type | 32G, 64G, 128G |

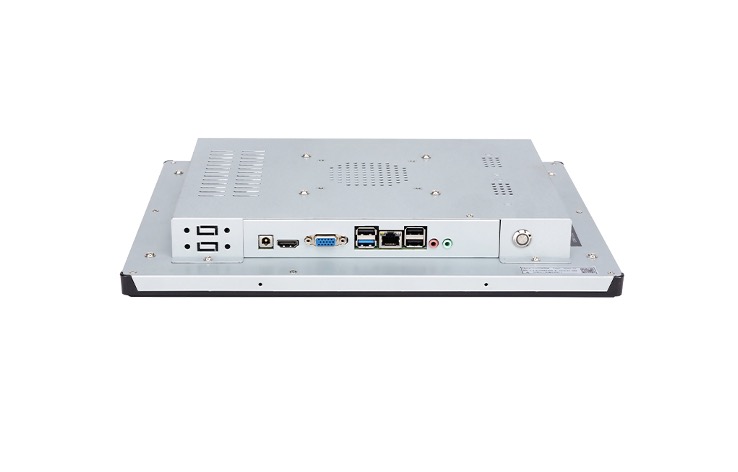

Ethernet / LAN | 1x LAN |
Serial / Com | 2x RS232 (1x COM option RS485) |
USB | 2x USB |
Video Outputs | 1x HDMI |
Expansion Slots | 1x Mini PCIE |
Operating Systems | Android, Linux |

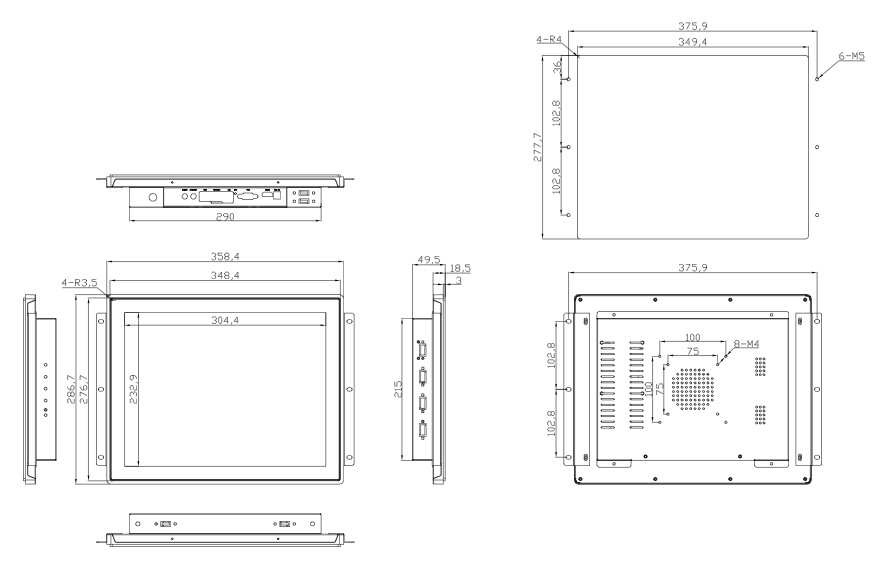

Dimension | 358.4x286.7x49.5mm |
Mounting Hole Size | 349.4 x277.2mm |
Gross Weight | 3.70kg |
Mounting Options | Embedded, Wall Mount, Desktop Stand |
Operating Temperature | -30℃ ~ +70℃ |
Storage Temperature | -40℃ ~ +80℃ |
Humidity Rage Non-condensing | 5% - 95% |
Power | Input Voltage Range 9 – 36V DC Standard Power: Optional 12V AC/DC Adapter: 5A, 60W |
>Advantages:
Powerful ARM Processor: The ARM processor provides high performance and efficiency, making the panel PC suitable for demanding industrial applications.
Touchscreen Display: The touchscreen display allows for easy and intuitive operation, making it user-friendly for operators.
Rugged Design: The industrial panel PC is designed to withstand harsh industrial environments, ensuring durability and reliability in challenging conditions.
Android Operating System: The Android OS offers flexibility and compatibility with a wide range of industrial software applications, making it easy to integrate into existing systems.
Versatility: The VOPC-15 ARM can be used for various industrial applications such as automation, monitoring, control, and data collection, making it a versatile solution for different industries.
Connectivity: The panel PC is equipped with multiple connectivity options such as Ethernet, USB, and serial ports, allowing for seamless integration with other devices and systems.
Customization: The VOPC-15 ARM can be customized with additional features or accessories to meet specific industrial requirements, providing a tailored solution for different applications.
>Applications:
The 15” Android Industrial Panel PC | VOPC-15 ARM can be used in a variety of industrial applications, including:
Factory Automation: The panel PC can be used for controlling and monitoring automated processes in manufacturing facilities, improving efficiency and productivity.
Industrial Monitoring and Control: The VOPC-15 ARM is ideal for monitoring and controlling industrial equipment and systems, providing real-time data and alerts for better decision-making.
HMI (Human Machine Interface) Systems: The panel PC can serve as an interface between operators and machines, allowing for easy interaction and control of industrial processes.
Data Collection and Analysis: The VOPC-15 ARM can be used for collecting, storing, and analyzing data from sensors and equipment in industrial settings, enabling better insights and optimization of operations.
Inventory Management: The panel PC can be used for tracking inventory levels, managing stock, and optimizing supply chain processes in warehouses and distribution centers.
Energy Management: The VOPC-15 ARM can be used for monitoring and optimizing energy consumption in industrial facilities, helping to reduce costs and improve sustainability.
Transportation and Logistics: The panel PC can be integrated into vehicles or logistics systems for tracking shipments, managing routes, and optimizing transportation operations.
Overall, the 15” Android Industrial Panel PC | VOPC-15 ARM is a versatile and reliable solution for various industrial applications that require robust performance, flexibility, and connectivity.
SKU | VOPC-15 ARM |
Screen Size | 15” |
Resolution | 1024x768 |
Viewing Angle | 89/89/89/89 |
Brightness | 350 cd/㎡ |
Contrast Ratio | 1000:1 |
Touchscreen | Capacitive |
Controller | USB interface |
Durability | ≥ 5M times |
Processor Family | ARM, Rockchip |
Memory Type | 2G, 4G, 8G |
Storage Type | 32G, 64G, 128G |
Ethernet / LAN | 1x LAN |
Serial / Com | 2x RS232 (1x COM option RS485) |
USB | 2x USB |
Video Outputs | 1x HDMI |
Expansion Slots | 1x Mini PCIE |
Operating Systems | Android, Linux |
Dimension | 358.4x286.7x49.5mm |
Mounting Hole Size | 349.4 x277.2mm |
Gross Weight | 3.70kg |
Mounting Options | Embedded, Wall Mount, Desktop Stand |
Operating Temperature | -30℃ ~ +70℃ |
Storage Temperature | -40℃ ~ +80℃ |
Humidity Rage Non-condensing | 5% - 95% |
Power | Input Voltage Range 9 – 36V DC Standard Power: Optional 12V AC/DC Adapter: 5A, 60W |
>Advantages:
Powerful ARM Processor: The ARM processor provides high performance and efficiency, making the panel PC suitable for demanding industrial applications.
Touchscreen Display: The touchscreen display allows for easy and intuitive operation, making it user-friendly for operators.
Rugged Design: The industrial panel PC is designed to withstand harsh industrial environments, ensuring durability and reliability in challenging conditions.
Android Operating System: The Android OS offers flexibility and compatibility with a wide range of industrial software applications, making it easy to integrate into existing systems.
Versatility: The VOPC-15 ARM can be used for various industrial applications such as automation, monitoring, control, and data collection, making it a versatile solution for different industries.
Connectivity: The panel PC is equipped with multiple connectivity options such as Ethernet, USB, and serial ports, allowing for seamless integration with other devices and systems.
Customization: The VOPC-15 ARM can be customized with additional features or accessories to meet specific industrial requirements, providing a tailored solution for different applications.
>Applications:
The 15” Android Industrial Panel PC | VOPC-15 ARM can be used in a variety of industrial applications, including:
Factory Automation: The panel PC can be used for controlling and monitoring automated processes in manufacturing facilities, improving efficiency and productivity.
Industrial Monitoring and Control: The VOPC-15 ARM is ideal for monitoring and controlling industrial equipment and systems, providing real-time data and alerts for better decision-making.
HMI (Human Machine Interface) Systems: The panel PC can serve as an interface between operators and machines, allowing for easy interaction and control of industrial processes.
Data Collection and Analysis: The VOPC-15 ARM can be used for collecting, storing, and analyzing data from sensors and equipment in industrial settings, enabling better insights and optimization of operations.
Inventory Management: The panel PC can be used for tracking inventory levels, managing stock, and optimizing supply chain processes in warehouses and distribution centers.
Energy Management: The VOPC-15 ARM can be used for monitoring and optimizing energy consumption in industrial facilities, helping to reduce costs and improve sustainability.
Transportation and Logistics: The panel PC can be integrated into vehicles or logistics systems for tracking shipments, managing routes, and optimizing transportation operations.
Overall, the 15” Android Industrial Panel PC | VOPC-15 ARM is a versatile and reliable solution for various industrial applications that require robust performance, flexibility, and connectivity.
