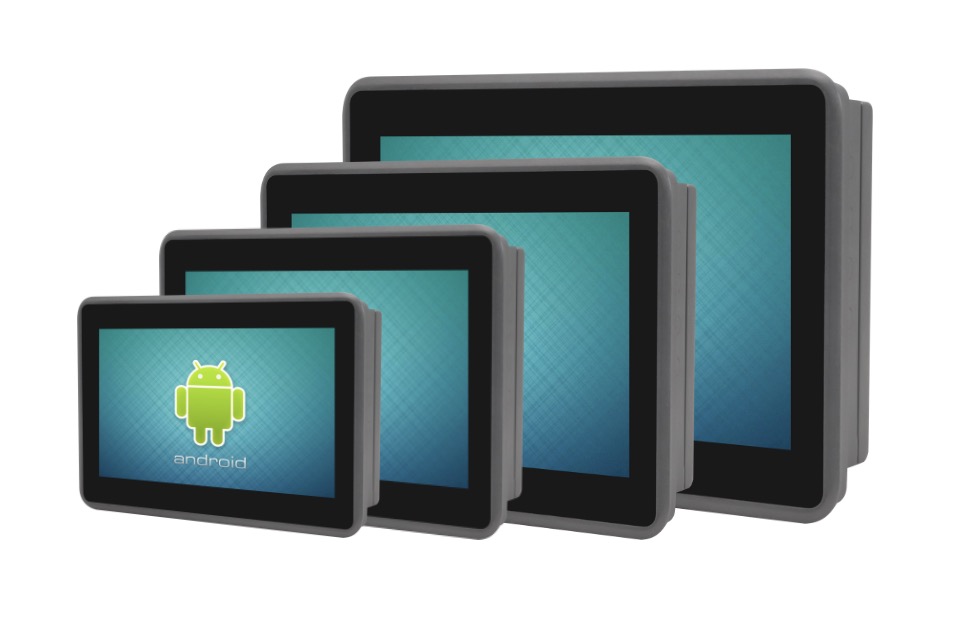

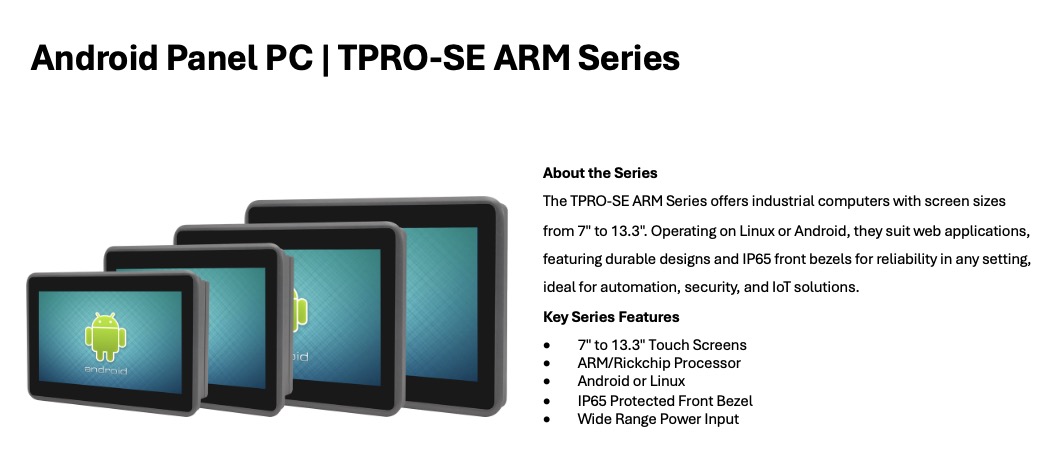

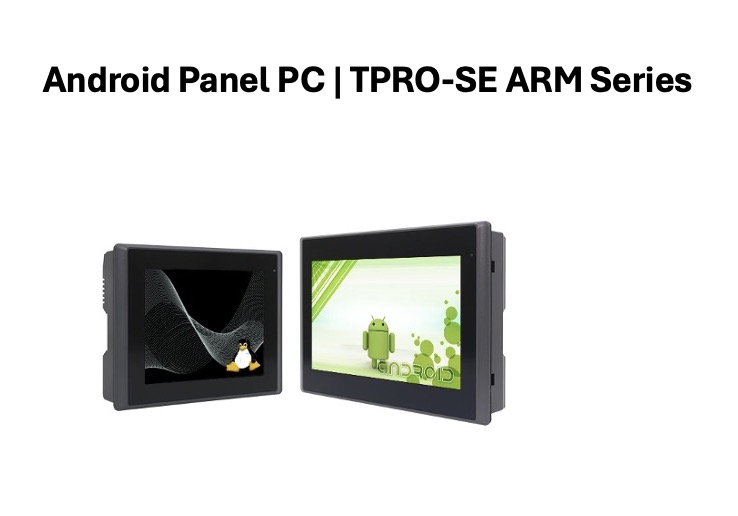

Android Panel PCs | TPRO-SE ARM Series
VINCANWO
Availability: | |
---|---|
Quantity: | |
SKU | ||||
Screen Size | ||||
Resolution | 1024 x 600 | 1024 x 768 | 1280 x 800 | 1920 x 1080 |
Viewing Angle | 85/85/85/85 | 85/85/85/85 | 85/85/85/85 | 85/85/85/85 |
Brightness | 300 cd/㎡ | 300 cd/㎡ | 400 cd/㎡ | 300 cd/㎡ |
Contrast Ratio | 500:1 | 1000:1 | 800:1 | 800:1 |
Touchscreen | Capacitive | |||
Controller | USB interface | |||
Durability | ≥ 5M times | |||
Processor Family | ARM, Rockchip | |||
Memory Type | 2G, 4G, 8G | |||
Storage Type | 32G, 64G, 128G | 3588: 64G, 128G, 256G | ||
Ethernet / LAN | 1x LAN | 2x LAN | ||
Serial / Com | 2x RS232 (1x COM option RS485) | |||
USB | 2x USB | |||
Video Outputs | 1x HDMI | |||
Expansion Slots | 1x Mini PCIE | |||
Operating Systems | Android, Linux | |||
Dimension | 194x129.9x52mm | 234x187x52mm | 266.1x181.9x52mm | 337x208.6x52mm |
Mounting Hole Size | 188x124mm | 228x181mm | 260x176mm | 331.5x203mm |
Gross Weight | 1.80kg | 2.40kg | 3.00kg | 3.50kg |
Mounting Options | Embedded, Wall Mount, Desktop Stand | |||
Operating Temperature | -30℃ ~ +70℃ | |||
Storage Temperature | -40℃ ~ +80℃ | |||
Humidity Rage Non-condensing | 5% - 95% | |||
Power | Input Voltage Range 9 – 36V DC Standard Power: Optional 12V AC/DC Adapter: 5A, 60W |
>Product Advantage:
Our Vincanwo Group brand Android Panel PCs | TPRO-SE Series offer several advantages that make them a popular choice for various applications:
Cost-effective: Android Panel PCs are generally more affordable compared to other operating systems, making them a cost-effective solution for businesses looking to implement touchscreen devices without breaking the budget.
User-friendly interface: Android Panel PCs feature a familiar and intuitive user interface that is easy to navigate, making them accessible to users of all skill levels. This can lead to increased productivity and efficiency in various applications.
App compatibility: Android Panel PCs support a wide range of applications available on the Google Play Store, allowing users to customize their devices with software that meets their specific needs. This flexibility makes Android Panel PCs versatile and adaptable to different use cases.
Connectivity: Android Panel PCs come equipped with various connectivity options, such as Wi-Fi, Bluetooth, USB ports, and Ethernet, allowing for seamless integration with other devices and systems. This connectivity enables data sharing, communication, and collaboration in diverse environments.
Touchscreen functionality: Android Panel PCs feature touchscreen displays that provide a more interactive and engaging user experience. The touchscreen interface allows for easy navigation, input, and interaction with content, making them ideal for applications that require user interaction.
Customization: Android Panel PCs can be easily customized to suit specific requirements, such as branding, software configurations, and hardware specifications. This flexibility allows businesses to tailor the devices to their unique needs and preferences.
Security: Android Panel PCs come with built-in security features, such as encryption, secure boot, and app permissions, to protect data and ensure a secure computing environment. Regular updates and patches from Google also help to enhance the security of Android devices.
Overall, the advantages of Android Panel PCs include affordability, user-friendly interface, app compatibility, connectivity, touchscreen functionality, customization options, and security features, making them a versatile and practical choice for a wide range of applications.
>Product Applications:
Our Vincanwo Group brand Android Panel PCs | TPRO-SE Series have a wide range of applications across various industries and use cases. Some common applications include:
Digital signage: Android Panel PCs are commonly used for digital signage displays in retail stores, restaurants, airports, hotels, and other public spaces. They can be used to showcase advertisements, promotions, menus, and other information in a dynamic and interactive way.
Industrial automation: Android Panel PCs are used in industrial automation applications for monitoring and controlling machinery, equipment, and processes. They can be integrated into control systems to provide real-time data visualization, remote monitoring, and automation control.
Point-of-sale (POS) systems: Android Panel PCs are used in POS systems for retail, hospitality, and other industries. They can be used to process transactions, manage inventory, track sales data, and provide customer service in a fast and efficient manner.
Interactive kiosks: Android Panel PCs are used in interactive kiosks for self-service applications, information displays, ticketing systems, and wayfinding solutions. They provide users with a touchscreen interface to access information, make selections, and complete transactions.
Healthcare: Android Panel PCs are used in healthcare settings for electronic medical records (EMR) management, patient monitoring, telemedicine, and medical imaging applications. They can be integrated into healthcare systems to improve patient care, streamline workflows, and enhance communication among healthcare providers.
Education: Android Panel PCs are used in educational settings for interactive learning, digital classrooms, e-learning platforms, and student engagement. They can be used to deliver educational content, facilitate collaboration, and enhance the learning experience for students and teachers.
Transportation: Android Panel PCs are used in transportation applications for in-vehicle infotainment systems, GPS navigation, fleet management, and passenger information displays. They provide passengers and drivers with real-time information, entertainment options, and communication services during travel.
Overall, the applications of Android Panel PCs are diverse and versatile, making them suitable for a wide range of industries and use cases where touchscreen functionality, app compatibility, connectivity, and customization options are essential.
SKU | ||||
Screen Size | ||||
Resolution | 1024 x 600 | 1024 x 768 | 1280 x 800 | 1920 x 1080 |
Viewing Angle | 85/85/85/85 | 85/85/85/85 | 85/85/85/85 | 85/85/85/85 |
Brightness | 300 cd/㎡ | 300 cd/㎡ | 400 cd/㎡ | 300 cd/㎡ |
Contrast Ratio | 500:1 | 1000:1 | 800:1 | 800:1 |
Touchscreen | Capacitive | |||
Controller | USB interface | |||
Durability | ≥ 5M times | |||
Processor Family | ARM, Rockchip | |||
Memory Type | 2G, 4G, 8G | |||
Storage Type | 32G, 64G, 128G | 3588: 64G, 128G, 256G | ||
Ethernet / LAN | 1x LAN | 2x LAN | ||
Serial / Com | 2x RS232 (1x COM option RS485) | |||
USB | 2x USB | |||
Video Outputs | 1x HDMI | |||
Expansion Slots | 1x Mini PCIE | |||
Operating Systems | Android, Linux | |||
Dimension | 194x129.9x52mm | 234x187x52mm | 266.1x181.9x52mm | 337x208.6x52mm |
Mounting Hole Size | 188x124mm | 228x181mm | 260x176mm | 331.5x203mm |
Gross Weight | 1.80kg | 2.40kg | 3.00kg | 3.50kg |
Mounting Options | Embedded, Wall Mount, Desktop Stand | |||
Operating Temperature | -30℃ ~ +70℃ | |||
Storage Temperature | -40℃ ~ +80℃ | |||
Humidity Rage Non-condensing | 5% - 95% | |||
Power | Input Voltage Range 9 – 36V DC Standard Power: Optional 12V AC/DC Adapter: 5A, 60W |
>Product Advantage:
Our Vincanwo Group brand Android Panel PCs | TPRO-SE Series offer several advantages that make them a popular choice for various applications:
Cost-effective: Android Panel PCs are generally more affordable compared to other operating systems, making them a cost-effective solution for businesses looking to implement touchscreen devices without breaking the budget.
User-friendly interface: Android Panel PCs feature a familiar and intuitive user interface that is easy to navigate, making them accessible to users of all skill levels. This can lead to increased productivity and efficiency in various applications.
App compatibility: Android Panel PCs support a wide range of applications available on the Google Play Store, allowing users to customize their devices with software that meets their specific needs. This flexibility makes Android Panel PCs versatile and adaptable to different use cases.
Connectivity: Android Panel PCs come equipped with various connectivity options, such as Wi-Fi, Bluetooth, USB ports, and Ethernet, allowing for seamless integration with other devices and systems. This connectivity enables data sharing, communication, and collaboration in diverse environments.
Touchscreen functionality: Android Panel PCs feature touchscreen displays that provide a more interactive and engaging user experience. The touchscreen interface allows for easy navigation, input, and interaction with content, making them ideal for applications that require user interaction.
Customization: Android Panel PCs can be easily customized to suit specific requirements, such as branding, software configurations, and hardware specifications. This flexibility allows businesses to tailor the devices to their unique needs and preferences.
Security: Android Panel PCs come with built-in security features, such as encryption, secure boot, and app permissions, to protect data and ensure a secure computing environment. Regular updates and patches from Google also help to enhance the security of Android devices.
Overall, the advantages of Android Panel PCs include affordability, user-friendly interface, app compatibility, connectivity, touchscreen functionality, customization options, and security features, making them a versatile and practical choice for a wide range of applications.
>Product Applications:
Our Vincanwo Group brand Android Panel PCs | TPRO-SE Series have a wide range of applications across various industries and use cases. Some common applications include:
Digital signage: Android Panel PCs are commonly used for digital signage displays in retail stores, restaurants, airports, hotels, and other public spaces. They can be used to showcase advertisements, promotions, menus, and other information in a dynamic and interactive way.
Industrial automation: Android Panel PCs are used in industrial automation applications for monitoring and controlling machinery, equipment, and processes. They can be integrated into control systems to provide real-time data visualization, remote monitoring, and automation control.
Point-of-sale (POS) systems: Android Panel PCs are used in POS systems for retail, hospitality, and other industries. They can be used to process transactions, manage inventory, track sales data, and provide customer service in a fast and efficient manner.
Interactive kiosks: Android Panel PCs are used in interactive kiosks for self-service applications, information displays, ticketing systems, and wayfinding solutions. They provide users with a touchscreen interface to access information, make selections, and complete transactions.
Healthcare: Android Panel PCs are used in healthcare settings for electronic medical records (EMR) management, patient monitoring, telemedicine, and medical imaging applications. They can be integrated into healthcare systems to improve patient care, streamline workflows, and enhance communication among healthcare providers.
Education: Android Panel PCs are used in educational settings for interactive learning, digital classrooms, e-learning platforms, and student engagement. They can be used to deliver educational content, facilitate collaboration, and enhance the learning experience for students and teachers.
Transportation: Android Panel PCs are used in transportation applications for in-vehicle infotainment systems, GPS navigation, fleet management, and passenger information displays. They provide passengers and drivers with real-time information, entertainment options, and communication services during travel.
Overall, the applications of Android Panel PCs are diverse and versatile, making them suitable for a wide range of industries and use cases where touchscreen functionality, app compatibility, connectivity, and customization options are essential.
SKU | FWS-101 | FWS-156 | FWS-215 |
Screen Size | 10.1" | 15.6" | 21.5" |
Resolution | 1280*800 | 1920*1080 | 1920*1080 |
Viewing Angle | 80/80/80/80 | 89/89/89/89 | 89/89/89/89 |
Brightness | 330 cd/m2 | 250 cd/m2 | 250 cd/m2 |
Contrast Ratio | 600:1 | 3000:1 | 3000:1 |
Touch Screen | Capacitive | ||
Controller | USB interface | ||
Durability | ≥ 500W times | ||
Processor | ARM / Rockchip | ||
Memory | 2G / 4G / 8G | ||
Storage | 32G / 64G / 128G | 3588: 64G / 128G / 256G | |
Network | 1 *LAN | 2 *LAN | |
COM | 2 *RS232 | ||
USB | 2 *USB2.0 | ||
Display | 1 *HDMI | ||
ExpandSlot | 1 *Mini PCIE | ||
Operating System | Android / Linux (For Linux Operating System, and please contact our sales team) | ||
Sensor | Optional front IC/ID card swiping, camera, scanning code | ||
Dimensions (mm) | 283*228.2*52.1 | 418*332*58.3 | 544*410.6*59.4 |
Hole Sizes (mm) | 272*218 | 396*324 | 533*397 |
Weight (KG) | 0.95 | 1.60 | 3.82 |
Mounting Options | Embedded / Wall-mounted / Desktop | ||
Operating Temperature | -0 ~ +50℃ | -0 ~ +50℃ | -0 ~ +50℃ |
Storage Temperature | -20 ~ +60℃ | -20 ~ +60℃ | -20 ~ +60℃ |
Storage Humidity | 5 ~ 90% | 5 ~ 90% | 5 ~ 90% |
Power Input | DC -12V (Optional 9 ~ 36V) | ||
Packaging Information | |||
FWS | 1 *Master, 1 *Adapter, 1* Power Supply Cable, 4 *hooks, 1 *Manual, 1 *Warranty Card | ||
FWS-1 | Available to upgrade front IC/ID card swiping | ||
FWS-C | Available to upgrade front Camera | ||
FWS-S | Available to upgrade front Scanning Code | ||
FWS-I/C/S | Available to upgrade front IC/ID card swiping / camera / scanning code |
SKU | FWS-101 | FWS-156 | FWS-215 |
Screen Size | 10.1" | 15.6" | 21.5" |
Resolution | 1280*800 | 1920*1080 | 1920*1080 |
Viewing Angle | 80/80/80/80 | 89/89/89/89 | 89/89/89/89 |
Brightness | 330 cd/m2 | 250 cd/m2 | 250 cd/m2 |
Contrast Ratio | 600:1 | 3000:1 | 3000:1 |
Touch Screen | Capacitive | ||
Controller | USB interface | ||
Durability | ≥ 500W times | ||
Processor | ARM / Rockchip | ||
Memory | 2G / 4G / 8G | ||
Storage | 32G / 64G / 128G | 3588: 64G / 128G / 256G | |
Network | 1 *LAN | 2 *LAN | |
COM | 2 *RS232 | ||
USB | 2 *USB2.0 | ||
Display | 1 *HDMI | ||
ExpandSlot | 1 *Mini PCIE | ||
Operating System | Android / Linux (For Linux Operating System, and please contact our sales team) | ||
Sensor | Optional front IC/ID card swiping, camera, scanning code | ||
Dimensions (mm) | 283*228.2*52.1 | 418*332*58.3 | 544*410.6*59.4 |
Hole Sizes (mm) | 272*218 | 396*324 | 533*397 |
Weight (KG) | 0.95 | 1.60 | 3.82 |
Mounting Options | Embedded / Wall-mounted / Desktop | ||
Operating Temperature | -0 ~ +50℃ | -0 ~ +50℃ | -0 ~ +50℃ |
Storage Temperature | -20 ~ +60℃ | -20 ~ +60℃ | -20 ~ +60℃ |
Storage Humidity | 5 ~ 90% | 5 ~ 90% | 5 ~ 90% |
Power Input | DC -12V (Optional 9 ~ 36V) | ||
Packaging Information | |||
FWS | 1 *Master, 1 *Adapter, 1* Power Supply Cable, 4 *hooks, 1 *Manual, 1 *Warranty Card | ||
FWS-1 | Available to upgrade front IC/ID card swiping | ||
FWS-C | Available to upgrade front Camera | ||
FWS-S | Available to upgrade front Scanning Code | ||
FWS-I/C/S | Available to upgrade front IC/ID card swiping / camera / scanning code |
