21.5” Android Industrial Panel PC | VOPC-215 ARM
VINCANWO GROUP
Availability: | |
---|---|
Quantity: | |
SKU | VOPC-215 ARM |
Screen Size | 21.5” |
Resolution | 1920 x1080 |
Viewing Angle | 89/89/89/89 |
Brightness | 250 cd/㎡ |
Contrast Ratio | 3000:1 |
Touchscreen | Capacitive |
Controller | USB interface |
Durability | ≥ 5M times |
Processor Family | ARM, Rockchip |
Memory Type | 2G, 4G, 8G |
Ethernet / LAN | 2x LAN |
Serial / Com | 2x RS232 (1x COM option RS485) |
USB | 2x USB |
Video Outputs | 1x HDMI |
Expansion Slots | 1x Mini PCIE |
Operating Systems | Android, Linux |

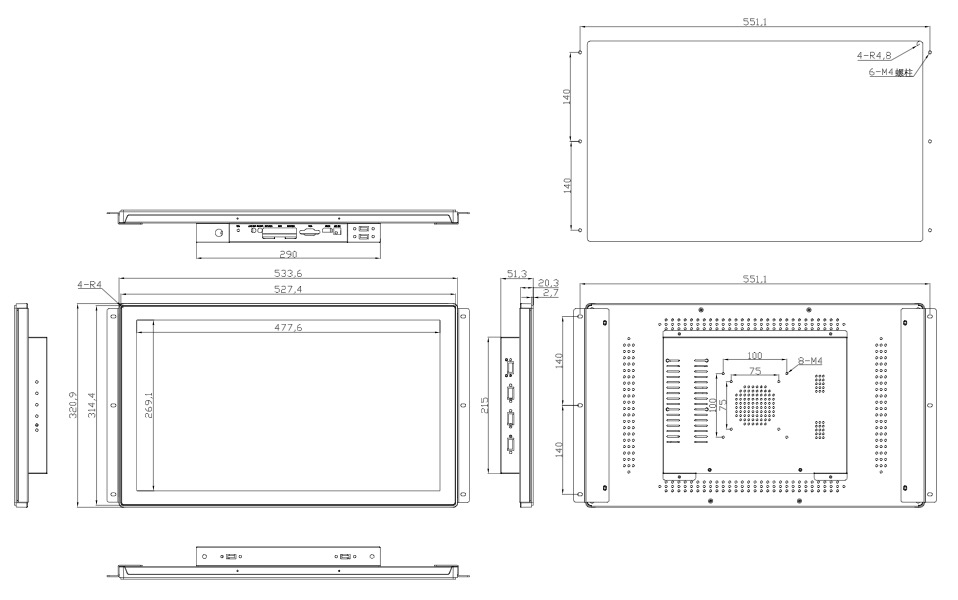

Dimension | 533.6x320.9 x51.3mm |
Mounting Hole Size | 527.9x314.9mm |
Gross Weight | 5.70kg |
Mounting Options | Embedded, Wall Mount, Desktop Stand |
Operating Temperature | -30℃ ~ +70℃ |
Storage Temperature | -40℃ ~ +80℃ |
Humidity Rage Non-condensing | 5% - 95% |
Power | Input Voltage Range 9 – 36V DC Standard Power: Optional 12V AC/DC Adapter: 5A, 60W |
>Advantages:
Large screen size: The 21.5” display provides a large viewing area, making it easier to view and interact with applications and data.
Android operating system: The Android operating system is user-friendly and familiar to many users, making it easy to navigate and use the panel PC.
Industrial-grade design: The panel PC is designed for use in industrial environments, with a rugged construction that can withstand harsh conditions such as dust, moisture, and extreme temperatures.
ARM processor: The ARM processor offers high performance and energy efficiency, making the panel PC suitable for a wide range of industrial applications.

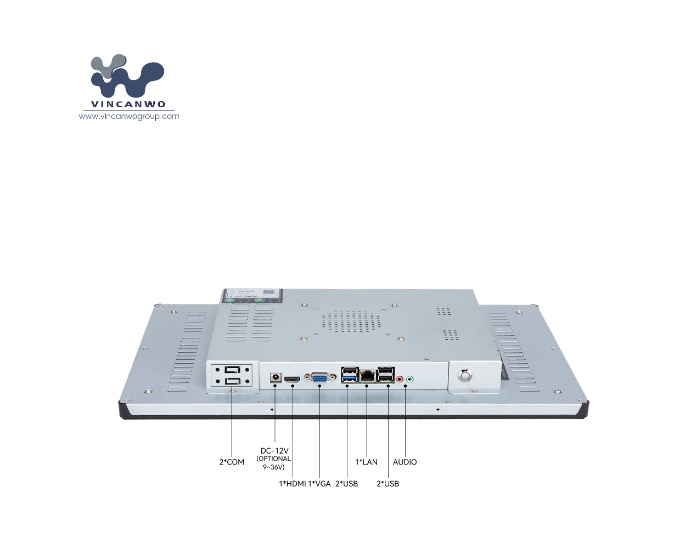

Connectivity options: The panel PC offers a variety of connectivity options, including Ethernet, USB, HDMI, and RS232 ports, allowing for easy integration with other devices and systems.
Touchscreen display: The touchscreen display allows for intuitive and interactive operation, making it easy to navigate menus, input data, and control applications.
Customization options: The panel PC can be customized with additional features and peripherals to meet specific industrial requirements, such as barcode scanners, RFID readers, and cameras.
>Applications:
Industrial automation: The 21.5” Android Industrial Panel PC can be used in industrial automation applications to monitor and control manufacturing processes, machinery, and equipment.
HMI (Human Machine Interface): The panel PC can serve as a user-friendly interface for operators to interact with and control industrial systems, such as PLCs (Programmable Logic Controllers) and SCADA (Supervisory Control and Data Acquisition) systems.
Digital signage: The large touchscreen display of the panel PC makes it suitable for digital signage applications in retail stores, restaurants, airports, and other public spaces.
Information kiosks: The panel PC can be used as an interactive information kiosk in public places, providing users with access to maps, directories, event schedules, and other useful information.
Point-of-sale (POS) systems: The panel PC can be integrated into POS systems in retail stores, restaurants, and other businesses to process transactions, manage inventory, and track sales data.
Industrial monitoring and control: The panel PC can be used for monitoring and controlling various industrial processes, such as temperature, pressure, and humidity levels in manufacturing facilities, warehouses, and production lines.
Fleet management: The panel PC can be installed in vehicles for fleet management applications, providing real-time tracking, navigation, and communication capabilities for transportation and logistics companies.
