SKU | VOPC-236 ARM |
Screen Size | 23.6” |
Resolution | 1920 x1080 |
Viewing Angle | 89/89/89/89 |
Brightness | 250 cd/㎡ |
Contrast Ratio | 3000:1 |
Touchscreen | Capacitive |
Controller | USB interface |
Durability | ≥ 5M times |
Processor Family | ARM, Rockchip |
Memory Type | 2G, 4G, 8G |
Ethernet / LAN | 2x LAN |
Serial / Com | 2x RS232 (1x COM option RS485) |
USB | 2x USB |
Video Outputs | 1x HDMI |
Expansion Slots | 1x Mini PCIE |
Operating Systems | Android, Linux |

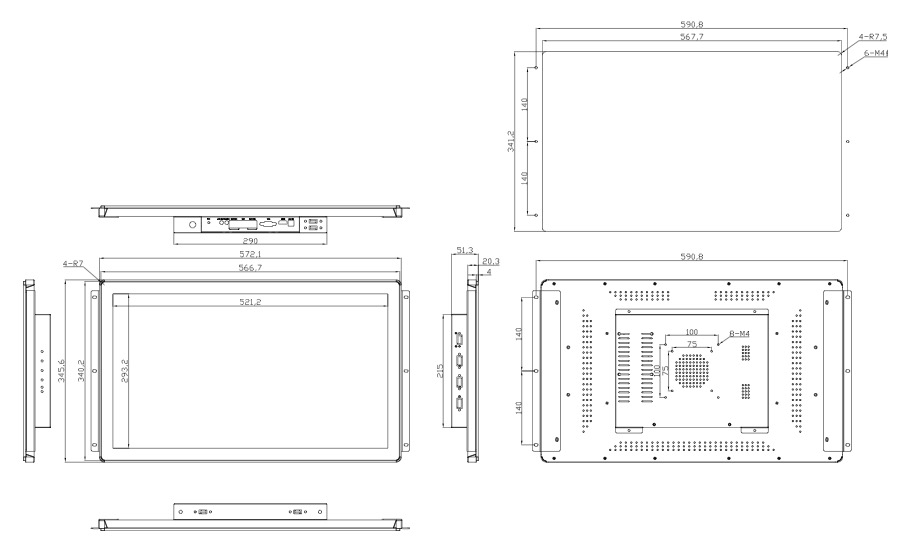

Dimension | 572.1x345.6 x51.3mm |
Mounting Hole Size | 567.6x341.2mm |
Gross Weight | 6.00kg |
Mounting Options | Embedded, Wall Mount, Desktop Stand |
Operating Temperature | -30℃ ~ +70℃ |
Storage Temperature | -40℃ ~ +80℃ |
Humidity Rage Non-condensing | 5% - 95% |
Power | Input Voltage Range 9 – 36V DC Standard Power: Optional 12V AC/DC Adapter: 5A, 60W |
>Product Advantage:
1. Industrial-Grade Design and Durability:
Rugged Construction: Built to withstand harsh industrial environments, featuring high-quality materials and a sealed housing that protects against dust, water, and other environmental factors.
Withstands Harsh Conditions: Designed for long-lasting performance in challenging conditions, with features like fanless designs to prevent overheating and withstand extreme temperatures.
2. Android OS and ARM Processor Advantages:
User-Friendly Interface: Leverages the familiar Android OS for intuitive operation and ease of use, reducing training time for operators.
Cost-Effective and Energy-Efficient: Android devices powered by ARM are known for being cost-effective and energy-efficient, which is beneficial for industrial environments with numerous devices.
Flexibility and Customization: Android's open-source nature allows for flexibility in customizing the operating system and applications to meet specific industrial needs.
Suitable for Specific Applications: Excels in tasks requiring less computing power and is well-suited for lightweight, app-based industrial tasks.
Modern App Compatibility: Compatible with modern, mobile-optimized applications, making it ideal for certain industrial settings.
3. Integration and Performance:
Seamless Integration: Designed to seamlessly integrate into existing systems and workflows, especially those utilizing Android-based or IoT (Internet of Things) devices.
Efficient Performance: Equipped with high-performance processors for handling complex industrial applications smoothly.
Wide Range of I/O Options: Offers a range of I/O options for connecting to sensors and peripherals, increasing versatility in industrial settings.
IoT Integration: Features full IoT integration for real-time monitoring and control of processes.
4. Additional Features:
Projected Capacitive Multitouch Screen: Allows for easy operation through intuitive gestures like tapping, zooming, and scrolling.
Various Display Sizes: Customizable with a range of display sizes to suit different industrial applications.
Multiple Mounting Options: Offers flexible mounting options for convenient installation.
Remote Management: Supports remote device management for cost-effective maintenance.
In essence, the VOPC-236 ARM likely combines the reliability and durability of an industrial-grade panel PC with the user-friendliness and cost-effectiveness of the Android OS and ARM architecture, making it a compelling option for a variety of industrial automation and HMI applications.
>Product Application:
Industrial Automation: Controlling and monitoring machinery, visualizing data, and managing processes on the factory floor.
HMI (Human-Machine Interface): Providing an interface for operators to interact with machinery and systems in industrial settings.
Kiosks: Providing information and services in public spaces, such as ticketing, check-in, or wayfinding.
POS Systems: Processing transactions in retail and hospitality environments.
Digital Signage: Displaying information, advertisements, and other content in public spaces.
Edge AI: Running AI algorithms at the edge for tasks like image recognition or anomaly detection.
Medical Devices: Providing a user interface for medical equipment.
Transportation: Controlling and monitoring systems in vehicles or at transportation hubs.
Key Features that enable these applications:
· ARM Processor:
Provides smooth and efficient performance for running Android applications.
· Rugged Construction:
Withstands harsh industrial environments, including dust, water, and temperature fluctuations.
· Multi-touch Screen:
Allows for intuitive user interaction through gestures like tapping, zooming, and scrolling.
· Connectivity Options:
Offers various ports for connecting to other devices and systems, including RS232, RS485, CAN, Ethernet, USB, and GPIO.
· Customization:
Can be tailored to specific application requirements through various display sizes, CPUs, and software configurations.
· IP65 Rating Front Bezel:
Provides protection against dust and water ingress, making it suitable for challenging environments.
