SKU | VOPC-27 ARM |
Screen Size | 27” |
Resolution | 1920 x1080 |
Viewing Angle | 89/89/89/89 |
Brightness | 250 cd/㎡ |
Contrast Ratio | 1000:1 |
Touchscreen | Capacitive |
Controller | USB interface |
Durability | ≥ 5M times |
Processor Family | ARM, Rockchip |
Memory Type | 2G, 4G, 8G |
Ethernet / LAN | 2x LAN |

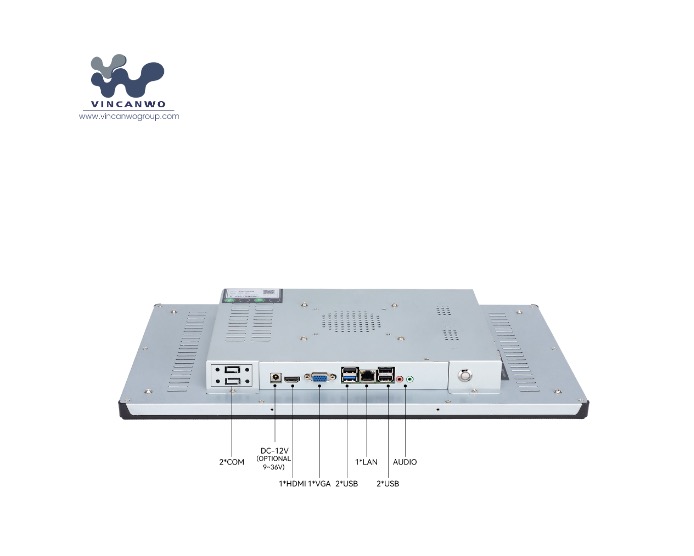

Serial / Com | 2x RS232 (1x COM option RS485) |
USB | 2x USB |
Video Outputs | 1x HDMI |
Expansion Slots | 1x Mini PCIE |

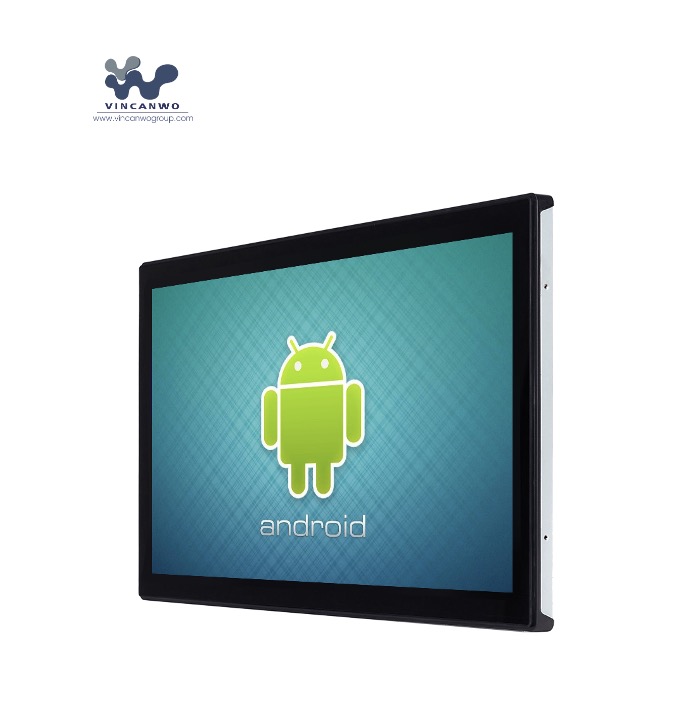

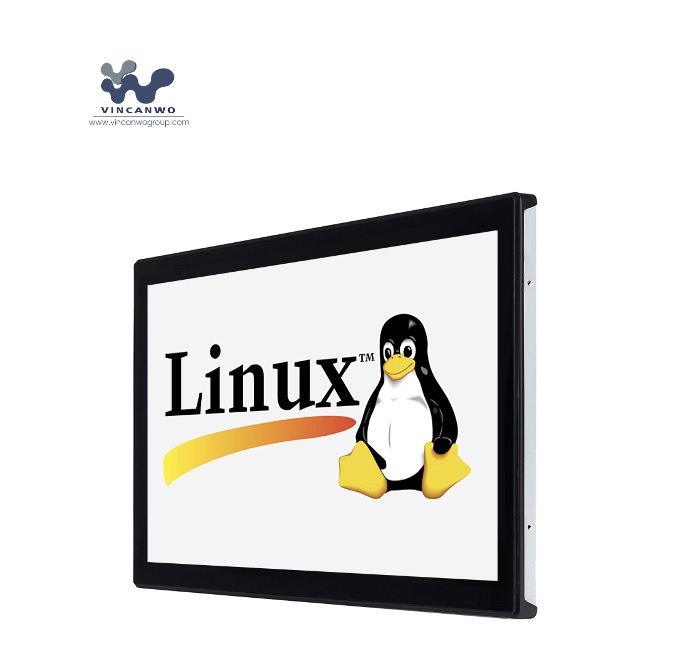

Operating Systems | Android, Linux |

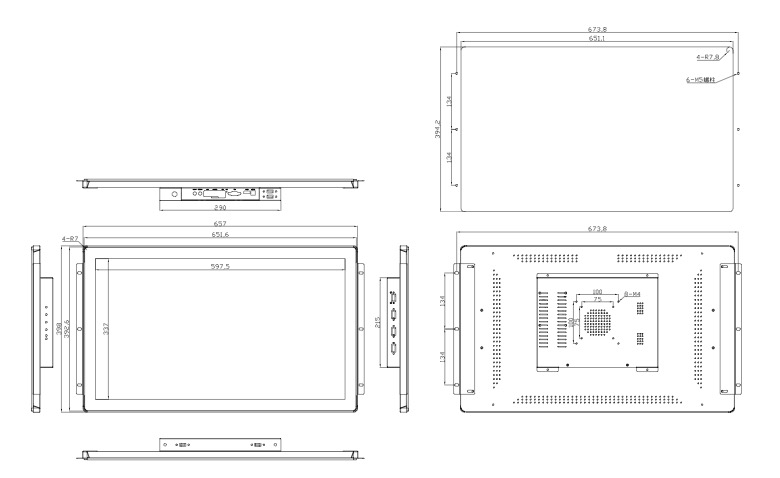

Dimension | 657x398x51.5mm |
Mounting Hole Size | 651.1x394.2mm |
Gross Weight | 9.20kg |
Mounting Options | Embedded, Wall Mount, Desktop Stand |
Operating Temperature | -30℃ ~ +70℃ |
Storage Temperature | -40℃ ~ +80℃ |
Humidity Rage Non-condensing | 5% - 95% |
Power | Input Voltage Range 9 – 36V DC Standard Power: Optional 12V AC/DC Adapter: 5A, 60W |
>Advantages:
1. Large Display: The 27” touchscreen display provides ample screen real estate for viewing and interacting with industrial applications and data.
2. Powerful ARM Processor: The ARM processor offers high performance and energy efficiency, making the panel PC suitable for demanding industrial applications.
3. Fanless Design: The fanless design eliminates the need for a cooling fan, reducing maintenance requirements and increasing reliability in dusty or harsh environments.
4. Rugged Construction: The panel PC is built to withstand tough industrial conditions, with a durable enclosure that can withstand shocks, vibrations, and temperature fluctuations.
5. Android Operating System: The Android OS offers a familiar and user-friendly interface, as well as access to a wide range of industrial and productivity apps from the Google Play Store.
6. Connectivity Options: The panel PC is equipped with a variety of connectivity options, including Ethernet, USB, HDMI, and RS-232 ports, allowing for easy integration with industrial equipment and networks.
Overall, the VOPC-27 ARM offers a combination of large display, powerful hardware, rugged design, and versatile connectivity options, making it a reliable and efficient solution for industrial computing needs.
>Applications:
The 27” Android Industrial Fanless Panel PC | VOPC-27 ARM is well-suited for a variety of industrial applications, including:
1. Industrial Automation: The panel PC can be used for controlling and monitoring automated processes in manufacturing plants, warehouses, and other industrial settings.
2. Machine Control: It can be integrated into machinery and equipment for real-time monitoring, data collection, and control of operations.
3. Data Visualization: The large touchscreen display is ideal for visualizing data, trends, and analytics in industrial environments, allowing for better decision-making.
4. Human-Machine Interface (HMI): The panel PC can serve as an intuitive interface for operators to interact with and control industrial machinery and systems.
5. Monitoring and Surveillance: It can be used for monitoring security cameras, access control systems, and other surveillance equipment in industrial facilities.
6. Inventory Management: The panel PC can be used for tracking inventory, managing stock levels, and optimizing supply chain operations.
7. Quality Control: It can be integrated into quality control systems to monitor and ensure product quality during the manufacturing process.
8. Process Control: The panel PC can be used for controlling and optimizing industrial processes, such as temperature control, pressure regulation, and flow monitoring.
Overall, the VOPC-27 ARM is a versatile and reliable solution for a wide range of industrial applications that require a large touchscreen display, powerful hardware, and rugged design.
