15.6” Widescreen Android Industrial Panel PC | VOPC-156 ARM
VINCANWO
Availability: | |
---|---|
Quantity: | |
SKU | VOPC-156 ARM |
Screen Size | 15.6” |
Resolution | 1366 x768 |
Viewing Angle | 45/45/20/40 |
Brightness | 220 cd/㎡ |
Contrast Ratio | 500:1 |
Touchscreen | Capacitive |
Controller | USB interface |
Durability | ≥ 5M times |
Processor Family | ARM, Rockchip |
Memory Type | 2G, 4G, 8G |
Ethernet / LAN | 1x LAN |
Serial / Com | 2x RS232 (1x COM option RS485) |
USB | 2x USB |
Video Outputs | 1x HDMI |
Expansion Slots | 1x Mini PCIE |
Operating Systems | Android, Linux |

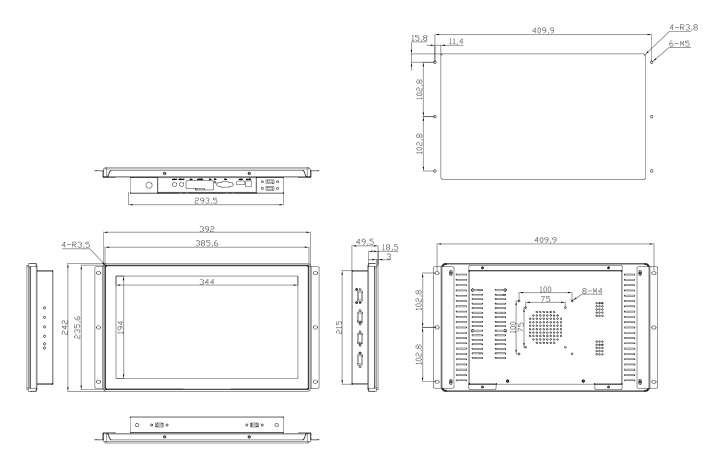

Dimension | 392 x242 x49.5mm |
Mounting Hole Size | 387.2 x237.2mm |
Gross Weight | 3.70kg |
Mounting Options | Embedded, Wall Mount, Desktop Stand |
Operating Temperature | -30℃ ~ +70℃ |
Storage Temperature | -40℃ ~ +80℃ |
Humidity Rage Non-condensing | 5% - 95% |
Power | Input Voltage Range 9 – 36V DC Standard Power: Optional 12V AC/DC Adapter: 5A, 60W |
>Product Advantage:
The 15.6” Widescreen Android Industrial Panel PC, like VOPC-156 ARM, particularly one with an ARM processor, offers a range of advantages for various industrial applications.
· Android Platform Benefits: It combines the advantages of the Android platform, including its wide range of applications and ease of use, with the ruggedness needed for industrial environments.
· Robust & Durable: It's designed to withstand harsh industrial settings, featuring a rugged construction, high-quality materials, and often an IP65 rating for water and dust resistance.
· Energy Efficiency: Utilizing an ARM processor ensures low power consumption, making it suitable for applications where energy efficiency is critical and contributing to lower operational costs.
· Cost-Effectiveness: ARM processors and their manufacturing processes can be more cost-effective compared to traditional x86-based systems, offering potential savings.
· Compact Design: The use of ARM processors enables a smaller and lighter form factor, ideal for applications where space is limited.
· Touchscreen Capability: The 15.6” widescreen typically features a sensitive and responsive touchscreen, such as Projected Capacitive Multi-Touch (P-CAP), which facilitates intuitive user interaction.
· Versatile Connectivity: It often includes various connectivity options, such as USB, RS485, and Ethernet, to integrate with different devices and networks.
· Fanless Design: Many industrial panel PCs have a fanless design, offering benefits like silence, improved heat dissipation, and reduced dust accumulation.
· Flexible Mounting Options: These panel PCs support diverse mounting methods, allowing for easy installation in various industrial settings.
· Wide Range of Applications: They are suitable for numerous applications across industries, including industrial manufacturing, logistics, building management, data visualization, and kiosk systems.
In summary, the 15.6” Widescreen Android Industrial Panel PC, like VOPC-156 ARM with an ARM processor provides a durable, energy-efficient, and versatile solution with features like a touchscreen and various connectivity options, making it well-suited for a broad range of industrial applications.
>Product Application:
The 15.6” Widescreen Android Industrial Panel PC | VOPC-156 ARM is designed for use in various industrial and commercial applications due to its rugged design and versatility.
1. Industrial Automation and Control Systems:
· Human-Machine Interface (HMI): Serving as control panels for monitoring and controlling industrial machinery and production processes.
· Data Collection and Analysis: Gathering real-time data from equipment and sensors for production management and analysis.
· Equipment Monitoring and Control: Providing an intuitive interface for operators to manage industrial processes, track efficiency, and conduct fault diagnostics.
2. Building Management:
HVAC, Lighting, and Security Control: Monitoring and controlling building systems like heating, ventilation, air conditioning, lighting, security, and access control.
3. Transportation and Logistics:
· Fleet Management: Providing real-time tracking, route optimization, and vehicle diagnostics for efficient fleet operations.
· Warehouse Management: Streamlining inventory management and order fulfillment processes.
· Onboard Computers: Serving as onboard computers for commercial vehicles, enabling communication and data exchange with central management systems.
4. Retail and Hospitality:
· Point of Sale (POS) Systems: Processing transactions, checking inventory, and managing customer loyalty programs.
· Interactive Kiosks: Used in retail stores, airports, and other public spaces for self-service applications like product information access, ordering, and ticketing.
· Digital Signage and Interactive Displays: Creating engaging and interactive customer experiences with product promotion and wayfinding.
5. Other Applications:
· Healthcare: Accessing patient records, controlling medical equipment, managing appointments, and use in patient check-in and wayfinding systems.
· Smart City Projects: Utilized in building automation, traffic management, and various smart city applications.
· Outdoor Environments: Suitable for outdoor kiosks and digital signage due to their ruggedized design and IP65-rated front panel protection.
· Self-Service Terminals: Providing various services to the public in banks, shopping malls, and transportation hubs.
The Android OS and ARM architecture provide flexibility and ease of software integration, allowing for customization and efficient operation in diverse applications.
SKU | VOPC-156 ARM |
Screen Size | 15.6” |
Resolution | 1366 x768 |
Viewing Angle | 45/45/20/40 |
Brightness | 220 cd/㎡ |
Contrast Ratio | 500:1 |
Touchscreen | Capacitive |
Controller | USB interface |
Durability | ≥ 5M times |
Processor Family | ARM, Rockchip |
Memory Type | 2G, 4G, 8G |
Ethernet / LAN | 1x LAN |
Serial / Com | 2x RS232 (1x COM option RS485) |
USB | 2x USB |
Video Outputs | 1x HDMI |
Expansion Slots | 1x Mini PCIE |
Operating Systems | Android, Linux |
Dimension | 392 x242 x49.5mm |
Mounting Hole Size | 387.2 x237.2mm |
Gross Weight | 3.70kg |
Mounting Options | Embedded, Wall Mount, Desktop Stand |
Operating Temperature | -30℃ ~ +70℃ |
Storage Temperature | -40℃ ~ +80℃ |
Humidity Rage Non-condensing | 5% - 95% |
Power | Input Voltage Range 9 – 36V DC Standard Power: Optional 12V AC/DC Adapter: 5A, 60W |
>Product Advantage:
The 15.6” Widescreen Android Industrial Panel PC, like VOPC-156 ARM, particularly one with an ARM processor, offers a range of advantages for various industrial applications.
· Android Platform Benefits: It combines the advantages of the Android platform, including its wide range of applications and ease of use, with the ruggedness needed for industrial environments.
· Robust & Durable: It's designed to withstand harsh industrial settings, featuring a rugged construction, high-quality materials, and often an IP65 rating for water and dust resistance.
· Energy Efficiency: Utilizing an ARM processor ensures low power consumption, making it suitable for applications where energy efficiency is critical and contributing to lower operational costs.
· Cost-Effectiveness: ARM processors and their manufacturing processes can be more cost-effective compared to traditional x86-based systems, offering potential savings.
· Compact Design: The use of ARM processors enables a smaller and lighter form factor, ideal for applications where space is limited.
· Touchscreen Capability: The 15.6” widescreen typically features a sensitive and responsive touchscreen, such as Projected Capacitive Multi-Touch (P-CAP), which facilitates intuitive user interaction.
· Versatile Connectivity: It often includes various connectivity options, such as USB, RS485, and Ethernet, to integrate with different devices and networks.
· Fanless Design: Many industrial panel PCs have a fanless design, offering benefits like silence, improved heat dissipation, and reduced dust accumulation.
· Flexible Mounting Options: These panel PCs support diverse mounting methods, allowing for easy installation in various industrial settings.
· Wide Range of Applications: They are suitable for numerous applications across industries, including industrial manufacturing, logistics, building management, data visualization, and kiosk systems.
In summary, the 15.6” Widescreen Android Industrial Panel PC, like VOPC-156 ARM with an ARM processor provides a durable, energy-efficient, and versatile solution with features like a touchscreen and various connectivity options, making it well-suited for a broad range of industrial applications.
>Product Application:
The 15.6” Widescreen Android Industrial Panel PC | VOPC-156 ARM is designed for use in various industrial and commercial applications due to its rugged design and versatility.
1. Industrial Automation and Control Systems:
· Human-Machine Interface (HMI): Serving as control panels for monitoring and controlling industrial machinery and production processes.
· Data Collection and Analysis: Gathering real-time data from equipment and sensors for production management and analysis.
· Equipment Monitoring and Control: Providing an intuitive interface for operators to manage industrial processes, track efficiency, and conduct fault diagnostics.
2. Building Management:
HVAC, Lighting, and Security Control: Monitoring and controlling building systems like heating, ventilation, air conditioning, lighting, security, and access control.
3. Transportation and Logistics:
· Fleet Management: Providing real-time tracking, route optimization, and vehicle diagnostics for efficient fleet operations.
· Warehouse Management: Streamlining inventory management and order fulfillment processes.
· Onboard Computers: Serving as onboard computers for commercial vehicles, enabling communication and data exchange with central management systems.
4. Retail and Hospitality:
· Point of Sale (POS) Systems: Processing transactions, checking inventory, and managing customer loyalty programs.
· Interactive Kiosks: Used in retail stores, airports, and other public spaces for self-service applications like product information access, ordering, and ticketing.
· Digital Signage and Interactive Displays: Creating engaging and interactive customer experiences with product promotion and wayfinding.
5. Other Applications:
· Healthcare: Accessing patient records, controlling medical equipment, managing appointments, and use in patient check-in and wayfinding systems.
· Smart City Projects: Utilized in building automation, traffic management, and various smart city applications.
· Outdoor Environments: Suitable for outdoor kiosks and digital signage due to their ruggedized design and IP65-rated front panel protection.
· Self-Service Terminals: Providing various services to the public in banks, shopping malls, and transportation hubs.
The Android OS and ARM architecture provide flexibility and ease of software integration, allowing for customization and efficient operation in diverse applications.
