VG-Book series
VINCANWO GROUP
| Availability: | |
|---|---|
| Quantity: | |

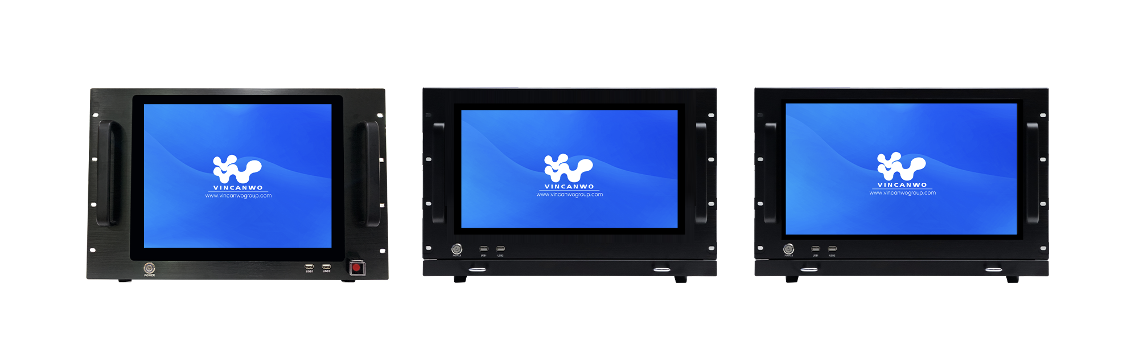

| Model | VG-BOOK150 | VG-BOOK156 | VG-BOOK173 | ||||
| Display | Screen Size | 15" | 15.6" | 17.3" | |||
| Screen Resolution | 1024 x 768 | 1920 x 1080 | 1920 x 1080 | ||||
| Screen Ratio | 4:3 | 16:9 | 16:9 | ||||
| Brightness | 350 nits | 400 nits | 400 nits | ||||
| Optional 1000 nits High-brighntess | |||||||
| Touchscreen | Touch Screen | Capacitive (Multi-touch) | |||||
| Primary Components | Processor Family | Intel Processors | |||||
| Processor Model | 13th/12th/10th/8th/7th/6th/5th/3th|i3/i5/i7, J1800,J1900,J6412,N5095,N100 | ||||||
| Memory Type | DDR3, DDR4 | ||||||
| Memory Support | 4GB,8GB,16GB,32GB | ||||||
| Storage Type | 1x mSATA/1x 2.5" SATA Drive Bay for SSD/HDD ≤2TB, 1x M.2/1x 2.5" SATA Drive Bay for SSD/HDD ≤2TB | ||||||
| Storage Support | MS:128GB~512GB | M.2: 128GB ~ 1TB | ||||||
| Operating Systems | Windows | Windows,Kylin,UOS | |||||
| Linux | Linux Ubuntu 20.04 or above (Contact your sales rep for more information) | ||||||
| Peripherals & Wireless Connectivity | WiFi | Optional 802.11 a/b/g/n/ac/ax Wi-Fi 6 | |||||
| Bluetooth | Optional Bluetooth 5.3 | ||||||
| External I/O Ports | USB | 2x front USB, 4x rear USB | |||||
| Serial Protocol Detail | 2x RS232/485, 6x COM option | ||||||
| Ethernet / LAN | 2x RJ45 2.5 GbE LAN | ||||||
| Video Outputs | 1x HDMI, 1x VGA | ||||||
| Audio Ports | Rear audio 2-channel Audio Inputs (RCA connector) 2-channel Audio Output (RCA connector) 1x 3.5mm MIC Output 1x 3.5mm Audio Output | ||||||
| Slot | 1x MPCIe | ||||||
| LPT parallel port | LPT parallel port Expansion option | ||||||
| Front Buttons | 1x Power Switch 1x Alarm Switch (Volume-adjustable Knob optional) | ||||||

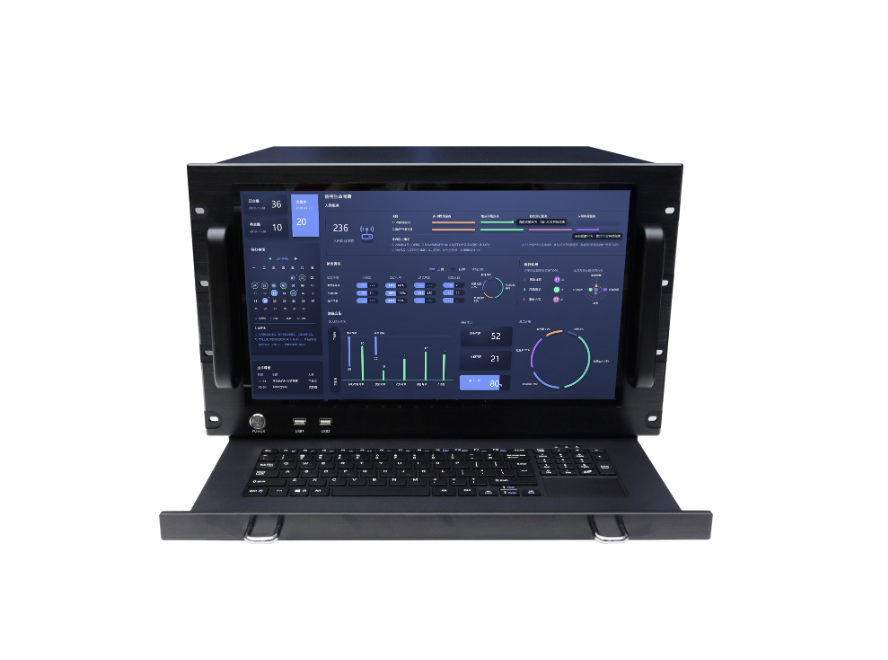

| Keyboard and Mouse | Pull-out Keyboard and Mouse | ||||||
| Power | Power Type | 220W Industrial Switching Power Supply | |||||
| Power Supply Voltage | AC 180~260V/50Hz | ||||||
| Expansion Slots | Others | Speaker | 4G module | 5G module (up to 8th gen) | |||||
| Lotus head expansion board 2-inlet&2-outlet | |||||||
| RCA expansion board, 12V/6-in adjustable volume, 3-out adjustable treble and bass, 3 microphones, VW-6N3O2M | |||||||
| Weight / Dimensions | Weight | 484x325x284 mm | 484x326x344.9 mm | 484x326x344.9 mm | |||
| Dimensions | 15.00 kg | 17.45 kg | 18.00 kg | ||||
| Thermal & Environmental | Operating Temperature | -10°C ~ 60°C | |||||
| Storage Temperature | -20°C ~ 70°C | ||||||
| Humidity Range | 5% – 90% Non-condensing | ||||||
| Enclosure | Material | Metal Chassis | |||||
| Color | Black | ||||||
| Mounting Options | Desktop, Rack Mount option | ||||||
Centralized Management: It functions as the system's control center, managing all IP endpoints (paging microphones, intercom terminals, broadcast devices, and fire - alarm interfaces) via dedicated software. It enables automatic startup and real - time status monitoring through an electronic map.
Real - time Monitoring & Control: It displays IP addresses, online status, task progress, and volume levels of terminals in real - time, supporting remote volume adjustment, channel switching, and emergency paging.
Audio Stream & Media Management: It handles audio - stream transmission, bidirectional audio exchange, and responds to terminal playback requests. It also manages media libraries, facilitating scheduled broadcasting, on - demand services, and file storage/retrieval.
Redundancy & Reliability: In case of server failure or virus infection, it automatically switches to a backup IP control host, ensuring that regular broadcasting and scheduled ringing remain unaffected.
Scalability & Integration: It supports multiple concurrent media libraries and integrates smoothly with third - party systems such as fire - alarm and building automation for unified control.
| Parameter | Details |
|---|---|
| Screen Sizes | 15", 15.6", 17.3" LED touchscreen |
| Resolution | 1024×768 (standard), 1920×1080 (optional) |
| OS | Windows Embedded/ Linux (customized) |
| Networking | Gigabit Ethernet (dual - port redundant), PoE support |
| Audio I/O | Line - in, line - out, mic - in (balanced), 24 - bit ADC/ DAC |
| Storage | SSD (128GB–1TB), expandable via SATA/ NVMe |
| Power | 100–240V AC, redundant power supply (optional) |
| Dimensions | Varies by screen size; 15": 360×260×50mm (approx.), 17.3": 410×290×55mm (approx.) |
| Weight | 5–7kg (depending on configuration) |
Public Address: Suitable for schools, hospitals, airports, and railway stations, supporting background music, announcement broadcasting, and emergency alerts.
Enterprise & Campus: Facilitates internal communication, paging, and event broadcasting across multiple buildings/zones.
Intelligent Buildings: Integrates with BMS and fire - safety systems for centralized audio - visual control and alarm 联动.
Hospitality & Retail: Used for in - store promotions, queue management, and emergency notifications in hotels and shopping malls.
| Model | Screen Size | Key Options |
|---|---|---|
| VG - Book 15 | 15" | Standard I/O, 128GB SSD, single power |
| VG - Book 156 Pro | 15.6" | Enhanced I/O, 256GB SSD, redundant power |
| VG - Book 173 Elite | 17.3" | 4K touchscreen, 512GB SSD, dual - port PoE, redundant power |
All - in - one Design: Combines touch control, server functions, and management software in a single unit, reducing deployment complexity and costs.
Intuitive Operation: The touchscreen interface and electronic map simplify operation, minimizing training requirements for staff.
Proven Reliability: The automatic failover mechanism guarantees 24/7 operation, which is crucial for mission - critical broadcast systems.
Future - proof: It supports firmware updates and can integrate with emerging IP - based audio - video technologies.
