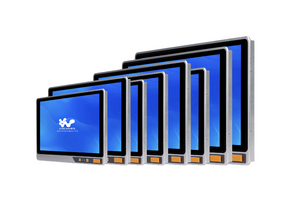

Industrial Computers | TPRO-SE Series
VINCANWO GROUP
| Availability: | |
|---|---|
| Quantity: | |
SKU | ||||
Screen Size | ||||
Resolution | 1024 x 600 | 1024 x 768 | 1280 x 800 | 1920 x 1080 |
Viewing Angle | 85/85/85/85 | 85/85/85/85 | 85/85/85/85 | 85/85/85/85 |
Brightness | 300 cd/㎡ | 300 cd/㎡ | 400 cd/㎡ | 300 cd/㎡ |
Contrast Ratio | 500:1 | 1000:1 | 800:1 | 800:1 |
Touchscreen | Capacitive | |||
Controller | USB interface | |||
Durability | ≥ 5M times | |||
Processor Family | Intel® Processors | |||
Memory Type | Under 5th Generation: DDR3, 4G, 8G More than 6th Generation: DDR4, 4G, 8G, 16G, 32G | |||
Storage Type | 3rd Generation: 1x MSATA More than 4th Generation: 1x M.2 | |||
Ethernet / LAN | 1x RTL8111, 2x RTL8111 | |||
Serial / Com | 2x RS232 (COM2 option RS485) | 2x RS232 (COM 2 option RS485, expansion to 5COM) | ||
USB | 2x USB3.0, 2x USB2.0 | |||
Video Outputs | 1x HDMI, 1x VGA | |||
Expansion Slots | 1x Mini PCIE WiFi & Bluetooth or 4G LTE | |||
Operating Systems | Windows, Linux | |||
Dimension | 194x129.9x52mm | 234x187x52mm | 266.1x181.9x52mm | 337x208.6x52mm |
Mounting Hole Size | 188x124mm | 228x181mm | 260x176mm | 331.5x203mm |
Gross Weight | 1.80kg | 2.40kg | 3.00kg | 3.50kg |
Mounting Options | Embedded, Wall Mount, Desktop Stand | |||
Operating Temperature | -30℃ ~ +70℃ | |||
Storage Temperature | -40℃ ~ +80℃ | |||
Humidity Rage Non-condensing | 5% - 95% | |||
Power | Input Voltage Range 9 – 36V DC Standard Power: Optional 12V AC/DC Adapter: 5A, 60W | |||
>Advantages:
The TPRO-SE Series of industrial computers offers the most advantages that make them well-suited for use in industrial environments:
1. Rugged design: The TPRO-SE Series is built to withstand harsh conditions, including extreme temperatures, shock, vibration, dust, and moisture. This rugged design ensures reliable operation in challenging industrial settings.
2. High performance: These industrial computers are equipped with powerful processors, ample memory, and storage options to handle demanding industrial applications efficiently.
3. Versatile connectivity: The TPRO-SE Series features a wide range of connectivity options, including multiple USB ports, Ethernet ports, serial ports, and expansion slots. This allows for easy integration with a variety of industrial equipment and peripherals.
4. Fanless design: The fanless design of the TPRO-SE Series reduces the risk of dust and debris entering the system, minimizing maintenance requirements and ensuring long-term reliability.
5. Flexible mounting options: The TPRO-SE Series can be mounted in various ways, such as wall mounting, panel mounting, or rack mounting, to accommodate different installation requirements in industrial environments.
6. Long-term reliability: With a rugged design and high-quality components, the TPRO-SE Series is built for long-term reliability, providing consistent performance in industrial applications over time.
Overall, the TPRO-SE Series of industrial computers offers durability, high performance, versatile connectivity, and long-term reliability, making them an ideal choice for industrial automation, manufacturing, transportation, and other demanding applications.
>Applications:
The TPRO-SE Series of industrial computers is well-suited for a wide range of applications in industrial settings, thanks to their rugged design, high performance, and versatile connectivity options. The most common applications of the TPRO-SE Series include:
1. Industrial automation: The TPRO-SE Series can be used for controlling and monitoring automated processes in manufacturing plants, warehouses, and other industrial facilities.
2. Machine vision systems: These industrial computers are ideal for running machine vision systems that inspect and analyze products on production lines, ensuring quality control and efficiency.
3. Transportation systems: The TPRO-SE Series can be integrated into transportation systems for monitoring and controlling traffic lights, railway signals, and other infrastructure components.
4. Oil and gas industry: These industrial computers are suitable for use in the oil and gas industry for monitoring and controlling drilling operations, pipelines, and other critical processes.
5. Power and energy sector: The TPRO-SE Series can be deployed in power plants and energy facilities for managing power distribution, monitoring equipment performance, and ensuring system reliability.
6. Mining operations: These industrial computers are well-suited for use in mining operations for controlling machinery, monitoring safety systems, and managing production processes.
7. Food and beverage industry: The TPRO-SE Series can be used in food processing plants for managing production lines, tracking inventory, and ensuring compliance with food safety regulations.
Overall, the TPRO-SE Series of industrial computers is versatile and reliable, making them suitable for a wide range of industrial applications where ruggedness, performance, and connectivity are essential.
