FWS ARM Series（Wide Screen）
VINCANWO
| Availability: | |
|---|---|
| Quantity: | |
Description

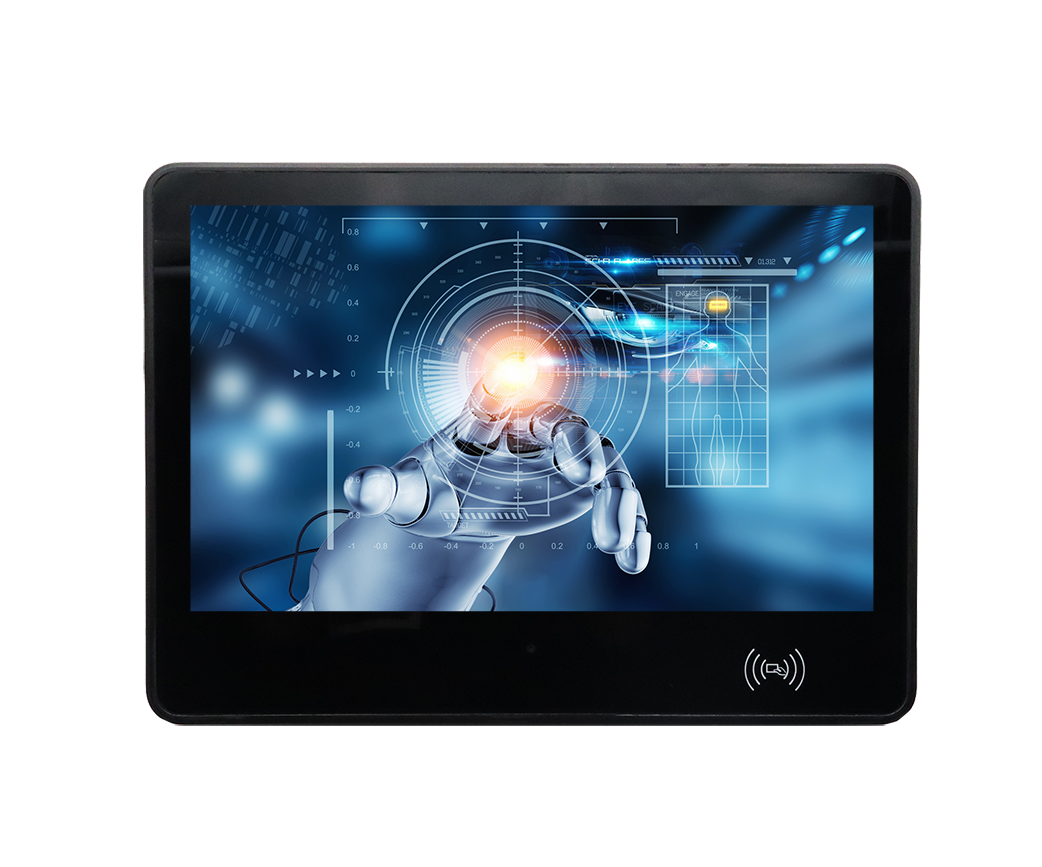

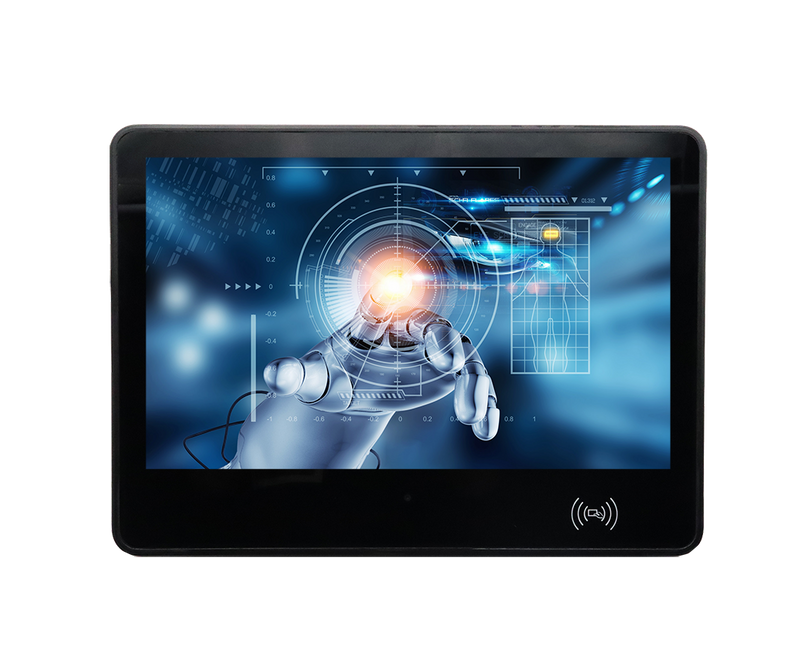

The FWS ARM Series Android Panel PC Widescreen combines durability with the ability to easily integrate into your mobile environment. At a lower price point using the proven android platform, the FWS ARM Series easily runs your IoT cloud-based applications and is a good replacement option for your PLC or HMI windows-based touch panel PC. Rugged IP65 front ratings ensure a high performing low-cost solution for your HMI applications such as building automation, meeting room signage, security, temperature control, and factory automation. The FWS ARM series includes optional front IC/ID card swiping, camera, scanning code, and the Android 6.0 Marshmallow OS, which releases the full capabilities of the platform to developers.
Use Cases
● Industrial Manufacturing:
The FWS ARM Series can be used in industrial manufacturing environments for process control, monitoring production lines, and managing equipment and machinery.
● Building Management:
These panel PCs are suitable for building management applications, allowing facility managers to monitor and control various systems such as HVAC, lighting, security, and access control.
● Logistics and Warehouse Management:
These panel PCs can be integrated into logistics and warehouse management systems, providing real-time tracking, inventory management, and order fulfillment functionalities.
Description
The FWS ARM Series Android Panel PC Widescreen combines durability with the ability to easily integrate into your mobile environment. At a lower price point using the proven android platform, the FWS ARM Series easily runs your IoT cloud-based applications and is a good replacement option for your PLC or HMI windows-based touch panel PC. Rugged IP65 front ratings ensure a high performing low-cost solution for your HMI applications such as building automation, meeting room signage, security, temperature control, and factory automation. The FWS ARM series includes optional front IC/ID card swiping, camera, scanning code, and the Android 6.0 Marshmallow OS, which releases the full capabilities of the platform to developers.
Use Cases
● Industrial Manufacturing:
The FWS ARM Series can be used in industrial manufacturing environments for process control, monitoring production lines, and managing equipment and machinery.
● Building Management:
These panel PCs are suitable for building management applications, allowing facility managers to monitor and control various systems such as HVAC, lighting, security, and access control.
● Logistics and Warehouse Management:
These panel PCs can be integrated into logistics and warehouse management systems, providing real-time tracking, inventory management, and order fulfillment functionalities.
| SKU | FWS-101 | FWS-156 | FWS-215 |
| Screen Size | 10.1" | 15.6" | 21.5" |
| Resolution | 1280*800 | 1920*1080 | 1920*1080 |
| Viewing Angle | 80/80/80/80 | 89/89/89/89 | 89/89/89/89 |
| Brightness | 330 cd/m2 | 250 cd/m2 | 250 cd/m2 |
| Contrast Ratio | 600:1 | 3000:1 | 3000:1 |
| Touch Screen | Capacitive | ||
| Controller | USB interface | ||
| Durability | ≥ 500W times | ||
| Processor | ARM / Rockchip | ||
| Memory | 2G / 4G / 8G | ||
| Storage | 32G / 64G / 128G | 3588: 64G / 128G / 256G | |
| Network | 1 *LAN | 2 *LAN | |
| COM | 2 *RS232 | ||
| USB | 2 *USB2.0 | ||
| Display | 1 *HDMI | ||
| ExpandSlot | 1 *Mini PCIE | ||
| Operating System | Android / Linux (For Linux Operating System, and please contact our sales team) | ||
| Sensor | Optional front IC/ID card swiping, camera, scanning code | ||
| Dimensions (mm) | 283*228.2*52.1 | 418*332*58.3 | 544*410.6*59.4 |
| Hole Sizes (mm) | 272*218 | 396*324 | 533*397 |
| Weight (KG) | 0.95 | 1.60 | 3.82 |
| Mounting Options | Embedded / Wall-mounted / Desktop | ||
| Operating Temperature | -0 ~ +50℃ | -0 ~ +50℃ | -0 ~ +50℃ |
| Storage Temperature | -20 ~ +60℃ | -20 ~ +60℃ | -20 ~ +60℃ |
| Storage Humidity | 5 ~ 90% | 5 ~ 90% | 5 ~ 90% |
| Power Input | DC -12V (Optional 9 ~ 36V) | ||
| Packaging Information | |||
| FWS | 1 *Master, 1 *Adapter, 1* Power Supply Cable, 4 *hooks, 1 *Manual, 1 *Warranty Card | ||
| FWS-1 | Available to upgrade front IC/ID card swiping | ||
| FWS-C | Available to upgrade front Camera | ||
| FWS-S | Available to upgrade front Scanning Code | ||
| FWS-I/C/S | Available to upgrade front IC/ID card swiping / camera / scanning code | ||
