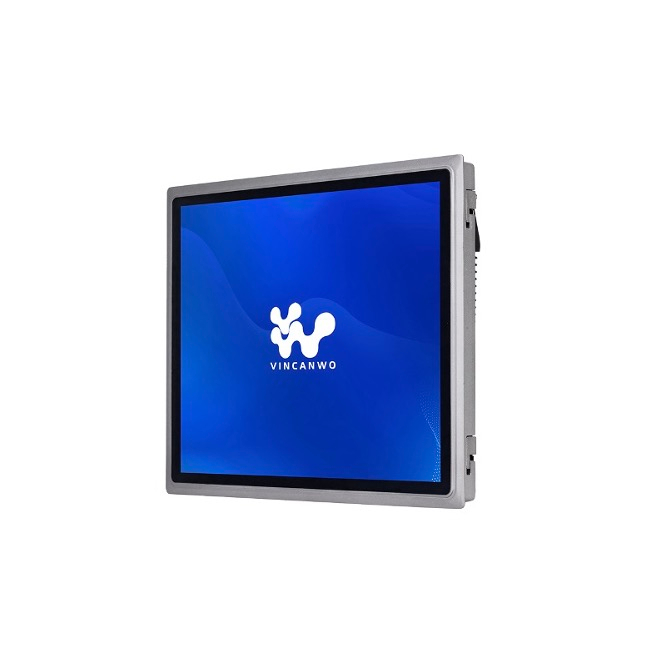

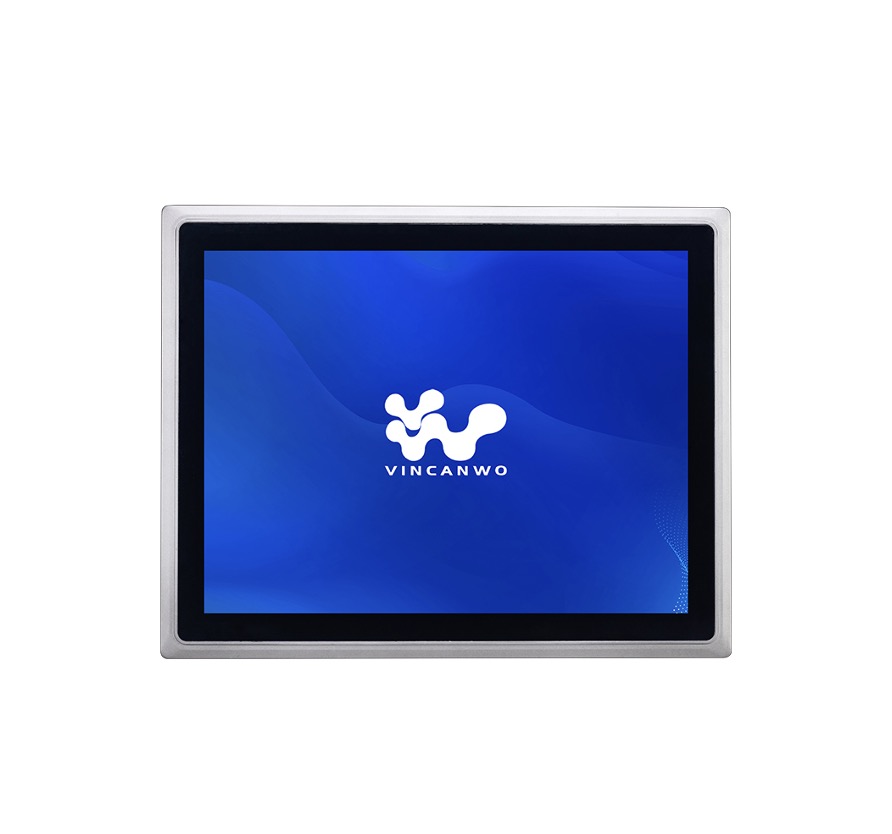

SKU | 12.1” All In One Industrial Computer | TPRO-121 |
Screen Size | 12.1inch |
Resolution | 1024*768 |
Viewing Angle | 89/89/89/89 |
Brightness | 500 cd/m2 |
Contrast Ratio | 1200:1 |
Touch Screen | Capacitive, Resistive |
Controller | USB interface |
Durability | Capacitive: ≥5M times / Resistive: ≥100,000 times |
Processor | Intel® Processors |
RAM | 4G/8G/16G/32G |
SSD | under 5th Gen.: 1 * mSATA/1 *SATA(2 .5”Mechanical hard disk capacity ≤2TB) up to 6th Gen.: 1 * M.2/1 *SATA(2 .5” Mechanical hard disk capacity ≤2TB） |
Network | 1 *RTL8111 |

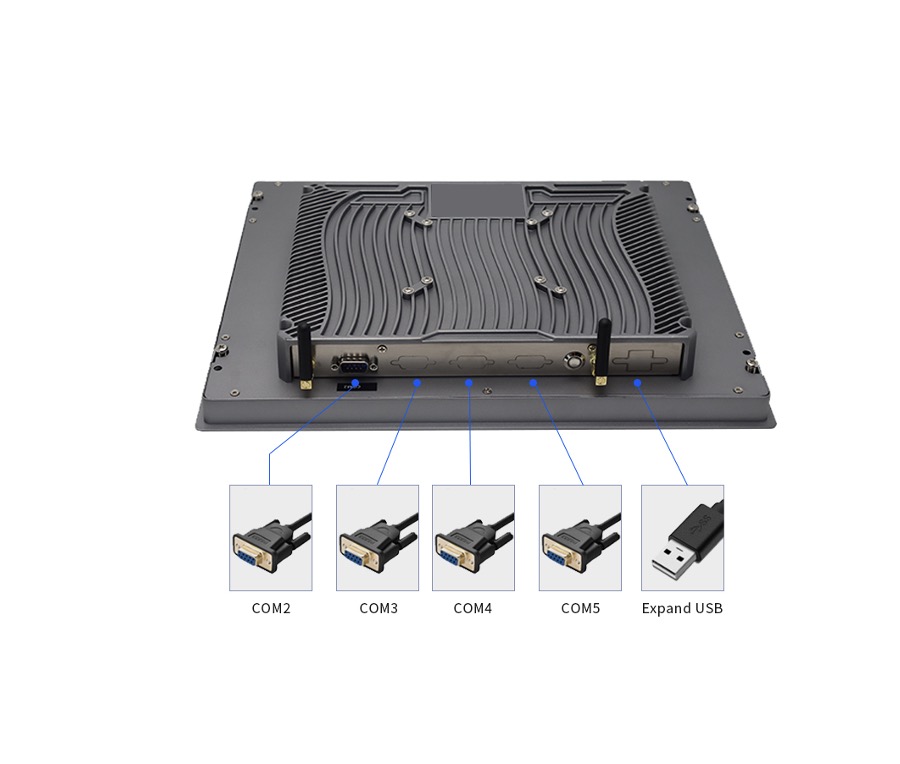

COM | 2 *RS232 (COM2 optional RS485) |
USB | 4 *USB |
Display | 1 *HDMI, 1 *VGA |
Expansion Slots | 1 *Mini PCIE WiFi&BT or 4G LTE |
Operating System | Windows / Linux |

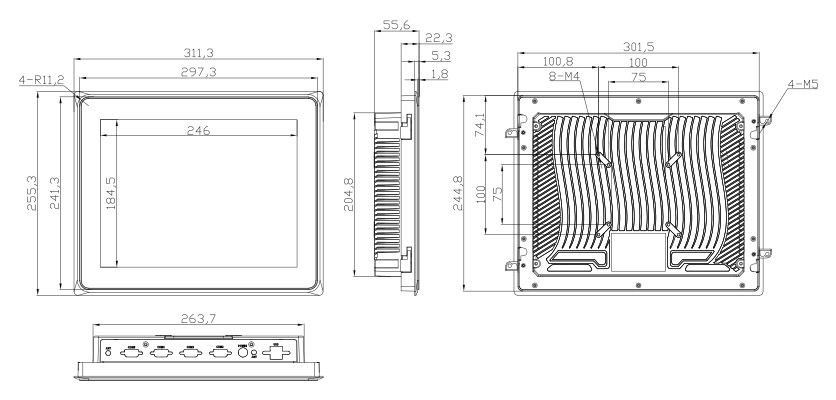

Dimensions (mm) | 311.3 *255.3 *55. 6 |
Mounting Hole Size (mm) | External embedded: 305*248 Internal embedded: 298.8*242.8 |
Gross weight (kg) | 3.30 |
Installation methods | Embedded / Wall mount / Desktop |
Operating Temperature | -30 ~ +70°C |
Storage Temperature | -40 ~ +80°C |
Storage Humidity *Non-condensing | 5 ~ 95% |
Power Input | 1*12VDC (6A) (Option 9~36VDC Wide-range Power Input) |
Packaging Information | 1 *Master, 1 *Transformer, 1* Power Supply Cable |
>Product Advantage
· Ease of installation:
Integrated with a touchscreen and do not require external cables. This makes them a simple solution for many applications.
· Space-saving:
Mounted on walls, desks, or swing arms, and can be installed flush against a wall. This can help reduce clutter in your workspace.
· Durability:
Designed to be more robust than standard PCs, so they can function in environments where other PCs might not.
· Real-time monitoring:
Provide real-time monitoring and control of production processes. This can help manufacturers identify issues early and ensure consistent quality.
· Precise performance:
Offer precise and consistent performance, which is important for automation and control systems.
· Improved efficiency:
Speed up operations and ensure smooth workflows.
Our Vincanwo brand 12.1” All In One Industrial Computer | TPRO-121 can be used in a variety of industries, including manufacturing, transportation, energy and more.
>Product Application
Manufacturing
Process control
Monitor and control manufacturing processes in industries like automotive, electronics, and pharmaceuticals
Quality control
Help track production progress and manage quality control
Warehouse management
Inventory management
Help manage inventory, track orders, and optimize logistics
Barcode scanning
With touchscreen interfaces can help scan barcodes for efficient tracking and management
Data visualization
Displaying key performance indicators: Industrial computers with high-resolution touchscreens can display key performance indicators (KPIs), charts, graphs, and dashboards
As well other applications of our Vincanwo brand 12.1” All In One Industrial Computer | TPRO-121 Building automation, Public security monitoring, Automated traffic control, and Access control.
And, our Vincanwo brand 12.1” All In One Industrial Computer | TPRO-121 is designed to be robust and durable, with features like dust-resistant enclosures, enhanced thermal management, and higher-performing hardware.
