SKU | TPRO-SE7 |
Screen Size | 7" |
Resolution | 1024*600 |
Viewing Angle | 85/85/85/85 |
Brightness | 300 cd/m2 |
Contrast Ratio | 500:1 |
Touch Screen | Capacitive |
Controller | USB interface |
Durability | ≥5M times |
Processor | Intel® Processors |
RAM | 4G/8G/16G/32G |
SSD | 128G/256G/512G/1T |
Network | 1 *RTL8111 / 2 *RTL8111 |
COM | 2 *RS232 (COM2 optional RS485) |
USB | 2 *USB3.0 + 2 *USB2.0 |
Display | 1 *HDMI, 1 *VGA |
Expansion | 1 *Mini PCIE WiFi&BT or 4G LTE |
Operating System | Windows / Linux |
Dimensions (mm) | 194*129.9*52 |
Recommended size of holes openning (mm) | 188*124 |
Gross weight (kg) | 1.8kg |
Installation methods | Embedded / Wall mount / Desktop |
Operating Temperature | -30 ~ +70°C |
Storage Temperature | -40 ~ +80°C |
Storage Humidity *Non-condensing | 5 ~ 95% |
Power Input | 1*12VDC (6A) |
Packaging Information | 1 *Master, 1 *Transformer, 1* Power Supply Cable |

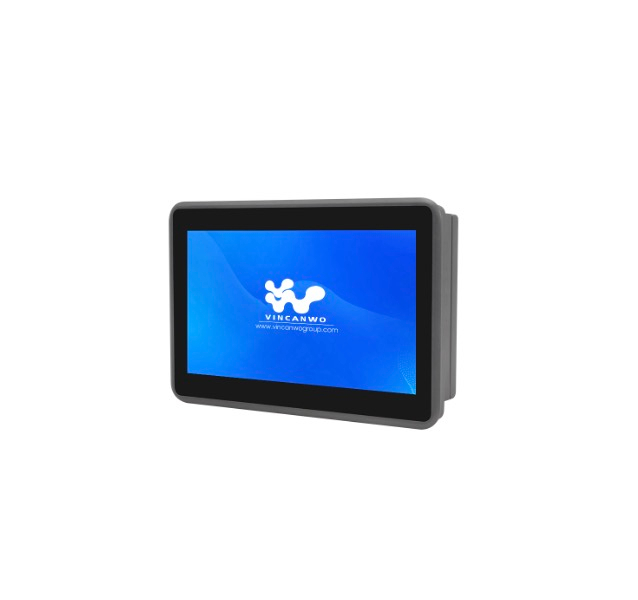

Ultra‑compact & All‑in‑One Design: 7‑inch integrated touch display + industrial motherboard, saving space for embedded/desktop/wall‑mount deployment.
Rugged Industrial Reliability: Front panel IP66 dust/waterproof; aluminum alloy enclosure, wide temperature tolerance (‑30°C ~ +70°C), supports 7×24h continuous operation.
Multi‑OS Compatibility: Supports Android (default for ARM), Linux (various distros), and Windows 10/11 (x86 models) for flexible software adaptation.
High‑Performance Touch Display: 7” IPS LCD (1024×600/1280×800); 10‑point PCAP capacitive touch, fast response, wide viewing angle.
Rich Connectivity & Expansion: Equipped with Wi‑Fi, Bluetooth, Ethernet, USB, COM (RS232), HDMI, GPIO, and optional 4G/GPS/CANBUS for diverse industrial I/O needs.
Low Power & Energy Efficiency: Fanless/low‑power CPU options (RK3288/i.MX8M Mini), DC 8–36V wide voltage input, ideal for energy‑sensitive scenarios.
Cost‑Effective & Customizable: Optimized BOM for industrial budgets; customizable ports, storage (eMMC/SSD), and OS configurations.
Category | Specifications |
Display | 7” IPS, 1024×600 (or 1280×800), industrial grade, wide viewing angle |
Touch | 10‑point PCAP capacitive touch, G+G structure, high sensitivity |
CPU | ARM: RK3288 (Quad‑core A17)/i.MX8M Mini (Quad‑core A53); x86: J1900/i3/i5 |
Memory/Storage | 2GB DDR3 (up to 4GB); 16GB/32GB eMMC (up to 256GB SSD) |
OS Support | Android 9.0+/Linux Debian/Windows 10/11 |
I/O Ports | 1×LAN, 2×COM (RS232), 2×USB 2.0, 1×HDMI, GPIO, Audio, TF/SIM slot |
Wireless | Wi‑Fi 802.11b/g/n, Bluetooth 4.2, optional 4G LTE/GPS |
Protection | Front IP65, aluminum alloy housing, fanless cooling, wide temp: ‑30°C ~ +70°C |
Power | DC 12V (8–36V optional), low power consumption (~15W) |
Industrial automation (HMI, PLC control, MES workstations)
Smart building & home automation (control panels)
Digital signage & interactive kiosks
Logistics & warehouse terminals
Medical & healthcare equipment
IoT edge computing devices
