SKU | 10.1" Wall Mounted Industrial Computer TPRO-101 |
Screen Size | 10.1inch |
Resolution | 1280*800 |
Viewing Angle | 85/85/85/85 |
Brightness | 400 cd/m2 |
Contrast Ratio | 800:1 |
Touch Screen | Capacitive |
Controller | USB interface |
Durability | ≥5M times |
Processor | Intel® Processors |
Memory | 4G/8G/16G/32G |
Storage | 128G/256G/512G/1T |
Network | 2 *RTL8111 |
COM | 2 *RS232 (COM2 optional RS485 and expansion to 5COMs) |
USB | 2 *USB3.0 + 2 *USB2.0 |
Display | 1 *HDMI, 1 *VGA |
Expansion | 1 *Mini PCIE WiFi&BT or 4G LTE |
Operating System | Windows / Linux |

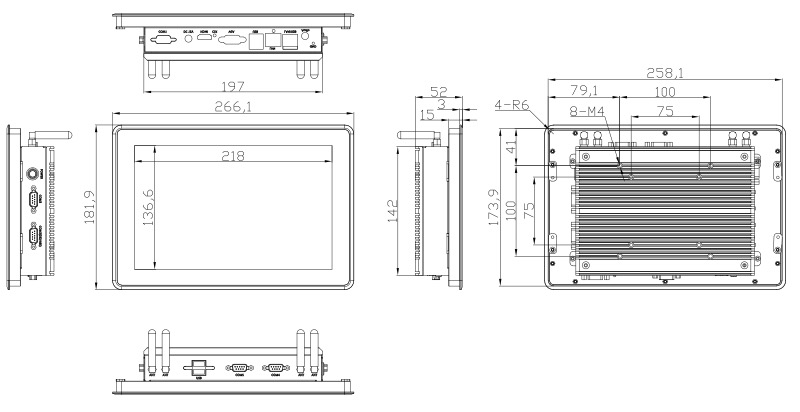

Dimensions (mm) | 266.1*181.9*52 |
Recommended size of holes openning (mm) | 260*176 |
Gross weight (kg) | 3.00kg |
Installation methods | Embedded / Wall mount / Desktop |
Operating Temperature | -30 ~ +70°C |
Storage Temperature | -40 ~ +80°C |
Storage Humidity *Non-condensing | 5 ~ 95% |
Power Input | 1*12VDC (6A) |
Packaging Information | 1 *Master, 1 *Transformer, 1* Power Supply Cable |
>Product Advantage:
Space efficiency:
Save valuable floor space.
Ergonomic design:
Designed to reduce stress and maintain posture.
Easy access:
Make it easy to access the computer for maintenance, repairs, or upgrades.
Cost-effective:
Cost-effective because it doesn't require an additional enclosure or panel.
Rugged reliability:
Rugged and reliable in environments that would cause standard consumer grade PCs to fail frequently.
Compact form factor:
Compact and sealed, making them able to withstand harsh environments.
Fewer moving parts:
Has fewer or no moving parts, which can reduce the possibility of components failing.
Can handle extended operating temperatures:
Handle extended operating temperatures in non-ventilated spaces.
>Product Application
Manufacturing:
Used to monitor and control production processes in real-time, which can improve efficiency and productivity. Also be used for Manufacturing Execution Systems (MES), Supervisory Control and Data Acquisition (SCADA), and Human-Machine Interface (HMI) applications.
Building automation:
Used to control and monitor building systems, and manage emergency situations and evacuation planning.
Energy and utilities:
Used to monitor and manage power distribution systems, water treatment plants, and renewable energy installations.
Public kiosks:
Used in public spaces as interactive kiosks for self-service information centers, ticketing systems, wayfinding displays, and digital signage.
