SKU | 13.3" Rackmount Industrial Computer TPRO-133 |
Screen Size | 13.3inch |
Resolution | 1920*1080 |
Viewing Angle | 85/85/85/85 |
Brightness | 300 cd/m2 |
Contrast Ratio | 800:1 |
Touch Screen | Capacitive |
Controller | USB interface |
Durability | ≥5M times |
Processor | Intel® Processors |
Memory | 4G/8G/16G/32G |
Storag | 128G/256G/512G/1T |
Network | 2 *RTL8111 |
COM | 2 *RS232 (COM2 optional RS485 and expansion to 5COMs) |
USB | 2 *USB3.0 + 2 *USB2.0 |
Display | 1 *HDMI, 1 *VGA |
Expansion | 1 *Mini PCIE WiFi&BT or 4G LTE |
Operating System | Windows / Linux |

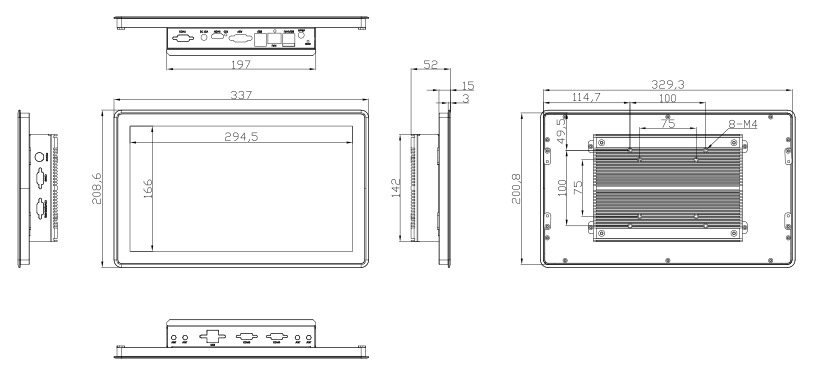

Dimensions (mm) | 337*208.5*52 |
Recommended size of holes openning (mm) | 331.5*203 |
Gross weight (kg) | 3.50kg |
Installation methods | Embedded / Wall mount / Desktop |
Operating Temperature | -30 ~ +70°C |
Storage Temperature | -40 ~ +80°C |
Storage Humidity *Non-condensing | 5 ~ 95% |
Power Input | 1*12VDC (6A) <Option 9~36VDC Wide-range Power Input> |
Packaging Information | 1 *Master, 1 *Transformer, 1* Power Supply Cable |
>Product Advantage:
· Space saving:
Save space on desks by keeping them in one location.
· Safety:
Securely anchored to the enclosure, which protects them from damage.
· Improved airflow:
Designed to keep equipment cool during operation.
· Dust free zone:
Kept in enclosures, which reduces the risk of dust and other contaminants.
· Organized workspace:
Keep your cabling organized, so you only need to run a few cables to the individual desks.
· Better power management:
Provide more consistent power to multiple PCs.
· Scalability:
Tailored with scalability in performance, storage, and memory capacity.
· Practical connectivity:
Communicate with numerous networks and peripheral devices simultaneously.
>Product Application
· Manufacturing:
Managing industrial robots, conveyor belts, and production lines.
· Oil and Gas:
Monitoring pipelines, valves, and pressure levels.
· Power Generation:
Controlling turbines, generators, and electrical grids.
· Water Treatment:
Managing pumps, filters, and chemical dosing.
