SKU | 7" Mini Industrial Computer TPRO-7 |
Screen Size | 7inch |
Resolution | 1024*600 |
Viewing Angle | 85/85/85/85 |
Brightness | 300 cd/m2 |
Contrast Ratio | 500:1 |
Touch Screen | Capacitive |
Controller | USB interface |
Durability | ≥5M times |
Processor | Intel® Processors |
RAM | 4G/8G/16G/32G |
SSD | 128G/256G/512G/1T |
Network | 1 *RTL8111 / 2 *RTL8111 |
COM | 2 *RS232 (COM2 optional RS485) |

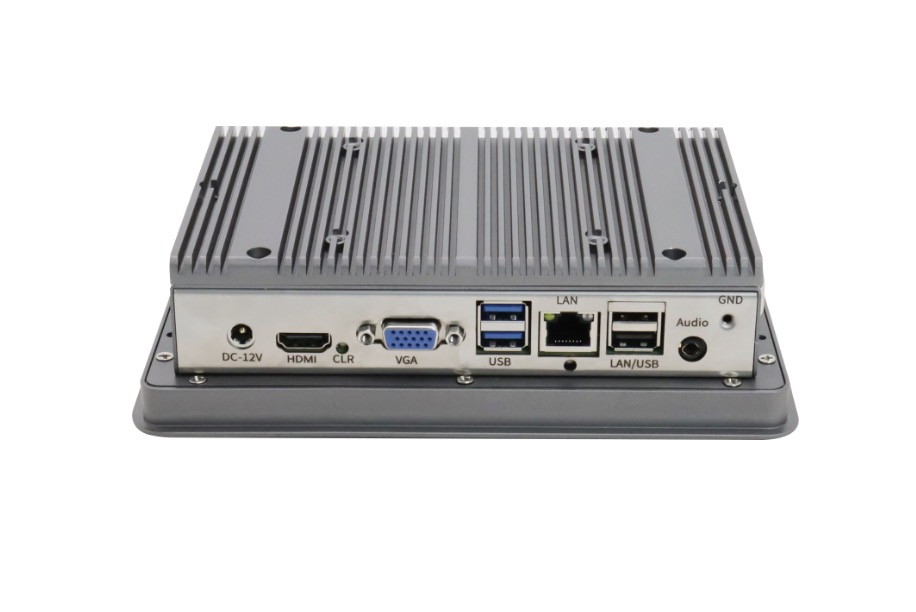

USB | 2 *USB3.0 + 2 *USB2.0 |
Display | 1 *HDMI, 1 *VGA |
Expansion | 1 *Mini PCIE WiFi&BT or 4G LTE |
Operating System | Windows / Linux |

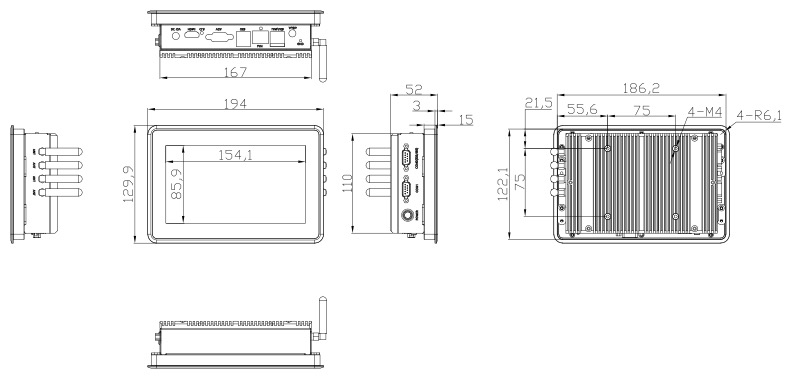

Dimensions (mm) | 194*129.9*52 |
Recommended size of holes openning (mm) | 188*124 |
Gross weight (kg) | 1.8kg |
Installation methods | Embedded / Wall mount / Desktop |
Operating Temperature | -30 ~ +70°C |
Storage Temperature | -40 ~ +80°C |
Storage Humidity *Non-condensing | 5 ~ 95% |
Power Input | 1*12VDC (6A) |
Packaging Information | 1 *Master, 1 *Transformer, 1* Power Supply Cable |
>Product Advantage:
Small footprint:
Designed to fit into tight spaces and are ideal for embedded IoT applications.
Reliable and tough:
Built to withstand challenging environments, such as dust, dirt, vibration, and extreme temperatures.
Silent operation:
Fanless design and running silently, making them ideal for areas where silent operation is important.
Low power consumption:
Consume less power, which can lead to reduced operational costs and a smaller environmental footprint.
Wide operating temperature range:
Function smoothly even in extreme conditions.
>Product Application
Process control:
Primarily used for process control and data acquisition.
Automation:
Used for control and automation.
Business and production management:
Used for business and production management.
Logistics:
Used for logistics.
