| Product Form | 8" Rugged Android Light & Thin Tablet PC |
| Material | ABS+PC |
| Dimension | 219*139*12.5 mm |
| Weight | 524g |
| Product Color | Black |
| CPU | MT8781 OCTA Core，2x A76 2.2GHz |
| GPU | ARM G57 MC2 Manhattan 3.0:>36fps PUBG 40 Balance" |
| Memory | RAM 8GB LPDDR4X ROM 128GB |
| Operating System | Android 14 GMS |
| Display | Type: FHD Size: 8 inch 16:10 Resolution: 1200*1920 Brightness: 550cd/㎡ |
| Touch Pannel | 10 point G+G capacitive touch screen |
| Camera | Front 5.0MP, with Light sensor Rear 13.0MP, Autofocus, Single flash |
| Charging Indicator | Specification: red green dual color lamp Logic: no breathing effect (low battery 0%~20% red light flashes, charging red light stays on, and green light stays on after 90% battery) |
| Buttons | Power *1 Volume Key + *1 Volume Key - *1 Scanning Key *1 |
| Speaker | Built in 8Ω/1W Waterproof Speaker *1 |
| Microphone | Sensitivity: -42db, Output Impedance 2.2kΩ |
| Senssors | G_sensor, Geomagnetic sensor (compass), Gyro Sensor |
| Battery | Built-in Li-polyment Battery 7200mAh/3.8V 11 hrs(50% volume sounds, 50% screen brightness, 1080P HD video display by default ) |
| WIFI | WIFI 802.11 b/g/n/a/ac frequency2.4G+5.0G (5.1G+5.8G) Dual-band WIFI |
| Bluetooth | BT5.1 (BLE) class1 Transmission distance：10m |
| 2G/3G/4G | GSM: B2/3/5/8 WCDMA:B1/2/5/8 FDD:B1/2/3/4/5/7/8/17/20/28A/28B TDD:B38/39/40/41 |
| GPS | Support GPS/GLONASS/BEIDOU/Galileo/QZSS/SBAS Cold start time:<60 seconds，GPS frequency：1575.42MHz，Glonass frequency：1602MHZ，Beidou frequency: B1 1.561GHz |
| I/O Interface | Type C *1 ( USB2.0/OTG/Fast charging PE+2.0 18W) |
| TF card *1，Max: 512GB SIM card *2 Two out of three card holders (Micro Sim+TF or Micro Sim+Nano Sim) | |
| 12PIN Pogo Pin *1 | |
| Power Adapter | USB Type-C interface, supporting fast charging PE+2.0, maximum power 18W, maximum 9V/2A |
| Type-C OTG Cable | Type-C OTG cable_V1.0, AWM 2725 10/0.10*4C +LV +32/0.10 OD3.5 L=138MM |
| Type-C Cable | Type-C data cable_ V1.10003946, the black wire is 1.0m long, the CC pin is connected to VCC on one side after adding resistance, and the other side is empty. Modification record: add tail, change differential line to twisted pair, add shielding layer, copper core internal resistance ＜ 80 Ω |
| Rugged Features | EOS：VBUS 300/80us VBAT 300v/20us |
| Electrostatic discharge (ESD): ± 15kV air discharge, ± 8kV contact discharge | |
| MIL-STD-810H,1.22m drop | |
| Working temperature: -10 °C to 50 °C | |
| Storage temperature: -20 °C to 60 °C | |
| Humidity: 95% Non-Condensing | |
| Certification | IP65 |
| CE，CCC，UN3803 | |
| Data Collection | QR Code Scanner Optional Optical resolution: ≥3mil Code system: 1D：Code128、EAN-13、EAN-8、UPC-E、UPC-A、ISBN、ISSN、Code11、 Interleaved 2 of 5、Code39、Code93、Code32、Codabar、Matrix 2 of 5、Industrial 25、IATA25、MSI Plessey、GS1 DataBar、Plessey、 Febraban、Composite 2D：QR Code、Micro QR、Data Matrix、PDF417、Micro PDF417、Aztec、 Maxicode、Han Xin code、Dotcode |
| NFC Frequency：13.56MHz Support 14443A/14443B/15693/18092/mifare compare protocol under ISO/IEC Card reading distance: 2.5~4cm |

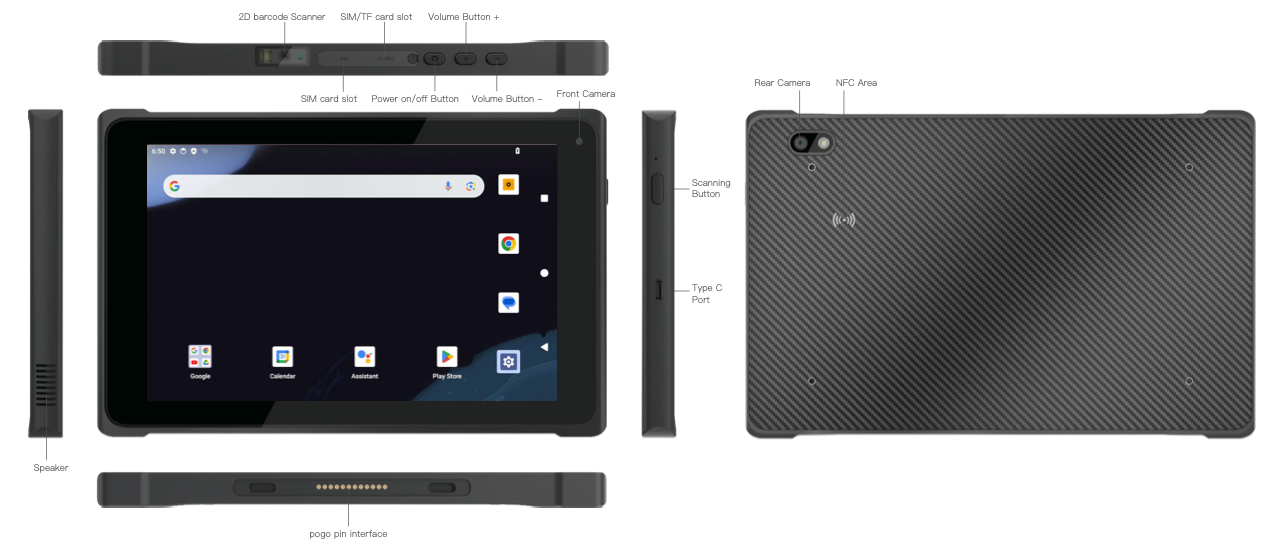

Product Six View

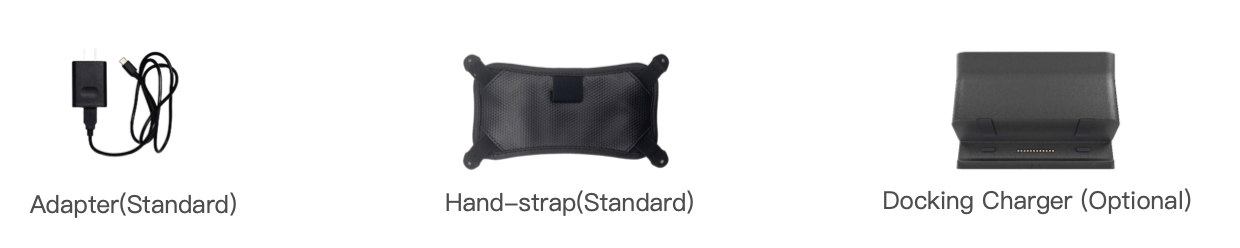

Accessories

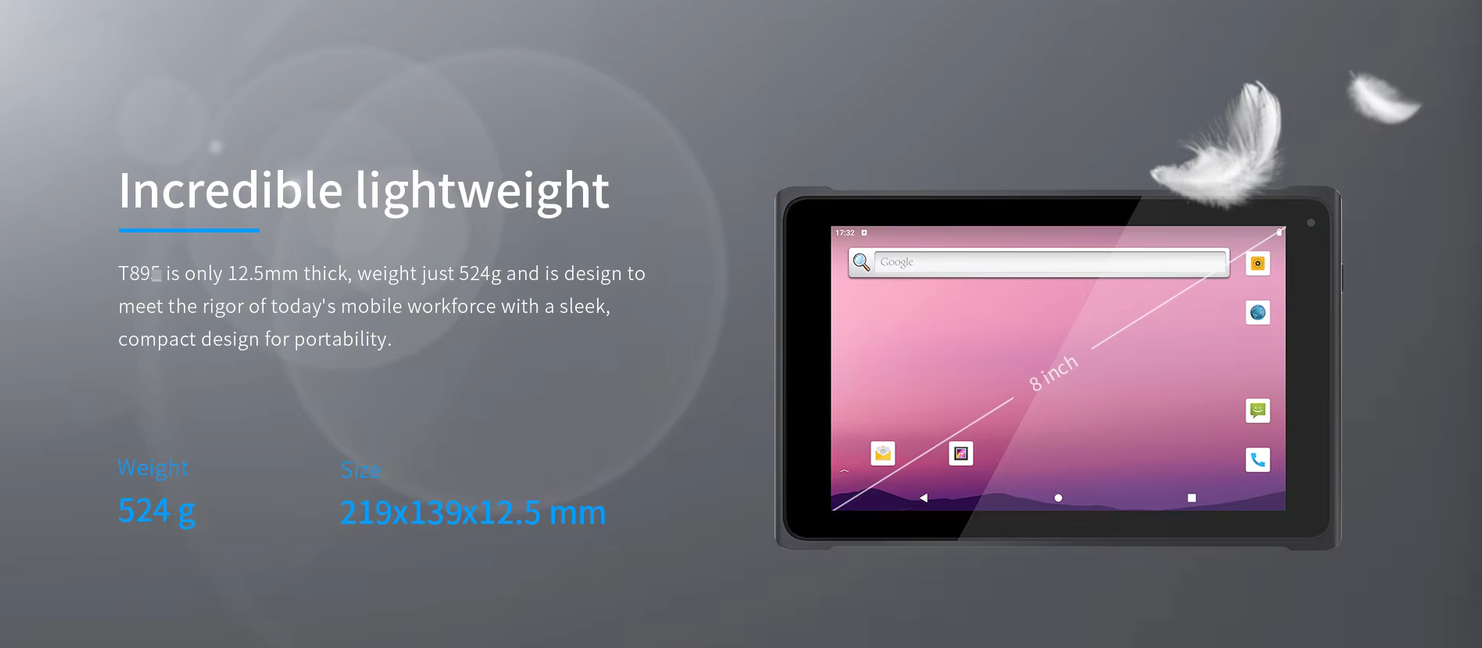

Incredible lightweight

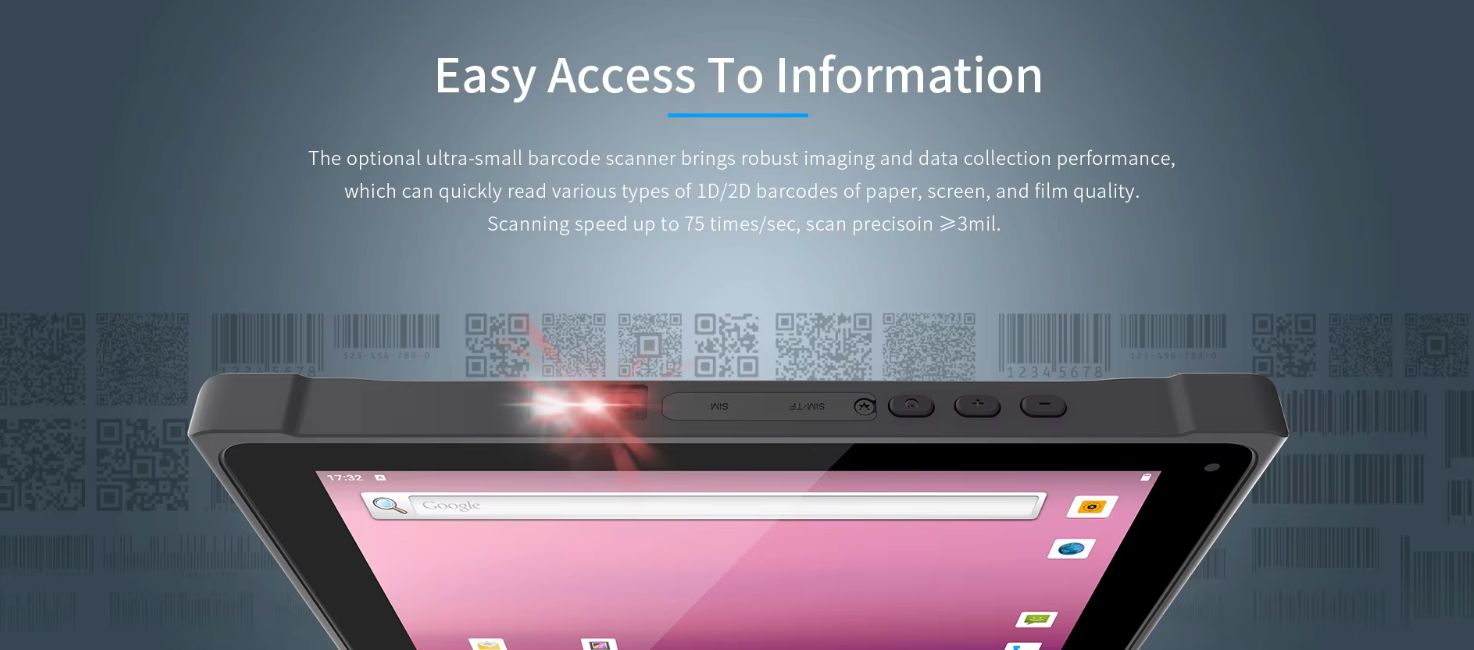

Easy Access To Information

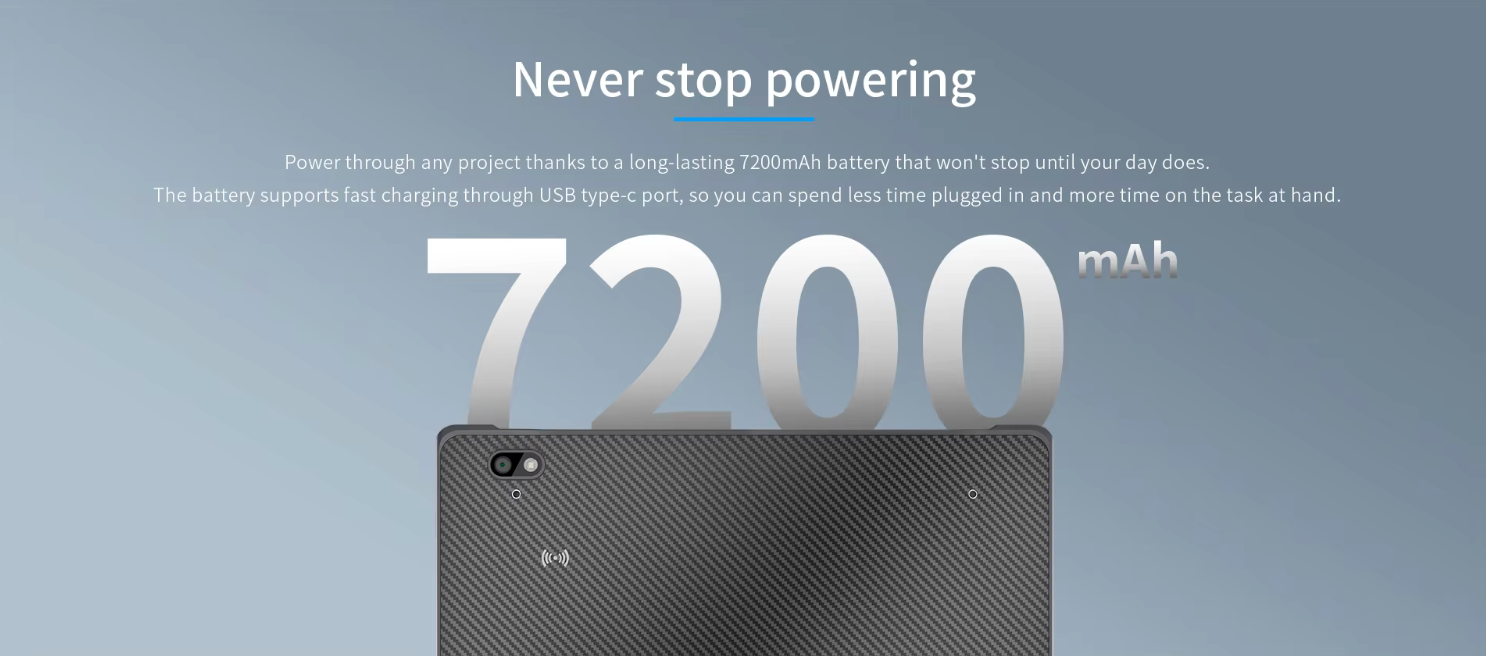

Never stop powering
Industrial site inspection and equipment patrol maintenance
Warehouse logistics inventory, barcode scanning and goods management
Electric power, water conservancy, municipal and outdoor field inspection
Smart retail, chain store inventory and mobile sales service
Educational outdoor practice and industrial training
Mobile office, business travel and field data collection
Smart transportation, vehicle-mounted scheduling and fleet management
Healthcare mobile information registration and on-site service
Construction engineering site management and data recording
Public service, community grid management and mobile service
