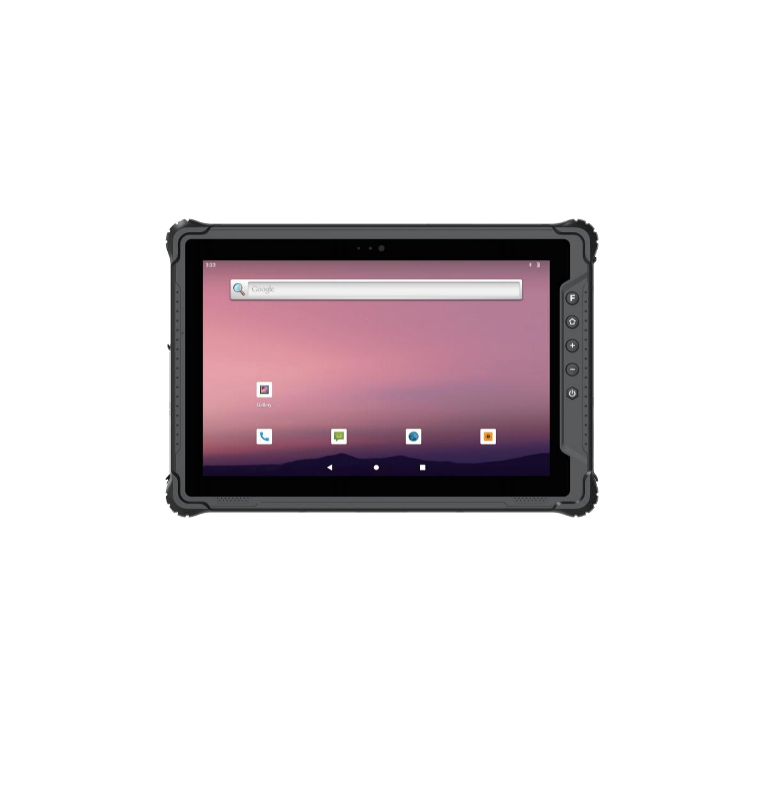

| Product Form | 8" Rugged Android Tablet |
| Material | PC+TPU |
| Dimension | 236.7*155.7*20.8mm |
| Weight | 820g |
| Product Color | Black |
| CPU | Octa-core 2.7G QCM6490, 6nm FinFET process, 1* A78 2.7GHz +3*A78 2.4GHz+ 4* A55 1.9GHz |
| GPU | Adreno™ GPU 643 |
| Memory | RAM 8GB LPDDR4x ROM 128GB EMMC |
| Operating System | Android 14/GMS |
| Display | Type: FHD Size: 8 inch 16:10 Resolution: 1200*1920 Brightness: 550cd/㎡ Optional: Type: HD, Size: 8 inch 16:10, Resolution: 800*1280, Brightness: 1000cd/㎡ |
| Touch Pannel | 5-point Capacitive Touchscreen, Tempered Glass, G+G, Hardness: 7H |
| Camera | Front 5.0MP Rear 13.0MP Supports autofocus, with flashlight |
| Buttons | Power *1 (Yellow) Volume + Key *1 Volume - Key *1 P1 Key *1 (HOME Key) F Key *1 (This button can be customized when the scanner head is not equipped) |
| Speaker | Built in 8Ω/1W Waterproof Speaker *2 |
| Microphone | Sensitivity: -42db, Output Impedance 2.2kΩ |
| Battery | Removable Polymer Lithium-ion Battery 3.8V/10000mAh Above 8 hrs (Default 50% volume, Connected to WiFi, Default 200 nits brightness, Playing 1080P HD video) |
| Sensors | G-sensor, Light sensor, Gyroscope, Compass |
| RTC | Built-in rechargeable 3V/1mAh lithium-ion battery |
| WIFI | Wi-Fi 6E & DBS, IEEE 802.11a/ b/ g/ n/ ac/ ax, Wi-Fi 2 × 2 MU-MIMO |
| Bluetooth | BT5.2 (BLE) |
| 2G/3G/4G/5G | 5G:SA/ NSA: n1/ 3/ 5/ 7/ 8/ 20/ 28/ 38/ 40/ 41/ 77/ 78/79 4G: B1/ 2/ 3/ 4/ 5/ 7/ 8/ 12/ 17/ 18/ 19/ 20/ 26/ 28/ 32/ 34/ 38/ 39/ 40/ 41/ 42 3G: B1/ 2/ 4/ 5/ 6/ 8/ 19 2G: B2/ 3/ 5/ 8 |
| GPS | Supports: GPS/GLONASS/BDS; Dual-frequency L1 + L5; Acquisition Sensitivity: -140 dBm; Cold Start Time: <50 seconds, Hot Start Time: <5 seconds, GPS Frequency: 1575.42MHz，Glonass Frequency: 1602MHZ, Beidou Frequency: B1 1.561GHz |
| 2D | Optional, Hardware Decoding M1/Software Decoding SE4710 Optical Resolution: 5mil Scanning Speed: 50次/s Supported Symbologies: PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse Maxicode, QR Code, MicroQR, QR Inverse, Aztec, Aztec Inverses, Han Xin, Han Xin Inverse |
| NFC | NXP NFC 13.56MHz Supports 14443A/14443B/15693 of ISO/IEC, Reading Distance: 0 to 4cm |
| I/O Interfaces | USB 3.0 *1 (Type A) |
| Type C *1 (Data & Charing) | |
| ∮3.5mm Standard Earphone Jack *1 | |
| Nano-SIM x 2/Micro SD Supports up to 512GB x 1 +Nano-SIM x 1 (three-in-one card slot) | |
| DC Supports 5V/4A Charging | |
| 12PIN Pogo Pin *1 | |
| HDMI *1 | |
| Power Adapter | Power Input 100-240VAC0.5A50/60Hz DC Output 5V/4A, DC head: 3.5*1.35*11mm |
| Rugged Features | MIL-STD-810H: 1.22m Drop Resistance |
| Working temperature: -20 °C to 60 °C | |
| Storage temperature: -30 °C to 70 °C | |
| Humidity: 95% Non-Condensing | |
| Certifications | IP65 |
| CE NB | |
| FCC (Optional) | |
| CCC (Optional) | |
| MIL-STD-810H | |
| CEC | |
| Battery: UN38.3, MSDS, Aviation and Maritime Report, IEC62133 |
Product Six Views:
Built-in smart software protects against battery overcharging and overheating, ensuring safety through long shifts.
As a versatile rugged Android tablet, the Q885M integrates everything needed for modern mobile workforces. From a sunlight readable Android tablet display to robust internal components, it stands out as the ultimate tool for demanding environments.
With its IP65 waterproof and dustproof performance, compact 8-inch design, and Android system compatibility, the Q885M is widely used in various industrial fields, becoming an essential mobile terminal for on-site operations:
Industrial On-Site Inspection: Used in power inspection, oil and gas field inspection, and equipment maintenance, it can collect on-site data in real time, query equipment information, and submit maintenance reports, adapting to outdoor and harsh on-site environments.
Smart Logistics & Warehousing: Applied in warehouse inventory, AGV scheduling, and delivery on-site operations, it supports barcode/RFID scanning (optional 1D/2D barcode module), order processing, and real-time data synchronization with the backend system, improving operation efficiency and accuracy[superscript:3].
Outdoor Field Operations: Suitable for environmental monitoring, geological exploration, and emergency rescue, it can adapt to outdoor rain, dust, and extreme temperature environments, providing stable computing and communication support with 5G and multi-satellite navigation capabilities.
Manufacturing & Public Utilities: Embedded in production line on-site terminals and on-site service terminals, it displays production parameters, issues operation instructions, and realizes real-time interaction with the production management system, facilitating on-site operation and management. It is also applicable to traffic police inspection, telecom card opening and other public utility scenarios.
