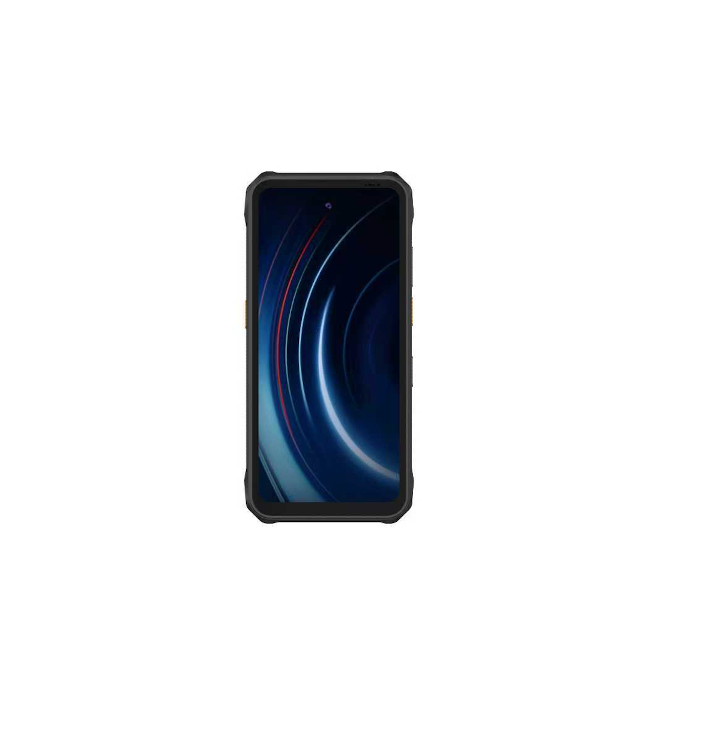

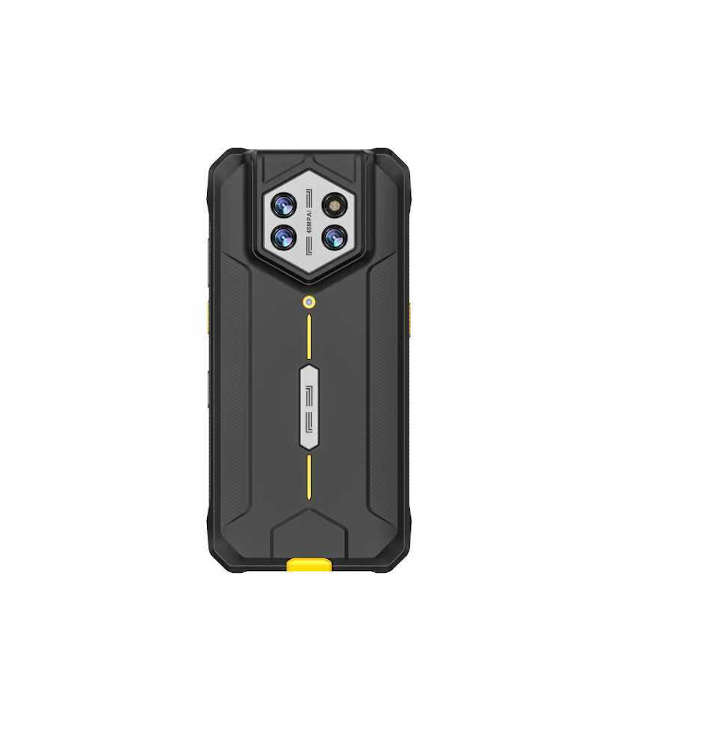

| Product Form | 6.56" Rugged Android Handheld, PDA Terminal |
| Material | ABS+PC |
| Dimension | 170.2*80.7*14mm |
| Weight | About 311g |
| Product Color | Black+Orange |
| CPU | MT6789 Octa-core, two cores of 2.2GHz + six cores of 2.0GHz 2*A76 2.2GHz 6*A55 2.0GHz |
| GPU | ARM G57 MC2 |
| Memory | RAM 8GB LPDDR4X ROM 128GB UFS2.2 (Optional 8+256GB for batch order) |
| Operating System | Android 14/ GMS |
| Display | Type: TFT Size: 6.56-inch 20:9 Resolution: 720*1612 Brightness: 670 Nit Support wet hand and glove touch |
| Touch Pannel | PolyRainbow Cover, 5-point capacitive screen, Hardness above 7H, Scratch-resistant. |
| Camera | Front 32MP, Fixed Focus Rear Main Camera 48MP, Autofocus, Supports PDAF Rear Secondary Camera 8MP Wide-angle |
| Flashlight | True Flash |
| Buttons | Power & Fingerprint *1 Volume + Key *1 Volume - Key *1 Barcode Scanning Key *2 (Barcode scanning by default) |
| Indicator Light | Indicator light *1, R/G dual-color light: Red constant when charging, green constant when fully charged (above 90%), red flashing when low battery (0-15%), off when discharging. |
| Audio | Speaker*1 7Ω/1.5W Earphone*1 Dual-MIC Motor*1 Audio SMART PA |
| Sensor | Light Sensor Proximity Sensor 3D Accelerometer Geomagnetic Sensor Gyroscope Gravity Sensor |
| Battery | Built-in Polymer Lithium-ion Battery 3.85V/5800mAh Charging Power: 33W/PD 3.0 PPS Protocol Battery Life: About 17h24min (Default 70dB volume; Default 300nits screen brightness; Playing 1080P HD video) Charging Time: About 1h50min |
| WIFI | WIFI 802.11(a/b/g/n/ac) Frequency 2.4G+5.0G Dual-band WIFI, Supports AP seamless roaming |
| Bluetooth | BT5.1 (BLE) class1 Transmission Distance: 30m |
| 4G | GSM(B2/3/5/8)+WCDMA(B1/2/4/5/8)+TDD(B34/38/39/40/41)+FDD(B1/2/3/4/5/7/8/12/13/17/18/19/20//25/26/28A/28B/30/66) |
| GPS | Supports GPS/Beidou/Galileo/GLONASS Supports AGPS Cold Start Time: <60 seconds |
| I/O Interfaces | Type C *1 (Charging/Data/Earphone/Reverse Charging 6W) |
| TF Card*1 SIM Card *2 2 of 3 card slot (Nano Sim+TF or Nano Sim+Nano Sim) | |
| Pogo Pin (Charging) *1 | |
| Power Adapter | 33W Fast Charge Adapter |
| Type-C Cable | Type-C Data Cable（1m） |
| Rugged Features | Drop Height: Withstands drops from 1.5 meters onto composite wood flooring, while powered on. |
| Working temperature: -30 °C to 70 °C | |
| Storage temperature: -40 °C to 80 °C | |
| Humidity: 95% Non-Condensing | |
| Electrostatic Discharge: Contact Discharge ±8KV, Air Discharge ±12KV | |
| OVP: Threshold 12V | |
| EOS: VBUS 300/80us VBAT 300v/20us | |
| Certifications | IP68 |
| CE | |
| CCC | |
| FCC | |
| MIL-STD-810H | |
| ATEX Zone 2/22 | |
| Data Collection | Fingerprint Power On/Off & Fingerprint 2-in-1，Support fingerprint unlocking |
| QR Code Standard Zebra 4710, Optional Newland CM60 and Honeywell 6803FR (long-range scanner). | |
| NFC Supports ISO18092, ISO14443 A/B, ISO15693 protocols, Mifare compliance，Card reading distance from 0 to 4 cm; Frequency:13.56MHz |
6.56" Full Touch Screen
Barcode Scanner
Zebra SE4710 Scan Engine
Helio G99
Google Certified
Latest Android 14 System
Key applications include:
Crop growth monitoring (recording crop growth status, taking photos, and tracking planting data)。
Livestock management (recording livestock information, health status, and feeding records)
Agricultural product traceability (scanning product labels to record planting, processing, and transportation information), and field operation guidance (receiving agricultural technical guidance and weather information in real time).
