| Product Form | 8" Rugged Android Tablet 700nits High Brightness |
| Material | PC+ABS Alloy |
| Dimension | 225.6*144.6*21.5 mm |
| Weight | 715g |
| Product Color | Black (black bottom shell, black front shell) |
| CPU | MT6789 2*A76 2.2GHz，6*A55 2.0GHz |
| GPU | ARM G57 MC2 |
| Memory | RAM 8GB LPDDR4 ROM 128GBGB |
| Operating System | Android 14 / GMS， option Android 12 / GMS |
| Display | Type: IPS Size: 8 inch 16:10 Resolution: 1280*800 FHD Brightness: 700cd/㎡ |
| Touch Pannel | 10 points capacitive screen, G+G, Hardness above 7H, scratch resistant, handwriting supported |
| Camera | Front 5.0MP With working indicator Rear 13.0MP，autofocus with flash |
| Speaker | 8Ω/1W Waterproof BOX Speaker *1 |
| Microphone | Sensitivity: -42db, Output Impedance 2.2kΩ |
| Indicator Light | Red light on when power is low Long red light when charging Long green light when full with power |
| Senssors | light Sensor *1/Compass Sensor *1/Gyro Sensor *1/G_sensor *1 |
| Battery (Tablet) | Built-in Li-polyment Battery 8500mAh/3.7V 9 hours ( 50% volume sounds, 50% screen brightness, 1080P HD video display by default ) |
| WIFI | WIFI 802.11(a/b/g/n/ac) Dual frequency 2.4G+5.0G WIFI |
| Bluetooth | BT5.1 (BLE) class1 Transmited distance：10m |
| 2G/3G/4G | GSM：2+3+5+8 WCDMA：1+2+5+8 TDD：38+39+40+41N(2535mhz~2655mhz) FDD：1+2+3+4+5+7+8+17+20+28a+28b |
| GPS | Support: GPS/GLONASS/BEIDOU/Galileo/QZSS/SBAS Cold start time:<60 seconds |
| I/O Interface | USB2.0 *1， type C *1 |
| ∮3.5mm Standard earjack *1 | |
| SIM card *1 | |
| TF card *1，Max: 512GB | |
| DC 5V 3A ∮3.5mm jack *1 | |
| 12PIN Pogo Pin *1 | |
| Adapter | AC100V ~ 240V 50Hz/60Hz Output DC 5V 3A American standard has passed CE certification Optional: EU, CN, UK, AU |
| OTG adapter cable | type-c OTG cable |
| TYPE-C cable | type-c cable |
| Rugged Features | MIL-STD-810H: 1.22m drop |
| Working temperature: -30 °C to 70 °C | |
| Storage temperature: -40 °C to 80 °C | |
| Humidity: 95% Non-Condensing | |
| Certification | IP67 |
| CE NB | |
| MIL-STD-810H | |
| Battery: UN38.3, MSDS, Aviation report, Marine report, IEC62133 | |
| Data Collection | Barcode Scanner Optional: Zebra SE4710 Optical resolution: 5mil scan speed: 50 times /s Code system: PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse |
| NFC supports 14443A protocol under ISO/IEC. Card reading distance: 3-5cm |

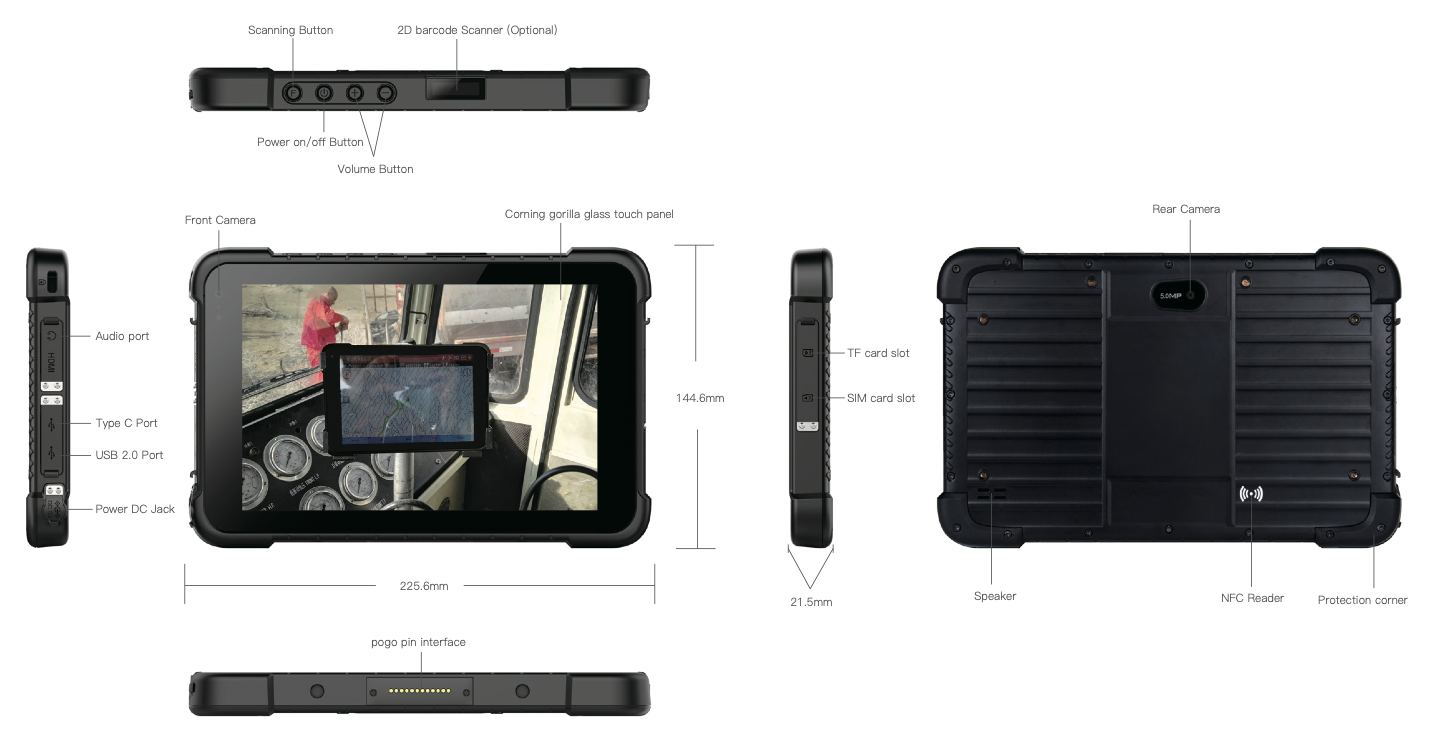

Product Six Views

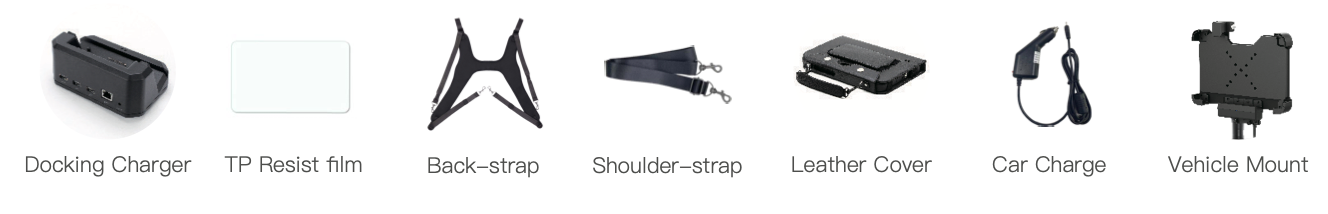

Accessories
A brilliant display in any environment
The T86X rugged tablet keeps the industrial rugged style and high durability of the previous generation model. The touch screen of it is an 8-inch IPS with a 700nit high brightnesst resolution of 1200 × 800 pixels to ensure outdoor worker visibility.

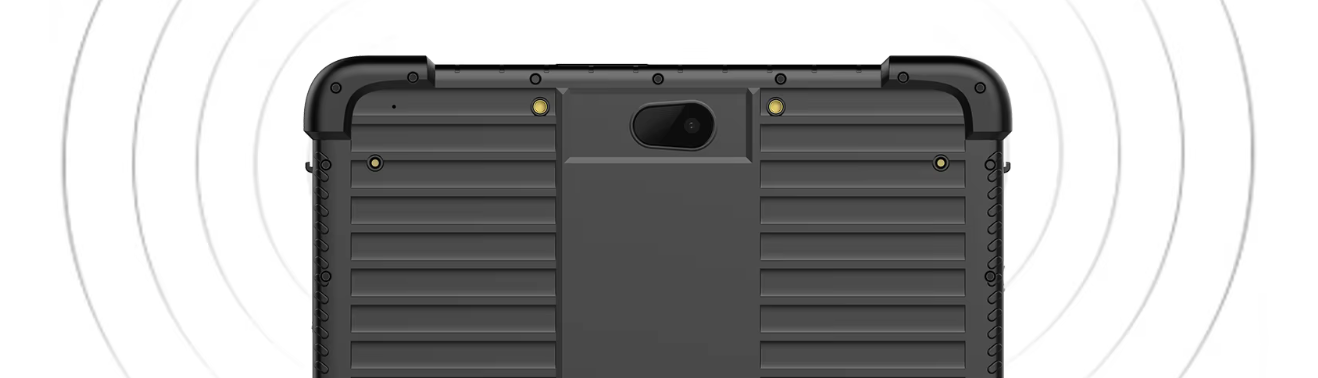

Stay connected at all times
The T86X rugged tablet offers all the connectivity by 4G LTE, 2.4GHz&5GHz dual-band Wi-Fi and Bluetooth 5.2 with a super-low response latency. And it also supported GPS + GLONASS dual-mode navigation, delivering high sensitivity, accuracy, and effective location data to mobile workers.
