Product Parameters
Screen parameters | size | 8 " |
Resolution | 1024×768 | |
visual angle | 85/85/85/85 (L/R/U/D) | |
colour | Chroma: 16.7M | |
Brightness (standard value) | Brightness: 300 cd/m2 | |
Contrast | 800 :1 | |
Response time | 6.5 ms | |
Display area | 162.048×121.536 mm | |
Pixel spacing (mm) | 0.15825×0.15825 mm (H×V) | |
touch screen | Type of touch screen | Capacitive touch screen |
Resolution | 500DPI | |
Input way | Handwriting or capacitive pen | |
Surface hardness | 7H | |
calibration | support | |
Hardware Configuration | CPU | Intel Celeron J1900 quad core 1.99G (Maximum frequency 2.4G ) |
RAM | DDR3 1333/1600M,default 2G(2G/4G optional) | |
ROM | SSD default 32 (64/128/256/512G (optional) | |
chipset | Intel Bay trail SOC | |
operating system | windows7/8/10,linux | |
Graphics card | Integrated HD graphic display core, support dynamic memory allocation (DVMT),Support VGA, HDMI, LVDS. Built in dual channel 24bit LVDS pin,Support double screen display. | |
3G module | PCI-E Standard interface, supporting China Mobile, China Unicom and China Telecom (optional) | |
4G module | PCI-E Standard interface, supporting China Mobile, China Unicom and China Telecom (optional) | |
WiFi | Dual frequency | |
Bluetooth | BT4.0 | |
GPS | Optional | |
MIC | Optional | |
RTC real time clock | support | |
Timer switch | support | |
interface | DC port | 1*DC 2.5 |
HDMI | Support HDMI data output, maximum up to 1080P | |
USB2.0 | 2 | |
USB3.0 | 2 | |
RJ45 Ethernet | 1 *Realtec8111F 1000M default single network dual network optional | |
SD/TF | Optional | |
Headphone holder | 3.5mm standard interface | |
SMI card | SIM card interface standard interface supports various standards (depending on 3G module) | |
RS232 | 2 *RS232 | |
RS485 | 1 (or 422) | |
RS422 | 1 (or 485) | |
GPIO | / | |
Product reliability | working temperature | -30°C to 70°C |
Storage temperature | -40°C to 80°C | |
humidity | Humidity: 95% Non-Condensing | |
Mean time between failures (MTBF) | 7*24H | |
power supply | Power consumption (maximum) | 25W |
Power consumption (standby) |
| |
power input | AC 100-240V 50/60Hz passed CCC certification, CE certification | |
Power Output | DC12V / 5A |

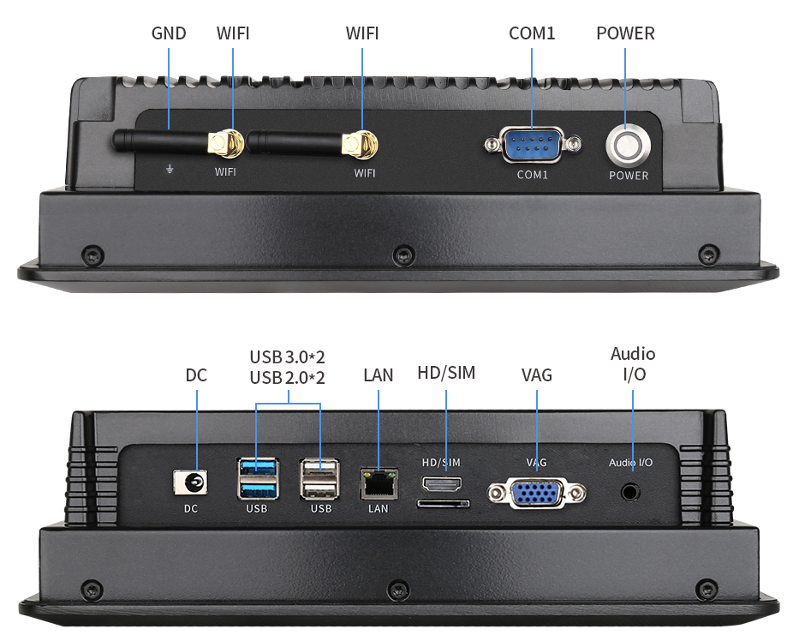

I/O Interface Panel

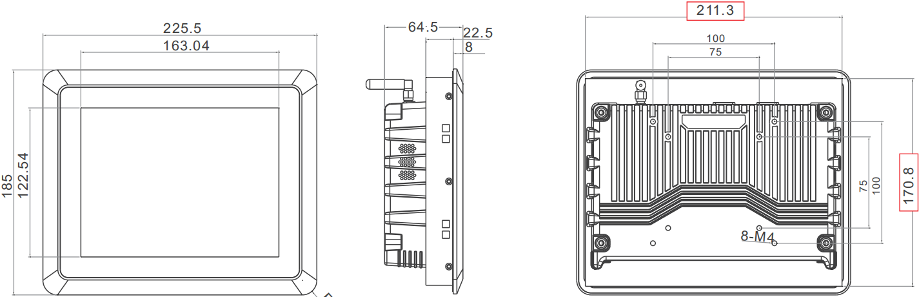

Dimensional drawing
Overall size：225.5*185*64.5mm（L*W*H）
Environmental Specifications
Anti-vibration | 5-19HZ/1.0mm amplitude; 19-200HZ/1.0g acceleration |
Impact resistance | 10g acceleration, 11ms cycle |
working temperature | working temperature:-30℃- 70℃ Storage temperature: -40℃- 80℃ |
Working humidity | 20%-95% (relative humidity without condensation) |
Anti-interference | EMI/EMC interference detection standards |

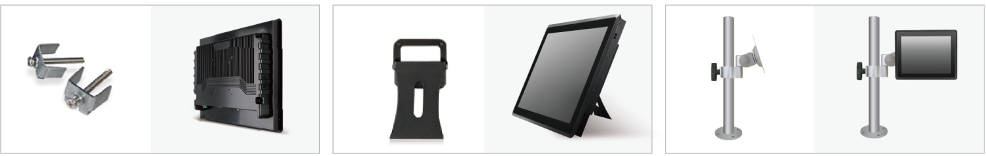

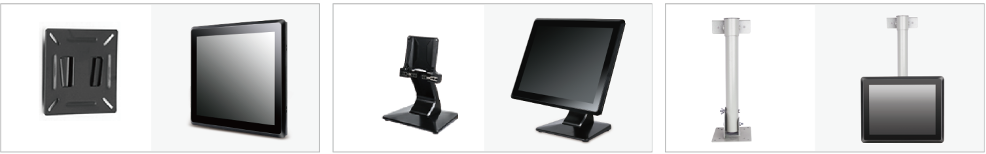

Installation method
Embedded installation | Tabletop type (louver) | Cantilever installation |
Wall mounted installation | Desktop type (aluminum alloy) | Boom type installation |
The VP-1025-08 is an 8-inch rugged panel mount computer designed for space-constrained, harsh-environment HMI (Human-Machine Interface) and control applications. Its key applications are as follows:
Factory Floor HMI: Embedded in production lines, machinery, and control cabinets for real-time monitoring, parameter adjustment, and fault alarming.
Machine Control Panels: Used for CNC machine tools, packaging machinery, textile equipment, and robotic workstations, providing intuitive touch operation.
Industrial IoT Gateways: Collect and process on-site data, connect to MES/SCADA systems, and support edge computing.
Warehouse Terminal: Mounted on AGVs, forklifts, or warehouse management workstations for inventory checking, order processing, and route navigation.
Cold Chain Monitoring: With wide-temperature design (-20°C to 60°C), it operates reliably in cold storage environments.
Power Distribution Control: Installed in electrical cabinets for substation monitoring, power quality analysis, and switchgear control.
New Energy Equipment: Used in solar/wind power stations, energy storage systems, and charging piles for status display and data interaction.
Building Automation Control: As a central control panel for HVAC, lighting, security, and access control systems.
Elevator & Escalator HMI: Integrated into elevator control panels for floor display, fault prompts, and maintenance management.
Medical Device Terminals: Used in diagnostic instruments, patient monitors, and rehabilitation equipment for data display and operation control (with IP65 dust/water resistance for easy cleaning).
On-board Control Terminals: Mounted on engineering vehicles, buses, and special military vehicles for vehicle information display, navigation, and equipment control.
Self-service Terminals: Applied in retail, banking, and ticketing systems for self-checkout, inquiry, and service processing.
Rugged Design: IP65-rated front panel (dustproof/waterproof), fanless cooling, and wide-temperature operation adapt to harsh industrial environments.
Space-saving: Compact 8-inch size supports panel/wall/VESA mounting, ideal for limited-space scenarios.
Rich I/O: Equipped with Ethernet, RS-232/485, USB, and HDMI ports for seamless connection to various industrial devices.
Touch Interaction: Capacitive/resistive touch options support glove operation, meeting on-site industrial needs.
