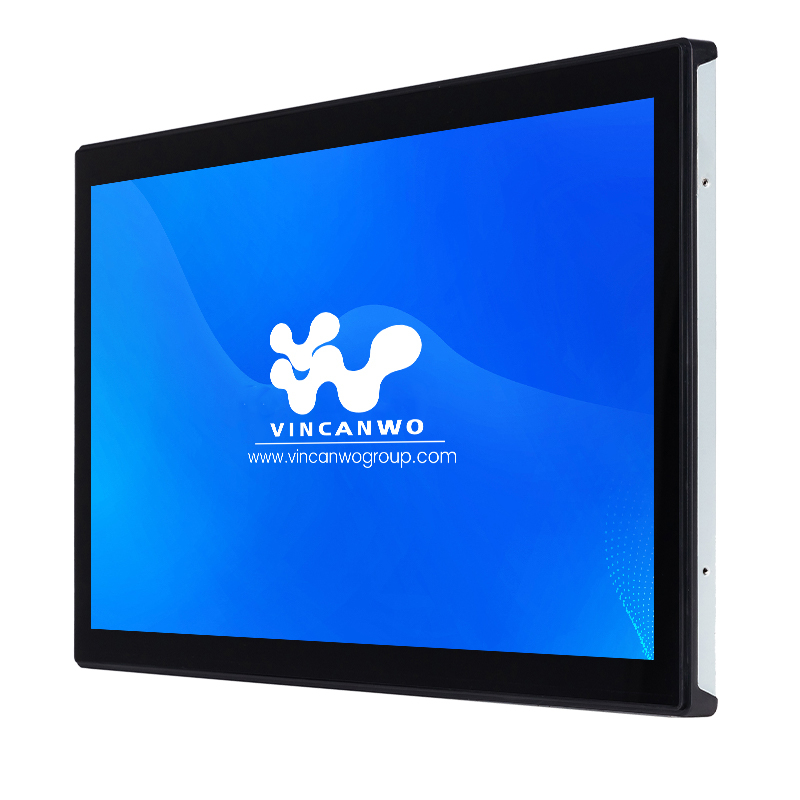

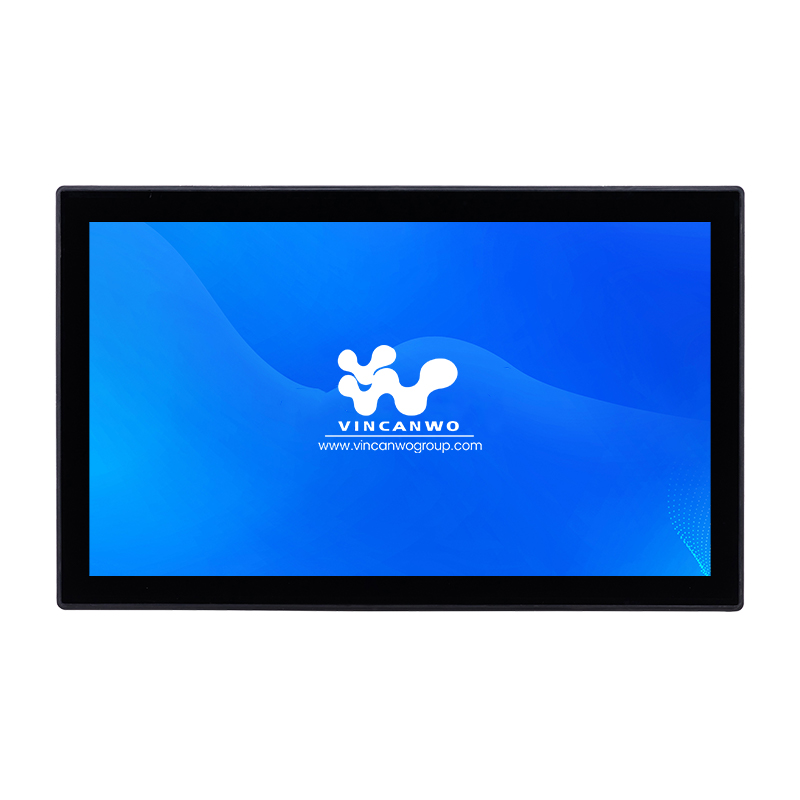

SKU | VOPC-156 |
Screen Size | 15.6inch |
Resolution | 1366*768 |
Viewing Angle | 45/45/20/40 |
Brightness | 220 cd/㎡ |
Contrast Ratio | 500:1 |
Touch Screen | Capacitive |
Controller | USB interface |
Durability | ≥5M times |
Processor | Intel® Processors |
Memory | 4G/8G/16G/32G |
Storage | under 5th Gen.: 1 * mSATA+1 *SATA(2 .5”Mechanical hard disk capacity ≤2TB) up to 6th Gen.: 1 * M.2+1 *SATA(2 .5” Mechanical hard disk capacity ≤2TB） |
Network | 1 *RTL8111 |
COM | 2 *RS232 (COM2 optional RS485) |
USB | 4*USB |
Display | 1 *HDMI, 1 *VGA |
Expansion Slots | Under 5th Gen.: 1*Mini PCIE WiFi & BT or 4G LTE Up to 6th Gen.: 1*M.2 (1 * M.2(KEY EWifi&BT 2230)/1 * M.2(KEY B 4G/5G LTE 3052) |
Operating System | Windows / Linux |
Dimensions (mm) | 392*242*49.5 |
Mounting Hole Size (mm) | 387.2*237.2 |
Gross weight (kg) | 3.70 |
Installation methods | Embedded / Wall mount / Desktop |
Operating Temperature | -30 ~ +70°C |
Storage Temperature | -40 ~ +80°C |
Storage Humidity *Non-condensing | 5 ~ 95% |
Power Input | 1*12VDC (6A) (Option 9~36VDC Wide-range Power Input) |
Packaging Information | 1 *Master, 1 *Adapter, 1* Power Supply Cable |
| Feature | VOPC-156 Specifications |
|---|---|
| Display | 15.6"LCD |
| Resolution | 1920x1080 (FHD) or 1366x768 (HD) |
| Brightness | 500–1,500 nits (optional sunlight-readable) |
| Touch Screen | Projected Capacitive (P-CAP) or 5-wire Resistive (IP65-rated) |
| Processor | Intel® Celeron J6412 / Core™ i3-1115G4 / AMD Ryzen™ V1605B |
| RAM | Up to 32GB DDR4 SODIMM |
| Storage | M.2 2280 NVMe SSD + 2.5" SATA bay |
| Operating Temp | -30°C to +70°C (with fanless/hybrid cooling) |
| Ingress Protection | IP66/IP69K front (full dust/water resistance) |
| Power Input | 9–36V DC wide-range or 100–240V AC |
| Mounting | VESA 100×100, DIN-rail, or panel cutout |
Ruggedized Construction
Chassis: Cast aluminum with corrosion-resistant coating
Front Bezel: 5mm tempered glass + anti-reflective coating
Shock/Vibration: 50G shock / 5Grms vibration (IEC 60068-2)
I/O & Connectivity
Industrial Ports: 2× Isolated RS-232/485, 8× GPIO, CAN Bus 2.0B
High-Speed Interfaces: 2× GbE (Intel i210), USB 3.2 Gen2 (Type-C), HDMI 2.0
Wireless Options: M.2 slots for 4G/5G, Wi-Fi 6, Bluetooth 5.2
Expansion: Mini-PCIe for AI accelerators (e.g., Google Coral)
Reliability Enhancements
Fanless Thermal Design: Copper heat pipes + external fins
Conformal Coating: Protects PCBs against humidity/chemicals
Hot-Swappable HDD Trays: Tool-free maintenance

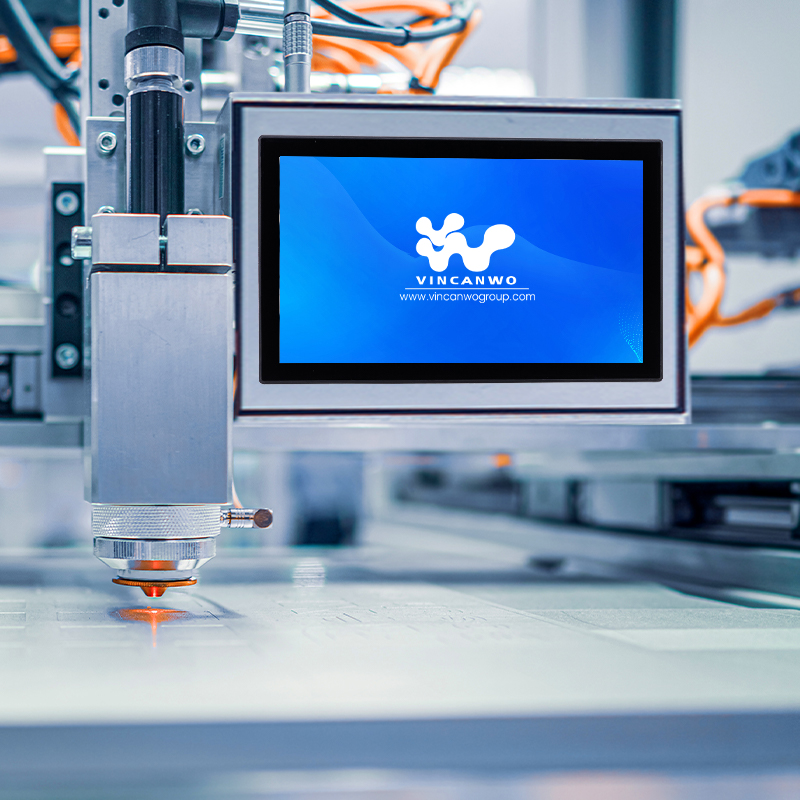

Factory Automation: HMI for CNC machines, PLC control stations
Transportation: Fleet management displays, railway control panels
Energy: Wind turbine monitoring, substation SCADA interfaces
Outdoor Kiosks: Self-service terminals, parking payment systems
| Requirement | VOPC-156 Solution |
|---|---|
| Sunlight Visibility | ≥1,000 nits + anti-glare layer |
| Touch Performance | Glove-compatible resistive or rain-sensing P-CAP |
| Chemical Resistance | IP69K front (withstands high-pressure wash) |
| Certifications | LVD, CE, RoHS, FCC |
| Security | TPM 2.0, Kensington lock, secure boot |
DIN-Rail: Secure mounting in electrical cabinets (TS35/7.5 or 15)
Panel Cutout: Flush installation in control desks (cutout: 378×286mm)
VESA Compatibility: Flexible arm/wall mounting (100×100mm)
Vibration Resilience: Rubber gaskets prevent screw loosening
| Component | Power Saving Tech | Impact |
|---|---|---|
| LED Backlight | Adaptive dimming (0–100%) | Saves 30% vs. fixed brightness |
| CPU | Intel SpeedStep / AMD SenseMI | Idle power: <8W |
| Storage | NVMe SSD (vs. HDD) | 2W vs. 6W, faster wake-up |
| Annual Savings:~$85/unit (vs. commercial PCs) at 24/7 operation |
Thermal Management:
Maintain ≥5cm clearance for passive cooling
Avoid direct heat sources (e.g., motors, transformers)
Electrical Protection:
Use 24V DC industrial UPS (e.g., PULS or Phoenix Contact)
Install surge protectors for I/O lines in lightning-prone areas
Software Optimization:
Use lightweight OS (Windows IoT, Ubuntu Core)
Schedule display sleep during inactivity
Always verify:
MTBF: ≥100,000 hours (per MIL-HDBK-217F)
Warranty: 5-year coverage (industrial standard)
