SKU | VFACE-173 |
Screen Size | 17.3inch |
Resolution | 1920*1080 |
Viewing Angle | 80/80/60/80 |
Brightness | 400 cd/m2 |
Contrast Ratio | 600:1 |
Touch Screen | Capacitive, Resistive |
Controller | USB interface |
Durability | Capacitive: ≥5M times / Resistive: ≥100,000 times |
Processor | Intel® Processors |
RAM | 4G/8G/16G/32G |
SSD | under 5th Gen.: 1 * mSATA/1 *SATA(2 .5”Mechanical hard disk capacity ≤2TB) up to 6th Gen.: 1 * M.2/1 *SATA(2 .5” Mechanical hard disk capacity ≤2TB） |
Network | 1 *RTL8111 |
COM | 2 *RS232 (COM2 optional RS485) |
USB | 1* Front USB, 4* Rear USB |
Display | 1 *HDMI, 1 *VGA |
Expansion Slots | under 5th Gen.: 1 * Mini PCIE Wifi&BT or 4G LTE up to 6th Gen.: 1 * M.2(KEY EWifi&BT 2230)/1 * M.2(KEY B 4G/5G LTE 3052) |
Operating System | Windows / Linux |
Dimensions (mm) | 446.2*296.2*64.5 |
Mounting Hole Size (mm) | 432*285 |
Gross weight (kg) | 5.68 |
Installation methods | Embedded / Wall mount / Desktop |
Operating Temperature | -30 ~ +70°C |
Storage Temperature | -40 ~ +80°C |
Storage Humidity *Non-condensing | 5 ~ 95% |
Power Input | 1*12VDC (6A) (Option 9~36VDC Wide-range Power Input) |
Packaging Information | 1 *Master, 1 *Transformer, 1* Power Supply Cable |

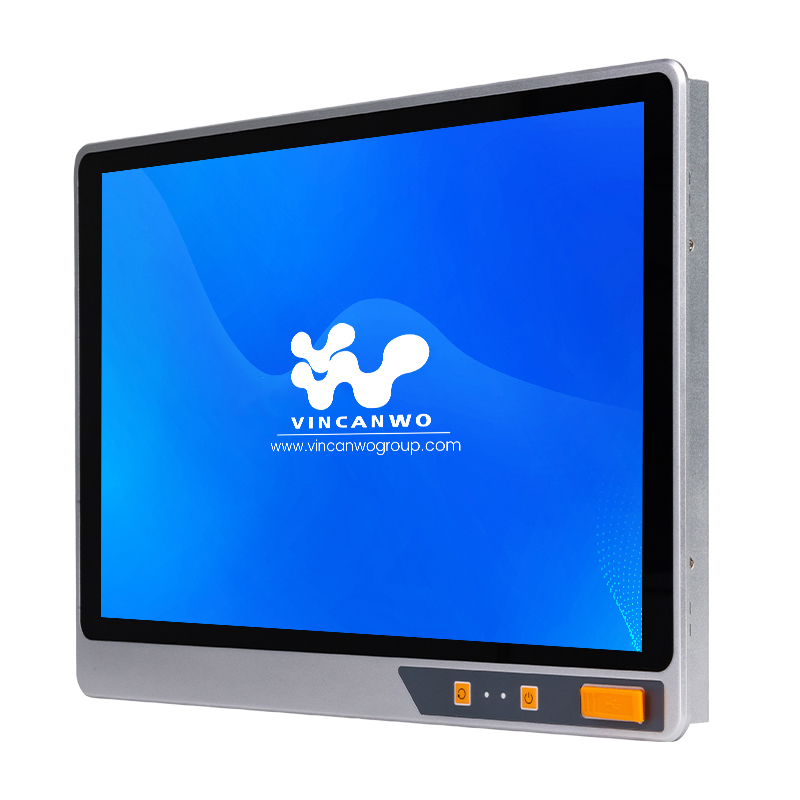

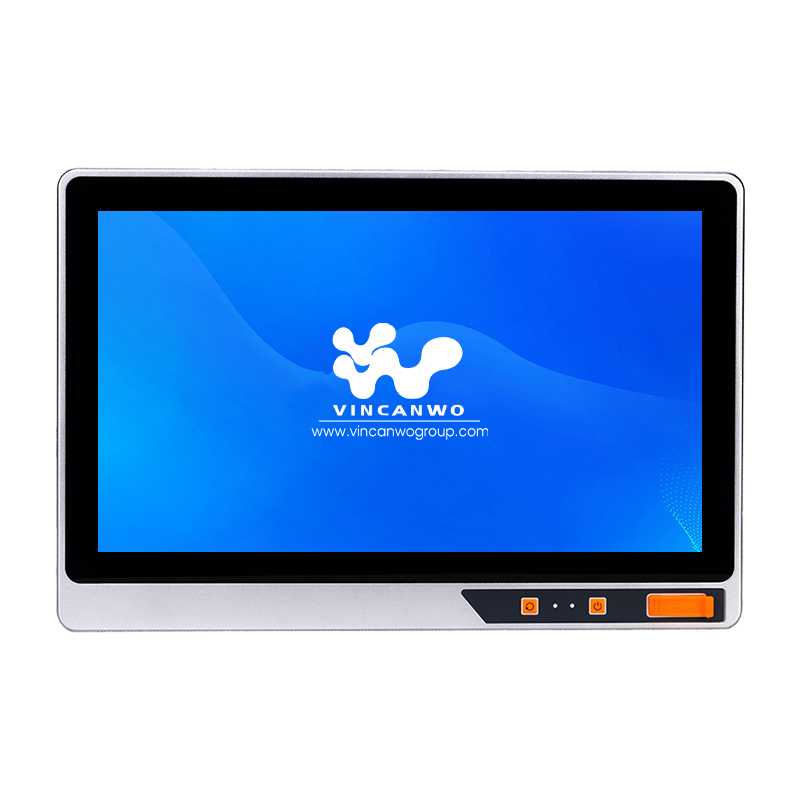

17.3” Panel Mount Computer | VFACE-173

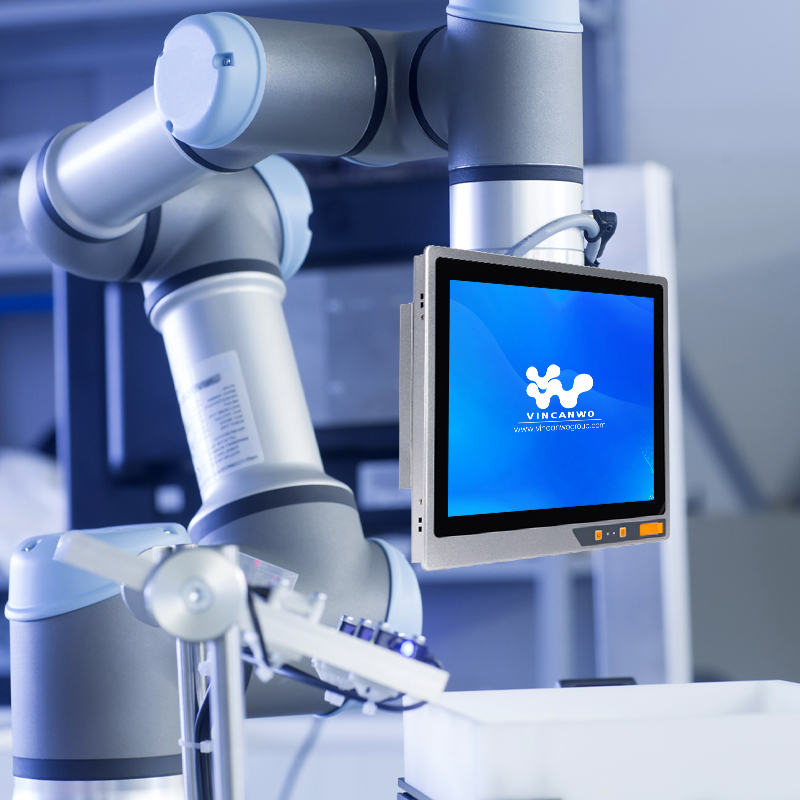

The VFACE-173 is a 17.3-inch industrial panel mount all-in-one computer. It features a fanless fully enclosed design, front IP66 dustproof and waterproof rating, and wide-temperature stable operation. It is widely applied in factory automation, numerical control equipment, intelligent warehousing and other harsh industrial scenarios.
Equipped with a 17.3-inch FHD 1920×1080 TFT LCD display with 16:9 widescreen ratio, 10-point projected capacitive touch is standard (resistive touch optional). It adopts an ultra-flat aluminum alloy front panel with a power button and front USB port for convenient on-site operation and debugging.
Multiple low-power Intel processor options are available, including Celeron, Core i3/i5/i7. Supporting expandable DDR memory and SSD storage, the built-in large-area aluminum fin heat dissipation enables fanless operation, dust resistance and shock resistance.
Rich onboard interfaces include dual Gigabit Ethernet, multiple RS232/422/485 serial ports, USB 3.0/2.0, HDMI and VGA. Wi-Fi, Bluetooth and 4G module expansion are supported. It adopts DC 12V–36V wide voltage input to adapt to complex industrial power supply environments.
