| SKU | VFWS-156 |
| Screen Size | 15.6" |
| Resolution | 1920*1080 |
| Viewing Angle | 89/89/89/89 |
| Brightness | 250 cd/m2 |
| Contrast Ratio | 3000:1 |
| Touch Screen | Capacitive |
| Controller | USB interface |
| Durability | ≥ 500W times |
| Processor | Intel® Processors |
| Memory | Under 5th Generation: DDR3, 4G / 8G | Above 6th Generation: DDR4, 4G / 8G / 16G |
| Storage | Under 5th Gen: 1*mSATA/1*SATA (2.5" Mechanical hard drive capacity ≤ 2TB) | Above 6th Gen: 1*M.2/1*SATA (2.5" Mechanical hard drive capacity ≤ 2TB) |
| Network | 1*LAN | 2 *LAN |
| COM | 2 *RS232 (COM 2, optional RS485) | 2 *RS232 (COM2, optional RS485) expand to 5COM |
| USB | 4 *USB2.0 |
| Display | 1 *HDMI, 1 *VGA |
| Expand Slot | Under 5th Gen: 1*Mini PCIE WiFi&BT or 4G LTE | Above 6th Gen: 1*M.2 (KEY E WiFi&BT 2230)/1*M.2 (KEY B 4G/5G LTE 3052) |
| Operating System | Windows / Linus |

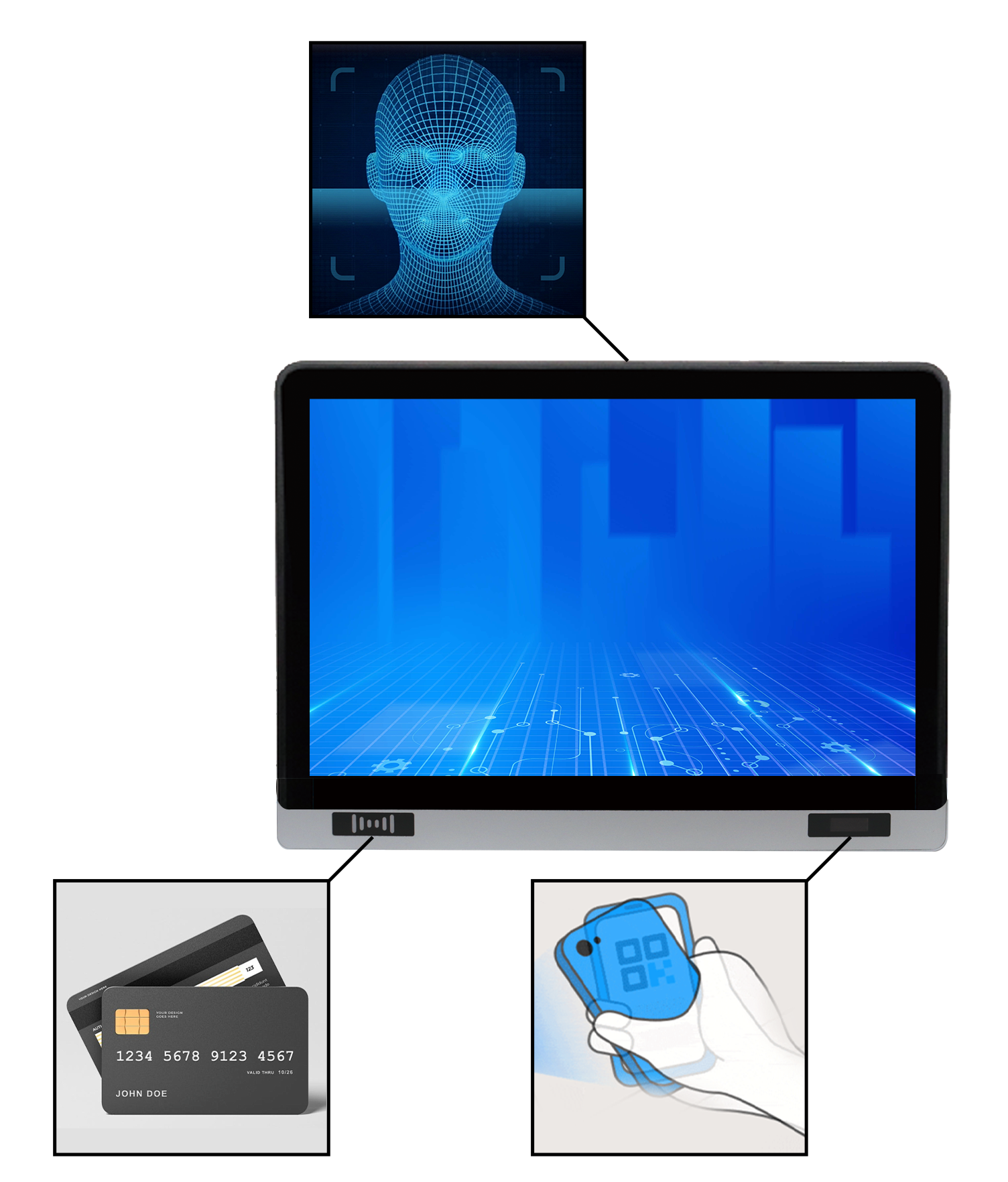

| Sensor | Optional front IC/ID card swiping, camera, scanning code |
| Dimensions (mm) | 418*332*58.3 |
| Hole Sizes (mm) | 396*324 |
| Individual Gross Weight (KG) | 3.80 |
| Mounting Options | Embedded / Wall-mounted / Desktop |
| Operating Temperature | -10 ~ +60℃ |
| Storage Temperature | -20 ~ +60℃ |
Storage Humidity *Non-condensing | 5 ~ 95% |
| Power Input | DC -12V (Optional 9 ~ 36V Wide-range Power Input) |
| Packaging Information | |
| FWS | 1 *Master, 1 *Adapter, 1* Power Supply Cable, 4 *hooks, 1 *Manual, 1 *Warranty Card |
| FWS-1 | Available to upgrade front IC/ID card swiping |
| FWS-C | Available to upgrade front Camera |
| FWS-S | Available to upgrade front Scanning Code |
| FWS-I/C/S | Available to upgrade front IC/ID card swiping / camera / scanning code |
VFWS-156 15.6" Modular Industrial Computer has the most key features, including:
Flexibility: Modular computers can be easily customized and adapted to changing industrial needs. Individual components, like processors, memory modules, and expansion cards, can be replaced or selected flexibly.
Quick maintenance and upgrades: Damaged components can be quickly replaced to maintain production continuity.
Faster delivery time: Modular industrial computers are ready-to-deploy solutions with a variety of add-ons.
Extended product lifecycle: Modular designs can be more cost-effective in the long run because they allow for partial upgrades.
Scalability: Modular computers can grow with the user's needs by adding new features or capabilities over time.
Energy efficient: Modular industrial computers can be energy efficient.
Cost effective: Modular industrial computers can be cost effective.
