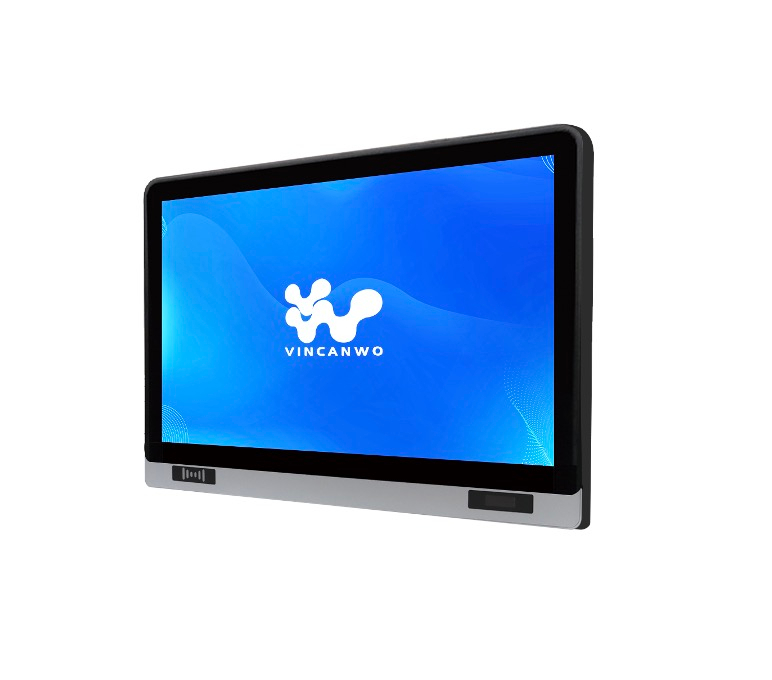

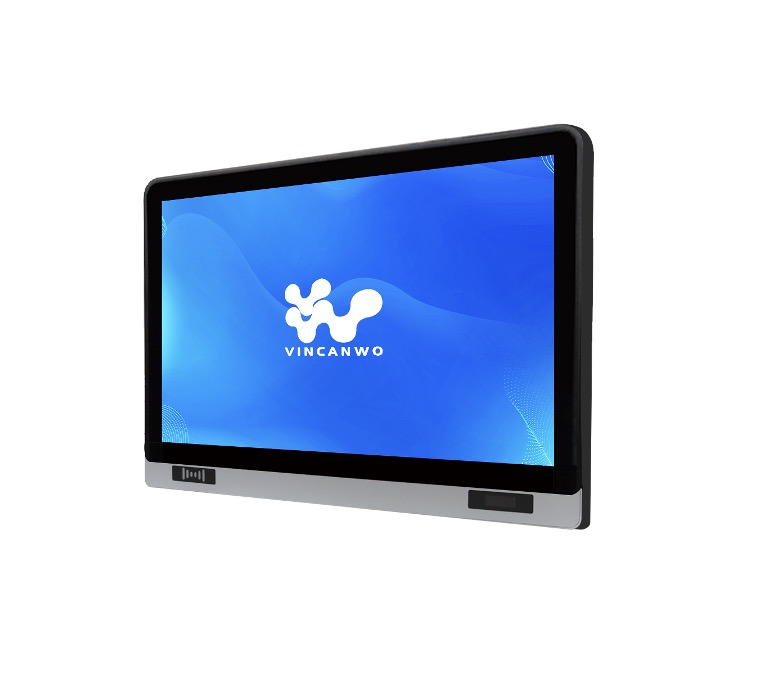

VFWS-101 10.1" Fanless Industrial Computer

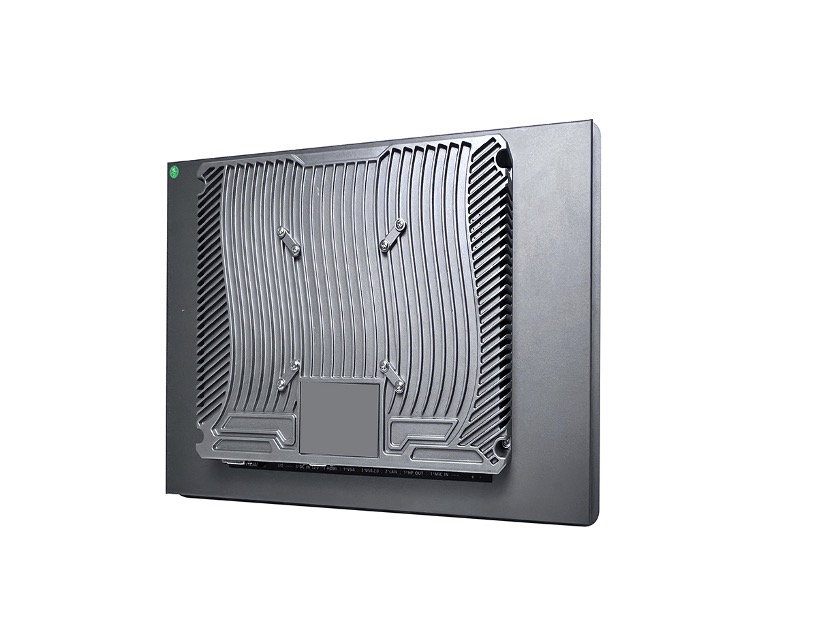

The VFWS-101 Fanless Industrial Computer utilizes passive cooling techniques to dissipate heat, eliminating the need for a fan and reducing both failure rate and power consumption.

Key Highlights
10.1" Full Flat IP65 Protected Touchscreen
Front Swipe IC / ID Cards / Camera / QR Scan
Capacitive Multi-Touch Touchscreen
Options for Expansion and Accessories

Model:
VFWS-101 10.1" Fanless Industrial Computer
Brand:
VINCANWO

Availability:

Quantity:



Inquire Add to Basket

Product Description

SKU	VFWS-101
Screen Size	10.1"
Resolution	1280*800
Viewing Angle	80/80/80/80
Brightness	330 cd/m²
Contrast Ratio	600:1
Touch Screen	Capacitive
Controller	USB interface
Durability	≥ 500W times
Processor	Intel® Processors
Memory	Under 5th Generation: DDR3, 4G / 8G \| Above 6th Generation: DDR4, 4G / 8G / 16G
Storage	Under 5th Gen: 1mSATA/1SATA (2.5" Mechanical hard drive capacity ≤ 2TB) \| Above 6th Gen: 1M.2/1SATA (2.5" Mechanical hard drive capacity ≤ 2TB)
Network	1LAN \| 2 LAN
COM	2 RS232 (COM 2, optional RS485) \| 2 RS232 (COM2, optional RS485) expand to 5COM
USB	4 *USB2.0
Display	1 HDMI, 1 VGA
Expand Slot	Under 5th Gen: 1Mini PCIE WiFi&BT or 4G LTE \| Above 6th Gen: 1M.2 (KEY E WiFi&BT 2230)/1*M.2 (KEY B 4G/5G LTE 3052)
Operating System	Windows / Linus

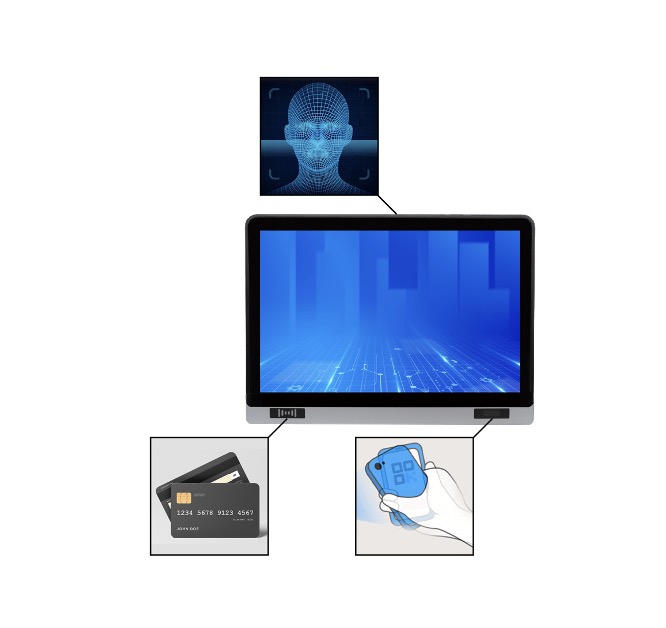

Sensor	Optional front IC/ID card swiping, camera, scanning code
Dimensions (mm)	283228.252.1
Hole Sizes (mm)	272*218
Individual Gross Weight (KG)	2.75
Mounting Options	Embedded / Wall-mounted / Desktop
Operating Temperature	-10 ~ +60℃
Storage Temperature	-20 ~ +60℃
Storage Humidity *Non-condensing	5 ~ 95%
Power Input	DC -12V (Optional 9 ~ 36V Wide-range Power Input)
Packaging Information
VFWS	1 Master, 1 Adapter, 1* Power Supply Cable, 4 hooks, 1 Manual, 1 *Warranty Card
VFWS-1	Available to upgrade front IC/ID card swiping
VFWS-C	Available to upgrade front Camera
VFWS-S	Available to upgrade front Scanning Code
VFWS-I/C/S	Available to upgrade front IC/ID card swiping / camera / scanning code

WechatIMG1635

VFWS-101 10.1" Fanless Industrial Computer and the most benefits as following:

Reliability and durability

Fanless computers are designed to be durable and reliable, with a longer lifespan than traditional computers. They are less likely to experience mechanical failures and can withstand harsh environments.
Quiet operation

Fanless computers are near silent, making them suitable for use in areas that require quiet, such as hospitals and libraries.
Reduced maintenance

Fanless computers don't require regular cleaning, which reduces maintenance and downtime.
Lower operating costs

Fanless computers are less expensive to operate than traditional computers because they consume less power and require less maintenance.
Smaller form factor

Fanless computers are smaller than traditional computers, allowing them to fit into more restrictive spaces.
Shock and vibration resistance

Fanless computers are designed to withstand physical stressors, such as constant shaking and vibrating.
Power input support

Fanless computers can support a range of power inputs and voltages, which helps protect them from damage caused by power fluctuations.
