| SKU | TPRO-104 |
| Screen Size | 10.4" |
| Resolution | 1024*768 |
| Viewing Angle | 89/89/89/89 |
| Brightness | 500 cd/m2 |
| Contrast Ratio | 900:1 |
| Touch Screen | Capacitive, Resistive |
| Controller | USB interface |
| Durability | Cpacitive: ≥ 500W times / Resistive: ≥ 10W times |
| Processor | ARM / Rockchip |
| Memory | 2G / 4G / 8G |
| Storage | 32G / 64G / 128 G |
| Network | 1*LAN |
| COM | 2 *RS232 (1 *COM optional RS485) |
| USB | 2 *USB |
| Display | 1 *HDMI |
| Expand Slot | 1 *Mini-PCIE |
| Operating System | Android / Linux (For Linux Operating System, and please contact our sales team) |
| Dimensions (mm) | 277.3*224.5*55.8 |
| Hole Sizes (mm) | External: 270*218 |
| Internal: 266*213 | |
Individual Gross Weight (KG) | 2.62 |
| Mounting Options | Embedded / Wall-mounted / Desktop |
| Operating Temperature | -20 ~ +60℃ |
| Storage Temperature | -20 ~ +70℃ |
Storage Humidity *Non-condensing | 5 ~ 95% |
| Power Input | DC -12V (Optional 9 ~ 36V Wide-range Power Input) |
| Packaging Information | 1 *Master, 1 *Adapter, 1* Power Supply Cable, 1 *Manual, 1 *Warranty Card |

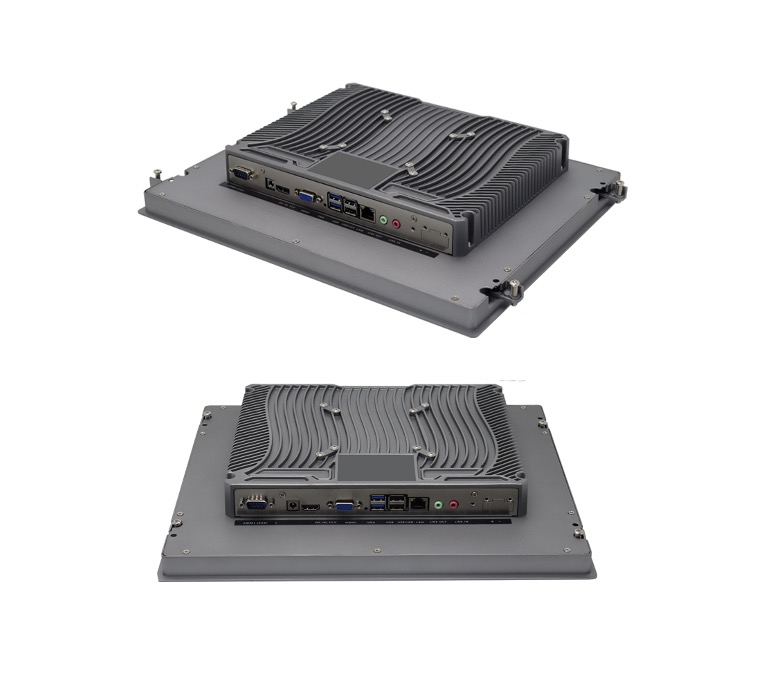

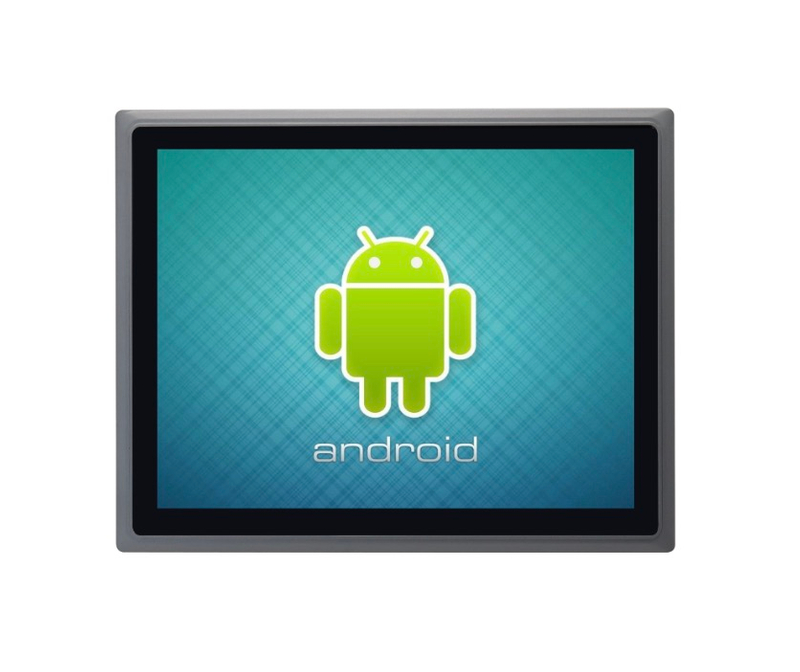

TPRO-104 10.4" Android Wall Mounted Industrial Computer can be beneficial in the most advantaging ways, including:
Durability: Built to withstand harsh environments, such as extreme temperatures, dust, and vibrations.
Reduced downtime: Highly durable, which can reduce downtime and maintenance costs.
Versatile applications: Using in a variety of applications, such as industrial manufacturing, building management, and logistics and warehouse management.
Easy installation: Quickly set up without extensive downtime.
Advanced touch technology: They can offer a responsive and intuitive user experience.
Sleek design: Complement any environment, whether it's a retail store, corporate office, or public space.
Reduced size: Reduce the size of a computer system, as they don't require separate peripherals and wires.
Protection: Housing in industrial computer enclosures, which can protect them from spillages, knocks, bangs, and even explosive atmospheres.
