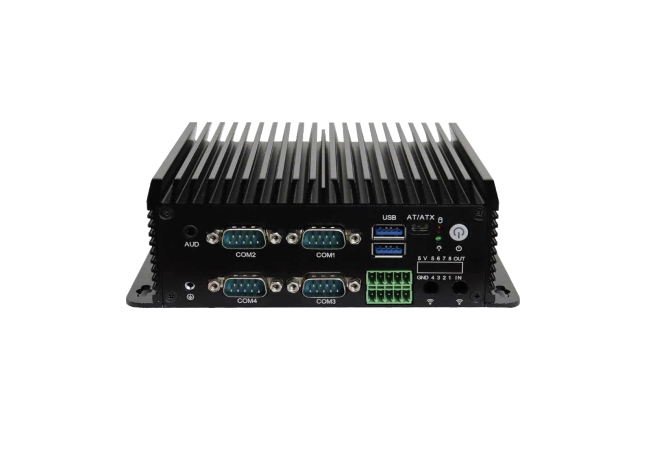

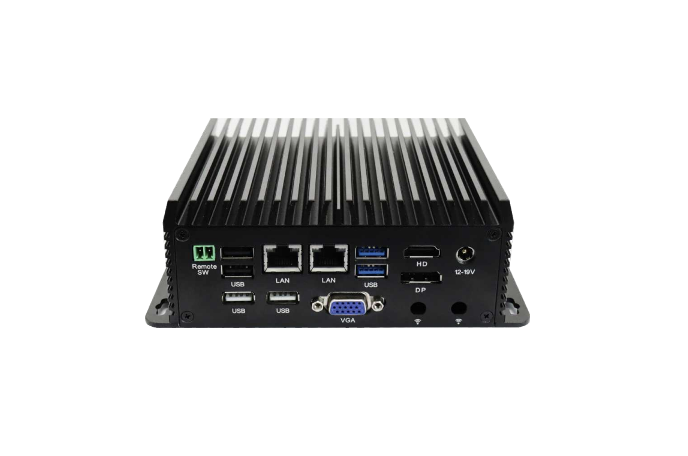

Industrial Edge Computer | UNO
VINCANWO GROUP
| Availability: | |
|---|---|
| Quantity: | |
Model | UNO | |
Primary Components | Processor Family | Intel Celeron or Core I series 12th Generation Alder Lake N |
Processor Model | Celeron N97, Core i3-N305 | |
Celeron N97, Core i3-N305 | Up to 3.6 GHz, Up to 3.8 GHz, 1.8 GHz, 2.0 GHz | |
Memory Type | 1x DDR5 SO-DIMM | |
Memory Support | 8GB, 16GB, 32GB, 64GB | |
Storage Type | 1x 2.5" SATA Drive Bay for SSD/HDD, 1x M.2 2280 NVME SSD slot | |
Storage Support | M.2 and 2.5": 128GB - 1TB | |
External I/O Ports | USB | 2x USB 3.2 Gen 1, 2x USB 3.2 Gen 2 |
Serial / Com | 2x COM | |
Serial Protocol Detail | COM1: RS-232/422/485, 0V/5V/12V, COM2: RS-232 | |
Ethernet / LAN | 2x RJ45 2.5 GbE LAN | |
Video Outputs | 1x DisplayPort, 1x HDMI | |
Audio Ports | 1x 3.5mm Audio Line-Out, 1x 3.5mm Microphone Jack, 1x Audio Line-Out | |
Power Input Port | DC-in Jack (Phoenix Type), Locking Type | |
Power | Input Voltage Range | 12-19V DC (optional 9~36V DC) |
Max Power Consumption | 65W | |
Standard Power Adapter | DC 19V/65W adapter, US AC power cord | |
Operating Systems | Windows | Windows 10 IoT, Windows 10 Pro, Windows 11 IoT, Windows 11 Pro |
Compatibility | Security Hardware | TPM 2.0 |
Expansion Slots | Internal M.2 | 1x M.2 2230 Key E (for WiFi expansion option), 1x M.2 3042/3052 Key B (For 4G/5G Cellular expansion option) |
Thermal & Environmental | Operating Temperature | -30°C - +70°C |
Humidity Range | 5% – 95% Non-condensing | |
Storage Humidity | 10% – 98% Non-condensing | |
Enclosure | Material | Aluminum |
Color | Black | |
Led Indicator Light | Power | |
Control Buttons | Power Switch | |
Weight / Dimensions | Weight | 1.38 kg |
Dimensions | 165 x 125 x 59.1 mm | |
| Accelerator | INT8 TOPS | Real-World Use Case |
|---|---|---|
| Intel Integrated NPU | 5 TOPS | Predictive maintenance (vibration analysis) |
| NVIDIA Jetson Orin NX | 100 TOPS | Multi-camera defect detection (4x 1080p) |
| Hailo-8 | 26 TOPS | AGV obstacle avoidance (LiDAR + vision fusion) |
| OpenVINO Optimized | +40% throughput | Pharma batch record validation |
| Industry | Application | UNO Configuration |
|---|---|---|
| Manufacturing | CNC Machine Monitoring | i5-1345U + Vibration Sensor + PROFINET IRT |
| Energy | Wind Turbine Controller | i3-N305 + -40°C Kit + IEC 61400-25Stack |
| Transport | EV Charging Hub Gateway | i7-1365U + OCPP 2.0 + ISO 15118 |
| Water | Pump Station SCADA | i5-1345U + 4G LTE + IEC 61131-3 PLC Runtime |
| Layer | Industrial Options |
|---|---|
| OS | Ubuntu 22.04 LTS / Wind River Linux / Windows 11 IoT LTSC |
| AI Framework | Intel OpenVINO / NVIDIA JetPack / Hailo TAPPAS |
| Middleware | Eclipse Kura / BalenaOS / Azure IoT Edge |
| Security | Secure Boot + TPM 2.0 + McAfee Embedded Control |
| Module | Function | Interface |
|---|---|---|
| UNO-FB-PN | PROFINET IRT Controller | PCIe Gen3 x1 |
| UNO-AIO-16 | 16-bit Isolated Analog I/O | SPI @ 2MHz |
| UNO-TSN-SW | 6-Port TSN Switch | RGMII |
| UNO-RETINA | 4x GMSL2 Camera Interface | FPD-Link III |
| Feature | Standard IPC | UNO Advantage |
|---|---|---|
| AI Flexibility | Fixed GPU | Swappable M.2 AI Accelerators |
| Power Tolerance | ±10% | 9-36VDC (300% surges) |
| I/O Isolation | None | 2.5kV Opto-Isolation(COM/DIO) |
| Deployment Time | Hours | Plug&Play w/ OTA provisioning |
