Industrial Router Network Firewall Mini PC | NANO-3L-SFP
VINCANWO GROUP
| Availability: | |
|---|---|
| Quantity: | |
SKU | NANO-3L-SFP |
Processor: | Intel Alder Lake N150 4Core 4 threads Processor,6MB Cache |
Chipset: | Intel UHD Graphics BIOS: AMI EFI BIOS |
Memory: | 1*DDR5 4800 MHz SODIMM |
Storage: | 1*M.2 Key-M 2280 (PCIe x1/SATA) |
Display Port: | 1*DP port; 1*HDMI port support 4K@60Hz |
Network port: | 3*intel i225 or i226 2.5G Ethernet port, 2*Intel 82599 10G SFP Port, 1* RS232 |

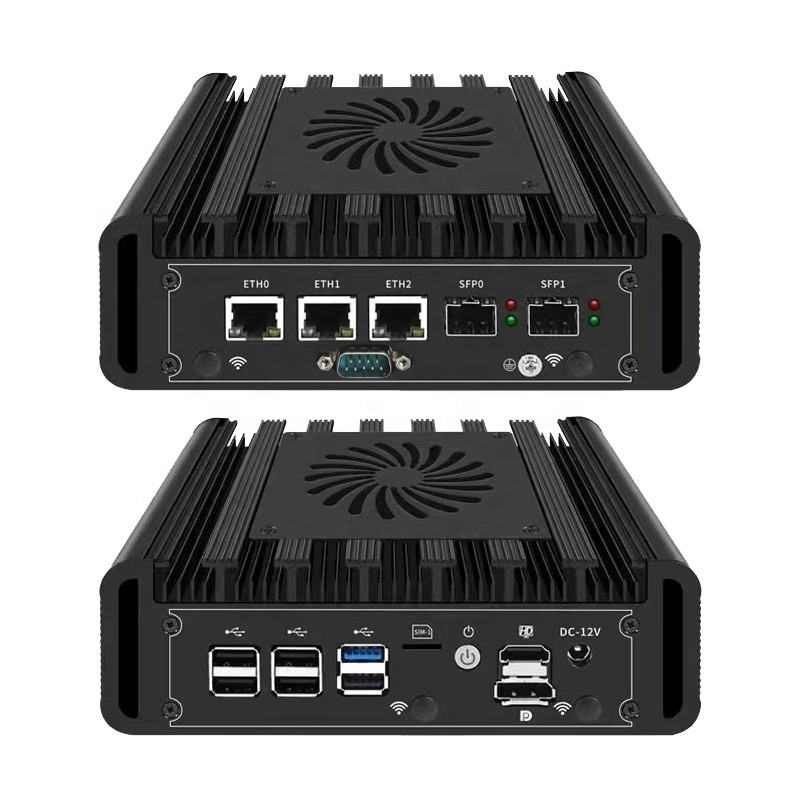

Front I/O interface: | 5xUSB2.0, 1xUSB3.1, 1xHDMI+DP, 1xpower button,1xSIM Card slot,1x12V DC in |
Back I/O interface: | 3*2.5G LAN,2*10G SFP Port,2*LED instruction light |

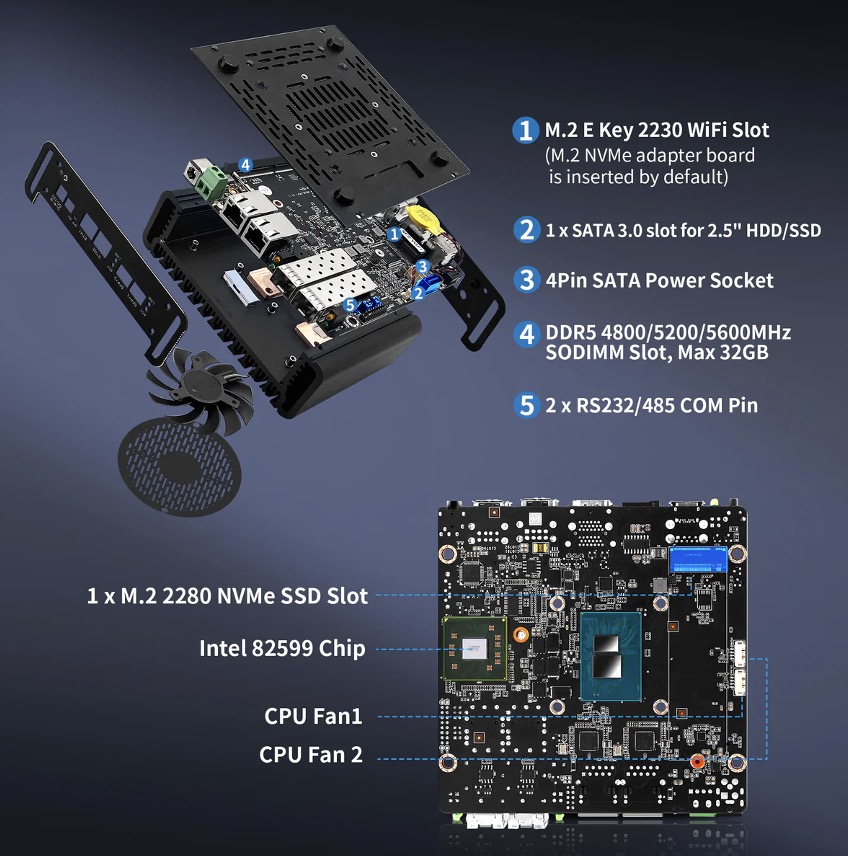

Expansion slot: | 1*M.2 Key-B 3052,1*M.2 Key-E 2230 WIFI/BT slot,Only supports the CNVI protocol. |
Other function: | Power-on boot; Scheduled boot; Wake-up on LAN; PXE boot; Watchdog |
Power Supply: | DC IN 12V 7A or higher, 5.5*2.5 |
Certificate: | CE、LVD、CCC、FCC、ROHS |
Operating Temperature: | -30℃ ~ +70℃ |
Storage Temperature: | -40℃ ~ +80℃ |
Environment Humidity: | 5% ~ 95% Non-condensing |
Size: | 177x125x54 mm |
Weight: | 1.15kg |
| Feature | NANO-3L-SFP Specifications |
|---|---|
| Form Factor | Fanless Mini-PC (150 x 100 x 40 mm) |
| Processor | Intel Atom® x6425E (4C/4T) or ARM Cortex-A72 (NXP LS1028A) |
| Hardware Acceleration | Intel QuickAssist (crypto), NPU (packet processing) |
| Networking | 3x GbE RJ45 + 1x SFP Slot(1G/2.5G fiber/copper) |
| Firewall Throughput | 3–5 Gbps (IMIX traffic) |
| VPN Performance | 500 Mbps IPsec/OpenVPN |
| Operating Temp | -40°C to +85°C (conformal coating) |
| Power Input | 12–48V DC (PoE++ 802.3bt optional) |
| Ingress Protection | IP40 chassis, IP67 ports (with M12 connectors) |
Triple-Role Functionality
Router: BGP/OSPF/RIP, VLAN, QoS, VRRP for failover
Firewall: Stateful packet inspection, DDoS protection, IDS/IPS (Suricata/Snort)
Mini-PC: Run Docker containers, Python scripts, or lightweight VMs
Industrial Networking Features
Fiber Resilience: SFP slot for long-distance/redundant fiber links (up to 80km)
Time-Sensitive Networking (TSN): IEEE 802.1Qbv for deterministic industrial traffic
Industrial Protocols: Modbus TCP, PROFINET RT support
Ruggedization & Reliability
Vibration/Shock: 50G operational shock (MIL-STD-810H)
EMC Immunity: EN 61000-6-2/-4 (industrial/railway environments)
Extended Lifespan: 10+ year availability, 200,000+ hours MTBF
Energy: Substation gateways (IEC 61850-3 compliant)
Transportation: Rolling stock networks (EN 50155 certified)
Factory 4.0: Secure OT/IT convergence (OPC UA tunneling)
Smart Cities: Traffic control cabinet edge security
| Component | Options |
|---|---|
| OS/Firmware | OpenWrt, pfSense, Ubuntu Core, Siemens SCALANCEOS |
| Firewall Rules | Zone-based policies, deep packet inspection |
| VPN Protocols | IPsec, OpenVPN, WireGuard, SSL-VPN |
| Management | CLI, Web GUI, REST API, SNMPv3 |
M.2 Slots:
B-key: 5G/LTE modules (Quectel RM502Q)
E-key: Wi-Fi 6E/Bluetooth 5.2
SIM Slot: Dual nano-SIM (carrier redundancy)
Digital I/O: 4x isolated GPIO (0–30V) for sensor alerts
| Requirement | Solution |
|---|---|
| Deterministic Networks | TSN support (IEEE 802.1Qbv/Qcc) |
| Cybersecurity | Hardware-accelerated AES-256, Zero Trust Architecture |
| Fiber Redundancy | Dual SFP slots (optional in some models) |
| WAN Failover | 5G + fiber dual-homing |
Network Segmentation:
Use VLANs to isolate OT/IT traffic → port 1:SCADA, port 2: CCTV, SFP: Backhaul
Environmental Hardening:
Deploy in DIN-rail cabinets with IP65 rating if field-mounted
Use M12-to-RJ45 adapters in high-vibration zones
Power Resilience:
24V DC input with supercapacitor backup(30-sec hold-up for graceful shutdown)
Edge Security:
Enable MAC whitelisting for connected devices
Schedule automated firmware updates via VPN tunnel
| Feature | NANO-3L-SFP Industrial | Commercial Router |
|---|---|---|
| Operating Temp | -40°C to 85°C | 0°C to 40°C |
| Lifecycle | 10+ years | 2–3 years |
| Protocol Support | Modbus/PROFINET | Limited to TCP/IP |
| Latency | <10 µs (TSN-enabled) | >100 µs |
