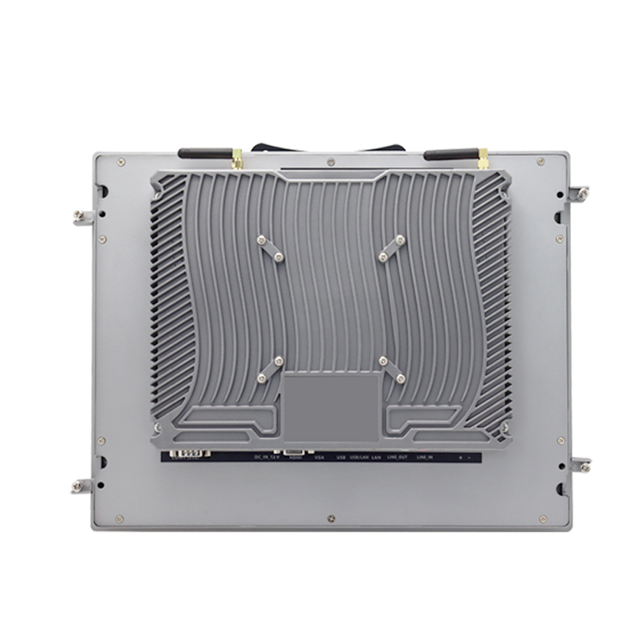

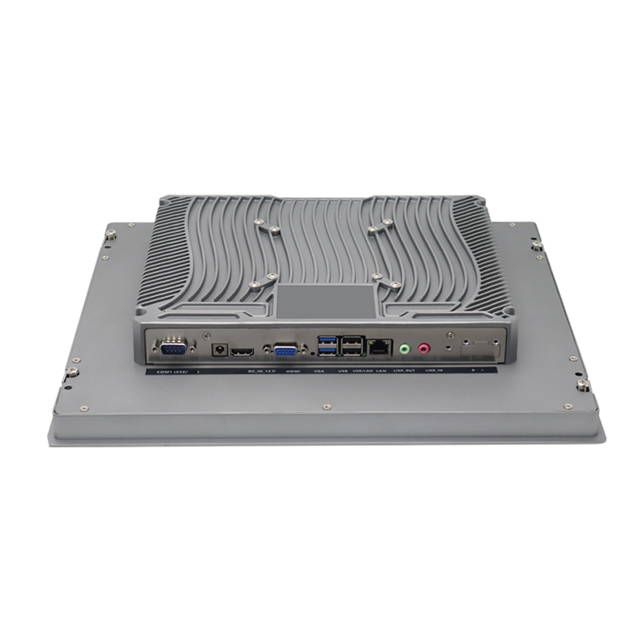

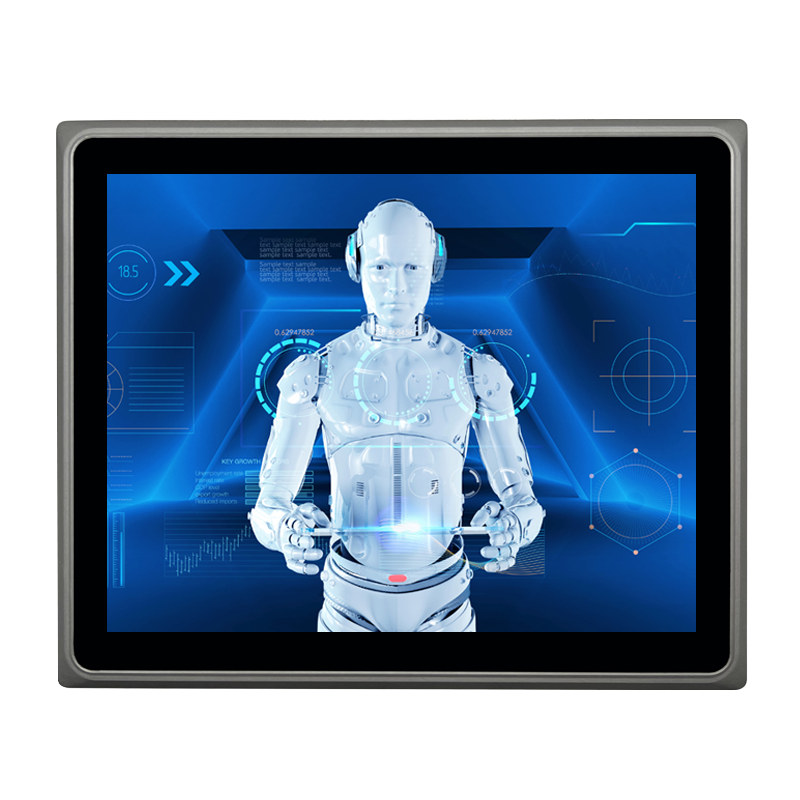

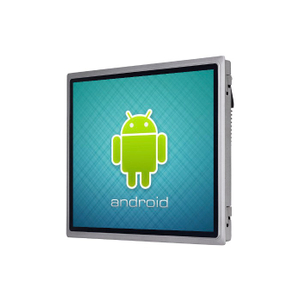

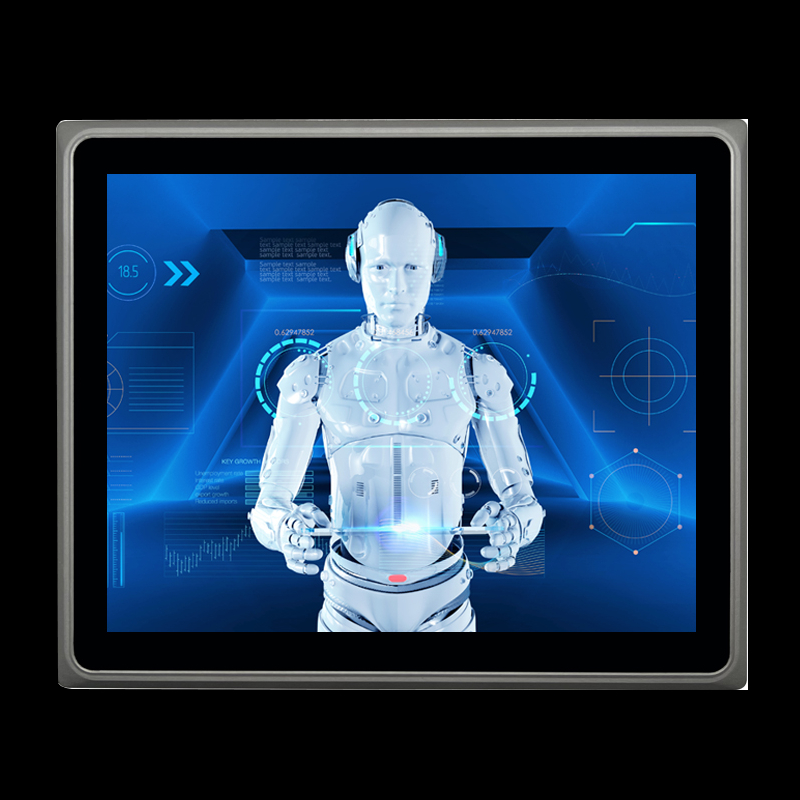

IPRO ARM Series
VINCANWO
| Availability: | |
|---|---|
| Quantity: | |
About the Series
Where cloud connectivity is used in a mobile device environment, our IPRO ARM Series touch screen panel PCs are and ideal solutions. The IPRO ARM Series enables you to easily connect to sensors and logging devices. With more processing power then a PLC and less expense than a windows-based PC, a IPRO ARM Series hits the sweet spot of functionality and price. The rugged fanless design is IP65 front rated to endure factory floor and high traffic user demands.
Use Cases
● Industrial Manufacturing:
The IPRO ARM Series can be used in industrial manufacturing environments for process control, monitoring production lines, and managing equipment and machinery.
● Building Management:
These panel PCs are suitable for building management applications, allowing facility managers to monitor and control various systems such as HVAC, lighting, security, and access control.
Logistics and Warehouse Management:
These panel PCs can be integrated into logistics and warehouse management systems, providing real-time tracking, inventory management, and order fulfillment functionalities.
About the Series
Where cloud connectivity is used in a mobile device environment, our IPRO ARM Series touch screen panel PCs are and ideal solutions. The IPRO ARM Series enables you to easily connect to sensors and logging devices. With more processing power then a PLC and less expense than a windows-based PC, a IPRO ARM Series hits the sweet spot of functionality and price. The rugged fanless design is IP65 front rated to endure factory floor and high traffic user demands.
Use Cases
● Industrial Manufacturing:
The IPRO ARM Series can be used in industrial manufacturing environments for process control, monitoring production lines, and managing equipment and machinery.
● Building Management:
These panel PCs are suitable for building management applications, allowing facility managers to monitor and control various systems such as HVAC, lighting, security, and access control.
Logistics and Warehouse Management:
These panel PCs can be integrated into logistics and warehouse management systems, providing real-time tracking, inventory management, and order fulfillment functionalities.
| Model | IPRO-104 | IPRO-121 | IPRO-15 | IPRO-156 | IPRO-17 | IPRO-19 |
| Screen Size | 10.4" | 12.1" | 15" | 15.6" | 17" | 19" |
| Resolution | 1024*768 | 1024*768 | 1024*768 | 1920*1080 | 1280*1024 | 1280*1024 |
| Viewing Angle | 80/80/80/80 | 85/85/85/85 | 89/89/89/89 | 89/89/89/89 | 85/85/80/80 | 85/85/80/80 |
| Brightness | 500 cd/m2 | 500 cd/m2 | 350 cd/m2 | 250 cd/m2 | 250 cd/m2 | 250 cd/m2 |
| Contrast Ratio | 900:1 | 1200:1 | 1000:1 | 1000:1 | 1000:1 | 1000:1 |
| Touch Screen | Capacitive, Resistive | |||||
| Controller | USB interface | |||||
| Durability | Cpacitive: ≥ 500W times / Resistive: ≥ 10W times | |||||
| Processor | ARM / Rockchip | |||||
| Memory | 2G / 4G / 8G | |||||
| Storage | 32G / 64G / 128 G | 3588: 64G / 128G / 256G | ||||
| Network | 1*LAN | 2*LAN | ||||
| COM | 2 *RS232 (COM 2, optional RS485) | 2 *RS232 (COM2, optional RS485) expand to 5COM | ||||
| USB | 2 *RS232 | |||||
| Display | 2 *USB | |||||
| ExpandSlot | 1 *HDMI | |||||
| Operating System | Android / Linux (For Linux Operating System, and please contact our sales team) | |||||
| Dimensions (mm) | 277.3*224.5*55.6 | 311.3*255.3*55.6 | 367.3*291 .3*58.8 | 412*261*58.6 | 401.6*338.2*59.1 | 445*374.8*58.6 |
| Embedded Hole Sizes (mm) | External: 270*218 | External: 305*248 | External: 360*248 | External: 404*253 | External: 394*324 | External: 439*359 |
| Internal: 266*213 | Internal: 298.8*242.8 | Internal: 350*274 | Internal: 397.5*241 .8 | Internal: 383.8*320.8 | Internal: 423.8*353.8 | |
| Weight (KG) | 2.62 | 3.28 | 4.26 | 4.34 | 5.00 | 5.96 |
| Mounting Options | Embedded / Wall-mounted / Desktop | |||||
| Operating Temperature | -20 ~ +60℃ | -20 ~ +60℃ | -10 ~ +60℃ | 0 ~ +50℃ | 0 ~ +50℃ | 0 ~ +50℃ |
| Storage Temperature | -20 ~ +70℃ | -20 ~ +70℃ | -20 ~ +70℃ | -20 ~ +60℃ | -20 ~ +60℃ | -20 ~ +60℃ |
| Storage Humidity | 5 ~ 90% | 5 ~ 90% | 5 ~ 90% | 5 ~ 90% | 5 ~ 90% | 5 ~ 90% |
| Power Input | DC -12V (Optional 9 ~ 36V) | |||||
| Packaging Information | 1 *Master, 1 *Adapter, 1* Power Supply Cable, 1 *Manual, 1 *Warranty Card | |||||
| Model | IPRO-104 | IPRO-121 | IPRO-15 | IPRO-156 | IPRO-17 | IPRO-19 |
| Screen Size | 10.4" | 12.1" | 15" | 15.6" | 17" | 19" |
| Resolution | 1024*768 | 1024*768 | 1024*768 | 1920*1080 | 1280*1024 | 1280*1024 |
| Viewing Angle | 80/80/80/80 | 85/85/85/85 | 89/89/89/89 | 89/89/89/89 | 85/85/80/80 | 85/85/80/80 |
| Brightness | 500 cd/m2 | 500 cd/m2 | 350 cd/m2 | 250 cd/m2 | 250 cd/m2 | 250 cd/m2 |
| Contrast Ratio | 900:1 | 1200:1 | 1000:1 | 1000:1 | 1000:1 | 1000:1 |
| Touch Screen | Capacitive, Resistive | |||||
| Controller | USB interface | |||||
| Durability | Cpacitive: ≥ 500W times / Resistive: ≥ 10W times | |||||
| Processor | ARM / Rockchip | |||||
| Memory | 2G / 4G / 8G | |||||
| Storage | 32G / 64G / 128 G | 3588: 64G / 128G / 256G | ||||
| Network | 1*LAN | 2*LAN | ||||
| COM | 2 *RS232 (COM 2, optional RS485) | 2 *RS232 (COM2, optional RS485) expand to 5COM | ||||
| USB | 2 *RS232 | |||||
| Display | 2 *USB | |||||
| ExpandSlot | 1 *HDMI | |||||
| Operating System | Android / Linux (For Linux Operating System, and please contact our sales team) | |||||
| Dimensions (mm) | 277.3*224.5*55.6 | 311.3*255.3*55.6 | 367.3*291 .3*58.8 | 412*261*58.6 | 401.6*338.2*59.1 | 445*374.8*58.6 |
| Embedded Hole Sizes (mm) | External: 270*218 | External: 305*248 | External: 360*248 | External: 404*253 | External: 394*324 | External: 439*359 |
| Internal: 266*213 | Internal: 298.8*242.8 | Internal: 350*274 | Internal: 397.5*241 .8 | Internal: 383.8*320.8 | Internal: 423.8*353.8 | |
| Weight (KG) | 2.62 | 3.28 | 4.26 | 4.34 | 5.00 | 5.96 |
| Mounting Options | Embedded / Wall-mounted / Desktop | |||||
| Operating Temperature | -20 ~ +60℃ | -20 ~ +60℃ | -10 ~ +60℃ | 0 ~ +50℃ | 0 ~ +50℃ | 0 ~ +50℃ |
| Storage Temperature | -20 ~ +70℃ | -20 ~ +70℃ | -20 ~ +70℃ | -20 ~ +60℃ | -20 ~ +60℃ | -20 ~ +60℃ |
| Storage Humidity | 5 ~ 90% | 5 ~ 90% | 5 ~ 90% | 5 ~ 90% | 5 ~ 90% | 5 ~ 90% |
| Power Input | DC -12V (Optional 9 ~ 36V) | |||||
| Packaging Information | 1 *Master, 1 *Adapter, 1* Power Supply Cable, 1 *Manual, 1 *Warranty Card | |||||
