VGOP-238
VINCANWO GROUP
| Availability: | |
|---|---|
| Quantity: | |
Model | VGOP-238 | |
Primisary Components | Processor Family | Intel Core I series 13th Generation Raptor Lake |
Processor Model | Intel® Core™ 13th Generation I7 Processor | |
Processor Speed | 12 MB of L3 cache and operates at 1800 MHz by default, boost up to 5.2 GHz | |
Memory Type | 2x DDR4 SO-DIMM | |
Memory Support | 4GB, 8GB, 16GB, 32GB, 64GB | |
Storage Type | 1x M.2 2280 NVME SSD slot | |
Storage Support | M.2: 256GB-4TB | |
Display | Screen Size | 23.8" |
Resolution | 1920 x 1080 (Full HD) | |
Screen Ratio | 16:9 | |
Brightness | 2000 nit High Brightness Anti-glare, Sunlight Readable, Automatic Dimming | |
Touch Screen | Touch Screen | Projected Capacitive (Multi-touch) |
External I/O Ports | USB | 2x USB 2.0, 2x USB 3.0 |
Display | 1x HDMI, 1x VGA | |
Serial / Com | 3x COM | |
Serial Protocol Detail | COM1 & COM2 RS-232/422/485 (BIOS select, RS-232 default), COM3 RS-232 | |
Ethernet / LAN | 2x RJ45 GbE LAN | |
Power Input Port | 3-Pin DC-In (Phoenix Type) | |
Power | Power Supply | DC 100 ~ 240V |
Operating Systems | Windows | Windows 10 IoT, Windows 10 Pro, Windows 11 IoT, Windows 11 Pro |
Compatibility | Security Hardware | TPM 2.0 |
Expansion Slots | Internal M.2 | 1x M.2 2230 Key E (for WiFi expansion option) |
Thermal & Environmental | Operating Temperature | -30°C - 70°C |
Storage Temperature | -40°C - 80°C | |

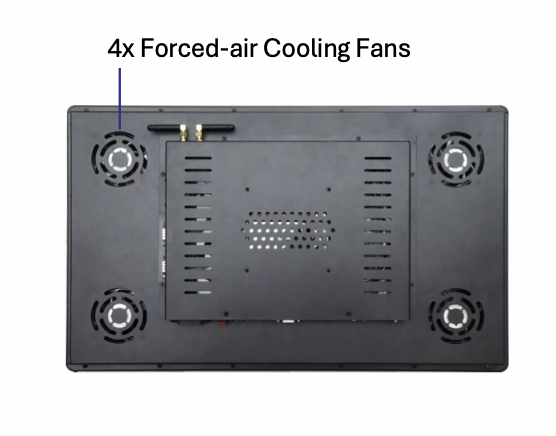

Cooling Solution | Fan | |
Humidity Range | 10% – 95% Non-condensing | |
Enclosure | Material | Metal front bezel, Aluminum Heatsink and SECC Steel Chassis |
IP Rating | IP66 Front Bezel | |
Color | Black | |
Led Indicator Light | Power | |
Mounting Options | Panel Mount, VESA 100 Mount | |
Peripherals & Wireless Connectivity | WiFi | Optional 802.11 a/b/g/n/ac/ax Wi-Fi 6 |
Bluetooth | Optional Bluetooth 5.3 | |
Weight / Dimensions | Dimensions | 640 x 88 x 395 mm |
Sunlight-Readable Display: 2000 nits ultra-high brightness ensures clear visibility in direct sunlight or outdoor environments (e.g., construction sites, oil rigs, outdoor kiosks), eliminating the need for additional 遮阳 solutions.
GPU-Powered Performance: Dedicated graphics card enables smooth 3D modeling, real-time data visualization, video analytics, and AI inference—critical for industries like manufacturing (CAD/CAM), healthcare (medical imaging), and transportation (traffic management).
Rugged Reliability: Built to withstand extreme temperatures, dust, water, and physical impact, making it suitable for industrial automation, harsh field operations, and mission-critical applications where downtime is costly.
Flexible Integration: Compact panel PC form factor (depth ≤50mm) supports wall-mount, VESA-mount, or embedded installation; rich I/O ports enable seamless connectivity with sensors, cameras, printers, and other industrial equipment.
Energy Efficiency: Optimized hardware and power management reduce energy consumption without compromising performance, ideal for 24/7 operation in data centers or remote locations.
Industrial Automation: Machine vision, PLC control, SCADA systems, and factory floor monitoring.
Professional Graphics: 3D design, video editing, architectural visualization, and broadcast production.
Outdoor & Harsh Environments: Construction site monitoring, mining equipment control, marine navigation, and military applications.
Public Services: Traffic control centers, emergency response vehicles, and outdoor information kiosks.
Healthcare & Medical: Diagnostic imaging workstations, operating room displays, and patient monitoring systems.
Display: Higher resolution (4K UHD), touchscreen type (resistive/capacitive), or anti-glare/anti-reflective coating.
Hardware: Custom CPU/GPU configurations, expanded storage, or specialized I/O (e.g., RS-232/485 serial ports for legacy equipment).
Software: Pre-installed industry-specific software (e.g., CAD tools, analytics platforms) or custom firmware development.
Packaging: Industrial-grade enclosures, waterproof connectors, or thermal management solutions for extreme temperatures.
Model | VGOP-238 | |
Primisary Components | Processor Family | Intel Core I series 13th Generation Raptor Lake |
Processor Model | Intel® Core™ 13th Generation I7 Processor | |
Processor Speed | 12 MB of L3 cache and operates at 1800 MHz by default, boost up to 5.2 GHz | |
Memory Type | 2x DDR4 SO-DIMM | |
Memory Support | 4GB, 8GB, 16GB, 32GB, 64GB | |
Storage Type | 1x M.2 2280 NVME SSD slot | |
Storage Support | M.2: 256GB-4TB | |
Display | Screen Size | 23.8" |
Resolution | 1920 x 1080 (Full HD) | |
Screen Ratio | 16:9 | |
Brightness | 2000 nit High Brightness Anti-glare, Sunlight Readable, Automatic Dimming | |
Touch Screen | Touch Screen | Projected Capacitive (Multi-touch) |
External I/O Ports | USB | 2x USB 2.0, 2x USB 3.0 |
Display | 1x HDMI, 1x VGA | |
Serial / Com | 3x COM | |
Serial Protocol Detail | COM1 & COM2 RS-232/422/485 (BIOS select, RS-232 default), COM3 RS-232 | |
Ethernet / LAN | 2x RJ45 GbE LAN | |
Power Input Port | 3-Pin DC-In (Phoenix Type) | |
Power | Power Supply | DC 100 ~ 240V |
Operating Systems | Windows | Windows 10 IoT, Windows 10 Pro, Windows 11 IoT, Windows 11 Pro |
Compatibility | Security Hardware | TPM 2.0 |
Expansion Slots | Internal M.2 | 1x M.2 2230 Key E (for WiFi expansion option) |
Thermal & Environmental | Operating Temperature | -30°C - 70°C |
Storage Temperature | -40°C - 80°C | |
Cooling Solution | Fan | |
Humidity Range | 10% – 95% Non-condensing | |
Enclosure | Material | Metal front bezel, Aluminum Heatsink and SECC Steel Chassis |
IP Rating | IP66 Front Bezel | |
Color | Black | |
Led Indicator Light | Power | |
Mounting Options | Panel Mount, VESA 100 Mount | |
Peripherals & Wireless Connectivity | WiFi | Optional 802.11 a/b/g/n/ac/ax Wi-Fi 6 |
Bluetooth | Optional Bluetooth 5.3 | |
Weight / Dimensions | Dimensions | 640 x 88 x 395 mm |
Sunlight-Readable Display: 2000 nits ultra-high brightness ensures clear visibility in direct sunlight or outdoor environments (e.g., construction sites, oil rigs, outdoor kiosks), eliminating the need for additional 遮阳 solutions.
GPU-Powered Performance: Dedicated graphics card enables smooth 3D modeling, real-time data visualization, video analytics, and AI inference—critical for industries like manufacturing (CAD/CAM), healthcare (medical imaging), and transportation (traffic management).
Rugged Reliability: Built to withstand extreme temperatures, dust, water, and physical impact, making it suitable for industrial automation, harsh field operations, and mission-critical applications where downtime is costly.
Flexible Integration: Compact panel PC form factor (depth ≤50mm) supports wall-mount, VESA-mount, or embedded installation; rich I/O ports enable seamless connectivity with sensors, cameras, printers, and other industrial equipment.
Energy Efficiency: Optimized hardware and power management reduce energy consumption without compromising performance, ideal for 24/7 operation in data centers or remote locations.
Industrial Automation: Machine vision, PLC control, SCADA systems, and factory floor monitoring.
Professional Graphics: 3D design, video editing, architectural visualization, and broadcast production.
Outdoor & Harsh Environments: Construction site monitoring, mining equipment control, marine navigation, and military applications.
Public Services: Traffic control centers, emergency response vehicles, and outdoor information kiosks.
Healthcare & Medical: Diagnostic imaging workstations, operating room displays, and patient monitoring systems.
Display: Higher resolution (4K UHD), touchscreen type (resistive/capacitive), or anti-glare/anti-reflective coating.
Hardware: Custom CPU/GPU configurations, expanded storage, or specialized I/O (e.g., RS-232/485 serial ports for legacy equipment).
Software: Pre-installed industry-specific software (e.g., CAD tools, analytics platforms) or custom firmware development.
Packaging: Industrial-grade enclosures, waterproof connectors, or thermal management solutions for extreme temperatures.
