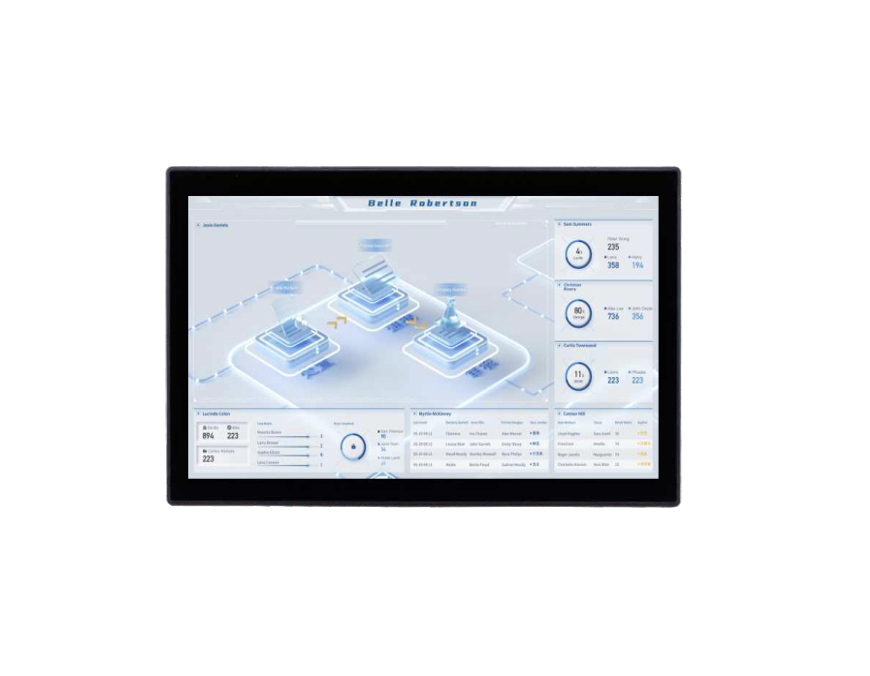

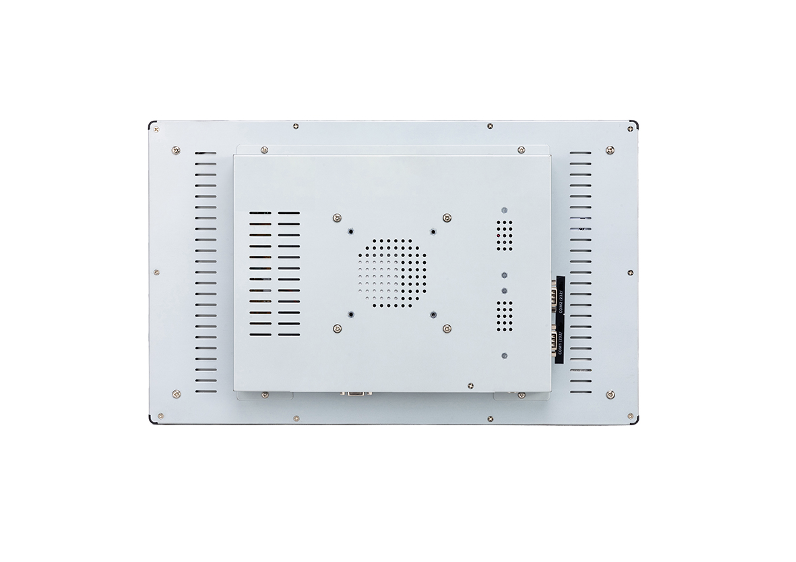

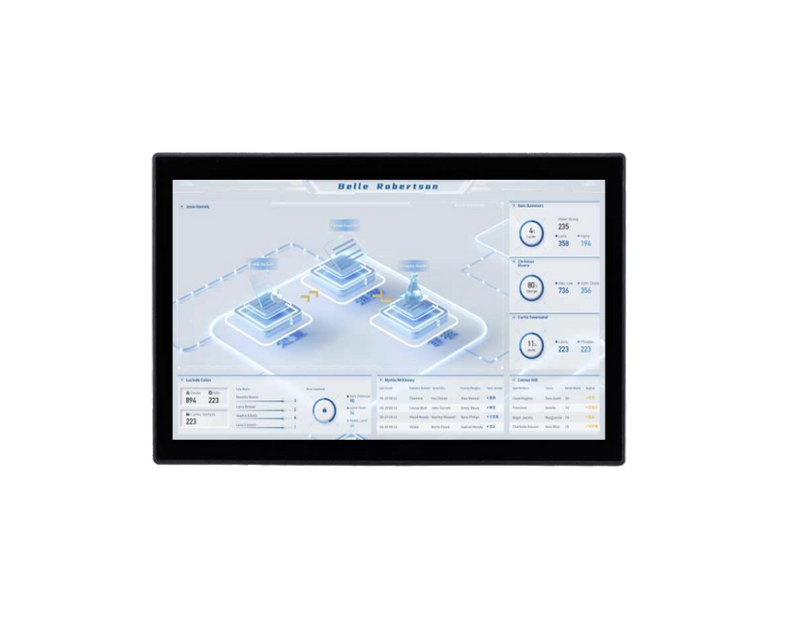

15.6” Core Ultra Slim Panel PC | OPC4L-156
VINCANWO GROUP
| Availability: | |
|---|---|
| Quantity: | |
Model | OPC4L-156 | |
Primary Components | Processor Family | Intel Core Ultra Series 14th Generation Meteor Lake |
Processor Model | Core Ultra 5 - 125U | |
Processor Speed | 2x Low-Power Efficient Cores up to 2.1GHz, 2x Performance Cores up to 4.3GHz, 8x Efficient Cores up to 3.6GHz | |
Memory Type | 1x DDR5 SO-DIMM | |
Memory Support | 32GB | |
Storage Type | 1x M.2 M Key 2242 NVME SSD Slot, 1x M.2 M Key 2280 NVME SSD Slot | |
Storage Support | 128GB-1TB | |
Display | Screen Size | 15.6" |
Resolution | 1920 x 1080 (Full HD) | |
Screen Ratio | 16:9 | |
Brightness | 800 nits | |
Touch Screen | Touch Screen | Projected Capacitive (Multi-touch), Resistive |
External I/O Ports | USB | 1x USB 3.2 Type C (PD Input/DP Alt Mode), 4x USB |
Serial / Com | 1x COM | |
Serial Protocol Detail | COM1 and COM2 both support RS232/422/485 (COM 2 is an Optional Expansion) | |
Ethernet / LAN | 4x LAN (optional 1x RJ45 2.5 GbE LAN, 1x RJ45 GbE LAN) | |
Video Outputs | 1x DisplayPort via USB-C Alt Mode, 1x HDMI | |
Video Outputs | 1x DisplayPort via USB-C Alt Mode, 1x HDMI | |
Audio Ports | 1x 3.5mm Audio Line-Out/Mic-In | |
Power Input Port | Optional POE, USB Type-C PD Input, 3-Pin DC-In (Phoenix Type) | |
Power | Input Voltage Range | 12V DC (optional 9~36V DC) |
Max Power Consumption | 60W | |
Standard Power Adapter | Optional 100W USB-C PD PSU, Optional 90W 3-Pin Terminal Block PSU (19V/4.74A) | |
Operating Systems | Windows | Windows 10 IoT, Windows 11 IoT, Windows 11 Pro |
Linux | Linux Ubuntu 24.04 or above (Contact your sales rep for more information) | |
Compatibility | Security Hardware | fTPM 2.0 |
Expansion Slots | Internal M.2 | 1x M.2 2230 Key E (for WiFi expansion option), 1x M.2 2242 M-Key slot for NVMe SSD or AI Accelerator, 1x M.2 2280 M-Key slot for NVMe SSD |
Expansion Module support | I/O Expansion Area comes by default with 2x USB 2.0 Ports, Options for 2nd COM and 8-Pin GPIO/DIO are Available | |
Thermal & Environmental | Operating Temperature | -30°C - +70°C |
Storage Temperature | -40°C - 80°C | |
Humidity Range | 10% – 95% Non-condensing | |
Storage Humidity | 10% – 98% Non-condensing | |
Enclosure | Material | Metal Chassis |
IP Rating | IP65 Front Bezel | |
Color | Black | |
Control Buttons | Power Button | |
Mounting Options | Panel Mount, VESA 100 Mount | |
Peripherals & Wireless Connectivity | WiFi | Optional WiFi 6E |
Bluetooth | Optional Bluetooth 5.2 | |
Weight / Dimensions | Weight | 3.7kg |
Dimensions | 393.3 x 242.4 x 49.1 mm | |
| Category | OPC4L-156 Specifications |
|---|---|
| Display | 15.6" FHD (1920×1080) 1000 cd/m², OptiBond™ Pro (Direct Bonding, <1% haze), 10-Point Projected Capacitive (Glove/Wet Touch) |
| Processor | Intel® Core™ Ultra 5 125U (10C/12T, 4.3GHz) / Ultra 7 155U (12C/14T, 4.8GHz) w/ NPU (10 TOPS) |
| Form Factor | Ultra-Slim Profile: 35mm depth, Aluminum Unibody (98% recyclable) |
| Thermal Design | Fanless (0-50°C), Vapor Chamber w/ Phase-Change Material (PCM) |
| Memory/Storage | LPDDR5 16GB/32GB(Soldered), 512GB/1TB NVMe Gen4 (M.2 2230) |
| Industrial I/O | 2× TSN 2.5GbE (RJ45), 2× USB4 (40Gbps), 1× Isolated RS-232/485(1.5kV), M12 Power Lock |
| Expansion | M.2 Key-E (Wi-Fi 6E/BT 5.3), M.2 Key-B(4G/5G/AI Accelerator) |
| Power | 12-24VDC (90% Efficiency), USB-PD 3.1(100W) |
| Mounting | VESA MIS-F (100×100), Panel Mount (IP65 with optional kit) |
| Technology | Benefit |
|---|---|
| Monoblock Aluminum Chassis | 1.2mm wall thickness, EMI shielding without added weight |
| PCM-Enhanced Vapor Chamber | 40% higher thermal capacity vs. copper, sustains 28W TDP fanless |
| Zero-Cable Internal Design | FPC connectors for display/board, eliminating failure-prone ribbons |
| EdgeSense™ Touch | 2mm activation depth through 5mm glass (NEMA 4 compliant) |
| Workload | Performance | Industrial Application |
|---|---|---|
| Multi-Camera Inspection | 4× 1080p @ 30fps (OpenVINO NPU) | PCB AOI with defect classification |
| Predictive Maintenance | 95% model accuracy (TensorFlow Lite on NPU) | CNC tool wear monitoring |
| Natural Language UI | 200ms response (Local Llama 2 7B) | Hands-free medical documentation |
| Time-Series Analytics | 100k samples/sec (InfluxDB edge) | Energy substation monitoring |
| Parameter | Consumer Panel | OPC4L-156 Advantage |
|---|---|---|
| Profile Depth | 45-60mm | 35mm (world's thinnest industrial PC) |
| Touch Sensitivity | 3mm activation | 2mm through liquids (IP65 mode) |
| Thermal Headroom | 15W fanless limit | 28W sustained fanless |
| Ambient Light | 400-600 nits | 1000 nits + 1500:1 contrast |
| Function | Supported Stack |
|---|---|
| OS | Windows 11 IoT LTSC, Ubuntu Core 24, Yocto 4.3 |
| AI Framework | Intel OpenVINO, TensorFlow Lite, ONNX Runtime |
| Industrial Protocols | OPC UA, MQTT Sparkplug, Modbus TCP |
| Remote Management | Azure IoT Edge, Ignition Edge, Node-RED |
| Factor | OPC4L-156 Value |
|---|---|
| Power Consumption | 8W idle / 22W peak |
| Lifecycle | 10-year supply (2034) |
| Maintenance | Tool-less SSD access (30s swap) |
