| Quantity: | |
|---|---|
SKU | VFACEH-215 |
Screen Size | 21.5” |
Resolution | 1920x1080 |
Viewing Angle | 89/89/89/89 |
Brightness | 250 cd/㎡ |
Contrast Ratio | 1000:1 |
Touchscreen | Capacitive, Resistive |
Controller | USB interface |
Durability | Capacitive: ≥ 5M times, Resistive: : ≥ 100,000 times |
Chipset | H310 (LGA1151), H610 (LGA1700) |
Memory Type | 2x DDR4 4G, 8G, 16G, 32G |
Storage Type | 1x M.2 Slot, support M.2 2260/2280 |

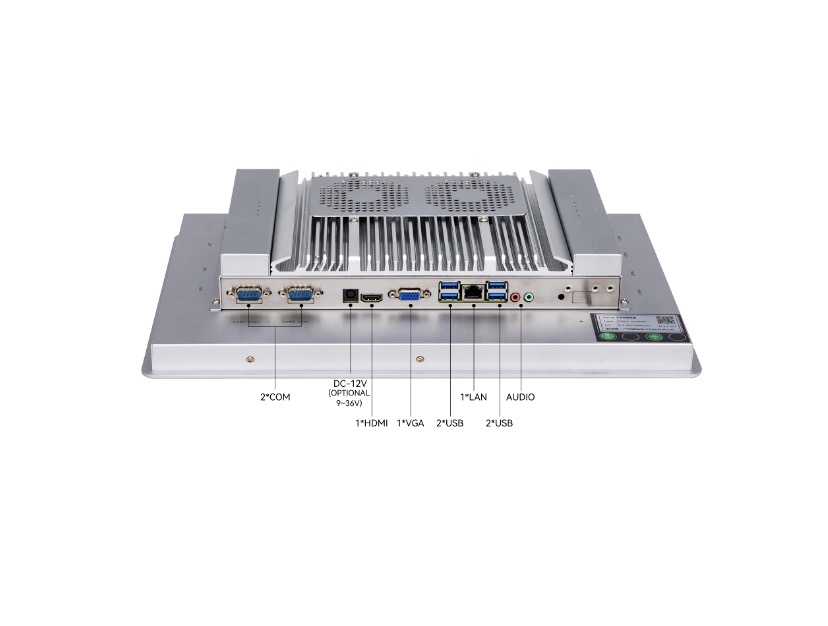

Ethernet / LAN | 2x RTL8111 |
Serial / Com | 2x RS232 (COM2 option RS485) |
USB | Front 1x USB, Rear 4x USB |
Video Outputs | 1x HDMI, 1x VGA |
Expansion Slots | 1xMini-PCIE WiFi, 1x Mini PCIE WiFi & Bluetooth or 4G LTE |
Operating Systems | Windows, Linux |

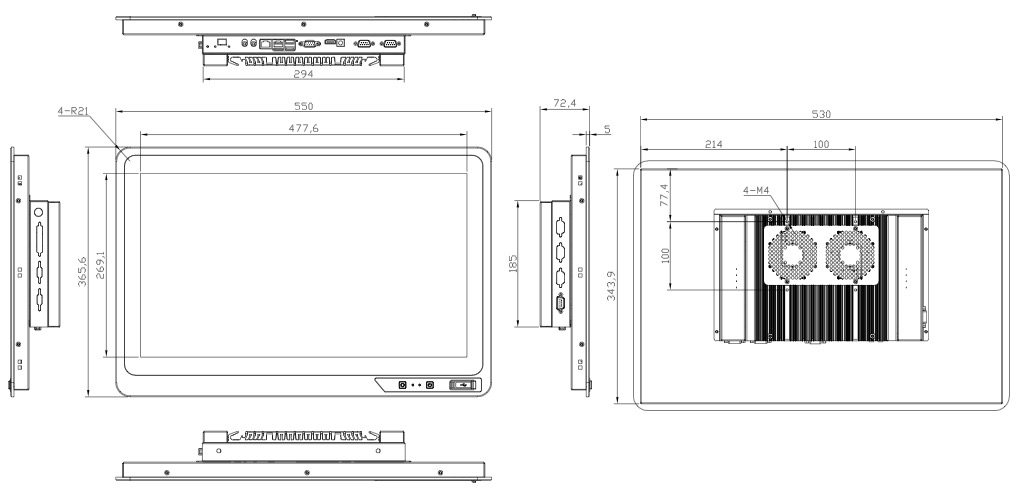

Dimension | 550x365.7x72.4mm |
Mounting Hole Size | 533x347mm |
Gross Weight | 8.08kg |
Mounting Options | Embedded, Wall Mount, Desktop Stand |
Operating Temperature | -30℃ ~ +70℃ |
Storage Temperature | -40℃ ~ +80℃ |
Humidity Rage Non-condensing | 5% - 95% |
Power | Input Voltage Range 9 – 36V DC Standard Power: Optional 12V AC/DC Adapter: 5A, 60W |
>Product Advantages
1. Durability and Ruggedness:
Environmentally sealed:
IP65 rated enclosures protect against dust, moisture, and other environmental hazards.
Shock and vibration resistance:
Designed to withstand the vibrations and shocks common in industrial settings.
Wide temperature range:
Operates reliably in a wide range of temperatures, from extreme heat to cold.
2. Performance and Features:
· High-performance processors: Utilize powerful processors to handle demanding tasks, including real-time data processing and complex applications.
· Multi-touch capacitive touchscreens: Provide intuitive and responsive touch interaction for user interfaces.
· High resolution displays: Offer clear and detailed visuals for optimal readability and user experience.
· Wide range of I/O interfaces: Provides flexibility for connecting to various industrial devices and peripherals.
· Solid-state drives (SSDs): Provide fast data access and increased reliability compared to traditional hard drives.
3. Specific Industrial Applications:
HMI (Human-Machine Interface):
Act as the primary interface for operators to monitor and control industrial processes.
Data logging and analysis:
Collect and process large amounts of data for real-time monitoring and analysis.
Machine vision systems:
Support image processing and analysis for applications like quality control and robotics.
Automation and control:
Control and manage industrial automation systems, such as programmable logic controllers (PLCs).
4. Other Notable Features:
· Compact size: Designed to fit into limited spaces and industrial environments.
· Open architecture: Supports various operating systems and software applications.
· Optional accessories: Can be configured with additional features like CFAST connectivity.
· Customizable solutions: Can be tailored to meet specific application requirements.
>Product Applications
Our Vincanwo Group Brand 21.5” Widescreen High-performance Industrial Computer| VFACEH-21.5 is used in various applications, including manufacturing, packaging inspection, asset tracking, and simulation & control, according to Daisy Data Displays. They also find use in remote data management, chemical processing, pharmaceutical industries, and by Original Equipment Manufacturers (OEMs).
1. Manufacturing:
Robot Guidance & Machine Vision:
Control robots and enable machine vision systems for tasks like quality control and assembly.
Data Collection & Preventative Maintenance:
The collect data from equipment and machinery, enabling predictive maintenance strategies.
Automated Production Lines:
The orchestrate and control automated production lines, enhancing efficiency and logistics.
Process Automation:
Can be used to automate various manufacturing processes, improving precision and efficiency.
2. Packaging Inspection & Quality Control:
Automated Inspections:
Machine vision systems integrated with industrial PCs automate quality control processes, increasing speed and accuracy.
Packaging Line Monitoring:
Monitor packaging lines for defects, ensuring product quality and consistency.
3. Asset Tracking:
Tracking and Monitoring:
Track and monitor processes and assets in industries like healthcare and retail, detecting any abnormalities.
Inventory Management:
Can be used to manage inventory in real-time, improving efficiency and reducing waste.
4. Simulation & Control:
Real-World Simulation:
Simulate real-world scenarios, helping engineers and operators to understand and optimize processes.
Control Systems:
Can be used as control systems for various industrial processes, including temperature, pressure, and flow control.
5. Remote Data Management:
Internet of Things (IoT):
Collect and manage data from remote IoT sensors, enabling remote monitoring and control of equipment and systems.
Data Analytics:
They can be used to analyze data collected from remote sensors, providing insights into equipment performance and potential problems.
