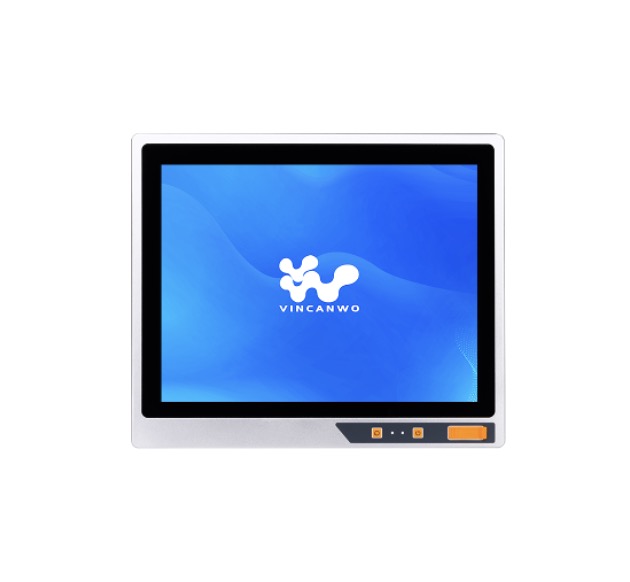

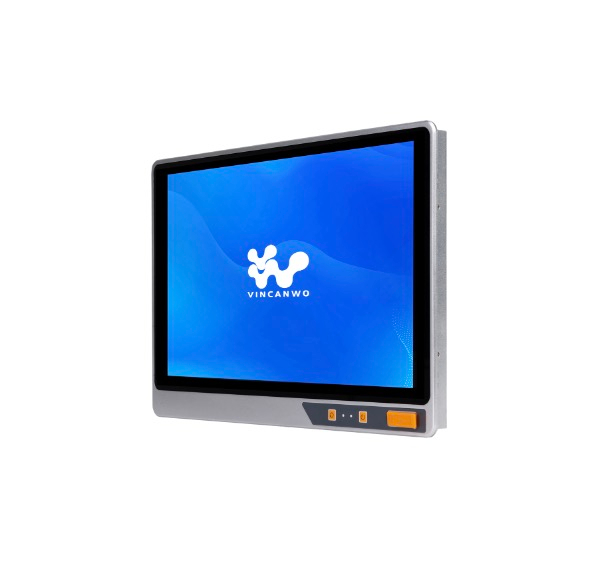

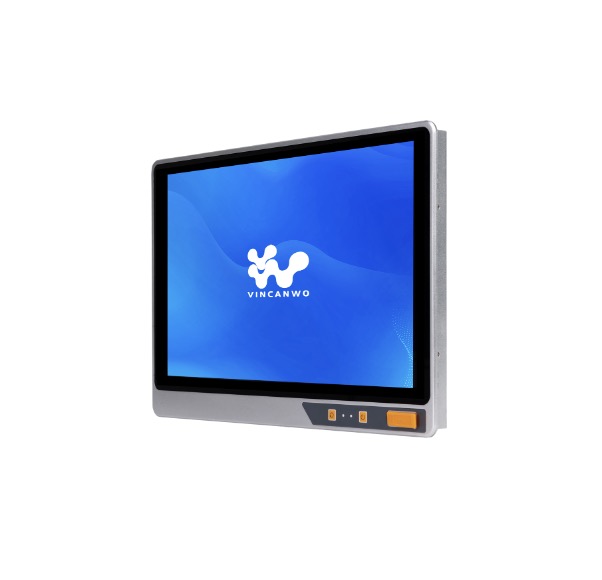

19” High-performance Panel PC | VFACEH-19
VINCANWO
Availability: | |
---|---|
Quantity: | |
SKU | VFACEH-19 |
Screen Size | 19” |
Resolution | 1280x1024 |
Viewing Angle | 85/85/85/80 |
Brightness | 250 cd/㎡ |
Contrast Ratio | 1000:1 |
Touchscreen | Capacitive, Resistive |
Controller | USB interface |
Durability | Capacitive: ≥ 5M times, Resistive: : ≥ 100,000 times |
Chipset | H310 (LGA1151), H610 (LGA1700) |
Memory Type | 2x DDR4 4G, 8G, 16G, 32G |
Storage Type | 1x M.2 Slot, support M.2 2260/2280 |

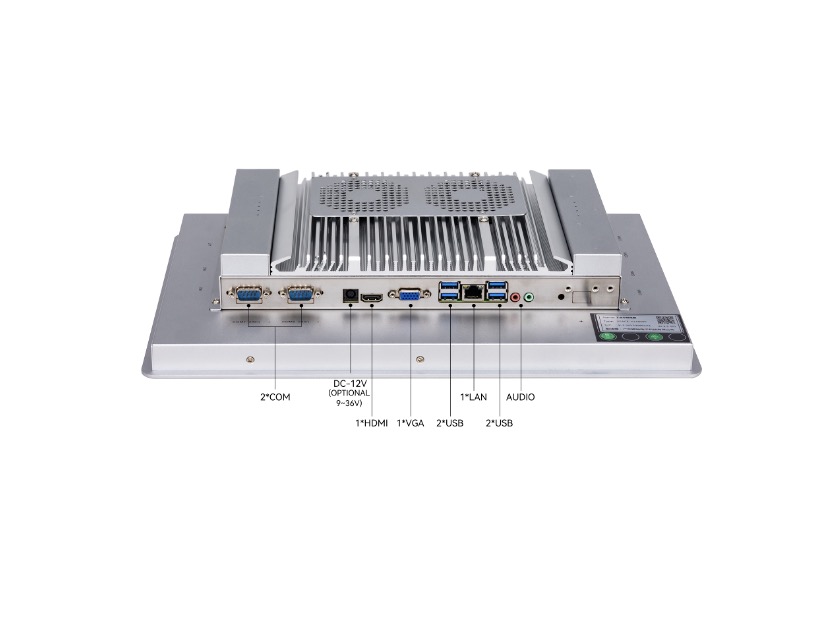

Ethernet / LAN | 2x RTL8111 |
Serial / Com | 2x RS232 (COM2 option RS485) |
USB | Front 1x USB, Rear 4x USB |
Video Outputs | 1x HDMI, 1x VGA |
Expansion Slots | 1xMini-PCIE WiFi, 1x Mini PCIE WiFi & Bluetooth or 4G LTE |
Operating Systems | Windows, Linux |

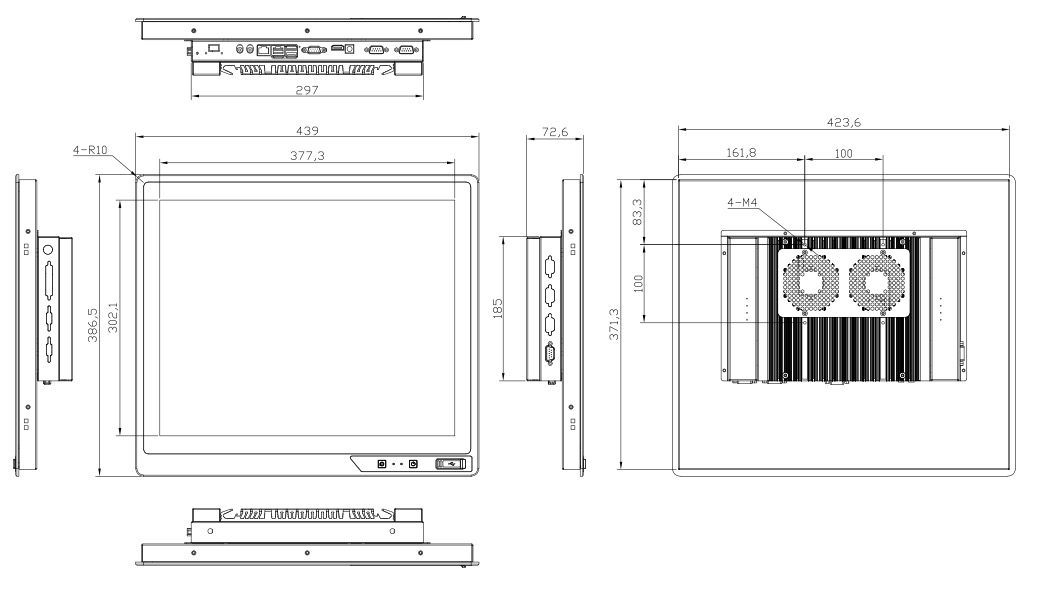

Dimension | 439x386.5x72.6mm |
Mounting Hole Size | 426x374mm |
Gross Weight | 7.00kg |
Mounting Options | Embedded, Wall Mount, Desktop Stand |
Operating Temperature | -30℃ ~ +70℃ |
Storage Temperature | -40℃ ~ +80℃ |
Humidity Rage Non-condensing | 5% - 95% |
Power | Input Voltage Range 9 – 36V DC Standard Power: Optional 12V AC/DC Adapter: 5A, 60W |
>Product Advantages
One of the primary features of Our Vincanwo brand 19” High-performance Industrial Panel PC | VFACEH-19 is the touchscreen technology, which allows users to interact directly with the display using their fingers or stylus. This intuitive user interface eliminates the need for external peripherals, such as keyboards and mice, simplifying operation and increasing efficiency.
1. Intuitive and Efficient User Interface:
Direct Interaction:
Allow for direct interaction with the display using fingers or a stylus, eliminating the need for keyboards and mice.
Simplified Operation:
This streamlined approach simplifies operation and increases efficiency, especially in environments where quick and easy interaction is crucial.
Multi-touch Capabilities:
Multi-touch gestures (pinch, pan, zoom), further enhancing user experience and interaction with content.
2. Space-Saving and Compact Design:
All-in-One Solution:
Combine the computer and display into a single unit, saving valuable space and reducing clutter.
Reduced Wiring:
By eliminating the need for external peripherals, panel PCs reduce wiring and improve overall system organization.
3. Durability and Reliability:
Ruggedized Design:
Designed to withstand demanding environments, featuring ruggedized enclosures that protect against dust, moisture, vibrations, and extreme temperatures.
Reliable Performance:
Built with high-performance components and designed for long-term reliability and minimal downtime.
4. Versatile Connectivity:
Multiple Connectivity Options:
Offer various connectivity options, including LAN, I/O, CAN, cellular, and WiFi, enabling seamless integration into existing systems.
Expansion Capabilities:
Feature expansion slots for adding specialized hardware components, such as graphic cards or communication modules.
5. Enhanced Workflow and Efficiency:
Quick Access to Applications:
Interaction allows for quick access to applications and data, improving workflow efficiency.
Real-Time Monitoring and Control:
Well-suited for real-time monitoring and control applications, enabling operators to interact directly with machinery and processes.
Interactive Technology:
Interactive technology can keep users more engaged and can speed up processes, saving time and money.
6. Cost-Effectiveness:
Reduced Maintenance:
The ruggedized design and reliability of panel PCs can lead to reduced maintenance costs and downtime.
Long-Term Investment:
Considered a long-term investment, as they are designed for durability and reliability.
>Product Applications
Our Vincanwo brand 19” High-performance Industrial Panel PC | VFACEH-19 finds applications in diverse industries, including factory automation, digital signage, gaming, healthcare, and more, serving as versatile platforms for data visualization, process control, interactive displays, and HMI (Human-Machine Interface) applications.
Our Vincanwo brand 19” High-performance Industrial Panel PC | VFACEH-19 built for demanding environments, these industrial touchscreen PCs are ideal for factory automation, in-vehicle computing, inventory management, self-service kiosks, and industrial process control.
