17” High-performance Industrial Panel PC | VFACEH-17
VINCANWO
Availability: | |
---|---|
Quantity: | |
SKU | VFACEH-17 |
Screen Size | 17” |
Resolution | 1280x1024 |
Viewing Angle | 85/85/80/80 |
Brightness | 250 cd/㎡ |
Contrast Ratio | 1000:1 |
Touchscreen | Capacitive, Resistive |
Controller | USB interface |
Durability | Capacitive: ≥ 5M times, Resistive: : ≥ 100,000 times |
Chipset | H310 (LGA1151), H610 (LGA1700) |
Memory Type | 2x DDR4 4G, 8G, 16G, 32G |
Storage Type | 1x M.2 Slot, support M.2 2260/2280 |

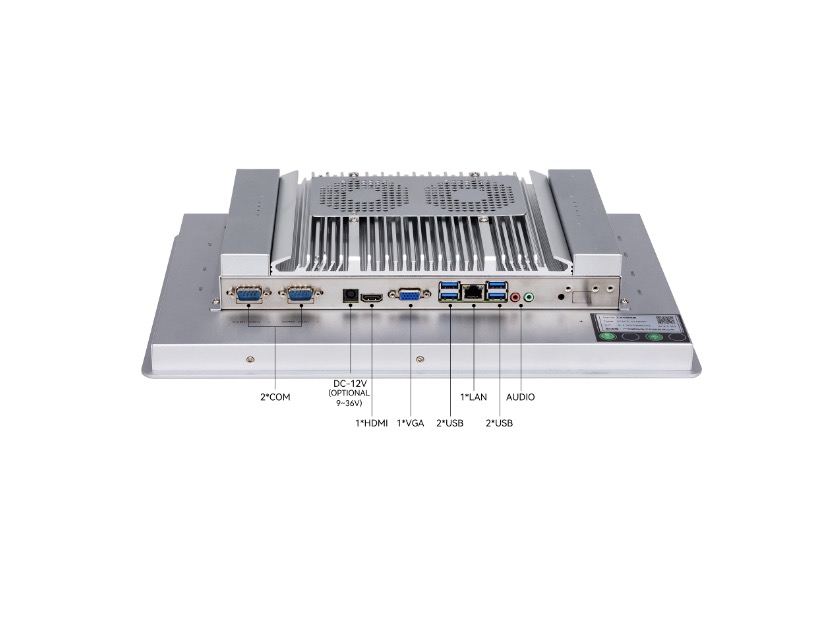

Ethernet / LAN | 2x RTL8111 |
Serial / Com | 2x RS232 (COM2 option RS485) |
USB | Front 1x USB, Rear 4x USB |
Video Outputs | 1x HDMI, 1x VGA |
Expansion Slots | 1xMini-PCIE WiFi, 1x Mini PCIE WiFi & Bluetooth or 4G LTE |
Operating Systems | Windows, Linux |

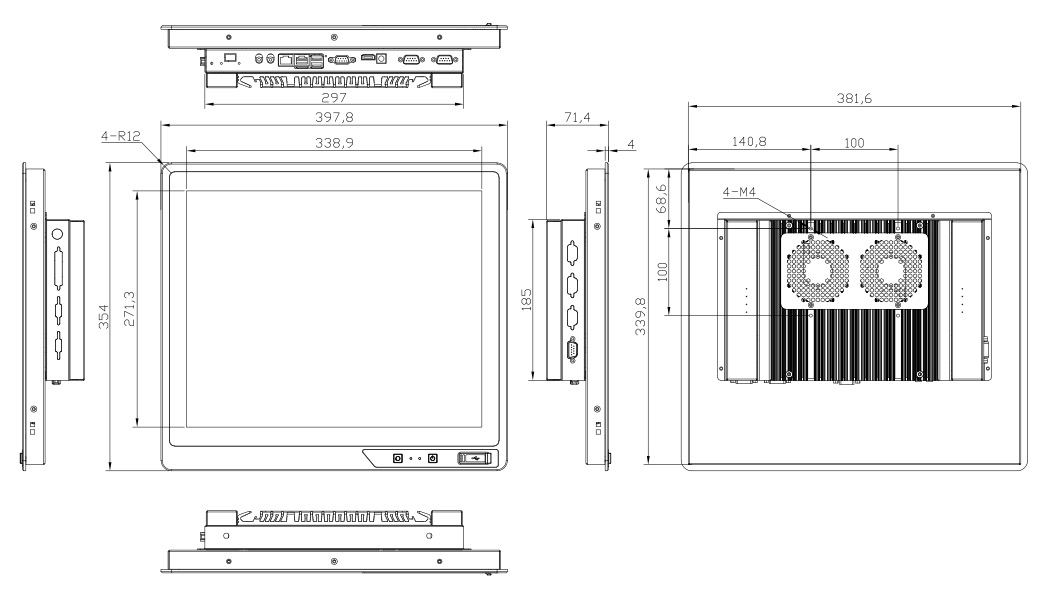

Dimension | 397.8x354x71.4mm |
Mounting Hole Size | 384x343mm |
Gross Weight | 6.00kg |
Mounting Options | Embedded, Wall Mount, Desktop Stand |
Operating Temperature | -30℃ ~ +70℃ |
Storage Temperature | -40℃ ~ +80℃ |
Humidity Rage Non-condensing | 5% - 95% |
Power | Input Voltage Range 9 – 36V DC Standard Power: Optional 12V AC/DC Adapter: 5A, 60W |
>Product Advantages
Our Vincanwo brand 17” High-performance Industrial Panel PC | VFACEH-17 offers the most advantages like enhanced durability, compact design, ease of integration, and simplified maintenance, making them ideal for industrial and harsh environments where traditional PCs struggle.
Rugged and Durable:
Panel PCs are built to withstand harsh conditions, including dust, moisture, temperature fluctuations, and vibrations, which are common in industrial settings.
Compact and Space-Saving:
Their integrated design, where the computer and display are combined into a single unit, allows for significant space savings, making them ideal for environments with limited space.
Easy Integration and Installation:
Panel PCs are designed for easy integration into machines, control panels, and other industrial equipment, simplifying installation and maintenance.
Touchscreen Interface:
Feature touchscreen technology, providing a user-friendly and intuitive interface for operators to interact with machines and processes.
Versatile and Customizable:
Customized to meet specific application requirements, offering versatility and adaptability for various industrial applications.
Enhanced Productivity:
The combination of ruggedness, ease of use, and compact design can lead to increased productivity and reduced downtime in industrial environments.
Human-Machine Interface (HMI) Functionality:
Using as HMIs for machine control, production monitoring, and data visualization, providing operators with a clear and intuitive interface for managing complex processes.
>Product Applications
Our Vincanwo brand 17” High-performance Industrial Panel PC | VFACEH-17, with the rugged designs and powerful processing capabilities, find applications in various industries, including manufacturing, healthcare, transportation, and retail, for tasks like controlling machinery, monitoring processes, and providing interactive interfaces.
1. Manufacturing and Industrial Automation:
Human-Machine Interface (HMI):
As the primary interface for operators to monitor and control industrial processes, machinery, and equipment.
Factory Automation Systems:
Using in systems that automate manufacturing processes, such as robotic control, conveyor systems, and quality control.
Control Panels for Machinery:
Using to control and monitor the operation of various types of machinery, from assembly lines to production equipment.
Industrial Process Control:
Help monitor and control processes in various industries like food and beverage, oil and gas, and water and wastewater treatment.
2. Healthcare:
Interactive Patient Monitoring and Diagnostic Tools:
Using to display and manage patient data, vital signs, and diagnostic images.
Medical Record Management:
Using to access and manage patient records, laboratory reports, and other medical information.
3. Transportation and Logistics:
Fleet Management and Vehicle Tracking:
Using in vehicles to track location, monitor performance, and manage fleet operations.
Route Optimization Systems:
Using to optimize routes, manage traffic, and improve logistics efficiency.
4. Retail and Hospitality:
· Self-Service Kiosks: Using for self-service kiosks in retail and hospitality environments, allowing customers to check in, make purchases, and access information.
· Point-of-Sale (POS) Systems: Using as POS terminals, enabling quick and easy transactions.
· Digital Signage and Interactive Displays: Using for digital signage, interactive kiosks, and wayfinding systems.
5. Other Applications:
· Internet of Things (IoT) Control and Data Aggregation: Using to collect and process data from various IoT devices.
· Vision Systems: Using in vision systems for industrial applications, such as quality inspection and robotic guidance.
· Original Equipment Manufacturer (OEM) Machinery
· Machine-to-Machine Interface (M2M)
