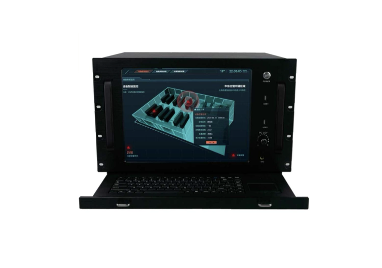

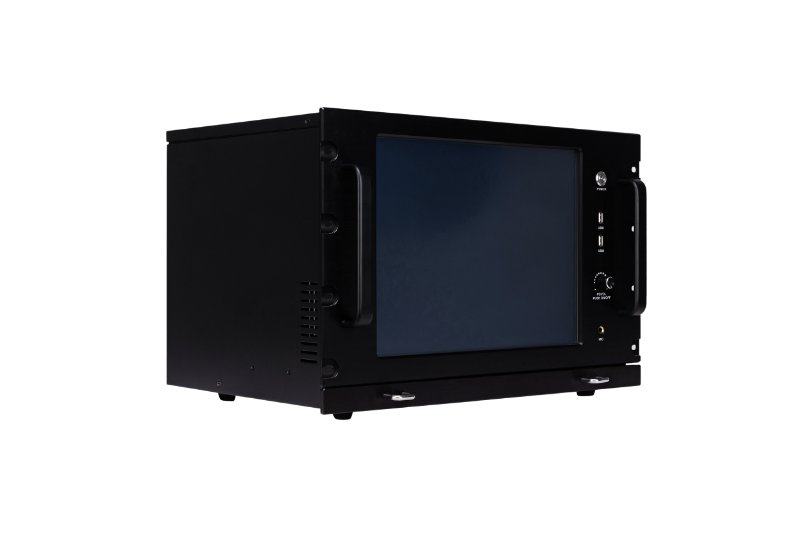

VG-PS series
VINCANWO GROUP
| Availability: | |
|---|---|
| Quantity: | |
| Model | VG-PS150 | VG-PS173 | |||
| Display | Screen Size | 15" | 17.3" | ||
| Screen Resolution | 1024 x 768 | 1920 x 1080 | |||
| Screen Ratio | 4:3 | 16:9 | |||
| Brightness | 350 nits | 400 nits | |||
| Optional 1000 nits High-brighntess | |||||
| Touchscreen | Touch Screen | Resistive | |||
| Primary Components | Processor Family | Intel Processors | |||
| Processor Model | 13th/12th/10th/8th/7th/6th/5th/3th|i3/i5/i7, J1800,J1900,J6412,N5095,N100 | ||||
| Memory Type | DDR3, DDR4 | ||||
| Memory Support | 4GB,8GB,16GB,32GB | ||||
| Storage Type | 1x mSATA/1x 2.5" SATA Drive Bay for SSD/HDD ≤2TB, 1x M.2/1x 2.5" SATA Drive Bay for SSD/HDD ≤2TB | ||||
| Storage Support | MS:128GB~512GB | M.2: 128GB ~ 1TB | ||||
| Operating Systems | Windows | Windows,Kylin,UOS | |||
| Linux | Linux Ubuntu 20.04 or above (Contact your sales rep for more information) | ||||
| Peripherals & Wireless Connectivity | WiFi | Optional 802.11 a/b/g/n/ac/ax Wi-Fi 6 | |||
| Bluetooth | Optional Bluetooth 5.3 | ||||
| External I/O Ports | USB | 2x front USB, 4x rear USB | |||
| Serial Protocol Detail | 2x RS232/485, 6x COM option | ||||
| Ethernet / LAN | 2x RJ45 2.5 GbE LAN | ||||
| Video Outputs | 1x HDMI, 1x VGA | ||||
| Audio Ports | Rear audio 2-channel Audio Inputs (RCA connector) 2-channel Audio Output (RCA connector) 1x 3.5mm MIC Output 1x 3.5mm Audio Output | ||||
| Slot | 1x MPCIe | ||||
| LPT parallel port | LPT parallel port Expansion option | ||||
| Front Buttons | 1x Power Switch 1x Alarm Switch (Volume-adjustable Knob optional) | ||||
| Keyboard and Mouse | Pull-out Keyboard and Mouse | ||||
| Power | Power Type | 220W Industrial Switching Power Supply | |||
| Power Supply Voltage | AC 180~260V/50Hz | ||||
| Expansion Slots | Others | Speaker | 4G module | 5G module (up to 8th gen) | |||
| Lotus head expansion board 2-inlet&2-outlet | |||||
| RCA expansion board, 12V/6-in adjustable volume, 3-out adjustable treble and bass, 3 microphones, VW-6N3O2M | |||||
| Weight / Dimensions | Weight | 484x325x284 mm | 484x326x344.9 mm | ||
| Dimensions | 15.00 kg | 18.00 kg | |||
| Thermal & Environmental | Operating Temperature | -10°C ~ 60°C | |||
| Storage Temperature | -20°C ~ 70°C | ||||
| Humidity Range | 5% – 90% Non-condensing | ||||
| Enclosure | Material | Metal Chassis | |||
| Color | Black | ||||
| Mounting Options | Desktop, Rack Mount option | ||||
High - Performance Signal Processing: It supports multi - channel uncompressed audio streaming (up to 32 concurrent channels), low - latency bidirectional audio, and real - time audio mixing. It also enables rapid response to emergency paging and fire - alarm trigger signals.
Unified Terminal Management: It manages a full range of IP endpoints (broadcast speakers, intercom panels, paging stations, and third - party access devices) via a built - in management platform. It provides real - time status tracking (online/offline, signal strength, volume) and remote configuration (channel switching, volume adjustment, mode setting).
Intelligent Task Scheduling: It has a built - in media library and scheduling engine, supporting timed broadcasting, playlist cycling, and on - demand content delivery. It can also link with external calendars or event systems for automatic task activation.
Dual - Layer Redundancy: It features dual - power input (optional) and automatic failover to a backup server. In case of system anomalies, it ensures uninterrupted regular broadcasting and emergency alerts, minimizing service downtime.
Seamless System Integration: It integrates with fire - alarm, security, and building management systems (BMS) via standard protocols (UDP/TCP, SNMP, Modbus). It also supports API - based customization for third - party software integration.
Rack - Mount Optimized Design: The 17.3" model is rack - mountable (19 - inch standard), which is ideal for data center or equipment room deployment. Both models support wall - mounting for space - saving installation.
| Parameter | 15" VG - PS15 | 17.3" VG - PS17 |
|---|---|---|
| Screen | 15" LED touchscreen, 1024×768 (1920×1080 optional) | 17.3" LED touchscreen, 1920×1080 (4K optional) |
| OS | Windows Embedded 10 IoT / Customized Linux | Windows Embedded 10 IoT / Customized Linux |
| Processor | Intel Core i5 - 10400 (6 - core) | Intel Core i7 - 10700 (8 - core) |
| Memory | 8GB DDR4 (upgradable to 16GB) | 16GB DDR4 (upgradable to 32GB) |
| Storage | 256GB SSD (upgradable to 1TB NVMe) | 512GB SSD (upgradable to 2TB NVMe) |
| Networking | Dual Gigabit Ethernet (redundant), PoE+ (802.3af/at) | Dual Gigabit Ethernet (redundant), PoE++ (802.3bt) |
| Audio I/O | 2×Line - in, 2×Line - out, 1×Balanced Mic - in (24 - bit/48kHz) | 4×Line - in, 4×Line - out, 2×Balanced Mic - in (24 - bit/96kHz) |
| Power | 100 - 240V AC, single power (redundant optional) | 100 - 240V AC, redundant power (standard) |
| Dimensions | 360×260×50mm (desktop) | 482×300×45mm (19 - inch rack - mount) |
| Weight | 5.2kg | 7.8kg |
| Operating Temp | 0°C - 40°C | 0°C - 45°C |
Public Infrastructure: Airports, railway stations, and urban emergency systems rely on it for real - time announcements and disaster - warning broadcasting.
Campus & Enterprise: It is used for daily paging, class - bell scheduling, and cross - zone intercom in schools and large - scale enterprises.
Industrial & Commercial: It provides background music, production - line announcements, and safety alerts for factories, shopping malls, and hotels.
Public Safety: It integrates with fire - protection and security systems to ensure priority emergency broadcasting in buildings and complexes.
| Model | Screen Size | Key Advantages | Target Use Case |
|---|---|---|---|
| VG - PS15 | 15" | Cost - effective, compact, suitable for small - to - medium systems | Schools, small enterprises, retail stores |
| VG - PS17 | 17.3" | High - performance, redundant power, rack - mountable | Airports, data centers, large - scale campus/industrial parks |
Robust Performance: Equipped with Intel Core processors and high - speed storage, it ensures smooth multi - channel streaming and low - latency response.
Reliability First: The dual - redundancy design guarantees 99.99% uptime, which is essential for 24/7 broadcast systems.
Easy Deployment: The touchscreen interface and pre - loaded management software reduce setup time and training costs.
Future - Proof: It supports firmware updates and protocol expansion to adapt to evolving IP - based audio - video technologies.
