| Model | TPRO-SE101 | |
| Display | Screen Size | 10.1" |
| Screen Resolution | 1280 x 800 | |
| Screen Ratio | 16:10 | |
| Brightness | 400 nits | |
| Optional 1000 nits High-brighntess | ||
| Touchscreen | Touch Screen | Capacitive (Multi-touch) |
| Primary Components | Processor Family | Intel Processor |
| Processor Model | 12th/7th/6th/5th Generation|i3/i5 | |
| Memory Type | DDR3, DDR4 | |
| Memory Support | 4GB, 8GB,16GB | |
| Storage Type | 1x MSATA, 1x M.2 | |
| Storage Support | MS:128GB~512GB | M.2: 128GB ~ 1TB | |
| Operating Systems | Windows | Windows 10 IoT, Windows 10 Pro, Windows 11 Pro |
| Linux | Linux Ubuntu 20.04 or above (Contact your sales rep for more information) | |
| Peripherals & Wireless Connectivity | WiFi | Optional 802.11 a/b/g/n/ac/ax Wi-Fi 6 |
| Bluetooth | Optional Bluetooth 5.3 | |
| External I/O Ports | USB | 2x USB 2.0, 2x USB 3.0 |
| Serial Protocol Detail/COM | 2x RS232/RS485, 5x COM option | |
| Ethernet / LAN | 2x RJ45 2.5 GbE LAN | |
| Video Outputs | 1x HDMI, 1x VGA, Optional 1x DisplayPort, supports DP++ | |
| Audio Ports | 1x Audio Line-Out | |
| Power Input Port | 3-Pin DC-In (Phoenix Type) | |
| Expansion Slots | Internal M.2 | 1x Mini PCIe WiFi&Bluetooth or 4G LTE |
| Others | 4G module | 5G module (up to 8th Gen) | |
| Power | Standard Power Adapter | 12V DC Adapter and power cable, 5A, 60W |
| Input Voltage Range | Optional 9-36V DC | |
| Weight / Dimensions | Weight | 1.80 kg |
| Dimensions | 266.1 x 181.9 x 52 mm | |
| Thermal & Environmental | Operating Temperature | -30°C ~ 70°C |
| Storage Temperature | -40°C ~ 80°C | |
| Cooling Solution | Passive – Fanless with Heatsink | |
| Humidity Range | 10% – 95% Non-condensing | |
| Enclosure | Material | Aluminum |
| IP Rating | IP65 Front Bezel | |
| Color | Gray | |
| Mounting Options | Panel Mount, Desktop, VESA 100 Mount | |

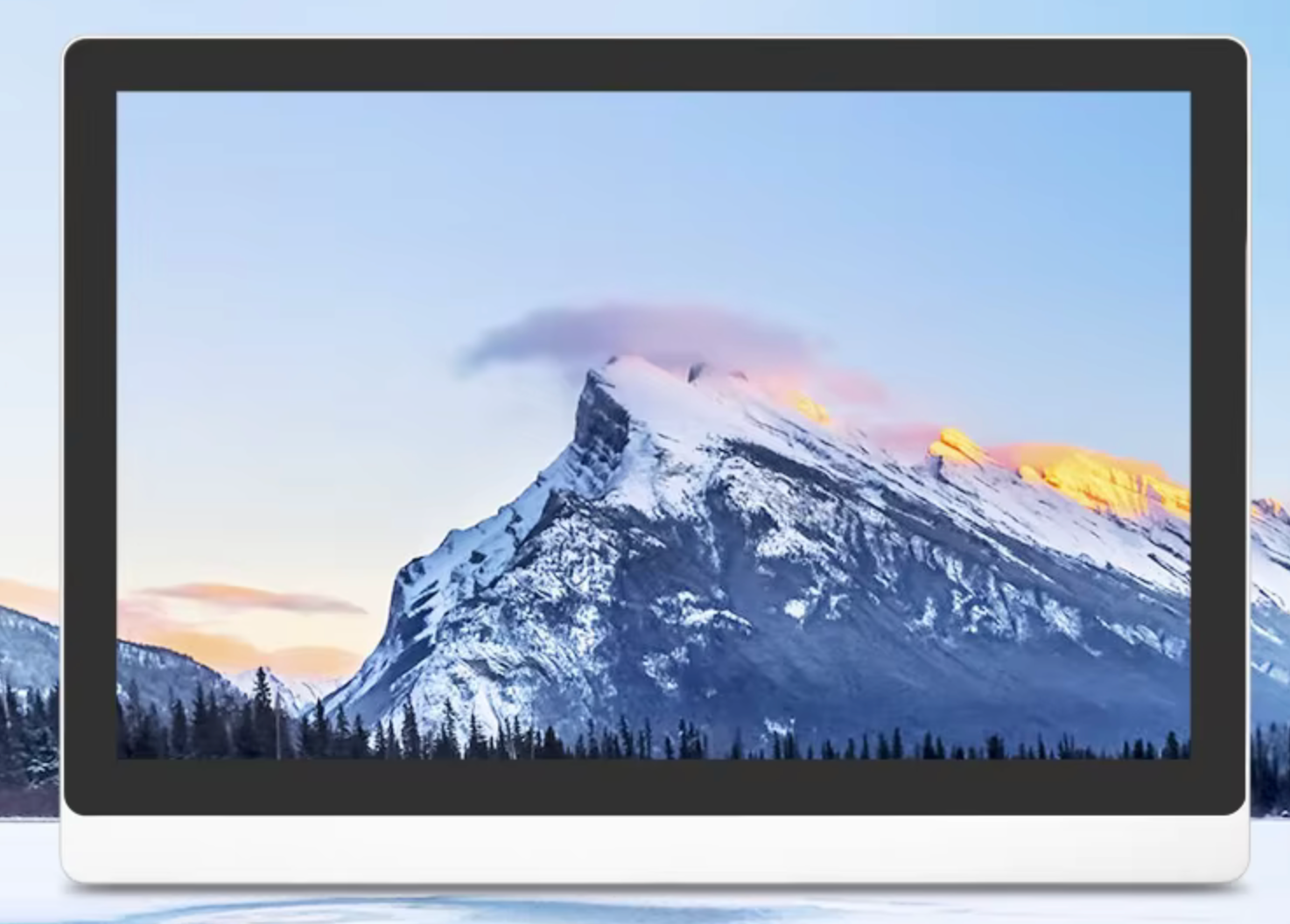

Industrial Control Grade HD LCD Screen
LED backlight technology combined with high-definition A-standard screen, The backlight life over 50,000 hours, Capacitive Touchscreen.

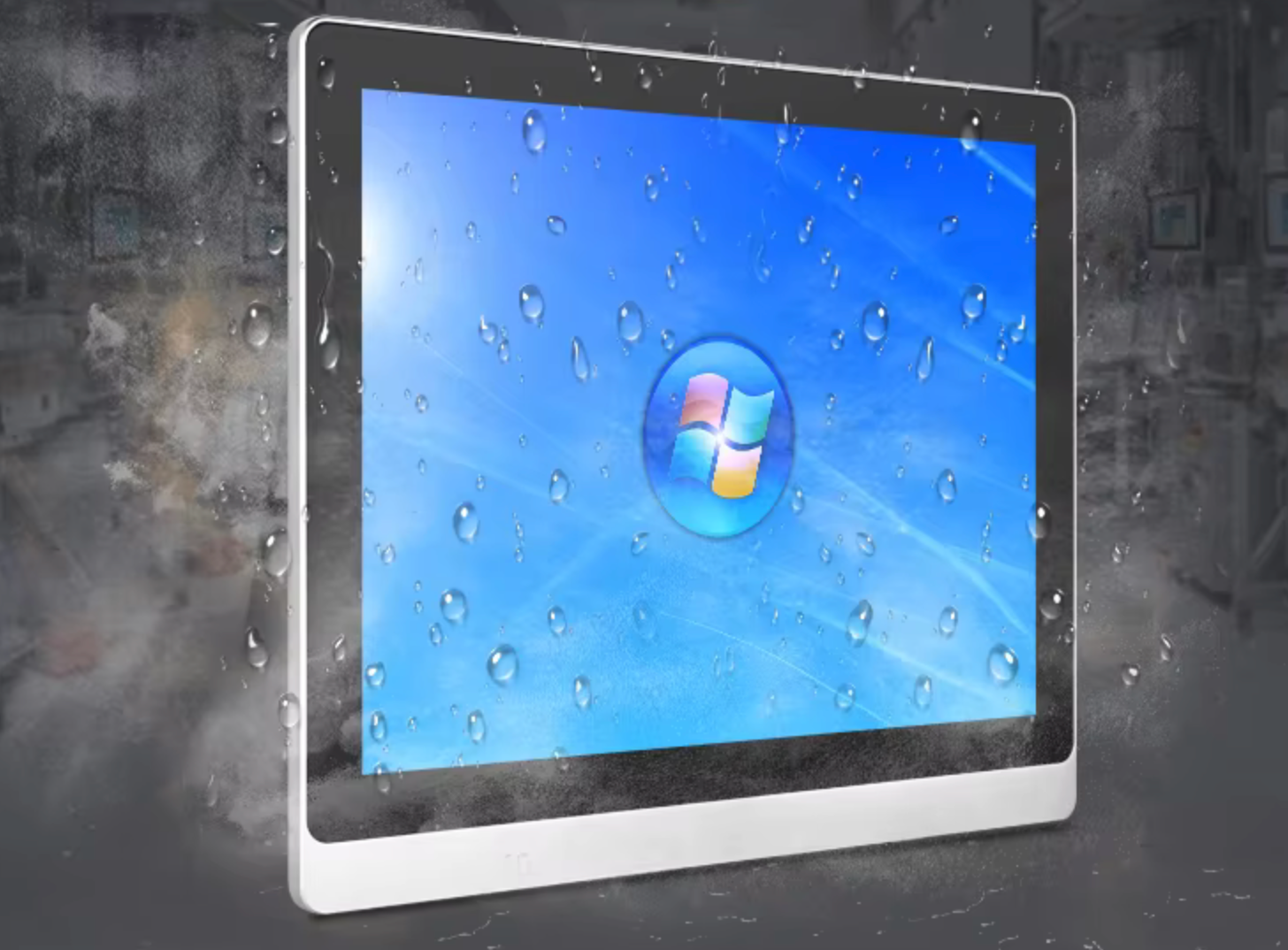

Waterproof frame design
IP66 dustproof and waterproof frame to meet the needs of complex environments.

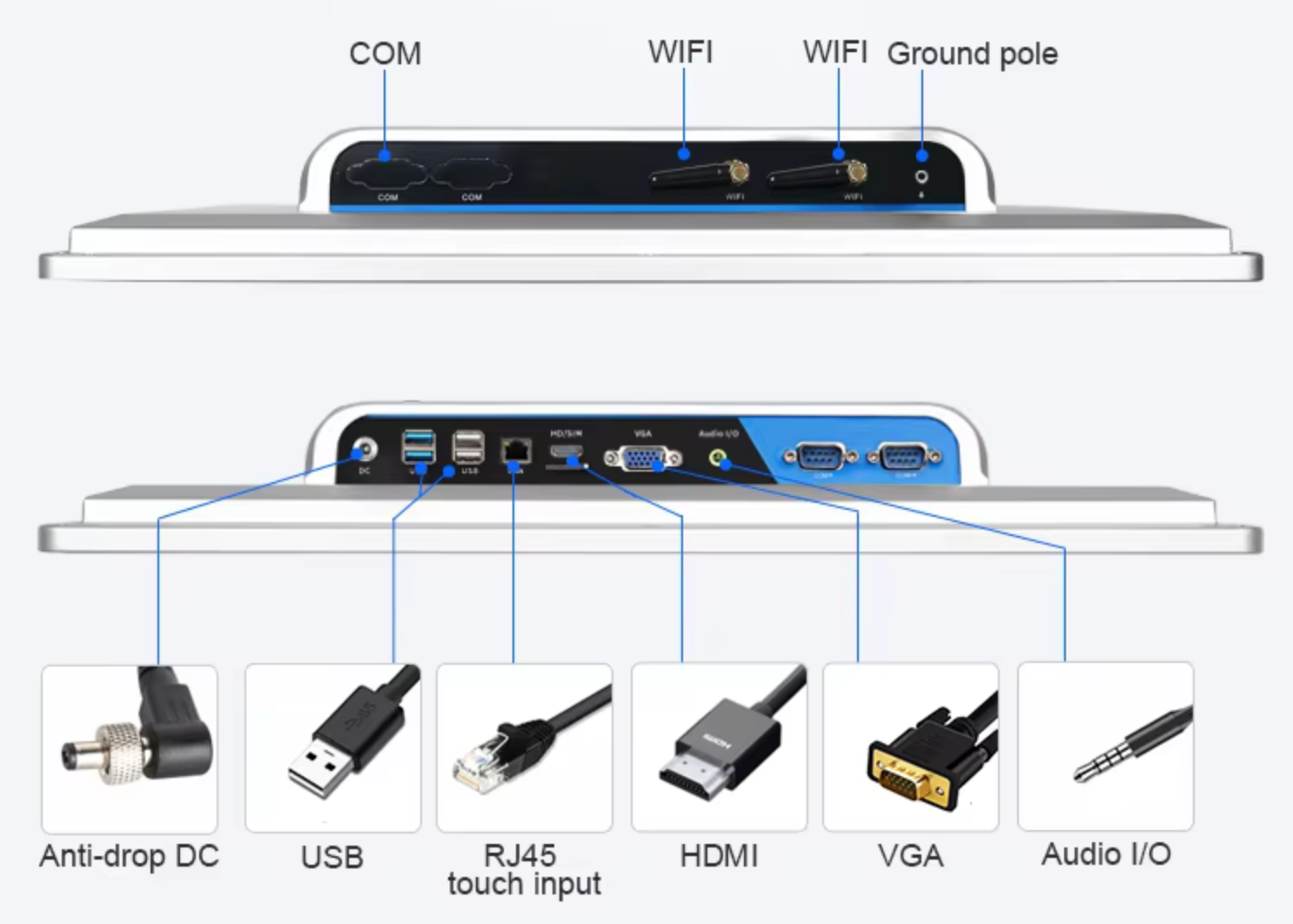

Interface distribution, Reserve more scalability interfaces

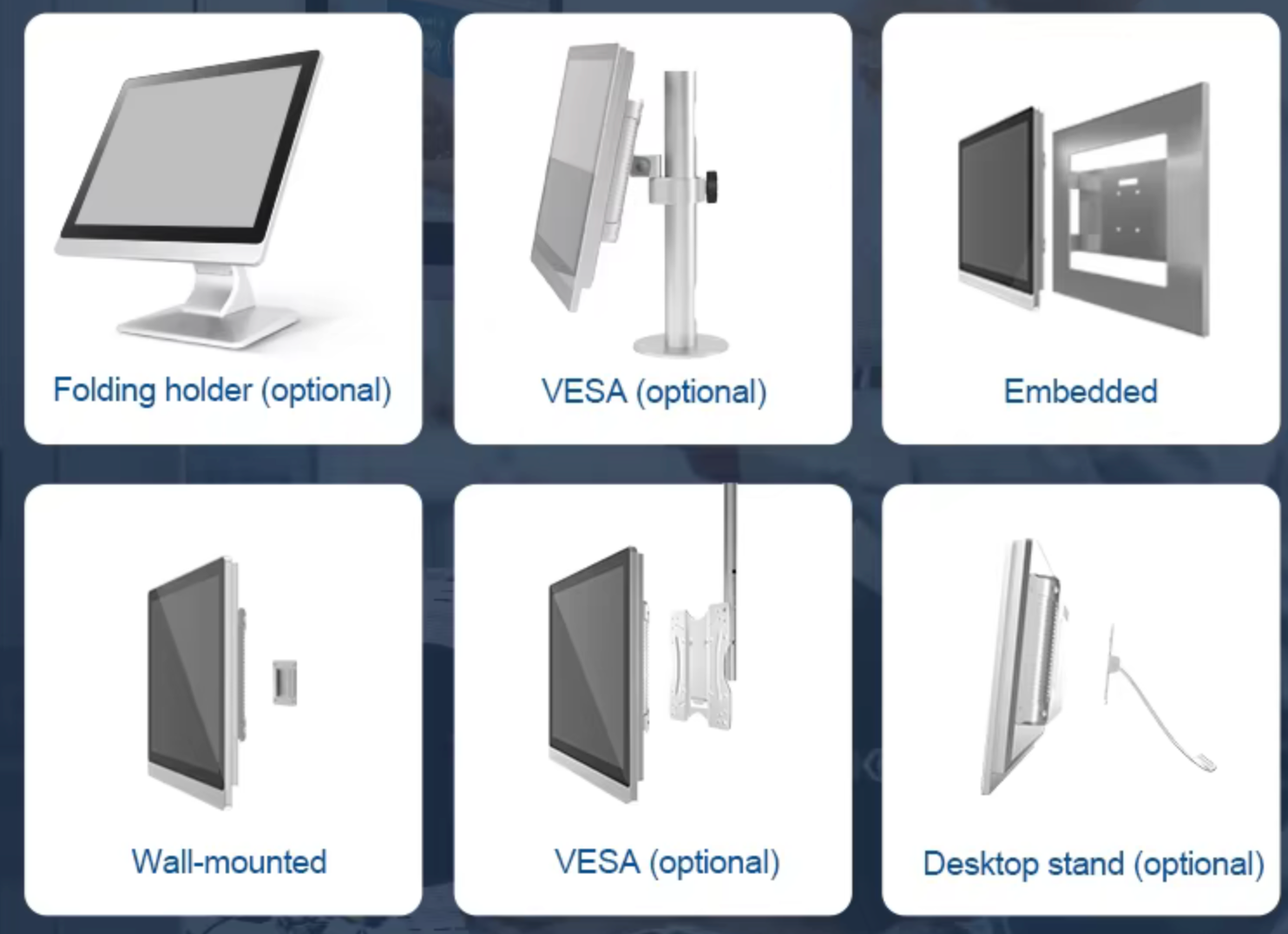

Installation
Universal panel compatible for various mounting types
Industrial automation & on-site workshop control
Self-service kiosks and inquiry terminals
Retail POS systems and supermarket checkout
Restaurant self-ordering & food service terminals
Smart building & elevator lobby display control
Hotel room intelligent control and front desk display
Medical equipment auxiliary display & ward control
Smart logistics, warehousing and inventory management
Public information query and commercial advertising display
