Product Parameters
Screen parameters | size | 7" |
Resolution | 1024×600 | |
visual angle | 75/75/70/75 (L/R/U/D) | |
colour | Chroma: 16.7M | |
Brightness (standard value) | Brightness: 300cd/m2 | |
Contrast | 500:1 | |
Response time | 6.5ms | |
Display area | 154.214 × 85.92 mm | |
Pixel spacing (mm) | 0.1506×0.1432 (H×V) | |
touch screen | Touch of touch screen | Capacitive touch screen |
Resolution | 500DPI | |
Input way | Handwriting or capacitive pen | |
Surface hardness | 7H | |
Calibration | support | |
Hardware Configuration | CPU | Allwinner A64 Cortex-A53 quad core 64 bit , the main frequency is 1.5GHz |
GPU | Mali400MP2 | |
RAM | 2G(DDR3) | |
ROM | EMMC 8G(optional 16/32/64G) | |
Operating system | Android 6.0 | |
3G module | PCI-E standard interface ,supporting China Mobile, China Unicom, China Telecom (optional) | |
4G module | PCI-E standard interface ,support China Mobile, China Unicom, China Telecom (optional) | |
WiFi | 2.4G | |
Bluetooth | BT4.0 | |
GPS | Optional | |
MIC | Optional | |
RTC real time clock | support | |
Timer switch | support | |
System Upgrade | Support local SD, USB upgrade | |
interface | DC port | 1*DC 2.0 |
HDMI | Support HDMI data output,maximum up to 1080P | |
USB-OTG | 1 | |
USB-HOST | 2*USB2.0 | |
RJ45 Ethernet | 1*10M/100M/1000M adaptive Ethernet | |
SD/TF | TF data storage, maximum support 32G | |
Headphone holder | 3.5mm standard interface | |
SMI card | SIM card interface standard interface supports various standards (depending on 3G / 4G module) | |
RS232 | 2*RS232 | |
RS485 | Optional | |
RS422 | Optional | |
GPIO | Optional | |
Product reliability | working temperature | -30 ℃ to 70 ℃ |
Storage temperature | - 40 ℃ to 80 ℃ | |
humidity | Humidity: 95% Non-Condensing | |
Mean time between failures (MTBF) | 7*24H | |
power supply | Power consumption (maximum) | 15W |
Power consumption (standby) | ||
power input | AC 100-240V 50/60Hz passed CCC certification, CE certification | |
Power Output | DC12V / 4A |

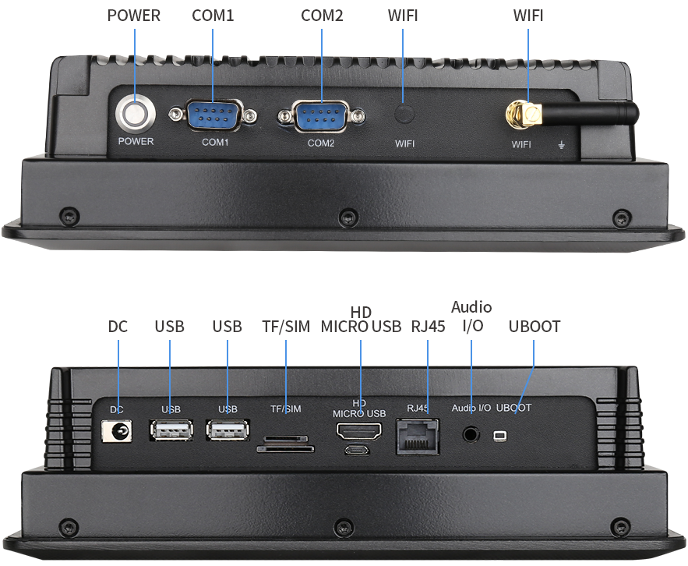

I/O Interface Panel

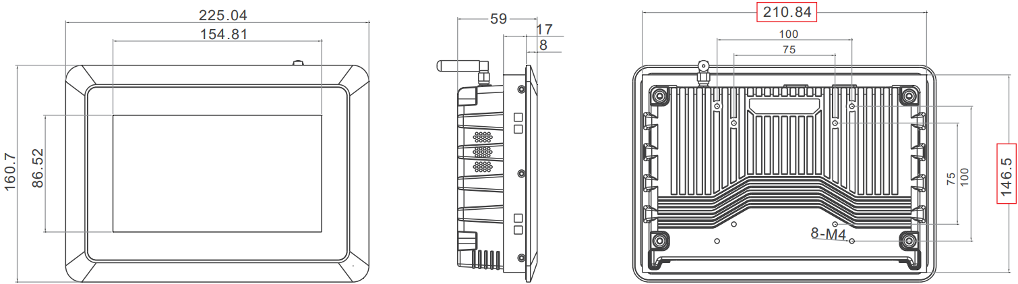

Dimensional drawing
Overall size：225.04*160.7*59mm（L*W*H）
Environmental Specifications
Anti-vibration | 5-19HZ/1.0mm amplitude; 19-200HZ/1.0g acceleration |
Impact resistance | 10g acceleration, 11ms cycle |
working temperature | working temperature:-30℃- 70℃ Storage temperature: -40℃- 80℃ |
Working humidity | 20%-95% (relative humidity without condensation) |
Anti-interference | EMI/EMC interference detection standards |

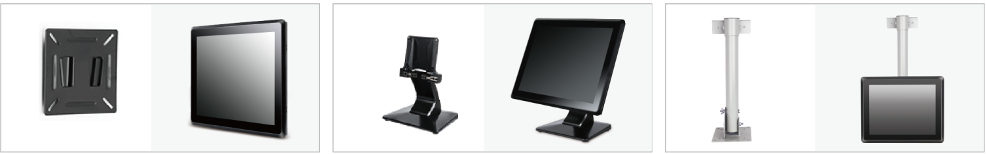

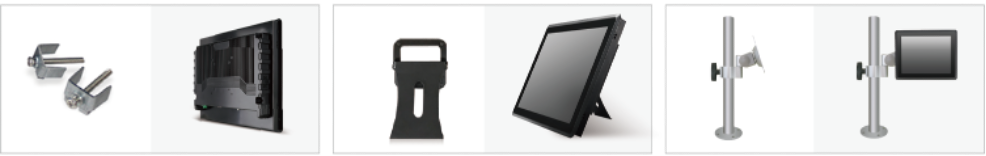

Installation method
Embedded installation | Tabletop type (louver) installation | Cantilever installation |
Wall mounted installation | Desktop type (aluminum alloy base) | Boom type installation |
Industrial automation HMI and production line control terminals
Smart factory workshop operation and management panels
Intelligent logistics and warehouse control terminals
Smart building and elevator control display panels
Retail self-service ordering and payment kiosks
Smart community and property management control screens
IoT edge monitoring and data collection terminals
Environmental monitoring and smart instrument display
Medical auxiliary control and equipment operation panels
Vending machine and smart device interactive terminals
Hotel, office and commercial intelligent control panels
Smart agriculture monitoring and field control terminals
