Model | TPRO-SEARM8 | |
Display | Screen Size | 8" |
Screen Resolution | 1024 x 768 | |
Screen Ratio | 4:3 | |
Brightness | 300 nits | |
Optional 1000 nits High-brighntess | ||
Touchscreen | Touch Screen | Capacitive (Multi-touch) |
Primary Components | Processor | RK3566: Quad-core ARM Cortex-A55 (up to 1.8GHz) |
Memory | RK3566: LPDDR4 default 2G, optional 4G, 8G | |
Storage | 32GB, 64GB, 128GB, 256GB | |
Operating Systems | Android | Android 7.1.2/6.0.1, 11,12,14 |
Linux | Linux 4.1.15, Debian 10, 11, buildroot | |
Peripherals & Wireless Connectivity | WiFi | Optional WiFi/Built-in PCI |
Bluetooth | Bluetooth 4.0 | |

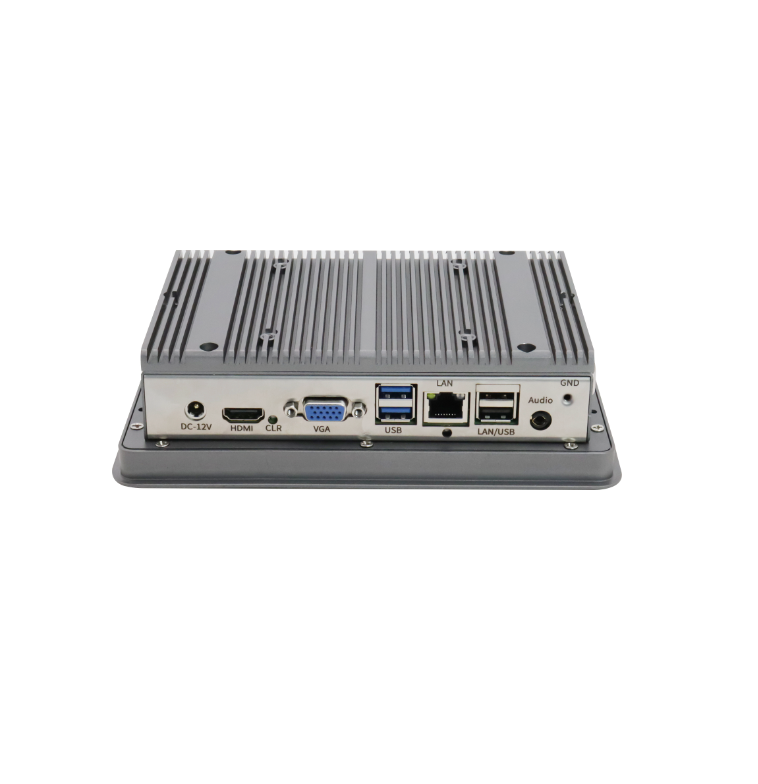

External I/O Ports | USB | 2x USB |
Serial Protocol Detail/COM | 2x RS232, option 1x RS485 | |
Ethernet / LAN | 2x RJ45 GbE LAN | |
Video Outputs | 1x HDMI | |
Audio Ports | 1x Audio Line-Out | |
Power Input Port | 3-Pin DC-In (Phoenix Type) | |
Expansion Slots | Others | Speaker | 4G LTE module | 1x Mini-PCIe |
Power | Standard Power Adapter | 12V DC Adapter and power cable, 5A, 60W |
Input Voltage Range | Optional 9-36V DC | |
Weight / Dimensions | Weight | 1.50 kg |
Dimensions | 234 x 187 x 52 mm | |
Thermal & Environmental | Operating Temperature | -30°C ~ 70°C |
Storage Temperature | -40°C ~ 80°C | |
Cooling Solution | Passive – Fanless with Heatsink | |
Humidity Range | 10% – 95% Non-condensing | |
Enclosure | Material | Aluminum |
IP Rating | IP66 Front Bezel | |
Color | Gray | |
Mounting Options | Panel Mount, Desktop, VESA 100 Mount | |

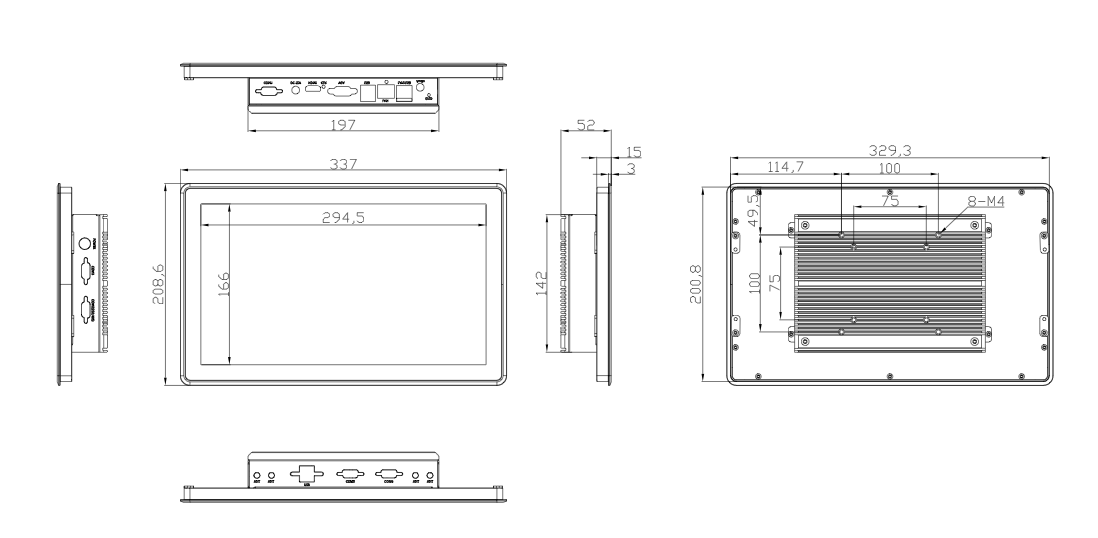

Dimensional drawing
Overall size: 331.5x203mm
Product Specification Table
Item | Description |
Model | TPRO-SEARM8 |

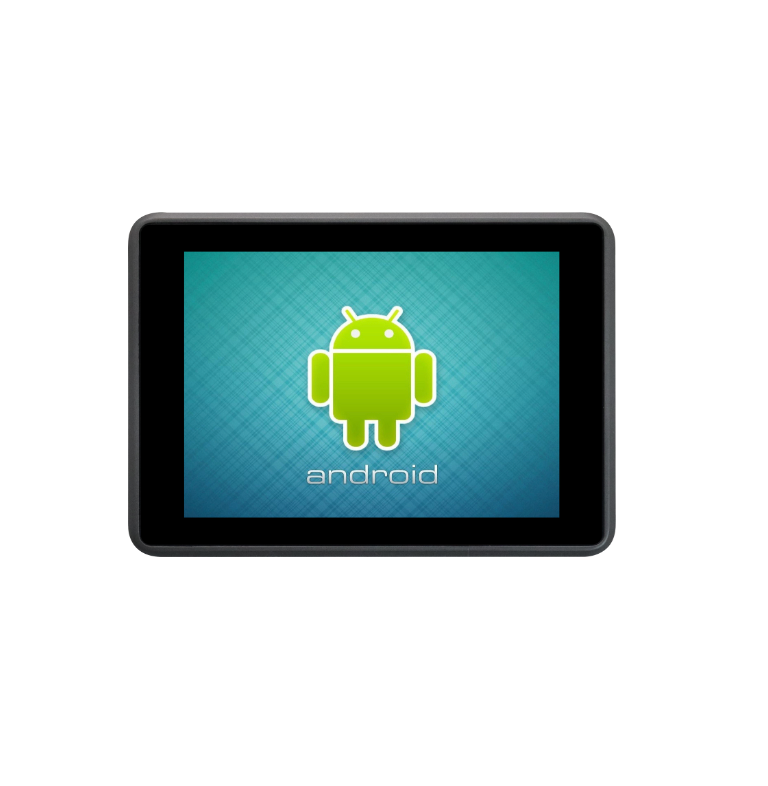

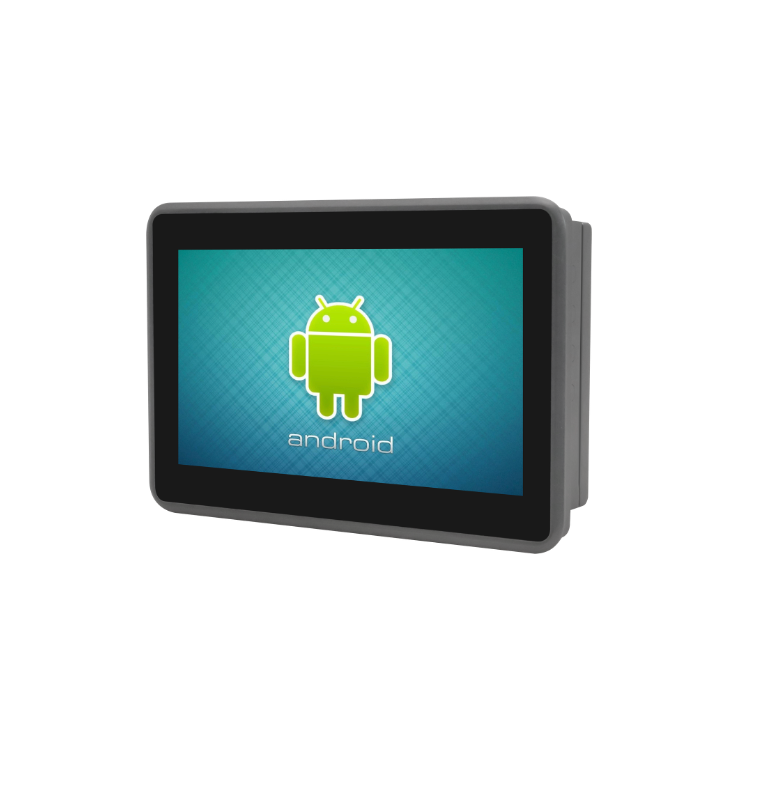

Product Name | 8” Android Industrial Touch Panel PC |
Display | 8-inch Industrial LCD |
Aspect Ratio | 16:9 |
Resolution | 1024×768 / 800×1280 (Optional) |
Touch Type | Projected Capacitive Multi-Touch |
Brightness | 300 cd/m² standard; high brightness optional |
Processor | Industrial low-power ARM CPU |
RAM | Onboard DDR, configurable |
Storage | Onboard eMMC |
Operating System | Industrial Android OS |
Cooling | Fanless silent design |
Front Panel | IP66 dustproof & waterproof |
Enclosure | Metal housing, anti-vibration & EMC anti-interference |
Mounting | Embedded / Wall / VESA mount |
Operating Temperature | -30°C ~ +70°C |
Network | Gigabit Ethernet, Wi-Fi / Bluetooth optional |
I/O Ports | USB, RS232/RS485, Audio, DC Power |
Power Supply | 12VDC Adapter and Power cable, External Wide voltage DC input |
Operation | Support 24/7 continuous running |
Fanless all-in-one compact design, zero noise and high stability
Industrial Android OS, stable and supports secondary development
IP65 front bezel for dustproof and water splash resistance
Low-power ARM processor, energy-saving and long lifespan
Optional capacitive / resistive touch, support glove touch
Ultra-narrow bezel, easy embedded installation
Rich industrial I/O: Ethernet, USB, RS232/RS485
Wide temperature & wide voltage design for harsh industrial environments
Optional Wi-Fi / Bluetooth for wireless IoT connection
Industrial automation HMI control terminals
Production line human-machine interface
Smart warehouse and logistics control panels
Vending machines and self-service kiosks
Smart building & access control systems
Environmental monitoring & IoT terminal devices
Intelligent cabinet and automated equipment embedded control
