CP-6245-101
VINCANWO GROUP
IP66 Front Bezel
1x DDR4 SO-DIMM, 2x DDR4 SO-DIMM, Onboard DDR4
10.1"
| Availability: | |
|---|---|
| Quantity: | |

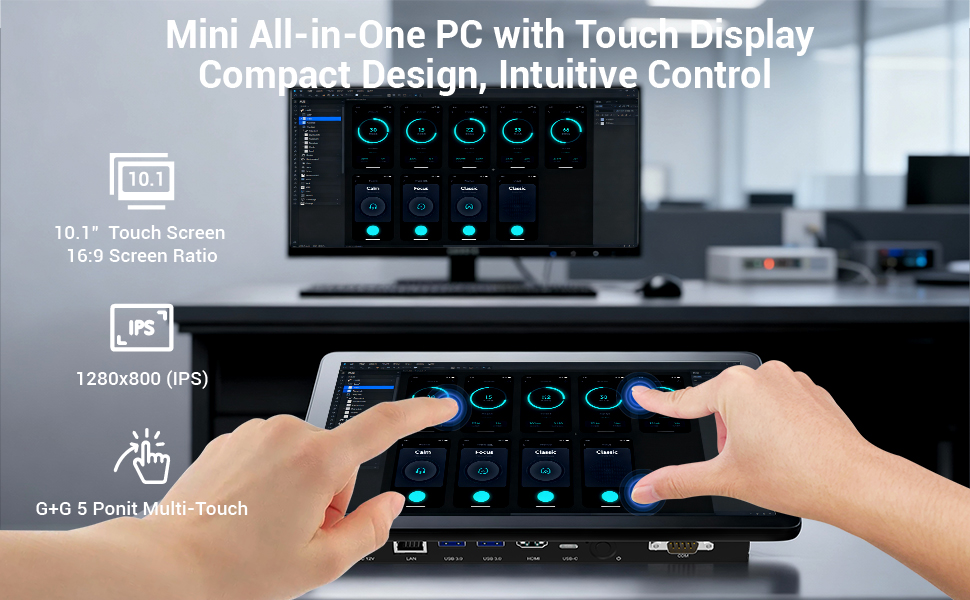

【10.1 Inch HD touch screen】10.1 Inch Touchscreen panel computer with G+G 10 Multi-Touch Screen Resolution 1280*800 (IPS ) , can be used without mouse and keyboard. Supports wake up on Lan and PEX, you can control any other laptop via remote desktop protocol from the micro computer, if you are outside office, study or control for smart home systems
【High-Speed Performance and Expandable Storage】This panel pc equipped with quad core Celeron N5095 processor, enjoy faster computing with 8GB of LPDDR4x RAM and 128GB of storage. Expand storage effortlessly with a Micro SD card slot (up to 512GB)

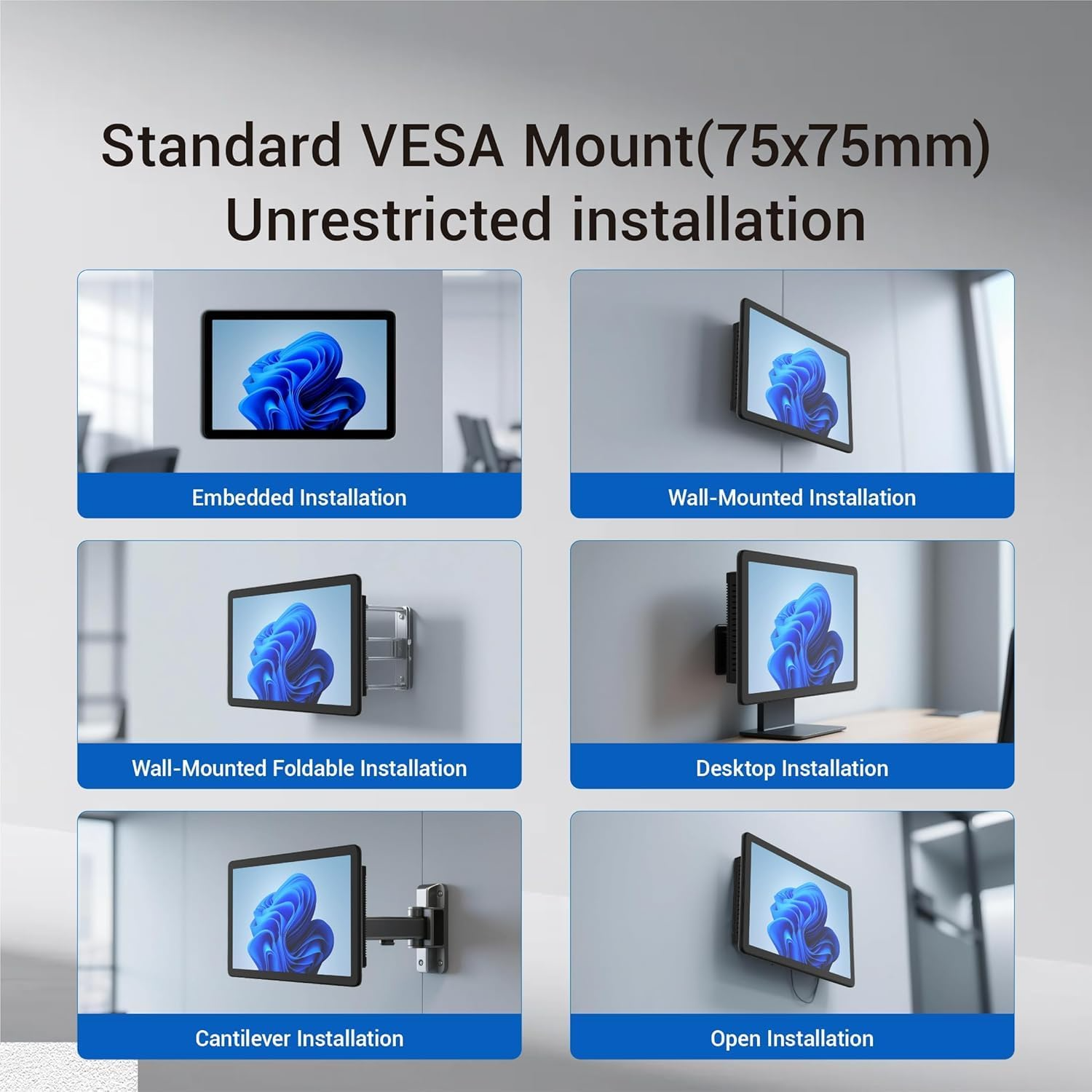

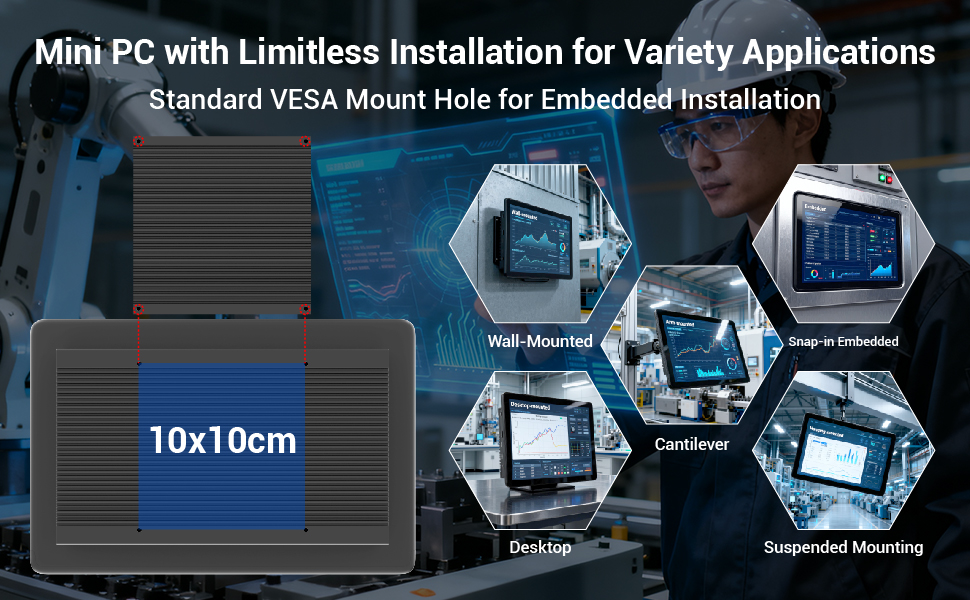

【Stable Performance Industrial Embedded Panel PC】This industrial touchscreen tablet adopt embedded installation, VESA standard mounting holes reserved on the back of the product. Suit for day to day high traffic work environment, ideal for cabinets, CNC tools, and control consoles.

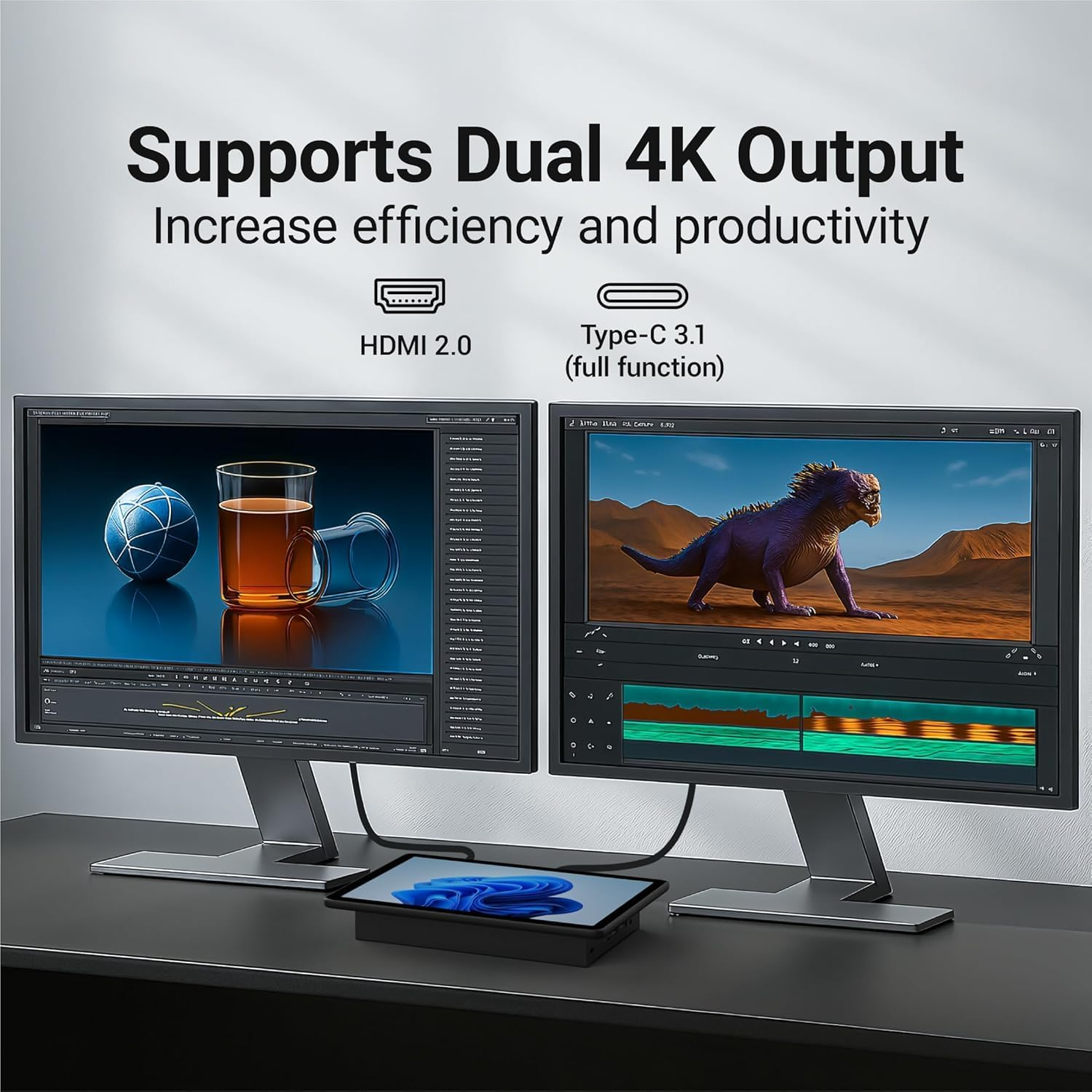

【Extended screen & Dual custom OS】Equipped with dual HDMI port supports 4k, this tablet computer supports 4K 60Hz video output across two monitors via UHD Graphics 600, built-in touch screen. The tablet computer pre-installed with the newest Win 11 Pro and a valid license, which is support to remote desktop access. It has TPM 2.0 hardware and supports Win 11 pro upgrade, support IOT building, ideal for developers and programmers running dual custom OS

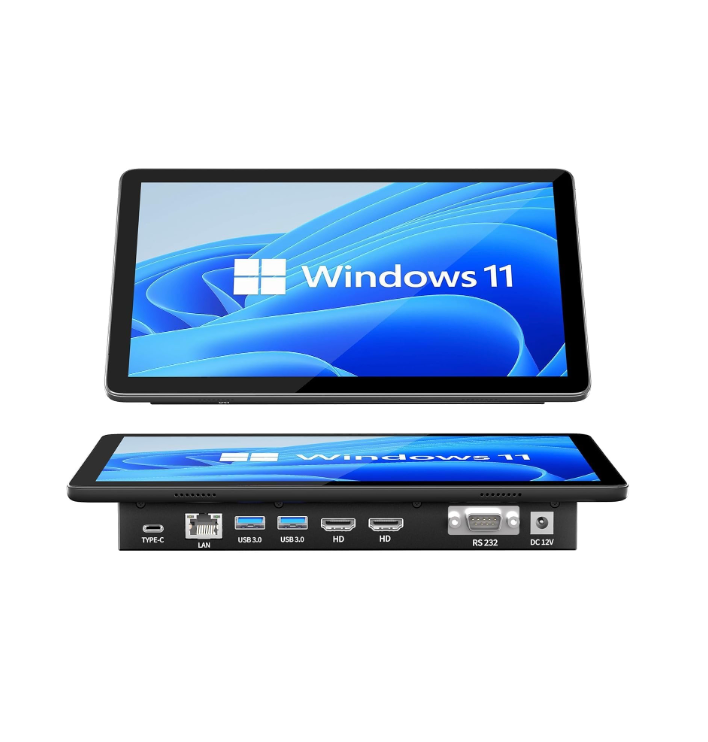

This compact mini pc desktop computer features a responsive 10.1-inch touchscreen and supports dual 4K external displays via HDMI and full function Type-C 3.1 connections, delivering crisp visuals, efficient performance, and flexible connectivity.
| Product Name & Model | 10.1” Touch Screen Panel PC | CP-6245-101 | |
| Primary Components | Processor Family | Intel Core I series 11th Generation Tiger Lake |
| Processor Model | Core i3-1115G4E, Core i5 1145G7E | |
| Memory Type | 2x DDR4 SO-DIMM | |
| Memory Support | 4GB, 8GB, 16GB, 32GB | |
| Storage Type | 1x M.2 2280 NVME SSD slot | |
| Storage Support | M.2: 256GB-1TB | |
| Display | Screen Size | 10.1" |
| Screen Resolution | 1280 x 800 (WXGA) | |
| Screen Ratio | 16:10 | |
| Brightness | 350 nits, Optional 1000 nit High Brightness | |
| Touch Screen | Touch Screen | Projected Capacitive (Multi-touch) |
| External I/O Ports | USB | 4x USB 3.2 |
| Serial / Com | 1x COM | |
| Serial Protocol Detail | Included Y-Cable provides two DB-9 Com ports: 1x 5-pin RS-232 (COM1) and 1x Configurable 3-Pin RS-232/422/485 (COM2) | |
| Ethernet / LAN | 2x RJ45 GbE LAN | |
| Video Outputs | 1x DP-1.4/HDMI combo Video Out | |
| Other Ports | 1x 2-Pin DC Power Switch Connector | |
| Audio Ports | 1x Audio Line-Out | |
| Power Input Port | 3-Pin DC-In (Phoenix Type) | |
| Power | Standard | 12VDC Adapter and power cable |
| Input Voltage Range option | 9-36V DC | |
| Max Power Consumption | 56W | |
| Operating Systems | Windows | Windows 10 IoT, Windows 11 IoT, Windows 11 Pro |
| Linux | Linux Ubuntu 20.04 or above (Contact your sales rep for more information) | |
| Compatibility | Security Hardware | fTPM 2.0 |
| Expansion Slots | Internal M.2 | 1x M.2 2230 Key E (for WiFi expansion option) |
| Thermal & Environmental | Operating Temperature | -30°C ~ +70°C |
| Storage Temperature | -40°C ~ +80°C | |
| Cooling Solution | Passive – Fanless | |
| Humidity Range | 5% – 95% Non-condensing | |
| Enclosure | Material | Aluminum |
| IP Rating | IP66 Front Bezel | |
| Color | Gray | |
| Mounting Options | Panel Mount, VESA 100 Mount | |
| Peripherals & Wireless Connectivity | WiFi | Optional 802.11 b/g/n/ac |
| Bluetooth | Optional Bluetooth 5.1 | |
| Weight / Dimensions | Weight | 1.52 kg |
| Dimensions | 269 x 189 x 51 mm | |

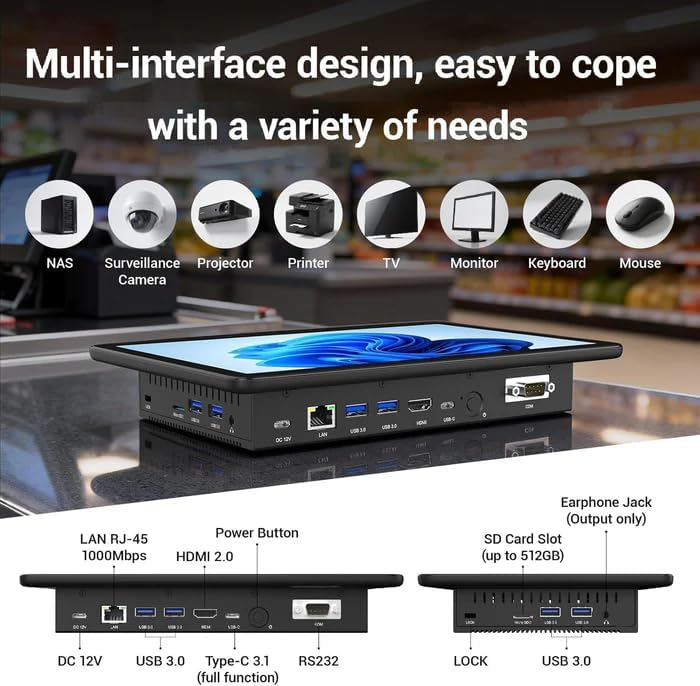

【Rich input/output ports】With Full Range of Connectivity-This mini computer packs a full range of high-speed I/O ports including DB9 (RS232) ports for professional networking.1x HDMI2.0 and 1x USB-C3.1 for 4K display output, plus 4x USB 3.0 ports for all devices.

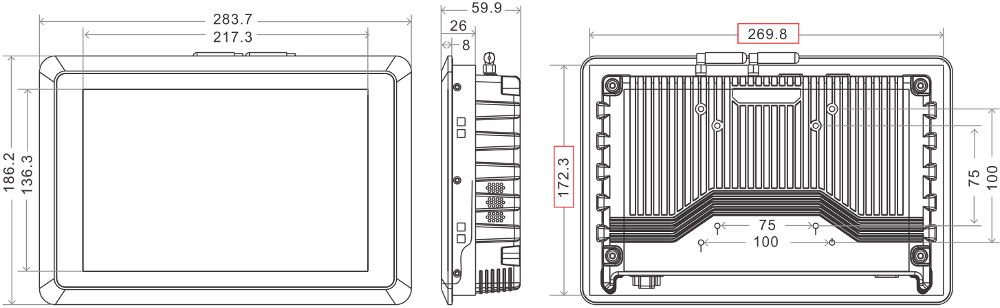

Dimensional drawing
Dimension Drawing
Overall size:283.7*186.2*59.9mm(L*W*H)
Dimensional drawing
