| Model | VFWS-101 |
| Screen Size | 10.1" |
| Resolution | 1280*800 |
| Viewing Angle | 80/80/80/80 |
| Brightness | 330 cd/m2 |
| Contrast Ratio | 600:1 |
| Touch Screen | Capacitive |
| Controller | USB interface |
| Durability | ≥ 500W times |
| Processor | ARM / Rockchip |
| Memory | 2G / 4G / 8G |
| Storage | 32G / 64G / 128G |

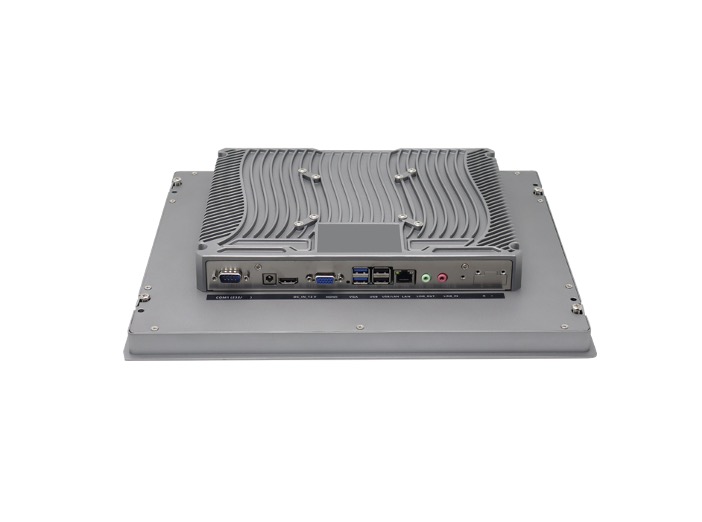

| Network | 1 *LAN |
| COM | 2 *RS232 (1 *COM optional RS485) |
| USB | 2 *USB2.0 |
| Display | 1 *HDMI |
| Expand Slot | 1 *Mini PCIE |
| Operating System | Android / Linux (For Linux Operating System, and please contact our sales team) |
| Sensor | Optional front IC/ID card swiping, camera, scanning code |

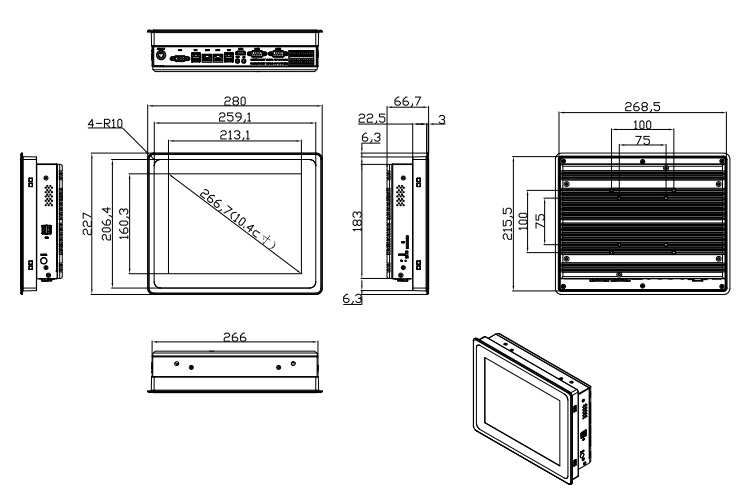

| Dimensions (mm) | 283*228.2*52.1 |
| Hole Sizes (mm) | 272*218 |
Individual Gross Weight (KG) | 2.75 |
| Mounting Options | Embedded / Wall-mounted / Desktop |
| Operating Temperature | -10 ~ +60℃ |
| Storage Temperature | -20 ~ +60℃ |
Storage Humidity *Non-condensing | 5 ~ 95% |
| Power Input | DC -12V (Optional 9 ~ 36V) |
| Packaging Information | |
| VFWS | 1 *Master, 1 *Adapter, 1* Power Supply Cable, 4 *hooks, 1 *Manual, 1 *Warranty Card |
| VFWS-1 | Available to upgrade front IC/ID card swiping |
| VFWS-C | Available to upgrade front Camera |
| VFWS-S | Available to upgrade front Scanning Code |
| VFWS-I/C/S | Available to upgrade front IC/ID card swiping / camera / scanning code |

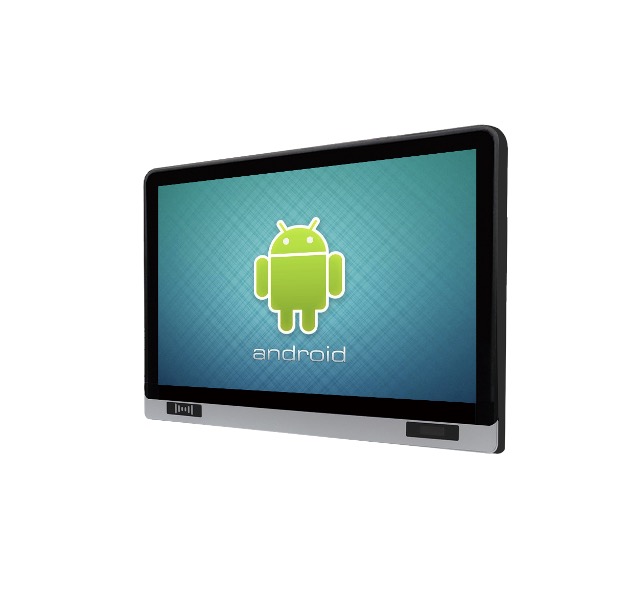

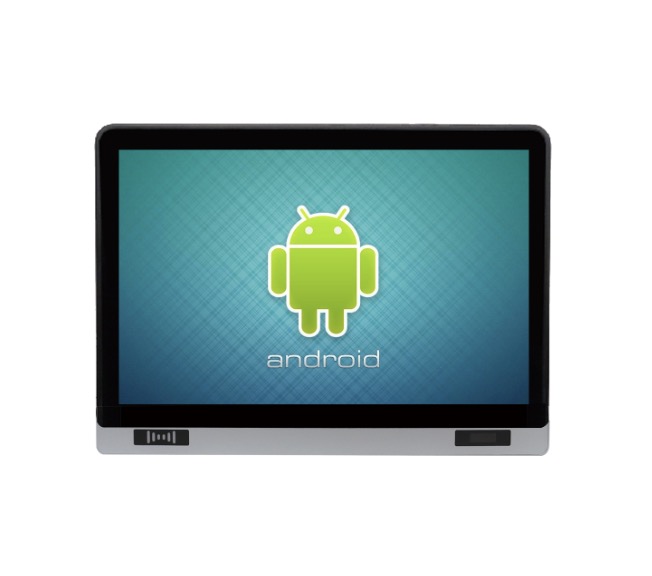

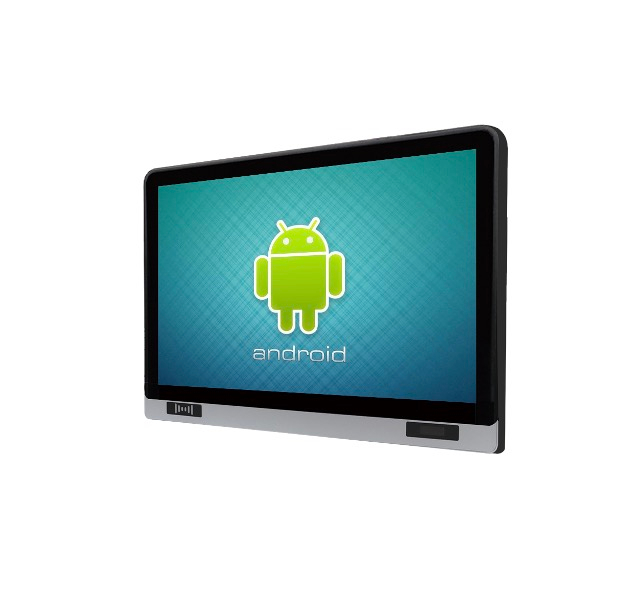

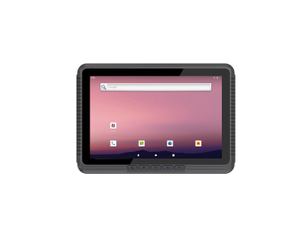

VFWS-101 10.1inch Small Industrial Computer has many benefits, including:
Portability
Android systems are more portable and flexible than Windows systems, making them better for mobile operations.
App selection
Android devices support a wide range of applications, including productivity tools, educational apps, entertainment, and gaming.
Integration with Google services
Android devices can easily sync with Google services and applications, such as Gmail, Google Drive, and Google Photos.
Open-source
Android is an open-source operating system, which encourages developers and manufacturers to create and publish innovative apps.
Affordable
Android devices are often more affordable than other tablet operating systems without compromising on performance and features.
