The RK35-3L is a powerful industrial mini PC designed for rugged environments and demanding applications. It features a robust aluminum chassis that can withstand harsh conditions and high temperatures. The RK35-3L is powered by an Intel Core i5 processor and can be configured with up to 32GB of RAM and 1TB of storage. It also has multiple I/O ports for connectivity, including USB, HDMI, Ethernet, and serial ports. With its compact size and high performance, the RK35-3L is ideal for industrial automation, digital signage, and other industrial applications.
Key Series Features

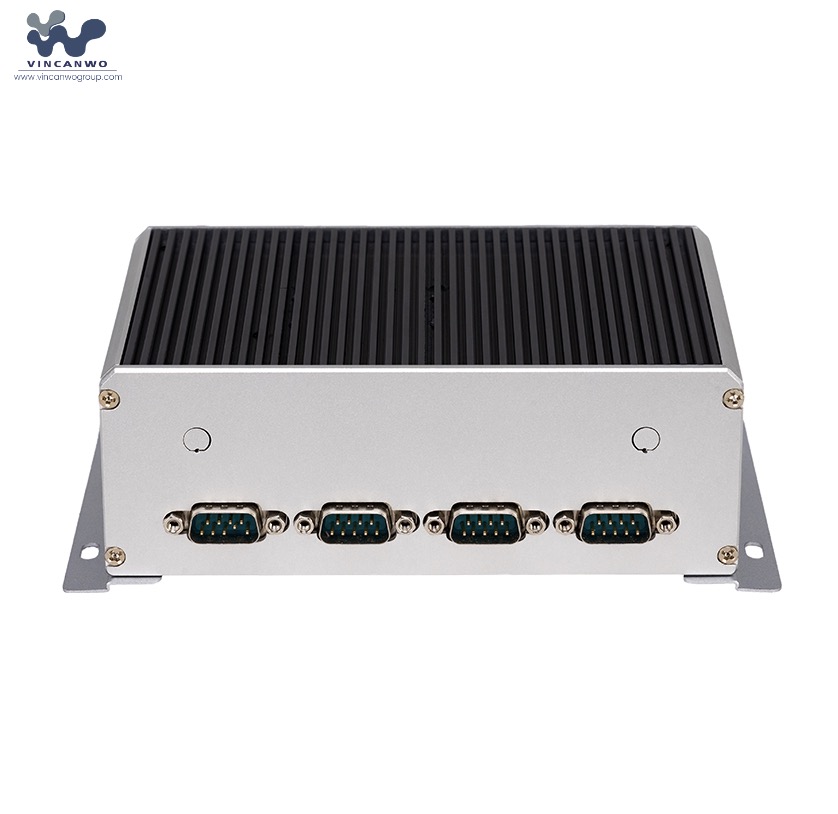

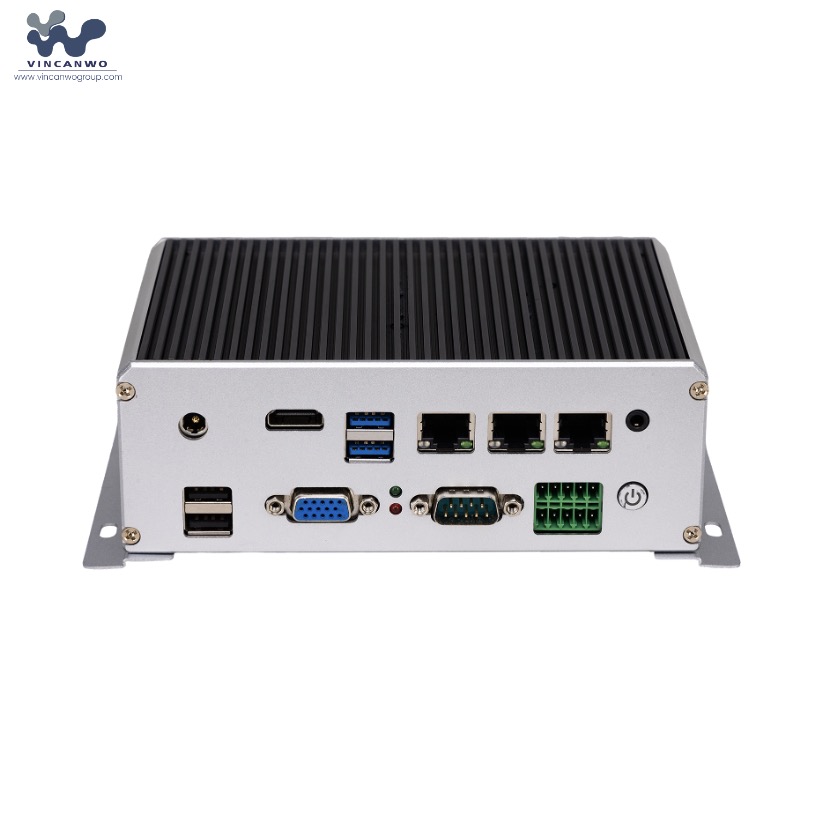

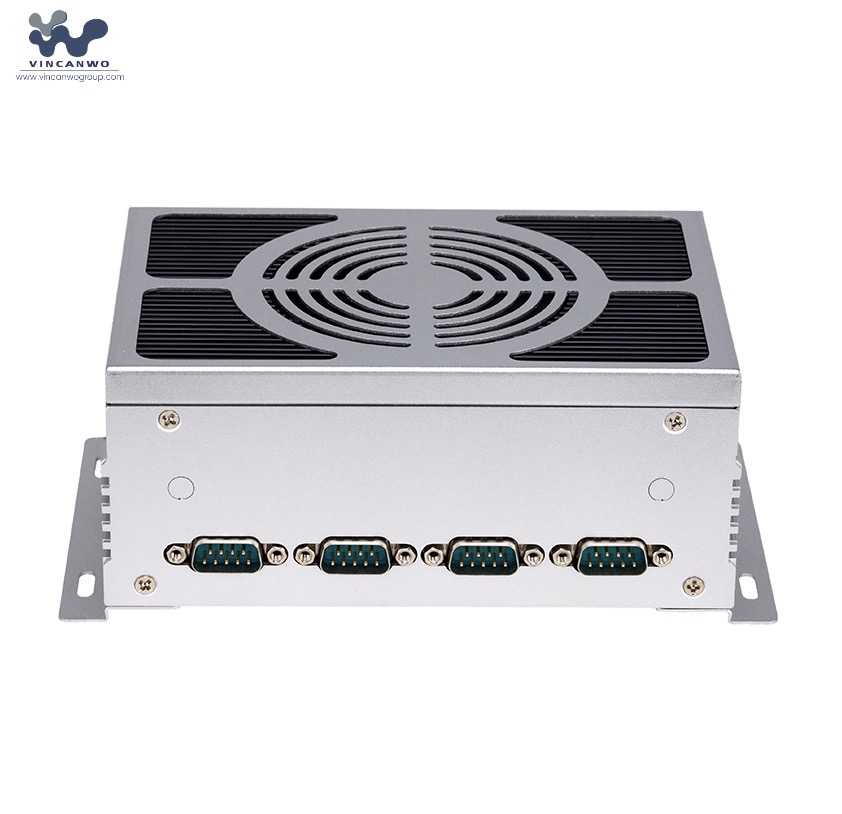

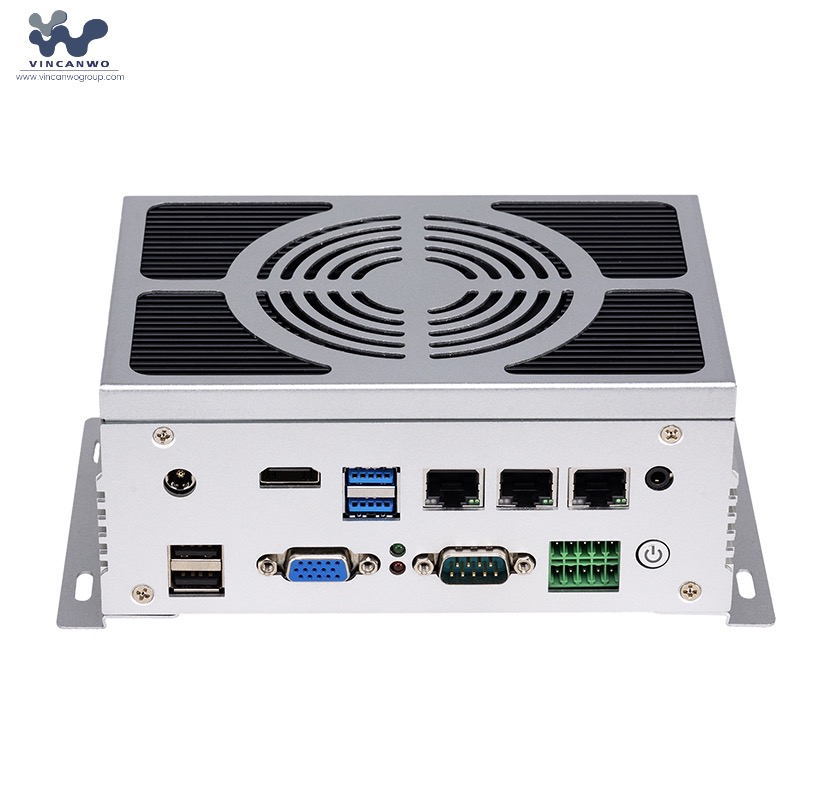

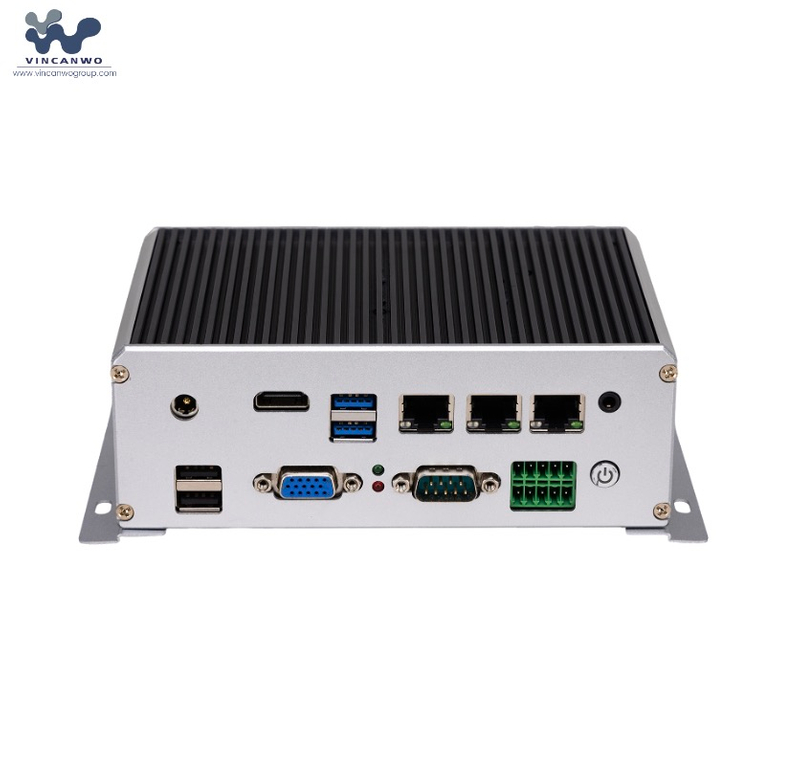

Industrial Mini PC | RK35-3L
VINCANWO GROUP
| Availability: | |
|---|---|
| Quantity: | |
SKU | RK35-3L | |
Processor | Intel® Celeron™ J6412 | Intel® Core™ 11th Gen i3/i5/i7 |
Memory Type | 2x DDR4-2600/2400, U-DIMM, up to 32GB | 2x DDR4-3200MHz, U-DIMM, up to 64GB |
Storage Type | 1x M.2(NVME) | |
Ethernet / LAN | 1x Intel I226 + 2x Intel I210 | |
COM | 6x RS232 (COM1-2 support RS422/485) | |
USB | 2x USB 3.0, 2x USB2.0 | |
Video Outputs | 1x HDMI, 1x VGA | |
Other Interfaces | 1x 4IN & OUT GPIO, 1x AUDIO (2in1) | |
Expansion Slots | 1x M.2 Bkey option LTE 4G/5G or WIFI&BT | |
Operating Systems | Windows10/11, Linux | |
Power Input | Wide-range 9 ~ 36V DC | |
Dimension | 180.4x109x70.5mm | |
Gross Weight | 1.35kg | |
Mounting Options | Wall Mount, Desktop Stand | |
Operating Temperature | -30℃ ~ +70℃ | |
Storage Temperature | -40℃ ~ +80℃ | |
Humidity Rage Non-condensing | 5% - 95% | |
>Advantages:
Rugged and durable: The RK35-3L is built with a sturdy aluminum chassis that can withstand harsh industrial environments, vibrations, and high temperatures, making it ideal for use in rugged conditions.
High performance: Powered by an Intel Core i5 processor and configurable with up to 32GB of RAM, the RK35-3L offers fast and reliable performance for demanding industrial applications.
Compact size: The RK35-3L is a mini PC, meaning it is small and space-saving, making it easy to integrate into tight spaces or mount on machinery or equipment.
Connectivity options: The RK35-3L comes with multiple I/O ports, including USB, HDMI, Ethernet, and serial ports, allowing for easy connectivity to various devices and peripherals.
Versatile applications: The RK35-3L is suitable for a wide range of industrial applications, including industrial automation, digital signage, surveillance, and more, making it a versatile and flexible solution for various industries.
>Applications:
The Industrial Mini PC RK35-3L is versatile and can be used in a variety of industrial applications, includes:
Industrial automation: The RK35-3L can be used to control and monitor manufacturing processes, machinery, and equipment in industrial automation settings.
Digital signage: The RK35-3L is ideal for displaying digital content in public spaces, retail environments, transportation hubs, and other locations where information needs to be communicated effectively.
Surveillance and security: The RK35-3L can be used for video surveillance systems, access control, and security monitoring in industrial facilities, warehouses, and other locations.
Machine vision: The RK35-3L can be integrated into machine vision systems for quality control, inspection, and automation in manufacturing and production environments.
Data acquisition and analysis: The RK35-3L can be used for collecting, processing, and analyzing data from sensors, devices, and equipment in industrial settings to improve efficiency and decision-making.
Overall, the Industrial Mini PC RK35-3L is a versatile and reliable solution for a wide range of industrial applications that require high performance, durability, and connectivity.
