Industrial Mini PC GPIO | RK35-6L/7L
VINCANWO GROUP
Availability: | |
---|---|
Quantity: | |
SKU | RK35-6L/7L | ||
Processor | Intel® Core™ 6th Gen i3/i5/i7 | Intel® Core™ 8th/10th Gen i3/i5/i7 | Intel® Core™ 11th Gen i3/i5/i7 |
Memory Type | 2x DDR4-3200MHz, U-DIMM, up to 64GB | ||
Storage Type | 1x MSATA | 1x M.2(NVME) | |

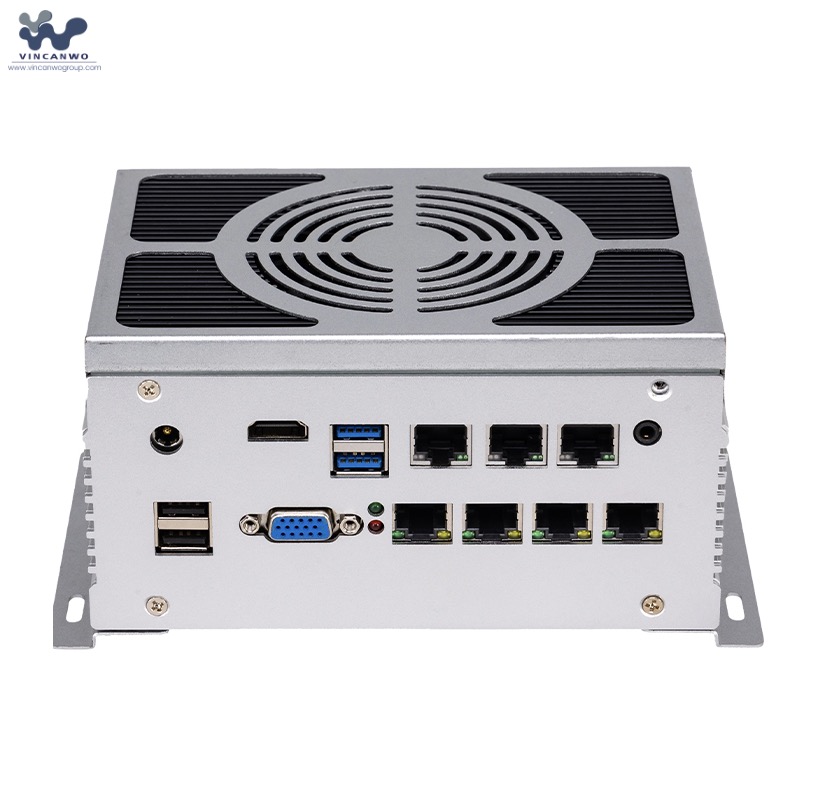

Ethernet / LAN | 1x Intel I210 + 1xIntel I219 + 4x Intel | 2x Intel I210 + 4x Intel I226 (option POE) | 2x Intel I211 + 1x Intel I226 + 4x Intel I226 (option POE) |

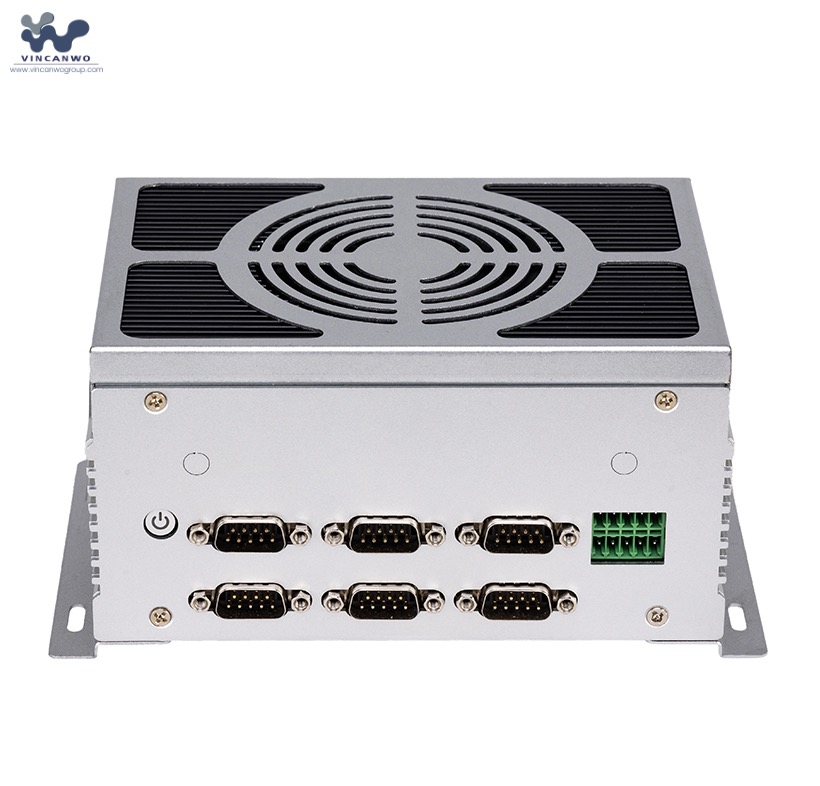

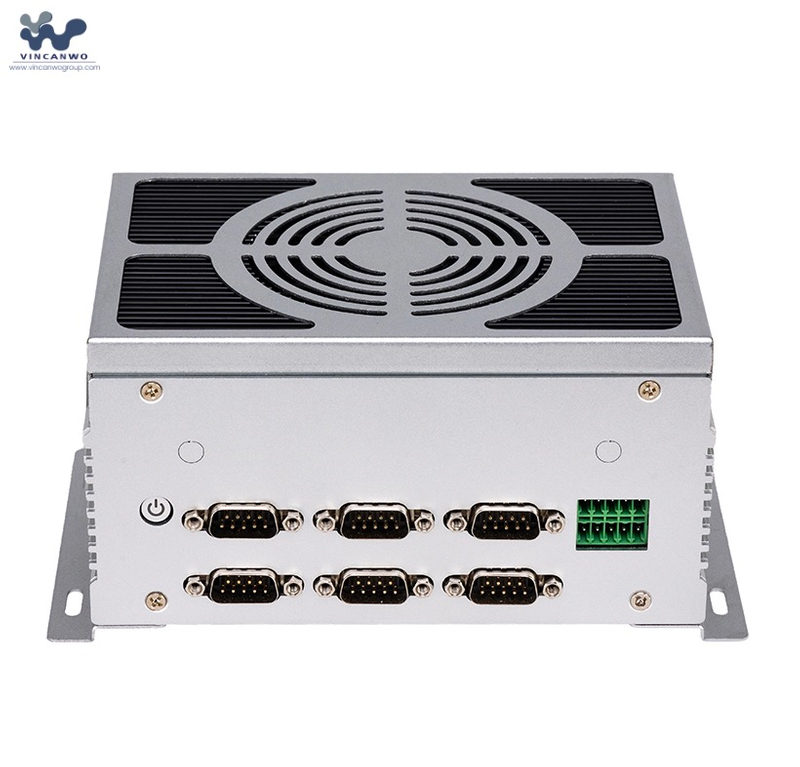

COM | 6x RS232 (COM1-2 support RS422/485) | ||
USB | 2x USB 3.0 / 2x USB2.0 | ||
Video Outputs | 1x HDMI, 1x VGA | ||
Other Interfaces | 1x 4IN & OUT GPIO, 1x AUDIO (2in1) | ||
Expansion Slots | 1x M.2 Bkey option LTE 4G/5G or WIFI&BT | ||
Operating Systems | Windows10/11, Linux | ||
Power Input | Wide-range 9 ~ 36V DC | ||

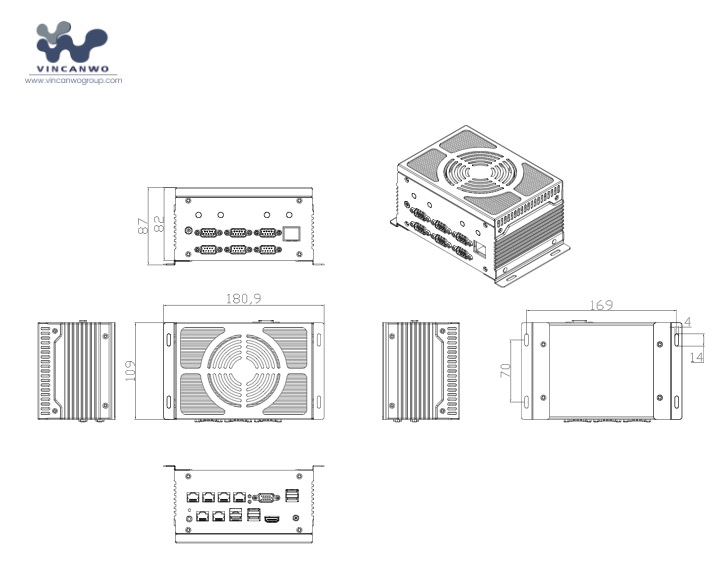

Dimension | 180.9x109x87mm | ||
Gross Weight | 1.35kg | ||
Mounting Options | Wall Mount, Desktop Stand | ||
Operating Temperature | -30℃ ~ +70℃ | ||
Storage Temperature | -40℃ ~ +80℃ | ||
Humidity Rage Non-condensing | 5% - 95% |
>Advantages:
GPIO Interface: The GPIO interface allows for easy connection to external devices and sensors, making it ideal for industrial applications that require interfacing with various equipment and peripherals.
High Performance: The RK35-6L/7L is powered by a high-performance processor, providing fast and efficient computing capabilities for demanding industrial tasks.
Rugged Design: The compact and rugged design of the RK35-6L/7L makes it suitable for use in harsh industrial environments where durability and reliability are essential.
Connectivity Options: The mini PC offers multiple connectivity options, including Ethernet, USB, and HDMI ports, allowing for seamless integration with a variety of devices and peripherals.
Operating System Support: The RK35-6L/7L supports a wide range of operating systems, including Windows and Linux, providing flexibility for different industrial applications and software requirements.
Versatility: The RK35-6L/7L is a versatile solution that can be used for a variety of industrial applications, such as automation, monitoring, control systems, and more.
Overall, the Industrial Mini PC GPIO | RK35-6L/7L offers a combination of GPIO capabilities, high performance, rugged design, connectivity options, and versatility, making it a reliable and efficient solution for industrial computing needs.
>Applications:
The Industrial Mini PC GPIO | RK35-6L/7L is well-suited for a variety of industrial applications that require a compact, powerful, and versatile computing solution with GPIO capabilities. The common applications of the RK35-6L/7L include:
Industrial Automation: The mini PC can be used for controlling and monitoring automated processes in manufacturing plants, assembly lines, and other industrial settings.
Data Acquisition: The GPIO interface allows for connecting to sensors, data acquisition devices, and other external equipment to collect and process data in real-time.
Machine Vision: The RK35-6L/7L can be used for machine vision applications, such as quality control, inspection, and object recognition in industrial environments.
Industrial Control Systems: The mini PC can serve as a central control unit for managing and controlling various industrial systems, such as HVAC, lighting, and security systems.
IoT (Internet of Things) Applications: The GPIO interface enables connectivity to IoT devices and sensors, making the RK35-6L/7L suitable for IoT applications in industrial settings.
Embedded Systems: The compact and rugged design of the mini PC makes it ideal for embedded systems applications, such as kiosks, digital signage, and point-of-sale terminals.
Edge Computing: The RK35-6L/7L can be used for edge computing applications, where data processing and analysis are performed at the edge of the network, closer to the data source.
Overall, the Industrial Mini PC GPIO | RK35-6L/7L is a versatile and reliable solution for a wide range of industrial applications that require GPIO capabilities, high performance, and rugged design.
