SKU | NANO-100 |
Processor | Intel ®Celeron® N100 |
Memory Type | 1x SO-DIMM Memory Slot, support single channel 1600/1333MHz DDR3L/1.35V memory, max support 8GB |
Video Output | Integrated with Intel ® HD Graphics 4400 Core Graphics Card |
1x VGA interface, 1x HDMI display interface | |
Supports VGA, HDMI synchronous and asynchronous displays | |
Ethernet / LAN | 2x Realtek RTL8111H Gigabit Ethernet card (1x network option), supports network Wake-on / PXE |
Storage | 1x 7pin SATA3.0 hard disk interface, transmission rate up to 6Gbps |
1x mSATA3.0 slot （long card） | |
Audio | Onboard ALC897 7.1 channel high fidelity audio controller Supports MIC/Line out and power amplifier (supports 2 Euro 5W dual channel, optional) |
Expansion Slots | 1x Mini PCIe slot (supports both half card and long card), optional WiFi/4G module |

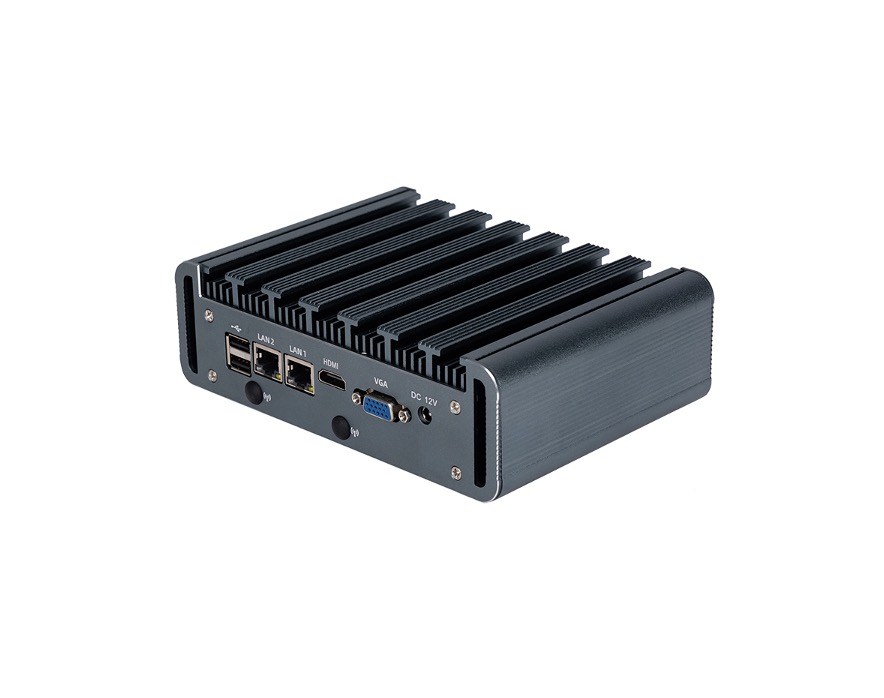

Rear I/O | 2x GPIO |
1x Mini-PCIe slot, support WiFi / 4G module | |
1x HDMI 1.4 video output interface | |
1x VGA video output interface | |
2x USB2.0 interface | |
2x RJ45 gigabit ethernet interface (optional either 1 of LAN 2 or two layers USB2.o interface, default LAN) | |

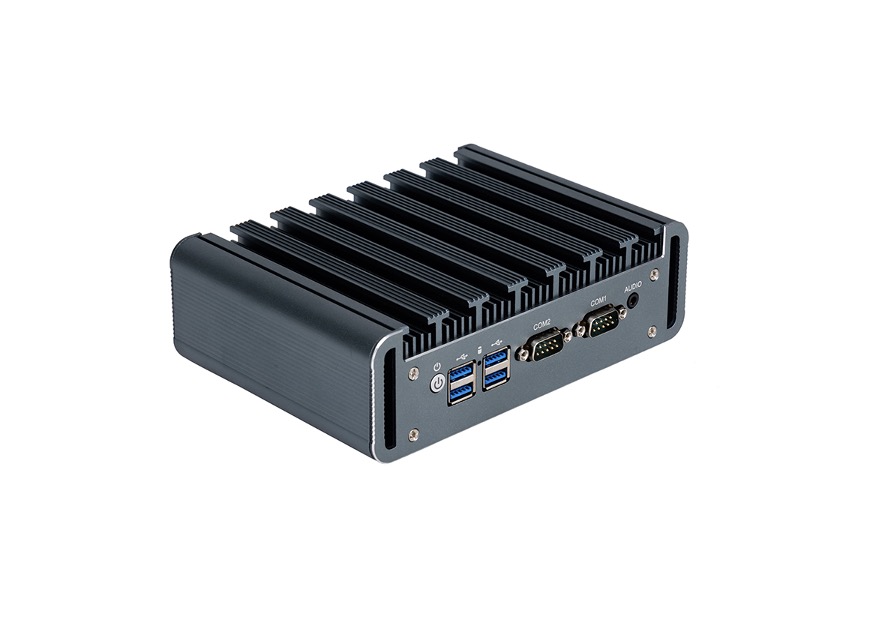

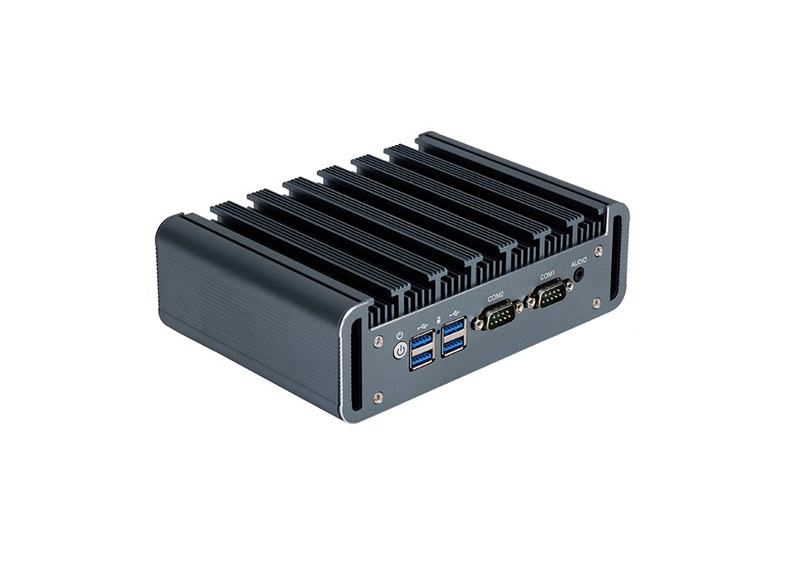

Front I/O | 1x 12VDC Power Input |
4x USB 3.0 interface | |
1x LINE OUT and MIC (2in1) interface | |
2x DB9 RS232 COM (Default RS232, COM1 and COM2 optional support for RS485 through jumping) | |
1x hard disk indicator | |
BIOS | 64Mb Flash ROM |
Watchdog | Support hardware reset function (256 levels, 0 ~ 255 seconds) |
Operating Systems | Windows 7, Windows 10 Pro/11, Linux, Ubuntu 24.04 |
Power Input | Wide-range 9 ~ 36V DC Standard 12VDC |
Material | Industrial grade aluminum |

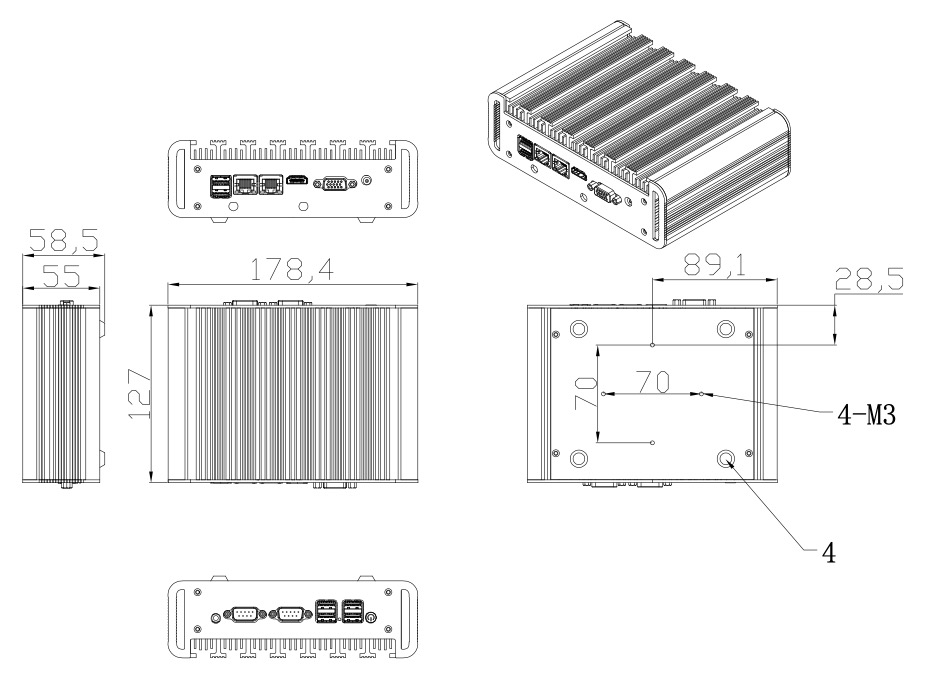

Dimension | 176x125x53mm |
Gross Weight | 0.90kg |
Mounting Options | Wall Mount, Desktop Stand |
Operating Temperature | -30℃ ~ +70℃ |
Storage Temperature | -40℃ ~ +80℃ |
Humidity Rage Non-condensing | 5% - 95% |
>Advantages
Compact
Small and take up little space, which is ideal for small workspaces
Durable
Built with rugged materials like aluminum alloy to withstand harsh environments
Powerful
Handle demanding tasks like automation applications
Versatile
Offer a variety of connectivity options, including LAN ports, HDMI, and USB
Customizable
Support both SSD and HDD storage, and can be configured to meet specific needs
Reliable
Designed for long-term use and come with after-sales support
Our Vincanwo Group Brand N100 2*GPIO Fanless Embedded Computer for IoT | NANO-100 is a desktop computer without cooling fans or ventilation holes. Instead, the heat is absorbed by the case and dispersed into the environment.
>Applications
Our Vincanwo Group Brand N100 2*GPIO Fanless Embedded Computer for IoT | NANO-100 can be used for a variety of applications, including kiosks, advertising machines, self-service terminals, and networking. They are also well-suited for industrial environments.
· Kiosks: Can be used in kiosks.
· Advertising machines: Can be used in advertising machines.
· Self-service terminals: Using in self-service terminals.
· Electronic whiteboards: Using in electronic whiteboards.
· Networking: Can be used in networking.
· Industrial environments: Well-suited for industrial environments because they are quiet and can withstand dust, dirt, and moisture.
Our Vincanwo Group Brand N100 2*GPIO Fanless Embedded Computer for IoT | NANO-100 is often more energy-efficient and quieter than full-size computers because they use lower power components. Also use heat-pipe technology and aluminum fanless for passive cooling.
