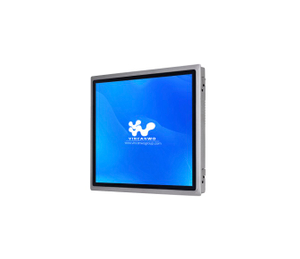

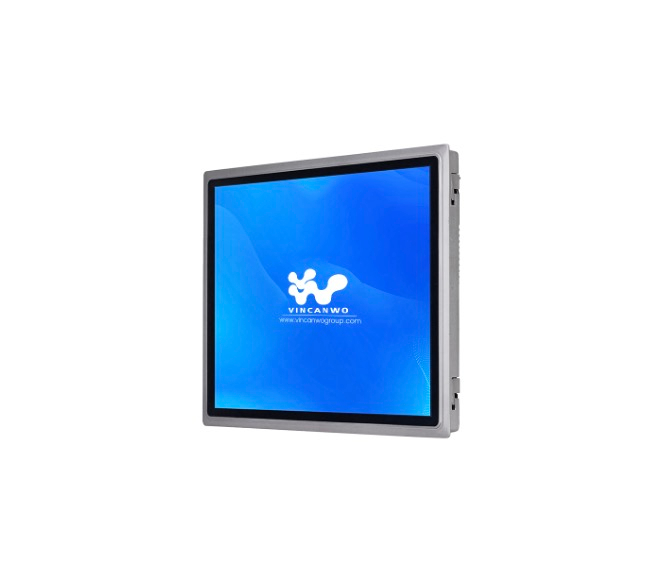

| SKU | IPM-15 |
| Screen Size | 15" |
| Resolution | 1024*768 |
| Viewing Angle | 89/89/89/89 |
| Brightness | 350 cd/m2 |
| Contrast Ratio | 1000:1 |
| Touch Screen | Capacitive, Resistive |
| Controller | USB interface |
| Durability | Cpacitive: ≥ 5M times / Resistive: ≥ 100,000 times |
| USB | 1 *USB (For touchscreen cable) |
| Display | 1 *HDMI, 1*VGA |
| Dimensions (mm) | 367.3*291.3*58.8 |
| Hole Sizes (mm) | External embedded size: 359*283mm |
| Internal embedded size: 350*274mm | |
Individual Gross Weight (KG) | 3.25kg |
| Mounting Options | Embedded / Wall-mounted / Desktop |
| Operating Temperature | -30 ~ +70℃ |
| Storage Temperature | -40 ~ +80℃ |
Storage Humidity *Non-condensing | 5% ~ 95% |
| Power Input | 12V DC (3A) <Option Wide-range 9~36V DC Power Input> |
| Packaging Information | 1 *Master, 1 *Adapter, 1* Power Supply Cable, 1 *Touch Screen Cable, 1 *VGA cable, 1 *Manual, 1 *Warranty Card |
| Feature | IPM-15 Specifications |
|---|---|
| Display | 15.6" TFT LCD (16:9 aspect ratio) |
| Resolution | 1920×1080 (FHD) or 1366×768 (HD) |
| Brightness | 400–1,000 cd/m² (optional 1,500 nits sunlight-readable) |
| Touch Technology | Projected Capacitive (P-CAP) or 5-Wire Resistive(IP65-rated) |
| Viewing Angle | 178° horizontal/vertical (IPS panel) |
| Operating Temp | -30°C to +70°C(fanless/hybrid cooling) |
| Ingress Protection | IP66/IP69K front(dust/water/high-pressure wash) |
| Power Input | 24V DC (9–36V wide range) or 100–240V AC |
| Mounting | Panel cutout (352.5 × 264.5 mm), VESA 100×100, or DIN-rail |
| Construction | Cast aluminum chassis, 5mm tempered glass front |
Ruggedization & Reliability
Vibration/Shock: 5Grms vibration / 50G shock (IEC 60068-2-64/27)
Chemical Resistance: Front bezel withstands oils, solvents, and cleaning agents
Conformal Coating: PCBs protected against humidity and condensation
EMC Compliance: EN 61000-6-2/4 (industrial EMI immunity)
Touch Performance Enhancements
Glove/Wet-Hand Operation: 10mm glove support (resistive), rain rejection (P-CAP)
Anti-Glare/Anti-Fingerprint: Optional coatings for readability and cleanliness
Optical Bonding: Eliminates air gap → reduces fogging + boosts contrast (optional)
Connectivity & Expansion
8× GPIO (0–30V), CAN Bus 2.0B
M12 connectors (optional for power/Ethernet)
2× USB 3.0, HDMI 1.4, RJ45 GbE
2× Isolated RS-232/485 (2.5kV isolation)
Standard I/O:
Industrial I/O:
Wireless: M.2 slots for Wi-Fi 6, Bluetooth 5.2, 4G/5G modules
Factory Automation: HMI for PLCs, robotic control stations
Food & Beverage: Washdown areas (IP69K, EHEDG compliance)
Energy: Substation control panels (IEC 61850-3 certified)
Transportation: Railway/train dashboards (EN 50155 variants)
| Requirement | IPM-15 Solution |
|---|---|
| Harsh Environment | IP69K front, conformal coating |
| Touch Accuracy | ±1mm (resistive) / ±2mm (P-CAP) |
| Wide Voltage Input | 9–36V DC (tolerates voltage drops) |
| Certifications | UL 61010-1, CE, FCC, RoHS, EN 50155 (rail) |
| Security | TPM 2.0, secure boot, Kensington lock |
Panel Cutout Installation
Use silicone gaskets to seal edges against dust/moisture
Torque mounting screws to 0.6–0.8 N·m (over-tightening cracks glass)
Thermal Management
Maintain ≥5cm clearance for passive heat dissipation
In ambient >60°C, add external heatsink (e.g., Fischer SK470 50x50mm)
Electrical Protection
Isolate RS-485/CAN lines with surge suppressors (e.g., Phoenix Contact VAL-MS)
Use 24V DC UPS (e.g., PULS DIMENSION) for brownout protection
Content Optimization
Use high-contrast UI elements (min. 30 pt font for 2m viewing)
Schedule night-mode dimming to reduce power/heat
| Parameter | Commercial Display | IPM-15 Industrial |
|---|---|---|
| Operating Temp | 0°C to 40°C | -30°C to 70°C |
| Touch Durability | 1 million touches | 10 million+ touches |
| Power Input | 100–240V AC only | 9–36V DC + AC backup |
| MTBF | ≤30,000 hours | ≥150,000 hours (IEC 61709) |
| Vibration | 1Grms | 5Grms |
