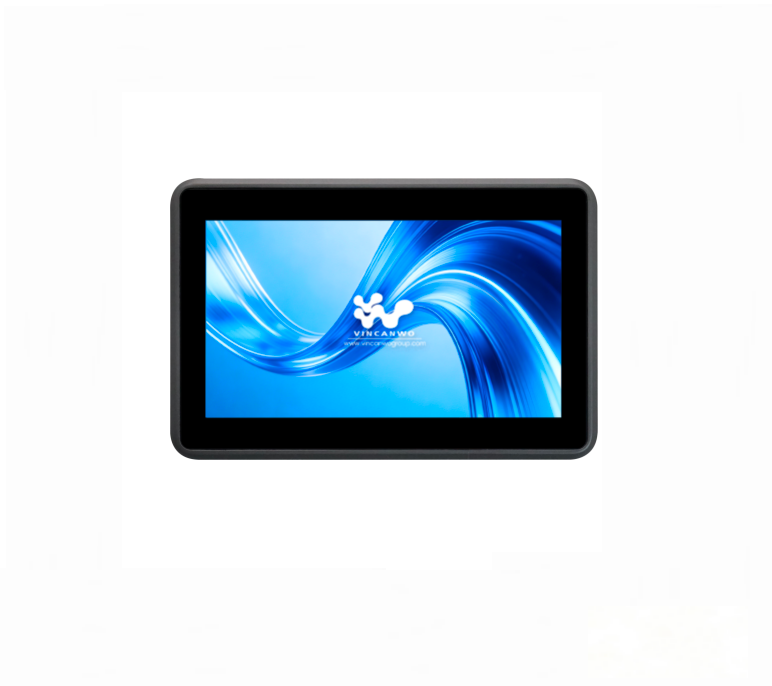

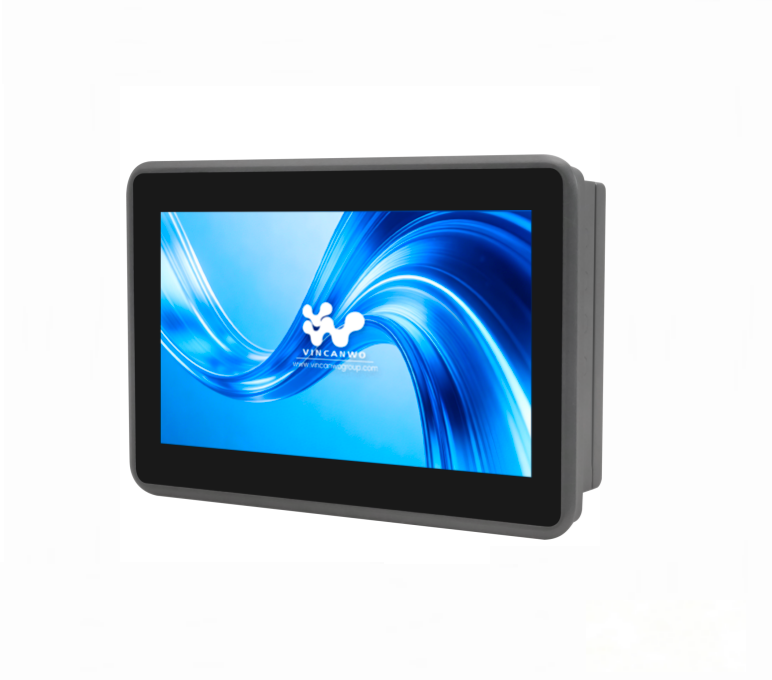

7" Industrial Fanless Touchscreen Monitor | IPM-SE7
VINCANWO GROUP
Availability: | |
---|---|
Quantity: | |
SKU |
IPM-SE7 |
Screen Size |
7" |
Resolution |
1024*600 |
Viewing Angle |
85/85/85/85 |
Brightness |
300 cd/m2 |
Contrast Ratio |
500:1 |
Touch Screen |
Capacitive |
Controller |
USB interface |
Durability |
≥5M times |

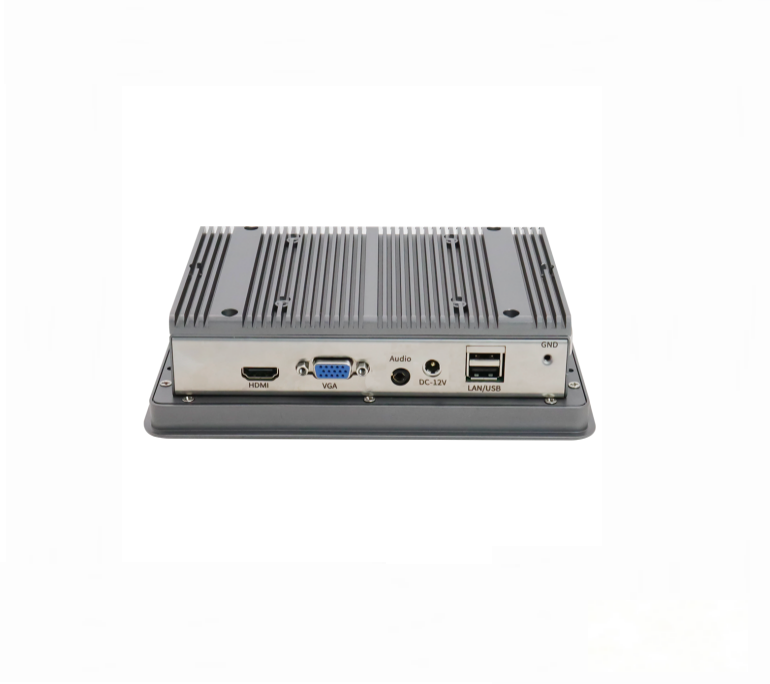

USB |
1 *USB (For touchscreen cable) |
Display |
1 *HDMI, 1 *VGA |

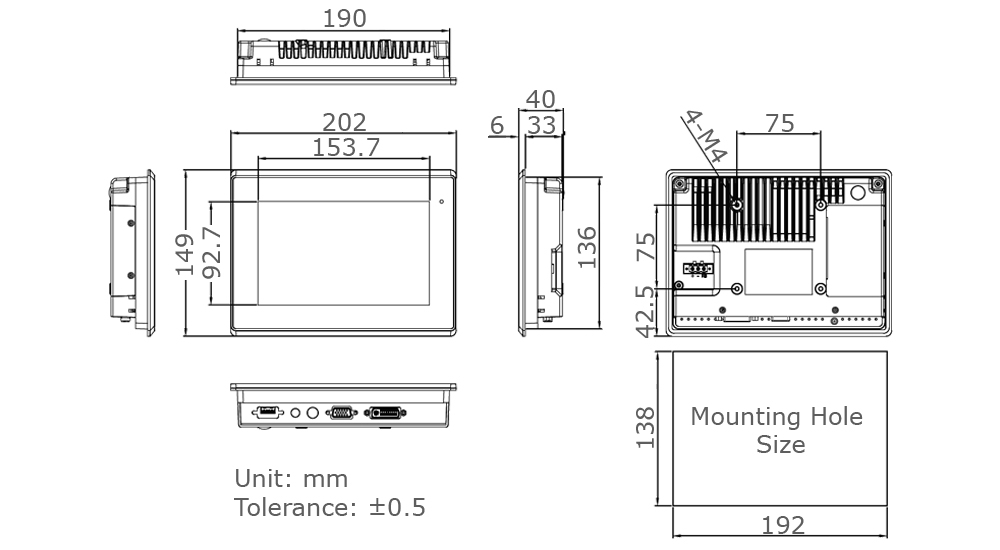

Dimensions (mm) |
194*129.9*52 |
Recommended size of holes openning (mm) |
188*124 |
Gross weight (kg) |
1.8kg |
Installation methods |
Embedded / Wall mount / Desktop |
Operating Temperature |
-30 ~ +60°C |
Storage Temperature |
-40 ~ +70°C |
Storage Humidity *Non-condensing |
5 ~ 95% |
Packaging Information |
1 *Master, 1 *Transformer, 1* Power Supply Cable |
>Advantages:
The 7" Industrial Monitor IPM-7 offers the most advantages for industrial applications:
Compact Size: The 7" display size is ideal for use in tight spaces or where space is limited, making it suitable for a variety of industrial environments.
High Resolution Display: The IPM-7 features a high resolution display that provides crisp and clear images, making it easy to view critical information and data.
Rugged and Durable Design: The IPM-7 is housed in a durable metal enclosure that can withstand harsh industrial environments. It is also IP65 rated for protection against dust and water ingress.
Wide Operating Temperature Range: The IPM-7 is designed to operate in a wide temperature range, making it suitable for use in both indoor and outdoor applications.
Versatile Connectivity Options: The IPM-7 offers multiple connectivity options, including VGA, HDMI, and DVI inputs, allowing for easy integration with a variety of industrial equipment and systems.
Easy Mounting Options: The IPM-7 can be easily mounted on a variety of surfaces, making it versatile and adaptable to different installation requirements.
Overall, the 7" Industrial Monitor IPM-7 is a reliable and versatile display solution that is well-suited for a wide range of industrial applications.
>Applications:

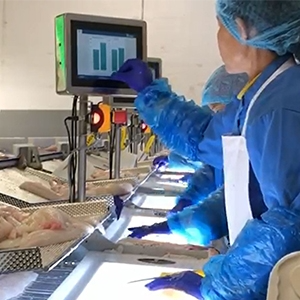

The 7" Industrial Monitor IPM-7 is suitable for a variety of industrial applications, including:

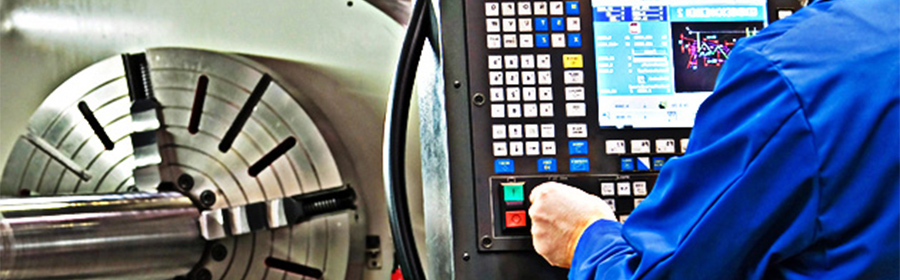

Factory Automation: The IPM-7 can be used in factory automation systems to monitor and control manufacturing processes, machinery, and equipment.
Process Control: The IPM-7 is ideal for use in process control applications, such as monitoring and managing industrial processes in real-time.
HMI (Human Machine Interface): The IPM-7 can serve as a user interface for controlling and monitoring industrial equipment and systems.
Industrial Machinery: The IPM-7 can be integrated into industrial machinery and equipment to display critical information, data, and diagnostics.
Transportation: The IPM-7 can be used in transportation systems, such as in-vehicle displays for monitoring vehicle performance or navigation systems.
Energy and Utilities: The IPM-7 can be utilized in energy and utility applications for monitoring and controlling power generation, distribution, and consumption.
Outdoor Environments: The IPM-7's rugged design and wide operating temperature range make it suitable for outdoor applications, such as outdoor kiosks or monitoring systems.
Overall, the 7" Industrial Monitor IPM-7 is a versatile display solution that can be used in a wide range of industrial applications to enhance efficiency, productivity, and safety.
