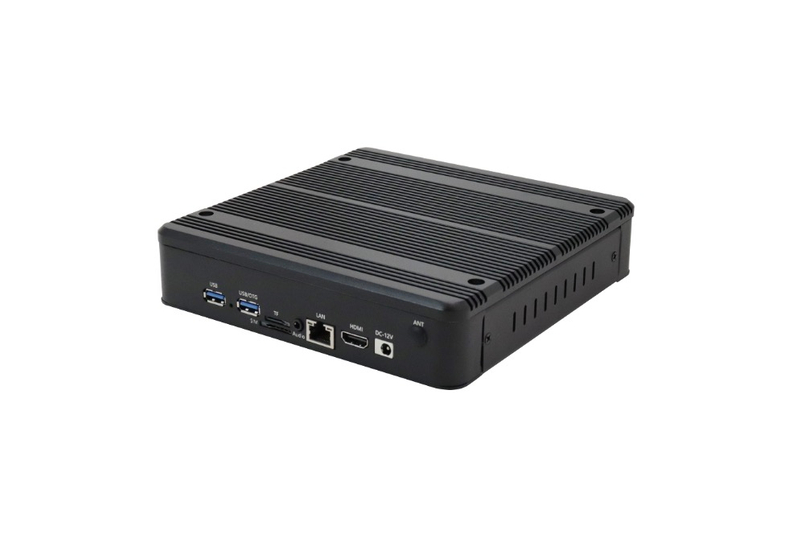

SKU | AN3399 |
Processor | Dual Cortex-A72+Quad Cortex-A53 multi-core CPU structure, with a maximum frequency of 1.8GHz |
Memory | 2G/4G |
Storage | 32G/64G/128G |
Net work | 1*LAN |
COM | 2*RS232（COM1 support RS485） |
USB | 6*USB |
Display | 1*HDMI |
Expand slot | 1*LINE OUT |
Operating system | Android , Linux(Ubuntu/Debian) |
Power Input | DC12V |
Size included rack (mm) | 183x183x45 |
Individual Gross Weight (KG) | 0.90 |
Mounting Options | Wall-mounted / Desktop |
Operating Temperature | -30 ~ +70°C |
Storage Temperature | -40 ~ +80°C |
Storage Humidity *Non-condensing | 5 ~ 90% |
Packaging Information | 1 *Master, 1 *Adapter, 1* Power Supply Cable |
| Feature | AN3399 Specifications |
|---|---|
| Processor | NXP i.MX8M Plus (4× Cortex-A53 @ 1.8GHz + Cortex-M7 @ 800MHz) |
| AI Acceleration | 2.3 TOPS NPU(Vision/audio processing) |
| Power Consumption | 1.2W (idle) / 4.5W (peak) |
| Operating Temp | -40°C to +85°C (fanless, conformal-coated) |
| Ingress Protection | IP40 (board) / IP65 (w/enclosure) |
| Form Factor | SMARC 2.1 (82 × 80 mm) |
| Memory/Storage | 2GB/4GB LPDDR4X + 16GB eMMC 5.1 (µSD expansion) |
| Construction | 6-layer PCB w/ 2oz copper (high-current traces) |
| Power Input | 5–36V DC (reverse polarity/OVP) |
Real-Time Hybrid Architecture
Cortex-M7 Co-Processor: Handles time-critical tasks (≤5 µs interrupt latency)
Asymmetric Multiprocessing (AMP): Run FreeRTOS on M7 + Linux on A53 simultaneously
Extreme Environment Resilience
Conformal Coating: Humiseal 1B33 (MIL-I-46058C) for humidity/chemical resistance
Vibration/Shock: 5Grms / 50G (IEC 60068-2-64/27)
EMC Compliance: EN 55032 Class A, IEC 61000-4-6 Level 4
Security Hardening
Secure Boot: HABv4 (High-Assurance Boot)
Encrypted Storage: CAAM-enabled AES-256/SHA-3
Physical Tamper Detection: ERASE pin wipes keys on enclosure breach
| Interface | Automation Use Case |
|---|---|
| Fieldbus | Dual CAN FD (ISO 11898-2), 2× RS-485 w/ isolated transceivers(ADM3053) |
| Industrial Ethernet | 2× GbE w/ IEEE 1588 PTP (precision time sync) |
| I/O Expansion | 120-pin connector: 16× GPIO, 8× ADC (12-bit), 4× PWM |
| Wireless | M.2 Key-E (Wi-Fi 6/BT 5.2), Mini PCIe (LTE Cat 12) |
| Camera/Sensors | Dual MIPI-CSI (4-lane), I⊃2;S, SPI, I⊃2;C |
Predictive Maintenance: Vibration analysis w/ integrated MEMS sensor (IEPE interface)
Energy Management: Power quality monitoring (0.5% accuracy voltage/current sensing)
Building Automation: BACnet/IP controller w/ KNX gateway
Mobile Machinery: ISO 11783 (ISOBUS) implement control
