| Product Form | 10.1" Rugged Windows Tablet |
| Material | ABS+PC |
| Dimension | 289.9*196.7*21.2mm |
| Weight | 1230g |
| Product Color | Black |
| CPU | i5-1235U, TDP15W, 2P-Cores, 10E-Cores, 12threads, 0.9GHz~4.4GHz Optional: i7-1255U, TDP15W, 2P-Cores, 10E-Cores, 12threads, 1.2GHz~4.7GHz |
| GPU | Intel® Iris® Xe Graphics eligible |
| Memory | RAM 16GB DDR4L ROM 128GB SSD |
| Operating System | Windows 11 Pro (Home, IOT) 64bit, Language by default: English Optional: Windows 10 IOT 64bit Windows 10 Pro 64bit Windows 10 Home 64bit |
| Display | Type: LCD Size: 10.1 inch 16:10 Resolution: 1200*1920 Brightness: 700cd/㎡ |
| Touch Pannel | 10 points capacity TP, G+F+F, Hardness over 7H, Scratch resistant, Support stylus |
| Camera | Front 2.0MP (USB) Rear 8.0MP (USB) |
| Buttons | Power *1 Volume Key + *1 Volume Key - *1 Windows Home *1 F Key *1 (Barcode Scanning, Customizable without barcode) |
| Speaker | 8Ω/1W Waterproof Speaker *1 |
| Microphone | Waterproof microphone 4618, specification: - 44dB±3DB |
| Senssors | G_sensor |
| Fan | IPX5 Fan *1 |
| RTC Battery | 3V 210mAH Continuous discharge current: 0.2mA Diameter: Ø20.0mm Max Thickness: 3H.2mm |
| Small Battery | Build in Lithium-ion polymer battery, Non-removable 7.4V/860mAh |
| Big Battery | Removable Li-polyment Battery 7.4V/5000mAh 4.5h ( 50% volume sounds, 50% screen brightness, 1080P HD video display by default ) |
| WIFI | Wi-Fi 6 802.11a,b,d,e,g,h,i,k,n,r,u,v,w,ac,ax Dual frequency 2.4G+5.8G WIFI |
| Bluetooth | BT5.1 (BLE) class1 Transmited distance：10m |
| 4G | MeiG 750 LTE-FDD: B1/3/5/7/8/20 LTE-TDD: B40 WCDMA: B1/5/8 GSM: 900/1800 China (Unicom, mobile support is poor, only B8 supports without TDD band) Europe, Middle East, Africa, Taiwan, Japan Optional: MeiG North America and South America modules |
| GPS | U-blox M7N, Support: GPS, glonass Optional: U-blox M8Q, Support: GPS, Beidou, glonass |
| I/O Interface | USB3.1 *1 |
| Type C (Full function/HDMI/Charging) *1 | |
| ∮3.5mm Standard earjack *1 | |
| HDMI 2.1a mini *1 | |
| SIM card *1 | |
| TF card *1，Max: 128GB | |
| DC 19V 3.42A jack *1 | |
| 12PIN Pogo Pin (USB/Docking charging) *1 | |
| Adapter | AC100V ~ 240V, 19V 3.42A/65W Output USA Standard CE approval Optional: EU UK |
| Rugged Features | MIL-STD-810G: 1.22m drop |
| Working temperature: -30 °C to 70 °C | |
| Storage temperature: -40 °C to 80 °C | |
| Electrostatic discharge: ± 8kV contact discharge, ± 15kV air discharge | |
| Humidity: 95% Non-Condensing | |
| Certification | IP65 |
| CE | |
| CCC | |
| MIL-STD-810G | |
| Battery: UN3803, MSDS, IEC62133, aviation report, marine report | |
| Data Collection | NFC Optional NXP300 NXP NFC 13.56MHz supports 14,443A/14,443B/15,693/18,092/mobile protocol under ISO/IEC. Card reading distance: 4cm |
| Fingerprint Built-in | |
| Expansion Module | RJ45 board (Standard) (10/100/1000M) network port * 1, supporting customized (10/100/1000M) gigabit network speed network port |
| DB9 board (RS232) *1, 9-line full function | |
| USB2.0 USB2.0 *1, Big USB | |
| QR Code Scanner N3680 hardcode, Optical resolution: 5mil, scan speed: 50 times/s |

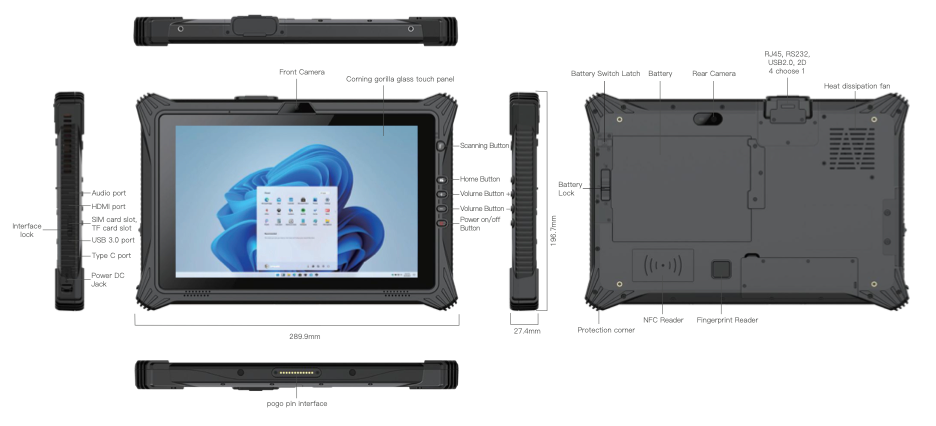

Product Six View

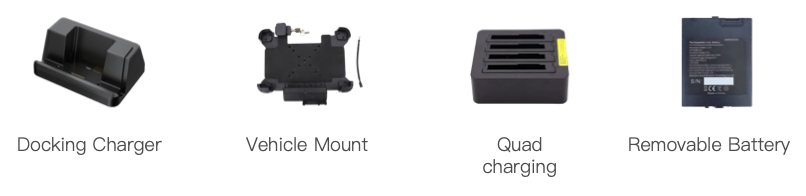

Accessories
5000mAh High-Capacity & 48W Fast Charge
Paired with a 7.6V/5000mAh (38Wh) high-capacity battery, the I10J provides approximately 6.5 hours of battery life. This removable battery Windows tablet features 48W constant voltage charging and dual-locking mechanisms for maximum reliability in industrial Windows PC tasks.
Flexible Customization & Enterprise Security

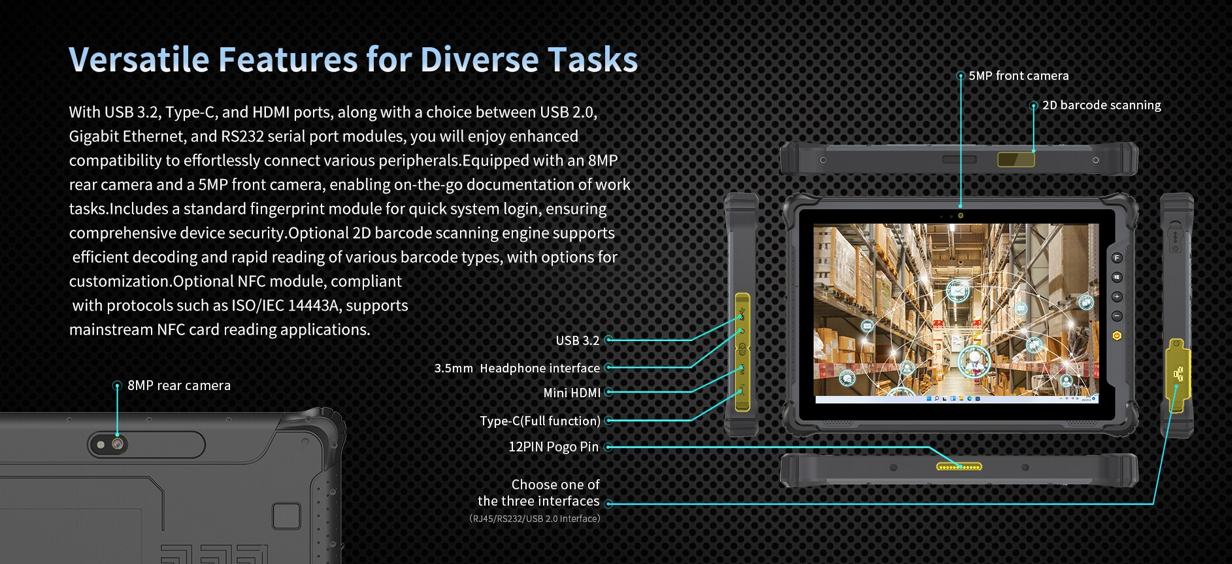

The I10J provides enhanced compatibility with USB 3.2, Type-C, and HDMI ports. This industrial Windows PC features a standard fingerprint module for secure login and offers an optional expansion port choice between RJ45, RS232, or USB 2.0.
Advanced Thermal Design & Protection
Featuring a brand-new cooling system with high-performance thermal materials, the I10J ensures stability at full potential. This industrial Windows PC meets MIL-STD-810H standards and IP65-rated resistance, remaining always active in frontline scenarios.
The I10J 10.1” rugged Windows tablet (IP65, MIL-STD-810G) is built for harsh industrial & mobile workflows, with key applications below：
Warehouse management: Real-time WMS access, order picking, inventory checks, and barcode/QR scanning (2D scanner optional).
Cold-chain operations: Freezer/cold-storage use (-20°C to 60°C operating temp) on forklifts with vehicle mounts.
Last-mile delivery: 4G LTE/GNSS (GPS/BeiDou/GLONASS) for route navigation, proof of delivery, and signature capture.
Production monitoring: Real-time OEE tracking, work order execution, and machine data entry on the line.
Quality control: On-site inspection, defect logging, and digital work instructions with glove-touch support.
Asset maintenance: Equipment checklists, predictive maintenance data, and quick access to maintenance docs.
Field maintenance: For energy, water, and telecom—on-site diagnostics, repair logs, and schematic viewing.
Engineering & construction: Site surveying, blueprints, progress photos, and GPS-based site mapping.
Public safety: Patrol reporting, incident documentation, and real-time data access for first responders.
In-vehicle computing: Mounted in trucks/ships for telematics, fleet tracking, and electronic logging (ELD).
Rail & port operations: Cargo tracking, container inspection, and manifest management in rugged terminals.
Mobile clinics: Patient data entry, electronic health records (EHR), and prescription management in remote areas.
Emergency medical services (EMS): Ambulance patient care reporting (PCR) and real-time hospital data sharing.
Inventory & stockroom: Backroom stock counts, receiving, and shelf replenishment in warehouses/stores.
Event management: On-site ticketing, guest check-in, and venue operations in outdoor/harsh venues.
Ruggedness: IP65 dust/waterproof, 1.22m drop-proof, MIL-STD-810G certified.
Connectivity: 4G LTE, dual-band Wi-Fi, BT 5.0, GNSS for always-on field connectivity.
Interaction: 10-point capacitive touch (glove/stylus support), 700nits sunlight-readable display.
Expansion: Optional 2D scanner, UHF/RFID/NFC, fingerprint reader, and vehicle docking.
